Gypsum Board Ceiling

  • - Recessed frame design for plasterboard recessed installation
  • - EN 12464-1& LG7 Compliant, UGR<19 Optional
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • Product description:The Cyanlite™ LED panel lights Recessed Frame series has been designed for the gypsum board/plasterboard/Cut-Out/prepared aperture ceilings.
  • Inquiry

Cyanlite Recessed Frame LED panel light RF series for Cut-Out Gypsum board/Plaster board ceilings

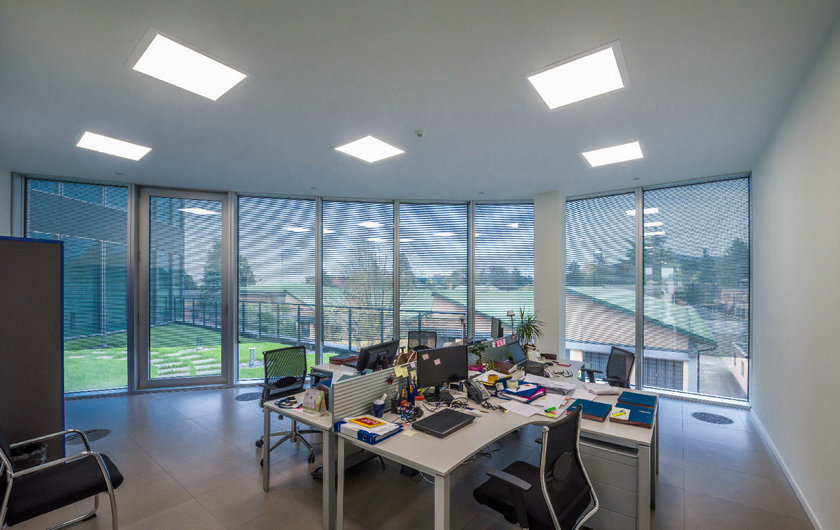

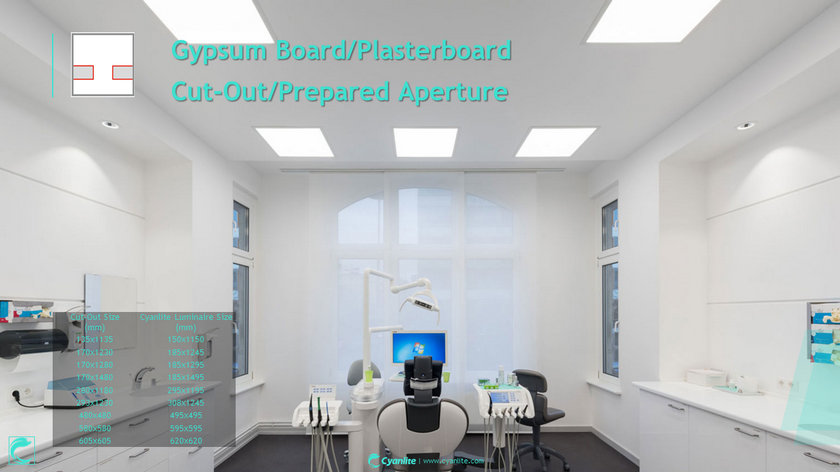

Cyanlite Recessed Frame LED panel light for gypsum board ceiling

The Cyanlite™ LED panel lights Recessed Frame series has been designed for the gypsum board/plasterboard/Cut-Out/prepared aperture ceilings. These luminaires recessed into the gypsum ceiling systems perfectly and steady with spring clip fixtures, making the whole ceiling system uniform and elegant.

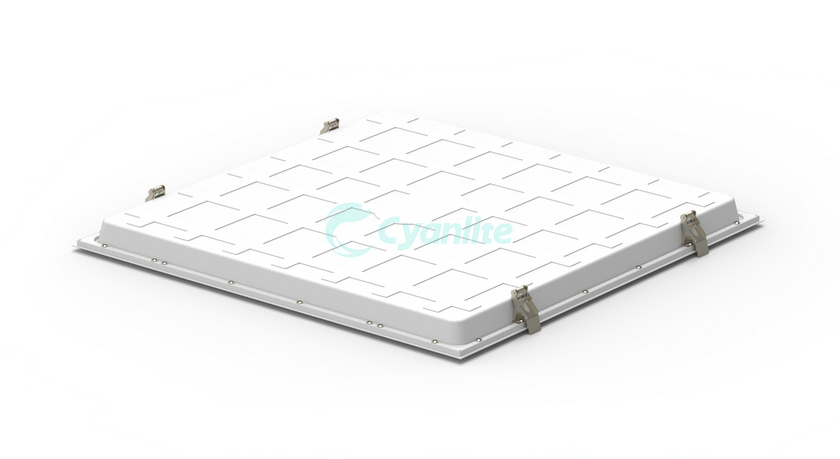

Cyanlite universal design LED backlite panel light for t-bar and gypsum board ceiling

Cyanlite universal design LED backlite panel light for t-bar and gypsum board ceiling

Cyanlite universal design LED backlite panel light for t-bar and plaster board ceiling

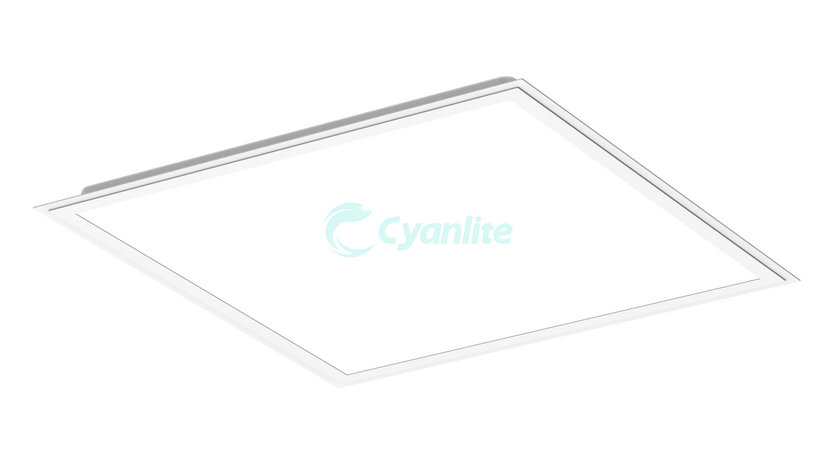

Cyanlite backlite LED panel light universal design SNAP frame

Cyanlite backlite LED panel light universal design SNAP frame

Advantages

-          Specially designed for recessed installation of gypsum board ceilings

-          Unique spring clip design, strong and easy to install

-          Easy and fast installation, saving installation cost

-          A wide product range and retrofit sizes for traditional luminaires sizes

-          Flexible and customization oriented, bespoke sizes are welcome

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   Standard sizes (mm): 150x1150, 184x1231, 185x1245, 185x1295, 185x1495, 295x1195, 308x1245, 310x1547, 495x495, 595x595, 620x620

l   RAL9016 as standard coating colors, other RAL colors available on request

l   System Efficiency upto 120 lm/W

l   EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

Specifications

Part No.

Power

Luminous
Flux

Dimension
(mm)

Cut-Out size
(mm)

Efficiency

PS30W111R

30W

3600lm

150x1150x10

135x1135

120lm/W

PS30W112R

30W

3600lm

184x1231x10

169x1216

120lm/W

PS30W212R

30W

3600lm

185x1245x10

170x1230

120lm/W

PS30W213R

30W

3600lm

185x1295x10

170x1280

120lm/W

PS35W215R

35W

4200lm

185x1495x10

170x1480

120lm/W

PS30W312R

30W

3600lm

295x1195x10

280x1180

120lm/W

PS30W313R

30W

3600lm

308x1245x10

293x1230

120lm/W

PS35W316R

35W

4200lm

310x1547x10

295x1532

120lm/W

PS30W050R

30W

3600lm

495x495x10

480x480

120lm/W

PS30W060R

30W

3600lm

595x595x10

580x580

120lm/W

PS30W062R

30W

3600lm

620x620x10

605x605

120lm/W

- Light Distribution


- UGR22 with Opalic diffuser                                         - UGR19 with Micro Prismatic diffuser

Installation

Cyanlite universal design LED backlite panel light for t-bar and gypsum board ceiling

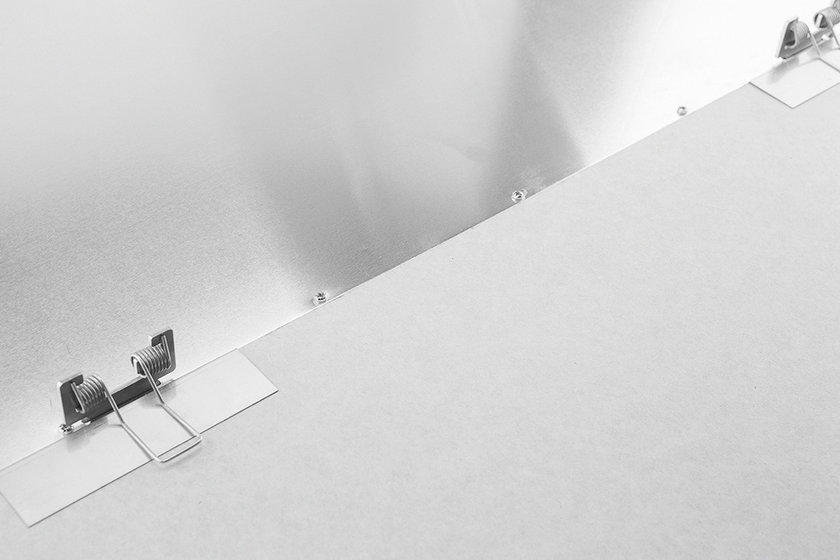

Cyanlite Recessed Frame LED panel light for gypsum board ceiling installation

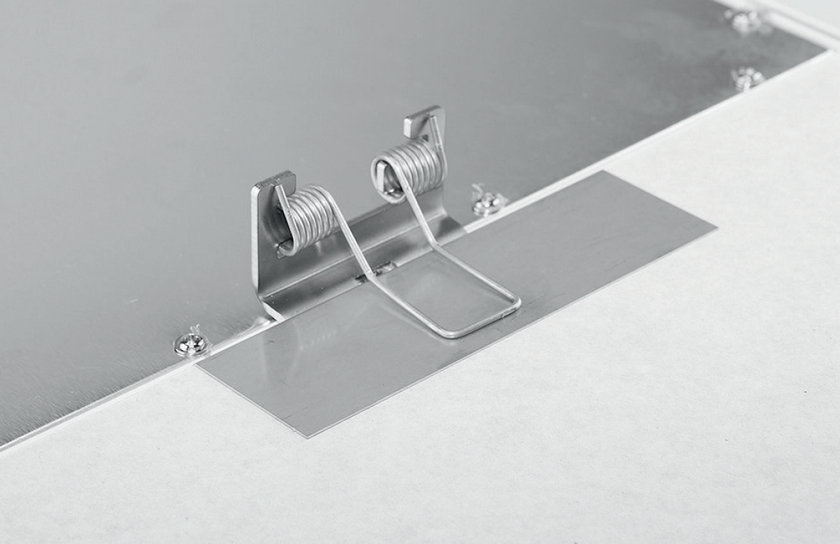

Cyanlite Recessed Frame LED panel light for gypsum board ceiling spring clip

Cyanlite Recessed Frame LED panel light for gypsum board ceiling

Certifications


Cyanlite Dekra ENEC certificate 6166340

• Downloads


Cyanlite Recessed Frame LED panel light for Cut-Out Gypsum board ceiling datasheet/installation manual/photometric data download
