Sidelite for Lay-On ceiling

  • - For T15/T24 Lay-On ceiling
  • - EN 12464-1& LG7 Compliant, UGR<19 Optional
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • Product description:Cyanlite Sidelite LED panel for Lay-On ceiling, with PMMA LGP & FF driver, 5 years warranty and a wide range with more than 20 standard sizes, customized oriented.
  • Inquiry

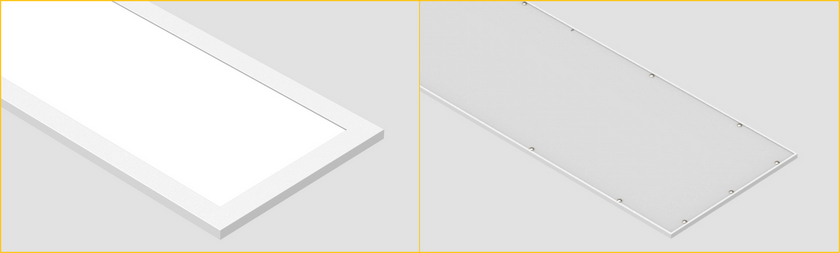

Cyanlite Sidelite LED panel lights  for Lay-On ceilings

Cyanlite sidelight LED panel light for layon ceiling


Nowadays, the backlite LED panel technology improves quite a lot, but in the meanwhile, the sidelite LED panel lights still have their biggest advantage – FLEXIBLE. The Cyanlite™ sidelite LED panel lights series has been designed for the high-class premium projects, adopt PMMA Light Guide Panel to avoid yellowing issue and ensure 5 years warranty, with a wide range of more than 20 standard sizes, more customized sizes and specifications are welcome.


Advantages

-          A wide range with more than 20 standard sizes, always have the spec you need

-          PMMA LGP and Flicker Free driver as standard

-          Easy and fast installation, tool-less installation, saving installation cost

-          Flexible and customization oriented, bespoke sizes are welcome

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   Standard sizes (mm): 184x1231, 190x1250, 190x1300, 190x1500, 300x300, 300x600, 300x1200, 300x1500, 300x1800, 310x1547, 312.5x1250, 312.5x1500, 312.5x1800, 400x1200, 400x1250, 400x1500, 400x1800, 500x500, 600x600, 600x1200, 625x625, 625x1250, 750x750

l   RAL9016 as standard to match SAS ceiling colors, other RAL colors available on request

l   System Efficiency upto 120 lm/W

l   EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

Specifications

Model

Part No.

Power

Luminous
Flux

Dimension
(mm)

184x1231

PS22W213

22 W

2500 lm

184x1231x10

190x1250

PS30W212

30 W

3600 lm

185x1245x10

190x1300

PS30W213

30 W

3600 lm

185x1295x10

190x1500

PS35W215

35 W

4200 lm

185x1495x10

300x300

PS15W030

15 W

1800 lm

295x295x10

300x600

PS20W306

20 W

2400 lm

295x595x10

300x1200

PS30W312

30 W

3600 lm

295x1195x10

300x1500

PS35W315

35 W

4200 lm

295x1495x10

300x1800

PS45W318

45 W

5400 lm

295x1795x10

310x1547

PS40W316

40 W

5000lm

310x1547x10

312.5x1250

PS30W313G

30W

3600 lm

308x1245x10

312.5x1500

PS35W315G

35 W

4200 lm

308x1495x10

312.5x1800

PS45W318G

45 W

5400 lm

308x1795x10

400x1200

PS30W412

30W

3600 lm

395x1195x10

400x1250

PS30W413

30W

3600 lm

395x1245x10

400x1500

PS35W415

35 W

4200 lm

395x1495x10

400x1800

PS45W418

45 W

5400 lm

395x1795x10

500x500

PS30W050

30 W

3600 lm

495x495x10

600x600

PS30W060

30 W

3600 lm

595x595x10

600x1200

PS50W612

50 W

6000 lm

595x1195x10

625x625

PS30W062

30 W

3600 lm

620x620x10

625x1250

PS50W613

50W

6000 lm

620x1245x10

750x750

PS50W075

50 W

6000 lm

745x745x10

- Light Distribution


- UGR22 with Opalic diffuser                                        - UGR19 with Micro Prismatic diffuser

Installation

Certifications
