  • Architectural LED Troffer T4
  • Architectural LED Troffer T4
  • Architectural LED Troffer T4
Architectural LED Troffer T4Architectural LED Troffer T4Architectural LED Troffer T4

Architectural LED Troffer T4

  • Product Item : T4 LED Troffer Light
  • - For T15/T24 Lay-On ceiling
  • - Direct light and indirect light to ensure soft light effect
  • - Certification: CE, RoHS
  • - 5 Years Warranty
  • Product description:Cyanlite T4 - LED architectural troffer light with lens and reflector. Cyanlite LED Troffer Light is a high-quality, energy-efficient lighting solution designed for commercial and office spaces.
  • Inquiry

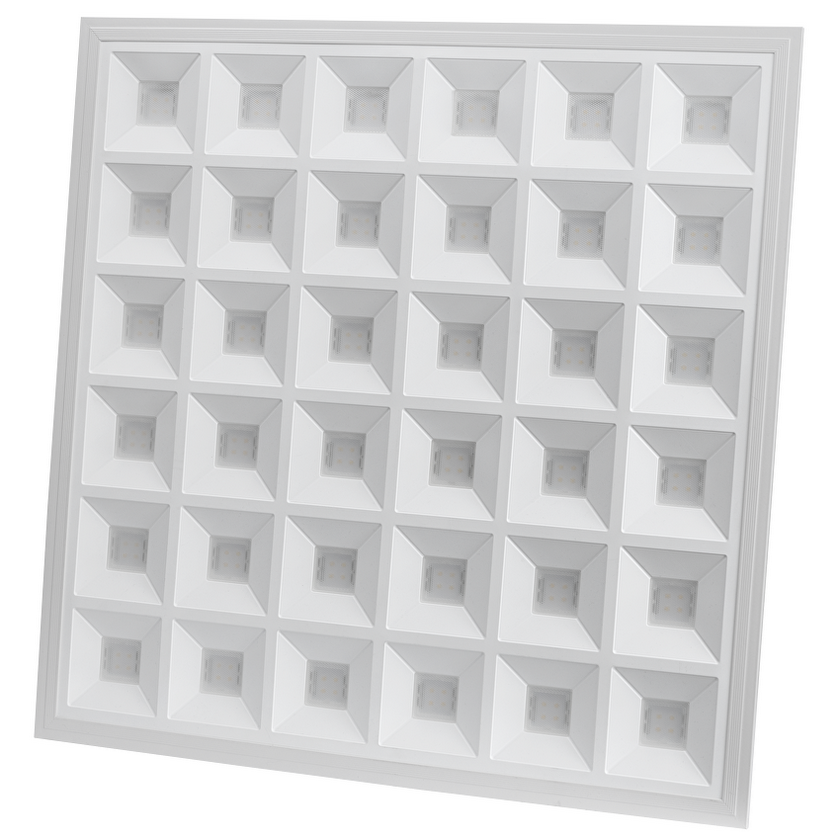

Cyanlite LED Architectural Troffer with lens and reflector - T4

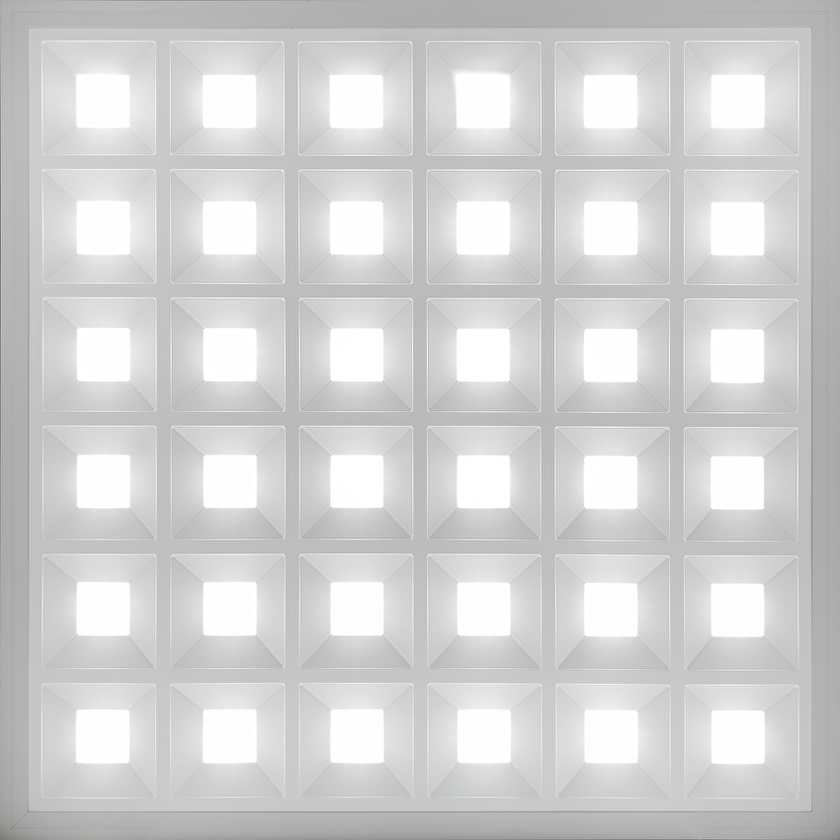

Cyanlite T4 LED troffer with lens and reflector 36 cells

Cyanlite LED Troffer Light is a high-quality, energy-efficient lighting solution designed for commercial and office spaces. This light features a sleek and modern design, making it a great choice for any contemporary setting. The LED technology used in the Cyanlite Troffer ensures low power consumption while still providing bright and uniform illumination. With a long lifespan, this light minimizes maintenance costs and reduces the need for frequent replacements.


Additionally, its low heat emission and environmentally friendly design make it a great choice for a sustainable and eco-friendly lighting solution. Overall, the Cyanlite LED Troffer Light is an excellent choice for those looking for a reliable and efficient lighting solution.

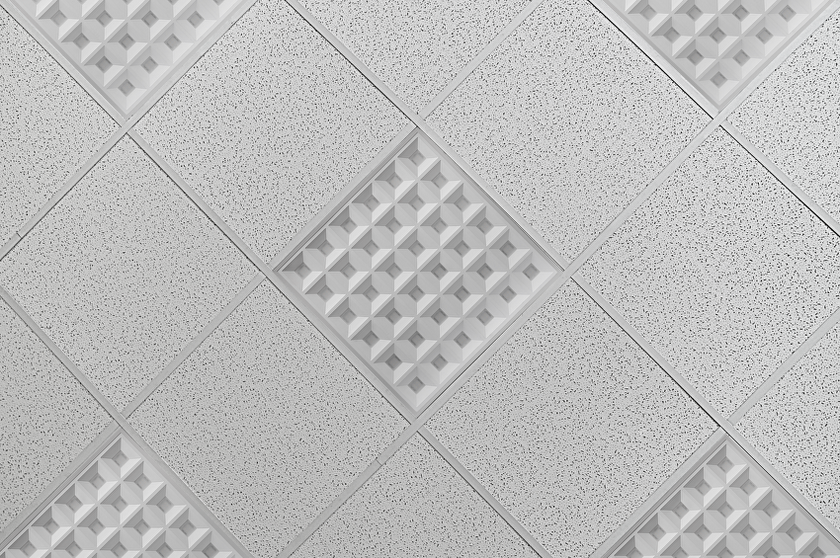

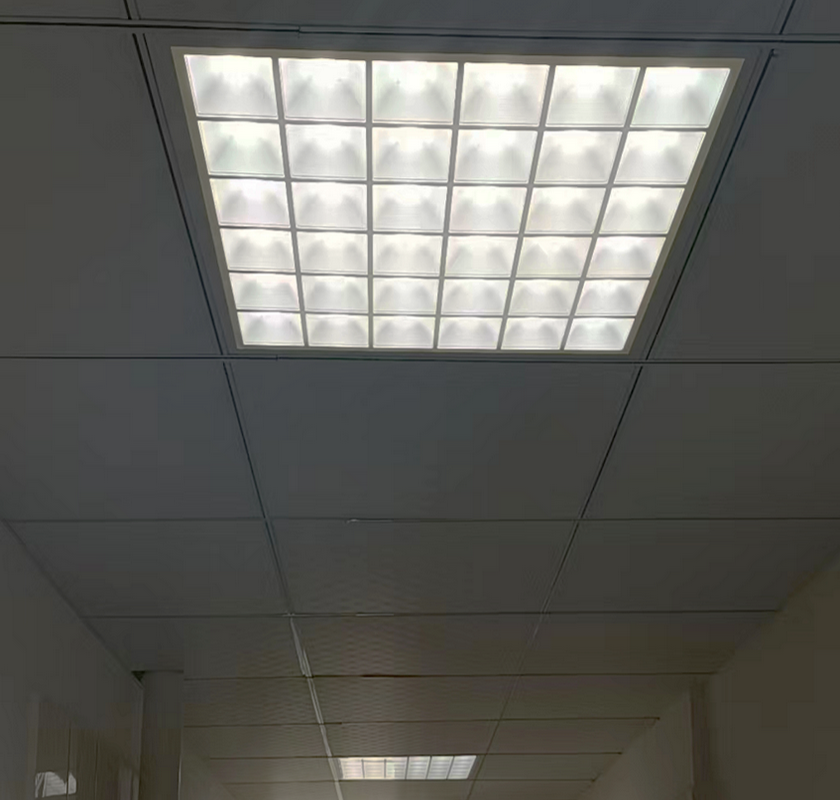

Cyanlite T4 LED troffer grille light project

Advantages

-          Direct and Indirect lighting design, soft light and low glare rating.

-          No light guide, no yellowish problem.

-          Architectural design with even light distribution.

-          Easy and fast installation, no additional job for screws or adjustment, saving installation cost

-          A wide product range for all major standard Lay-on ceiling tile sizes

-          Flexible and customization oriented, bespoke sizes are welcome

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

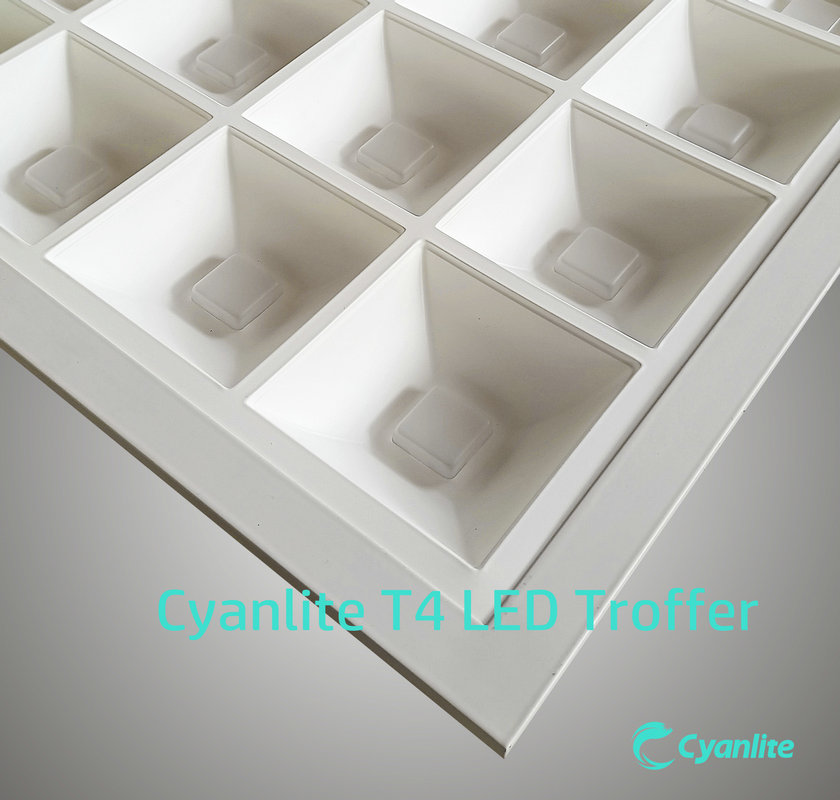

Cyanlite T4 LED troffer with lens and reflector low ugr and anti glare

Features

l   Standard sizes (mm): 595x595, 620x620, 295x1195, 595x1195

l   RAL9016 as standard, other RAL colors available on request

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

Specifications

Model

Part No.

System Power

Lumen Output

Dimension
(mm)

600x600

PB35W060P-T4

35W

4375 lm

595x595x35

625x625

PB35W062P-T4

35W

4375 lm

620x620x35

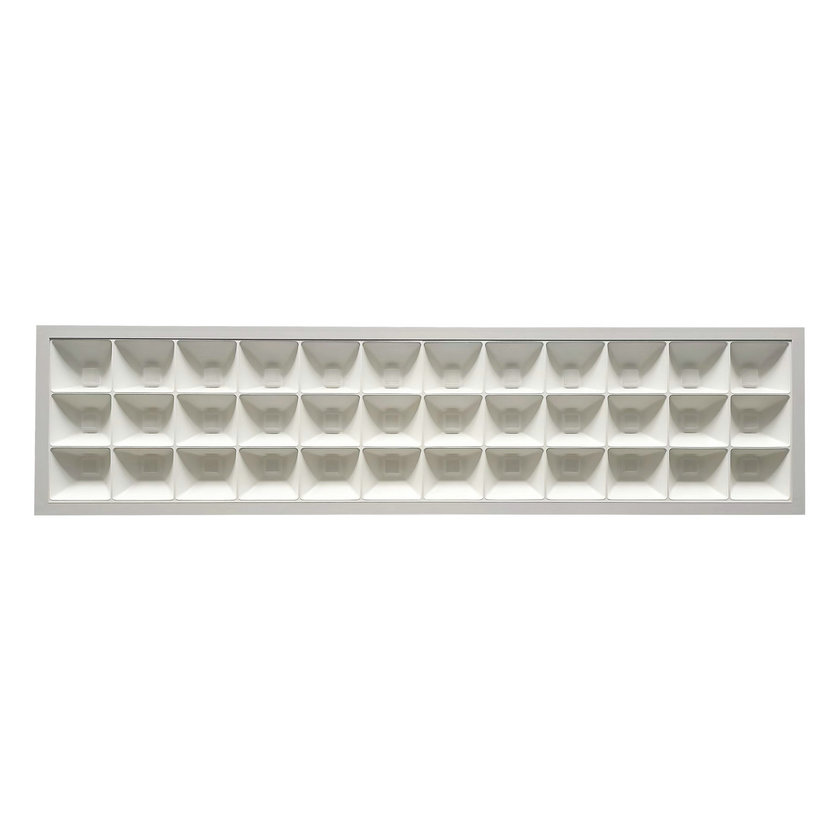

300x1200

PB35W312P-T4

35W

4375 lm

295x1195x35

600x1200

PB45W612P-T4

45W

5625 lm

595x1195x35

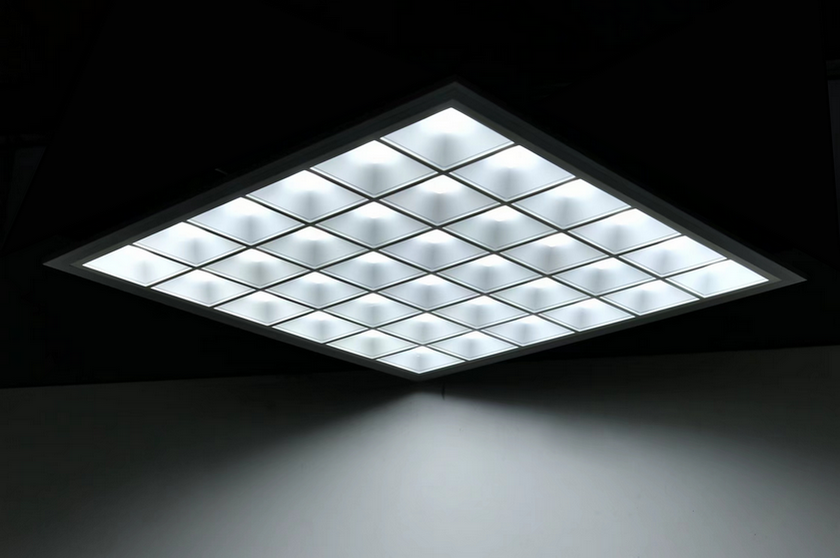

Cyanlite T4 LED architectural troffer

Certifications


• Downloads


Cyanlite LED architectural T4 Troffer datasheet download
