  • Product Item : Timo 90° Beam
  • - Tool-less installation on T15/T24 T bars
  • - All patterns are possible; Seamless Connection.
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • Product description:The Cyanlite™ LED T grid linear light - Timo, is designed for T15/T24 T bars. No need to modify or change anything on orgininal T-bar or ceilings, Timo is fixed to the original T bar easily and fast.
  • Inquiry

Cyanlite LED T grid linear light Timo 90D beam angle - MP & BR & WR model


The Cyanlite™ LED T grid linear TIMO series has been designed specifically for T15/T24 T bars. The installation is very simple, no need to modify or change anything on orgininal T-bar or ceilings; the connection is very easy, Timo is driven by 24V DC safe low voltage, so one driver can power up multiple Timo models, and this makes the wiring and connection job much easier for installer. Thanks to our unique circuit design, upto 10pcs (6 meters) Timo linear lights can be linked together without voltage drop or brightness unconformity. The architects and customers can use their imagination to get any pattern they want on the ceiling, all patterns are possible and there is no limit.

Advantages

-          Specifically designed for surface mounted installation on T15/T24 T bars/T grids

-          One driver to power multiple light models, loop-in/loop-out design, extremely easy for wiring

-          Easy and fast installation, no need to modify anything on orginal T bar/T grid and ceilings

-          Flexible and customization oriented, all grid patterns are possible, no limit from primary runner/ main bar

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   Standard sizes (mm): 600, 625, 1200, 1250

l   RAL9016 as standard coating colors, other RAL colors available on request

l   System Efficiency upto 120 lm/W

l   EN 12464-1& LG7 Compliant, UGR<16 and UGR<19 Optional

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

• Dimensions


Specifications




Model

Part Number

Dimension
(mm)

Power
(W)

Lumen Output

Beam

TB15W060TMP

600x26x20

15

1500 lm

90°

TB15W062TMP

625x26x20

15

1500 lm

90°

TB30W120TMP

1200x26x20

30

3000 lm

90°

TB30W125TMP

1250x26x20

30

3000 lm

90°

TB15W060TBR

600x26x20

15

1500 lm

90°

TB15W062TBR

625x26x20

15

1500 lm

90°

TB30W120TBR

1200x26x20

30

3000 lm

90°

TB30W125TBR

1250x26x20

30

3000 lm

90°

TB15W060TWR

600x26x20

15

1650 lm

90°

TB15W062TWR

625x26x20

15

1650 lm

90°

TB30W120TWR

1200x26x20

30

3300 lm

90°

TB30W125TWR

1250x26x20

30

3300 lm

90°

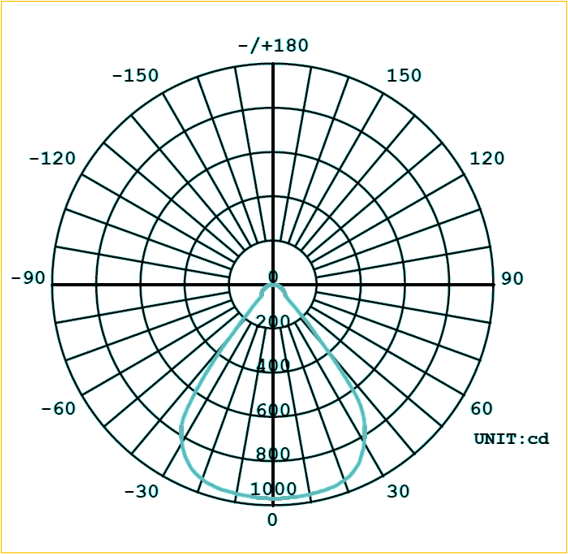

- Light Distribution

Installation



Connection

Driver

Certifications


• Downloads


Cyanlite LED T grid linear TIMO datasheet/installation manual/photometric data download
