Cyanlite CI150 Series Custom LED Panels Specially Developed for Clip-In Concealed Metal Ceiling Systems

Product Overview & Clip-In Ceiling Advantages Over Traditional T-Bar Grid Ceiling

With years of deep experience serving global commercial ceiling engineering projects, Cyanlite independently developed the CI150 LED panel range, fully tailored for premium concealed Clip-In metal ceiling frameworks, also known as SAS120, SAS150 and A-BAR metal ceiling systems. Unlike ordinary lamps designed for standard exposed T15/T24 grid ceilings, our CI150 fixtures deliver fully seamless flush integration with metal ceiling tiles, creating a sleek, unified interior aesthetic that traditional lay-in ceiling solutions cannot match.

Core Benefits of Clip-In Metal Ceiling vs Traditional Exposed T-Bar Ceiling:
1. Visual effect: Clip-In structure hides all keel frames completely, forming a full concealed ceiling surface without protruding grid strips; traditional T-bar ceilings expose metal cross strips, breaking the minimalist flat decorative effect.
2. Space utilization: Thinner overall ceiling assembly for Clip-In systems, reserving more overhead pipeline space for HVAC, wiring and fire protection pipelines.
3. Maintenance efficiency: Clip-in tiles can be disassembled from any single position without removing surrounding panels; traditional grid ceilings require sequential disassembly of adjacent tiles, wasting maintenance time.
4. Durability & safety: Integrated metal clip buckle connection avoids loose tile drop risks under long-term vibration; T-bar lay-in tiles only rely on simple bearing placement, prone to displacement in high-flow public areas.
5. Premium positioning: Clip-In metal ceilings are widely adopted in high-end offices, medical spaces and luxury commercial projects, while exposed T-bar grids are mostly used for low-budget basic renovation.

Our CI150 series adopts tool-free snap mounting design, drastically cutting on-site labor hours and enabling construction teams to finish lighting layout efficiently for large-scale commercial projects. Two mature structural versions are available to satisfy different project demands: Backlit panel with exclusive clip-in mounting frame, and edge-lit panel with side arm support brackets. Reach out to our professional ceiling technical consultants to get customized matching schemes for your project.

Core Product Strengths

- Customized mould design exclusively for Clip-In metal ceiling systems, zero gap matching with all mainstream metal tile sizes

- Complete mounting accessories pre-installed on each lamp, no extra brackets or fasteners required to cut auxiliary material expenses

- Tool-free quick snap installation, greatly reducing construction labor cost and shortening project delivery cycles

- Comprehensive size lineup covering all standard clip-in tile specifications across European and global markets

- Highly flexible customization service, non-standard bespoke dimensions, color temperature and dimming modes supported

- Professional LED lighting manufacturer with abundant overseas project experience, long-term ODM cooperation partner for top European lighting brands with stable supply chain guarantee

Standard Product Technical Features

• Available nominal dimensions (mm): 300x300, 300x600, 300x900, 300x1200, 300x1500, 300x1800, 312.5x625, 312.5x1250, 500x500, 600x600, 600x1200, 625x625, 625x1250, 750x750
• Standard housing color RAL9010 to perfectly align with mainstream SAS ceiling metal panels; other RAL color coatings can be produced on demand
• Max system luminous efficiency reaches 120 lm/W for energy-saving commercial lighting
• Fully compliant with EN 12464-1 and LG7 office lighting standards; optional micro prismatic diffuser to achieve UGR＜19 low glare effect
• Multiple color temperature options: 3000K, 3500K, 4000K, 5000K, 6000K
• 5-year full product warranty covering drivers, light panels and mounting frames
• Multi-mode dimming solutions: 0-10V analog dimming, DALI digital dimming, switch step dimming
• Optional built-in emergency backup power module for escape route lighting compliance

Compatible Global Ceiling Brands & Models

The compatible brand list below covers mainstream metal ceiling manufacturers worldwide, more models can be matched upon inquiry

Standard Technical Specification Table

Custom power, lumen and dimension parameters can be adjusted according to project requirements

Tile Size	Model Code	Overall Dimension(mm)	Total Lumen	Rated Power
300x300	PS15W030C	299x299	1500 lm	15 W
300x600	PS20W306C	299x599	2400 lm	20 W
300x900	PS25W309C	299x899	3000 lm	25 W
300x1200	PS30W312C	299x1199	3600 lm	30 W
300x1500	PS35W315C	299x1499	4200 lm	35 W
300x1800	PS45W318C	299x1799	5400 lm	45 W
312.5x625	PS20W307C	311x624	2400 lm	20 W
312.5x1250	PS30W313C	311x1249	3600 lm	30 W
500x500	PS30W050C	499x499	3600 lm	30 W
600x600	PS30W060C	599x599	3600 lm	30 W
600x1200	PS50W612C	599x1199	6000 lm	50 W
625x625	PS30W062C	624x624	3600 lm	30 W
625x1250	PS50W613C	624x1249	6000 lm	50 W
750x750	PS50W075C	749x749	6000 lm	50 W

Light Distribution & Anti-Glare Performance

Standard opal diffuser delivers UGR22 glare index; upgraded micro prismatic diffuser achieves ultra-low glare UGR＜19, maximum luminous output up to 4800lm for large space lighting demand

Two Official Installation Solutions

Our technical team provides two mature installation structures to match different clip-in ceiling keel types, consult our ceiling specialists to select the optimal solution for your project.

1. Edge-Lit Panel with Side Arm Support Brackets

2. Backlit Panel with Integrated Clip-In Mount Frame

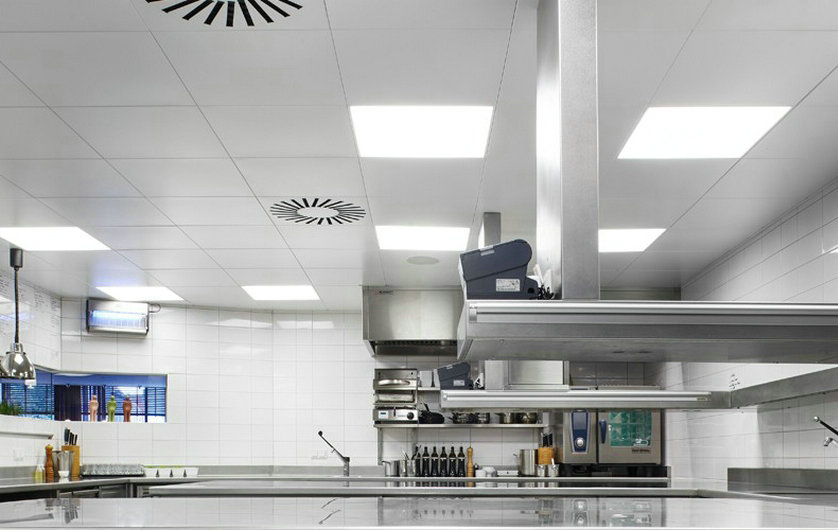

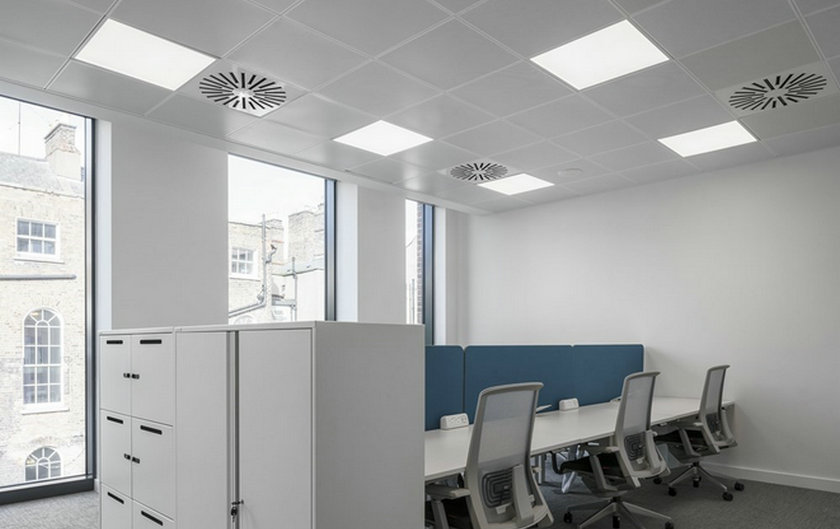

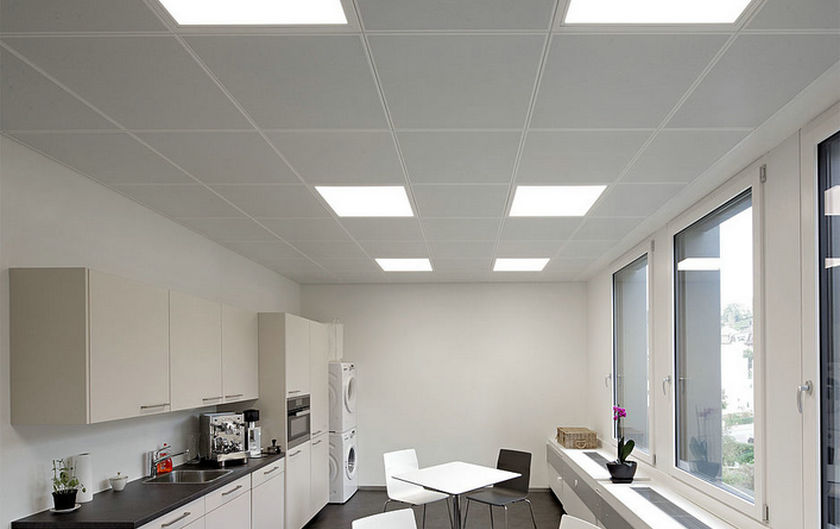

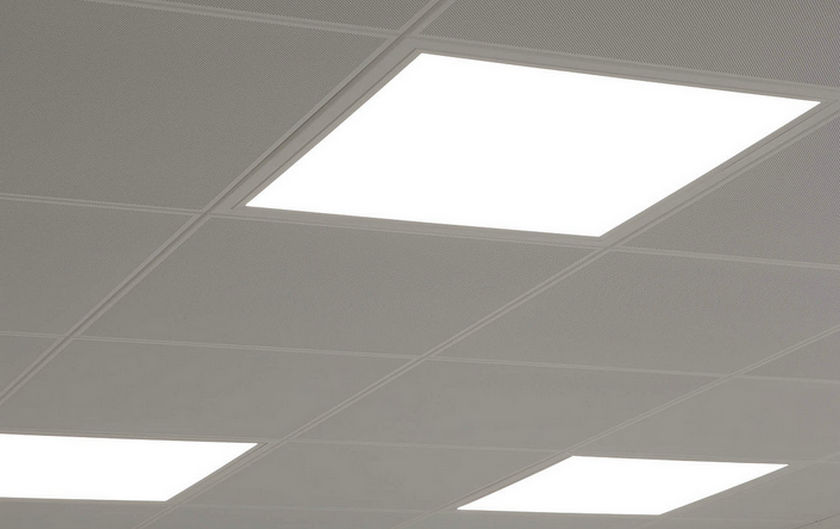

Global Project Real Cases

Product Certifications

Document Downloads

Download CI150 Clip-In Ceiling LED Panel Datasheet, Installation Manual & Photometric Files

Cyanlite LED Panel Full Selection Guide [3.9Mb PDF]

Metal Ceiling LED Panel Official Brochure [4.2Mb PDF]

Contact Our Professional Clip-In Ceiling Lighting Engineers via Email
