Cyanlite LED Free Standing and Desktop Luminaire LINA and LINA D

 DOWNLOAD

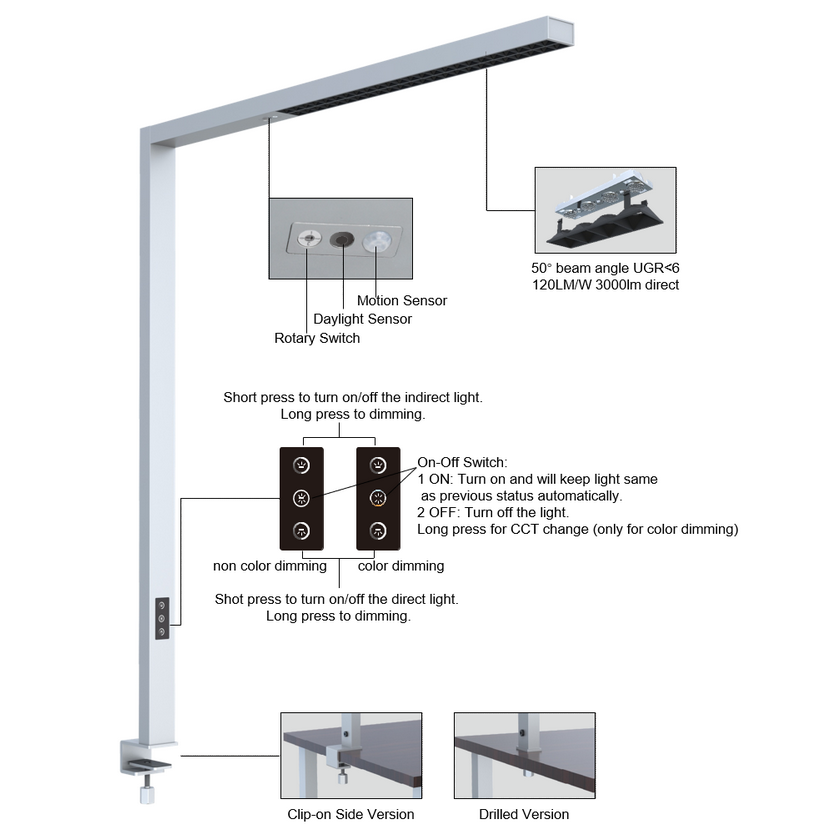

The Cyanlite™ LED free standing / desktop luminaire LINA / LINA D is for two 1*2m working planes with linear luminaire head. The floor standing version has flat steel base plate for high stability and space-saving positioning with office furniture. And desktop version is suitable for all types of fixed and height-adjustable desks. Thanks to unique designed reflector cup and anti-glare lens module, the luminaire is of UGR<6 and achieves 70% direct and 30% indirect light emission. Electrical connection via 2.5m connection cable and plug. With integrated PIR presence sensor and daylight sensor for constant illuminance in the luminaire surroundings when the luminaire is switched on and for natural light incidence. Touch dimming for asynchronous control on direct / indirect light and tunable white.

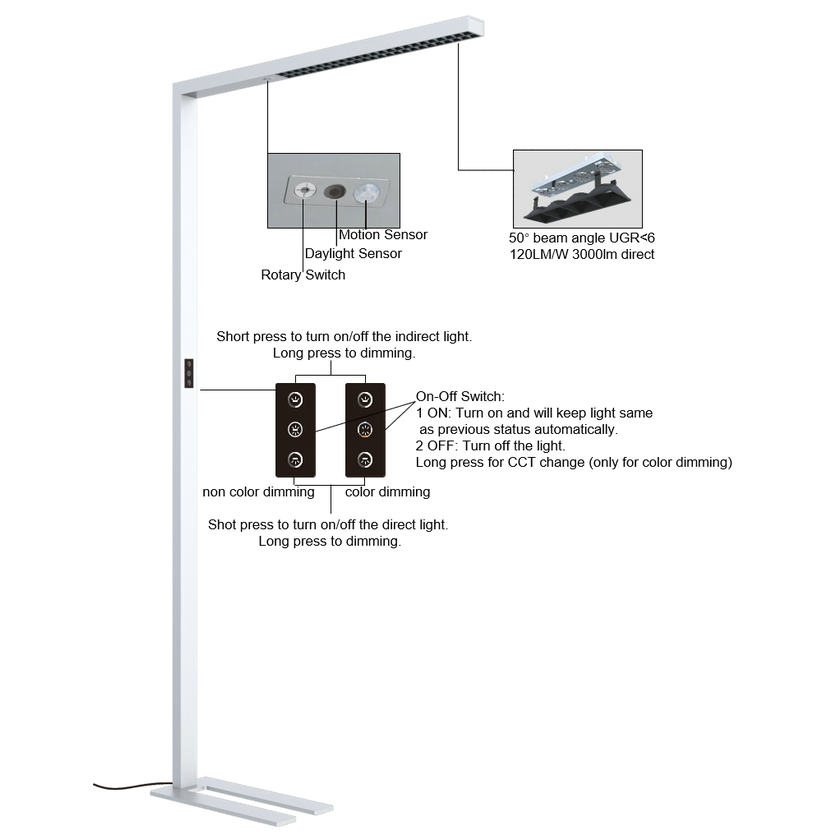

Cyanlite LED free standing luminaire LINA



Cyanlite LED free standing luminaire LINA

Cyanlite LED free standing luminaire

Cyanlite LED Free Standing / Desktop Luminaire LINA / LINA D Tech Doc Download

Cyanlite LED Free Standing / Desktop Luminaire LINA / LINA D Datasheet

Photometric Data Download

Installation Manual Download
