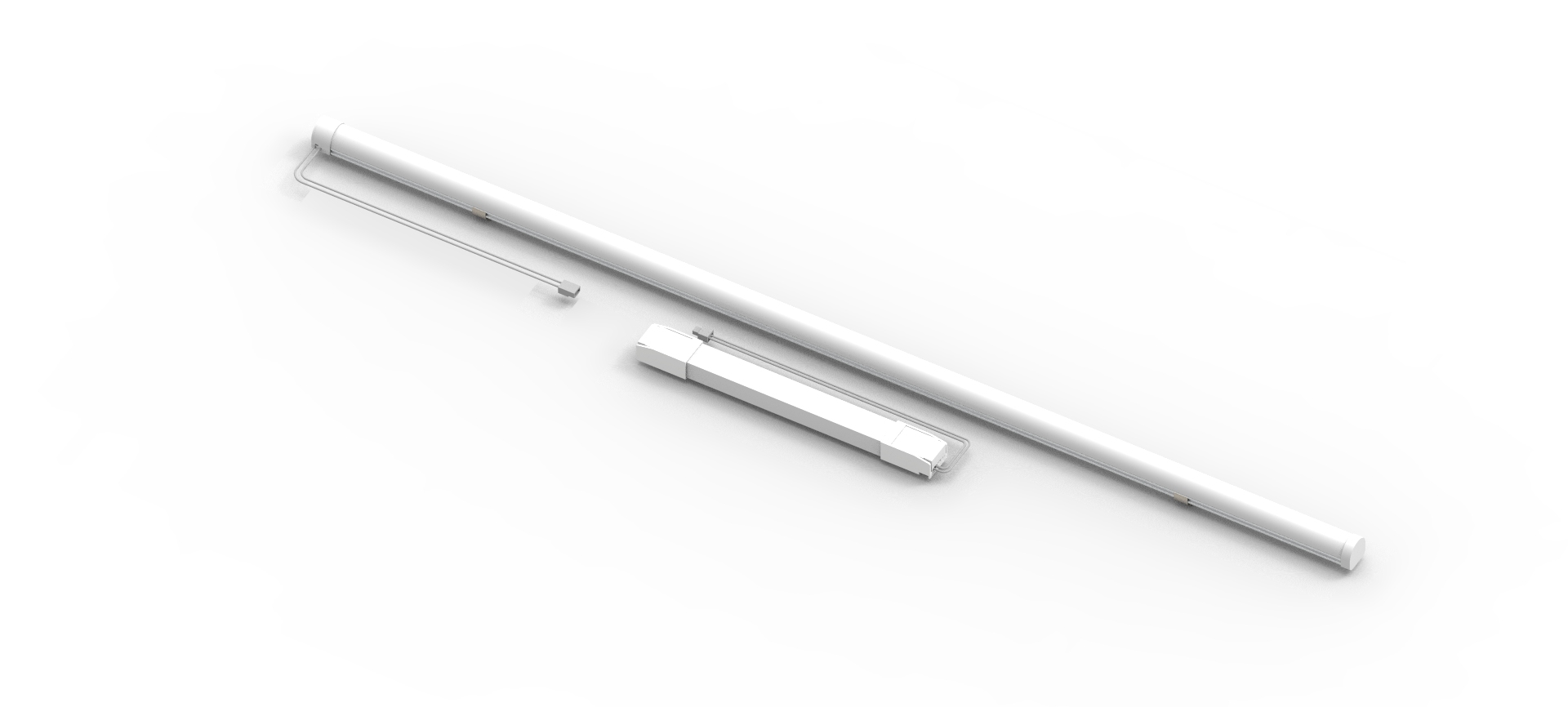

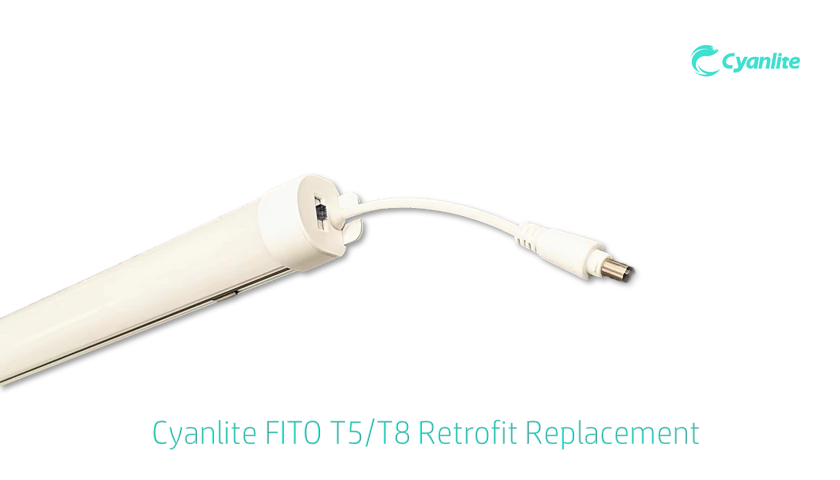

Cyanlite FITO T5/T8 Fluorescent Tubes Retrofit Replacement Kit

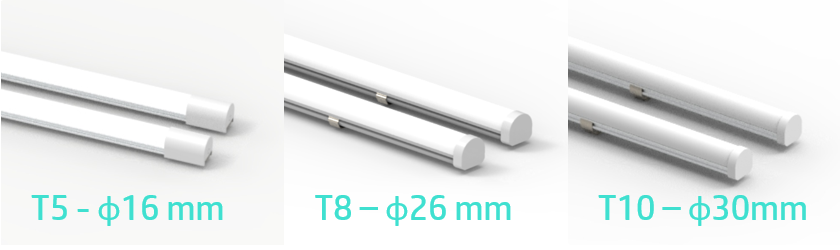

The Cyanlite FITO Retrofit LED Tube is an ideal replacement for traditional fluorescent T5/T8/T10 tubes. Its magnetic design allows for quick and easy installation. Additionally, the SELV external driver ensures safe usage, while offering various options for DALI dimming, 1-10V dimming, and TRIAC dimming. The product also features an optional SCCT version (3000K-3500K-4000K/3000K-4000K-6500K) and Power Adjustable function, making it more flexible for various applications and demands, and relieving stock pressure.

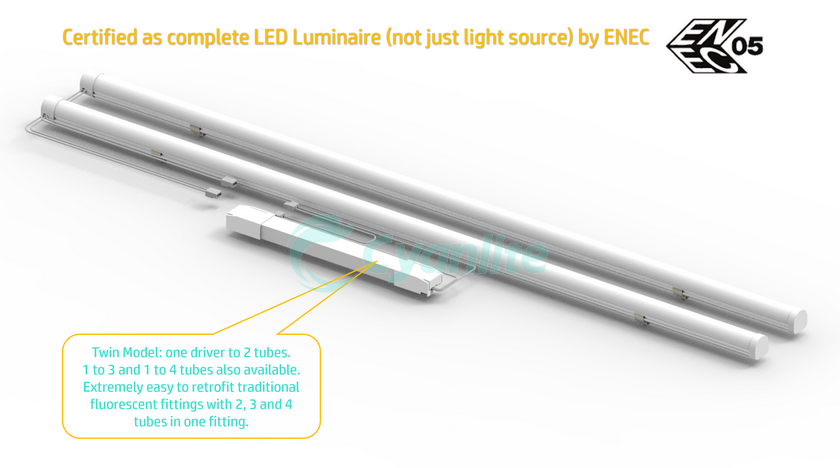

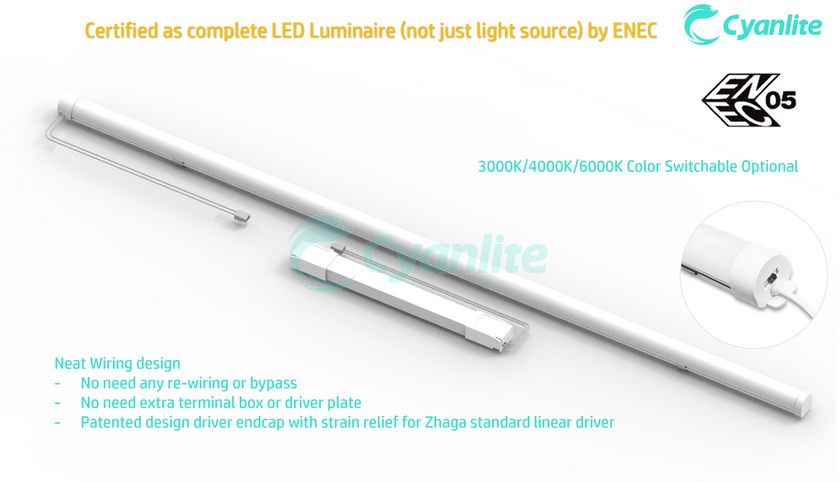

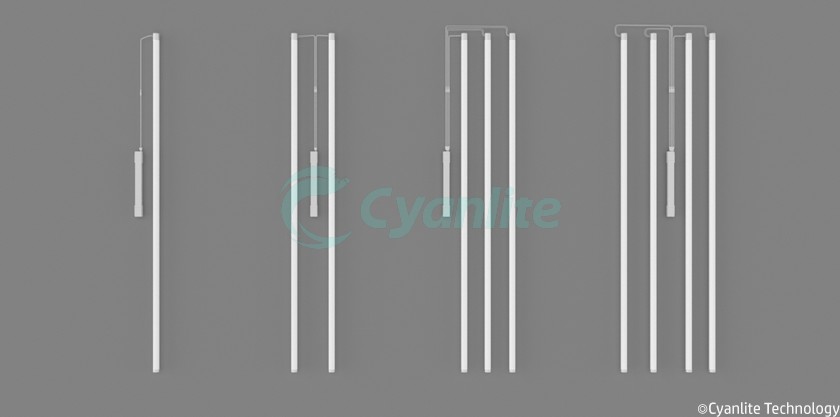

Most importantly, Cyanlite FITO is ENEC certified as complete luminaire but not just a light source, and this will make sure no risk or regulation concerns of modification of current luminaires. Moreover, initiates and rebate is available now for such retrofit by LED luminaire in many EU countries. Our unique 1:2 model, 1:3 model and 1:4 model ensures one driver supply 2, 3 or 4 LED tubes, which is quite normal in traditional fluorescent fittings that multiple fluorescent tubes in one grill or lourve fitting, so now Cyanlite FITO is the best replacement for those fluorescent fittings, with the huge energy saving and super fast retrofit installation time.

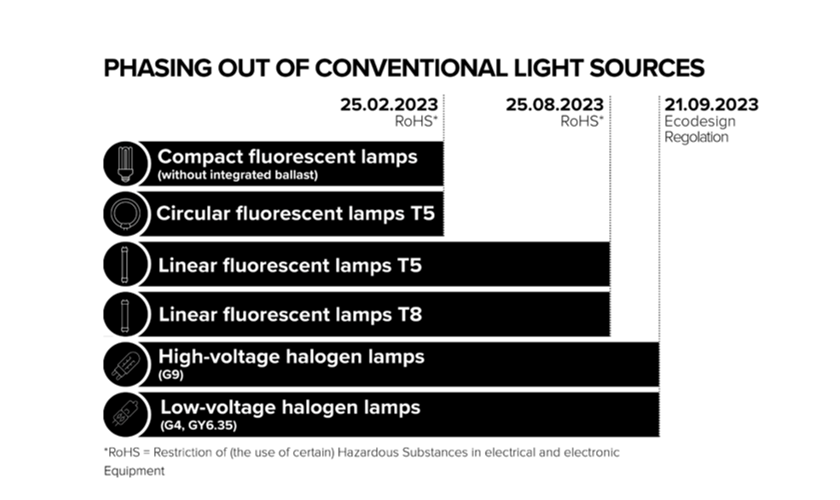

With the recent prohibition of fluorescent tubes in Europe due to the considerable environmental impact and low energy efficiency, the demand for FITO as a high-efficiency, eco-friendly replacement solution increases. Millions of fluorescent fittings necessitate retrofitting, presenting an extensive market for FITO.

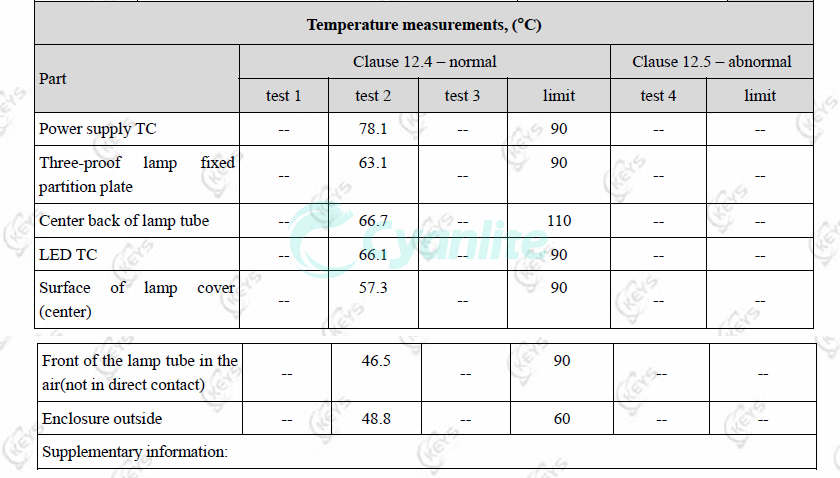

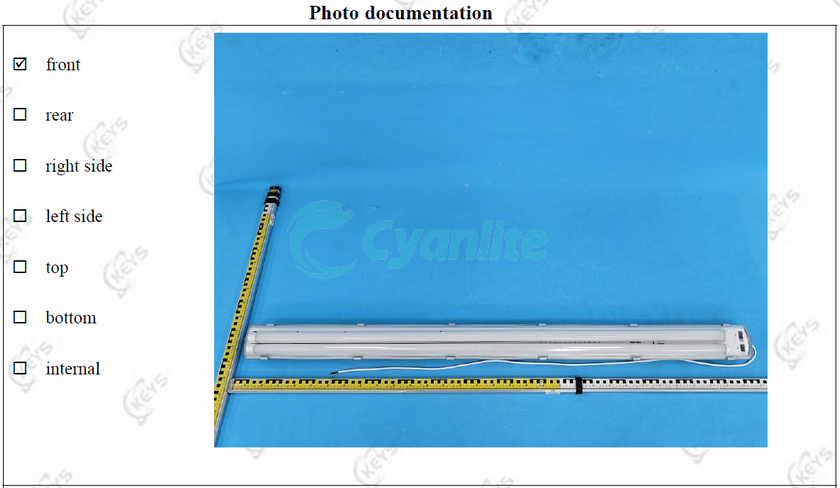

Alumium housing design to ensure an excellent heat dissipation and real long life time, even for the applications like inside an IP65 sealed tri-proof housing, where Ta>45C deg, FITO still shows its outstanding performance. Check below 3rd party temperature test report.

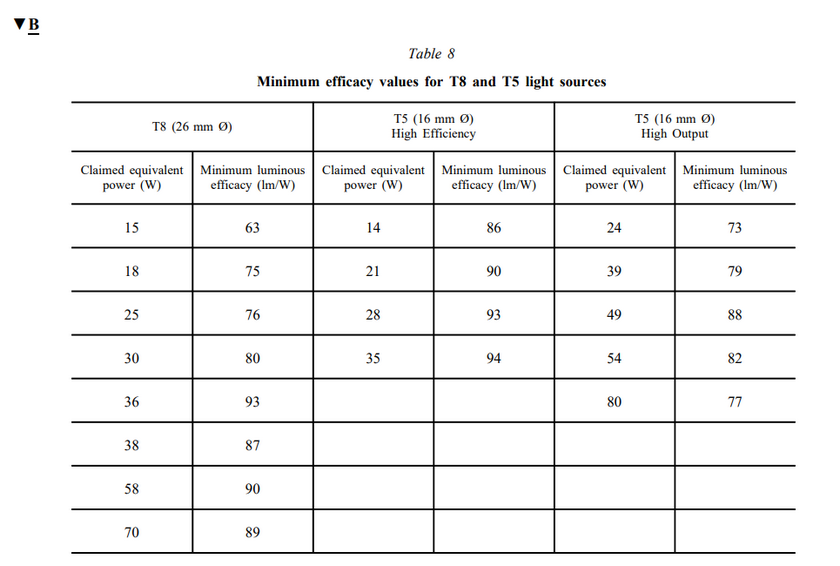

The European Union phased out fluorescent tubes due to environmental and health concerns. Here are some reasons:

1, Energy inefficiency: Fluorescent tubes are less energy-efficient than newer technologies like LED. LEDs use less power to produce the same amount of light as fluorescent tubes, which can lead to significant energy savings.
2, Environmental impact: Fluorescent tubes contain small amounts of mercury, a toxic metal that can leach into the environment when they're disposed of improperly. Phasing out these bulbs helps reduce mercury pollution.
3, Health issues: Exposure to mercury can cause serious health problems. Broken fluorescent tubes can release mercury vapor, which is harmful if inhaled.
4, Improved alternatives: LED lights not only consume less energy but also last longer than fluorescent tubes. They turn on immediately, work in cold temperatures, and are easily dimmable.
5, Cost over lifetime: While LED lights might be more expensive to buy initially, they cost less over their lifetime because they last longer and use less electricity than fluorescent tubes.

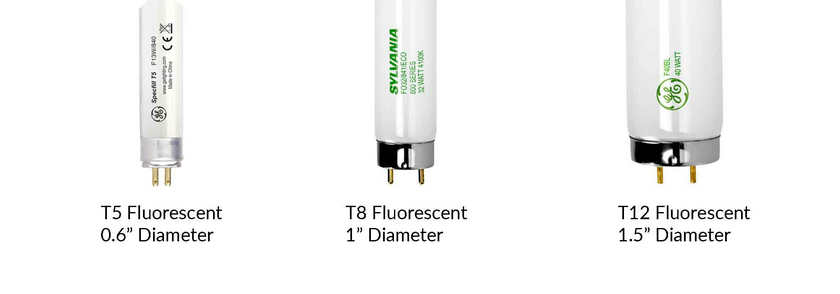

Most of fluorescent tubes have a 70-90 lm/w light efficiency, however, traditional fluorescent tubes are 360 degees beam angle, which means some part of light are lost due to the reflection and fitting LOR (Luminaire Lumen Output Ratio), so the system efficiency is even lower. To the contrary, Cyanlite Fito has upto 160 lm/w efficiency, which means there are huge energy saving from the retrofit replacement.

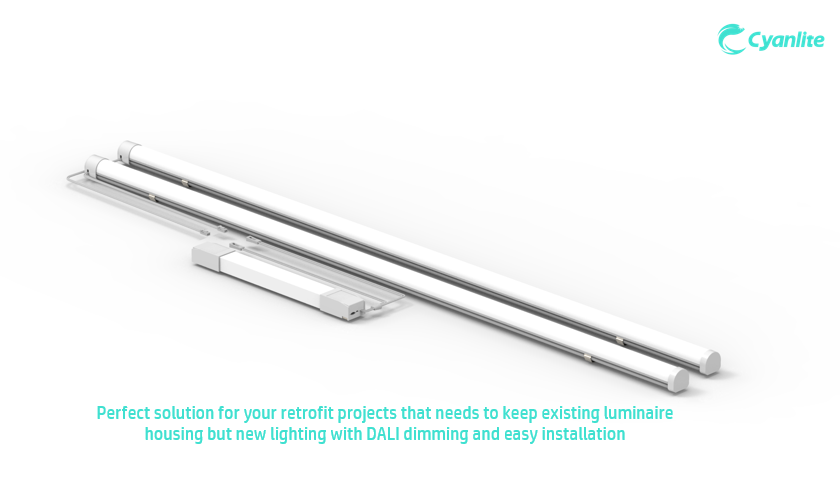

FITO's primary differential factor from other LED tubes is its advanced dimmability function. This innovative system integrates an external driver, modulated for DALI and 1-10v dimming. Unlike typical LED tubes that deliver a constant light intensity, FITO enables light output adjustments, offering more application-specific lighting solutions.

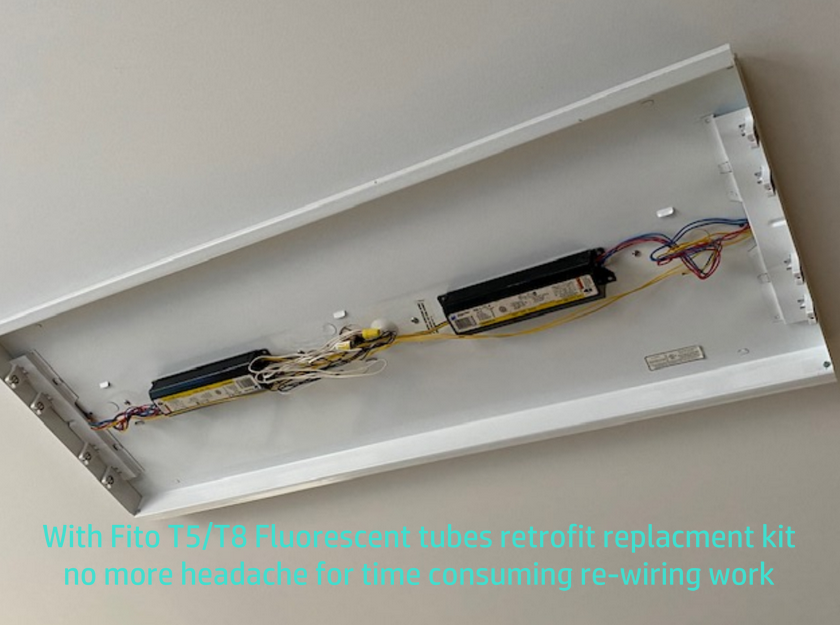

The installation of regular LED tubes demands the reconfiguration of existing fixtures. However, FITO eliminates the necessity for wiring adjustments, providing an efficient solution for both inductive and electronic ballasts. This feature significantly reduces installation complexities and time, thus increasing productivity and ease of execution. With FITO solutions, No more headaches about CCG, ECG, EVG, LLB, KVG etc., all kinds of different ballast compatibility, no need to bypass the starter, or remove the ballast or modify the wiring of existing fluorescent fitting.

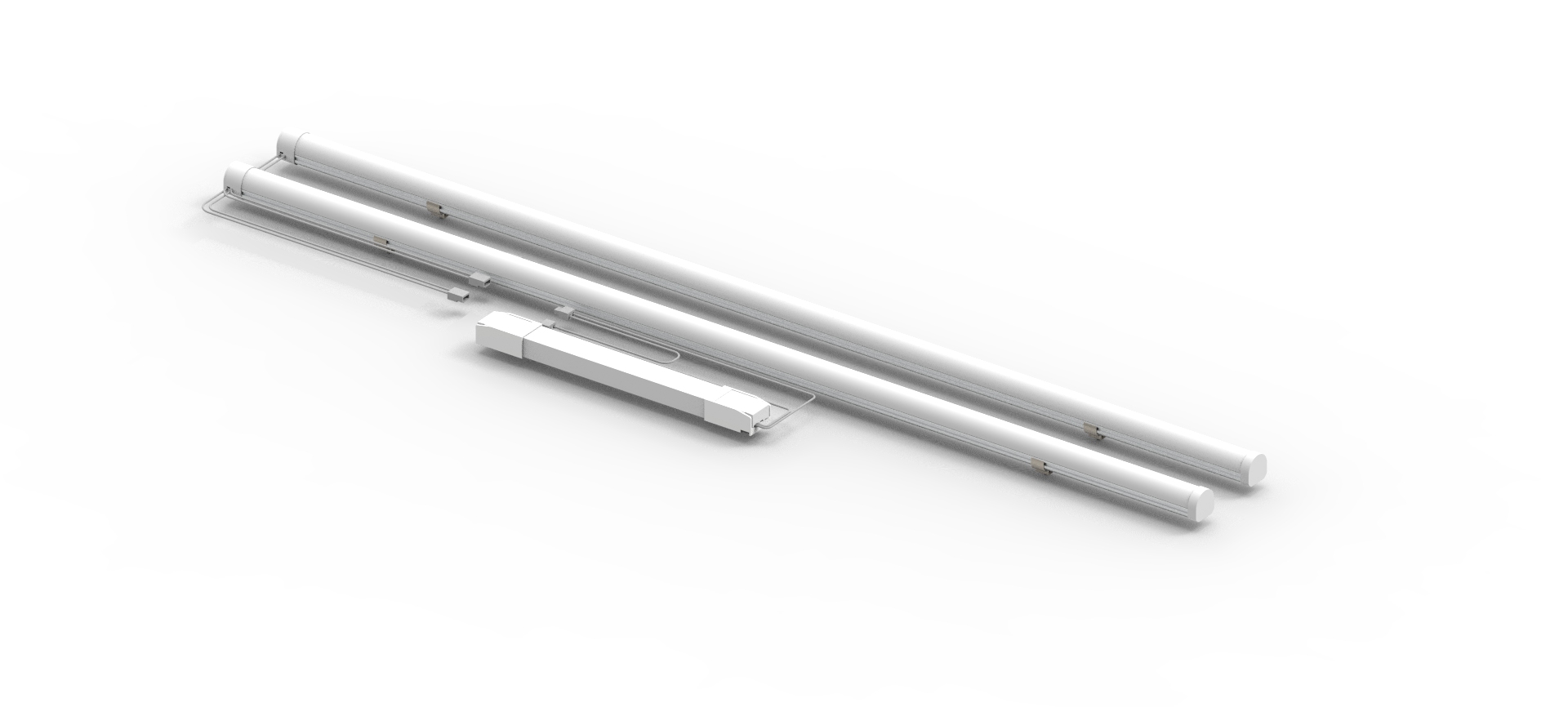

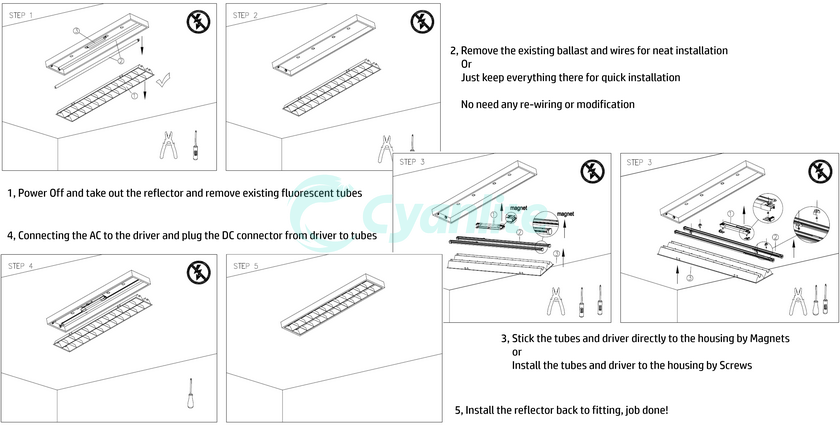

Moreover, Cyanlite Fito's dual model ensures 1 driver supply 2 tubes, largely reduce the product cost and installation labor cost. Make it so easy to retrofit the traditional fluorescent fittings with 2 x T5/T8 tubes in lourver luminaires. Just take out the fluorescent tubes, keep all the exisiting ballast and starter as it is, install the Fito with its magetic clips or screws, connect the AC to the driver plate terminal box, job done!

There are 3 main installation situations and Cyanlite has fully solutions for all kinds of installation scenarios for your project:

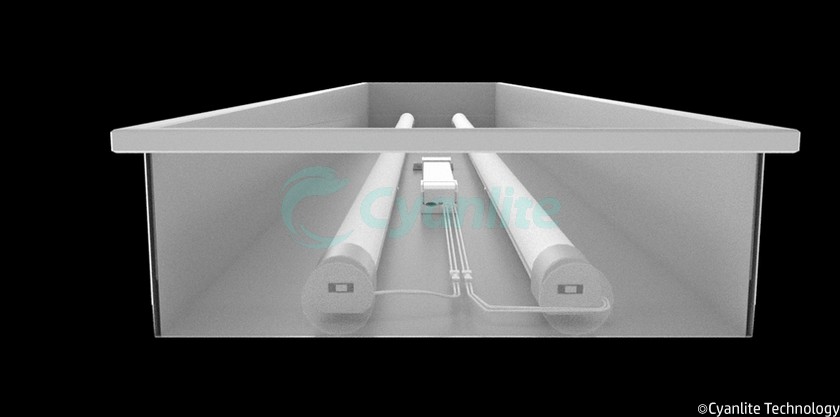

(1) The existing fitting bottom is flat, and tubes can be installed directly on the bottom by Magnets or by Screws.

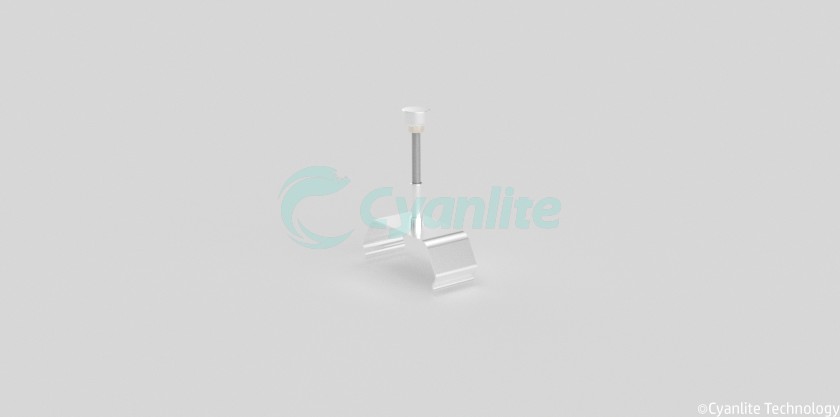

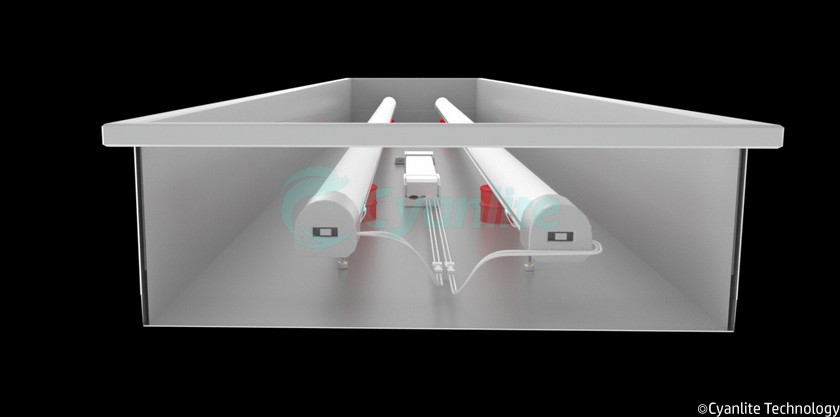

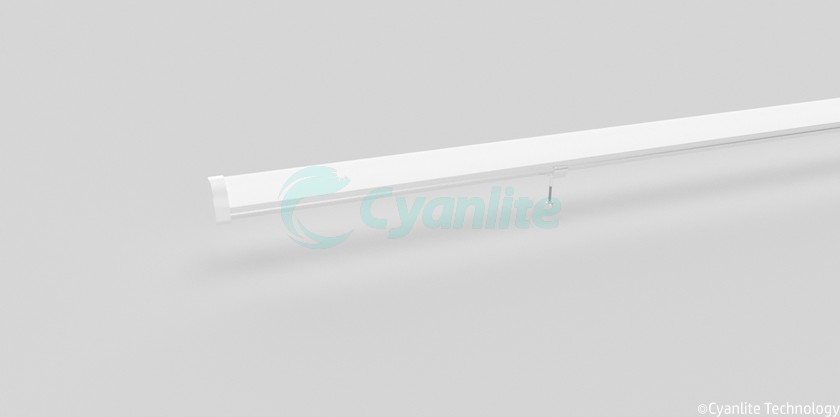

(2) The existing fitting bottom is flat but with obstacles, the tubes cannot be installed directly and need a height adjustable bracket.

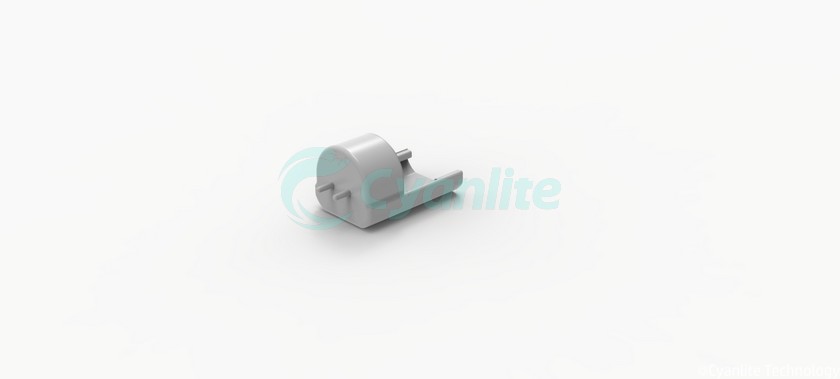

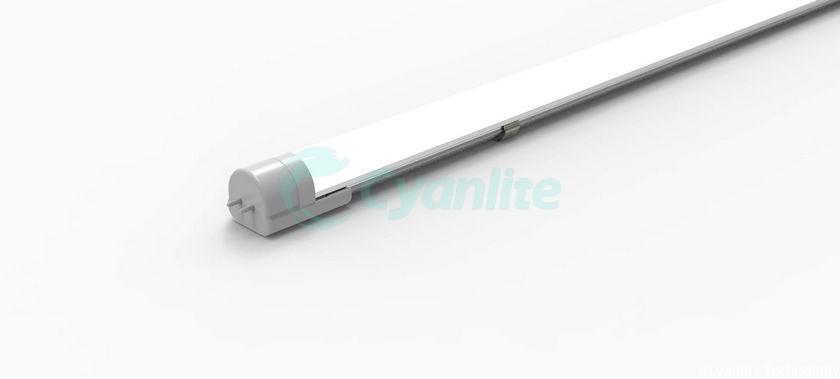

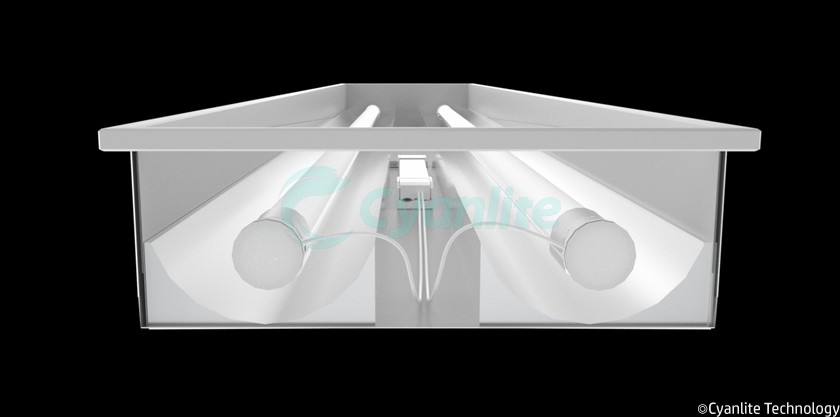

(3) The existing fitting has reflectors on the bottom, the tubes cannot be installed directly and need a G13 lamp holder adaptor.

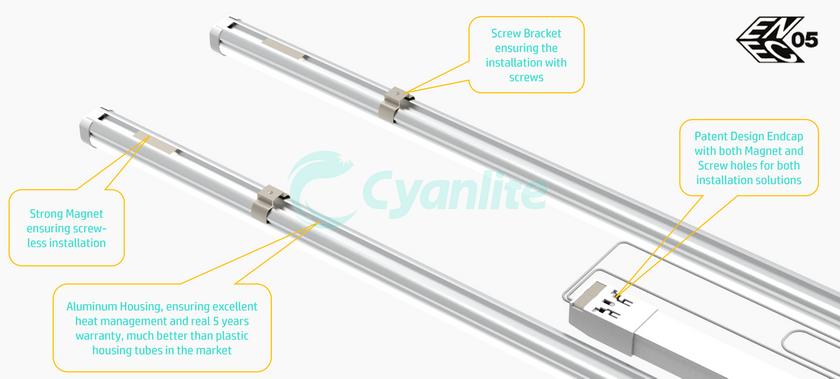

• Advantages

- Aluminum housing ensures better heat management and longer lifetime.
- Isolated SELV external driver, meet all the safety requirements and standards.
- Twin Model: 1 driver supply 2 tubes to make it more price competitive for the product and installation.
- DALI dimming, 1-10V dimming, and TRIAC dimming optional.
- SCCT (Switchable CCT) and Power Adjustable for Multiple Lumen Output.
- Dual installation options with Magnetic and Screws

• Specifications

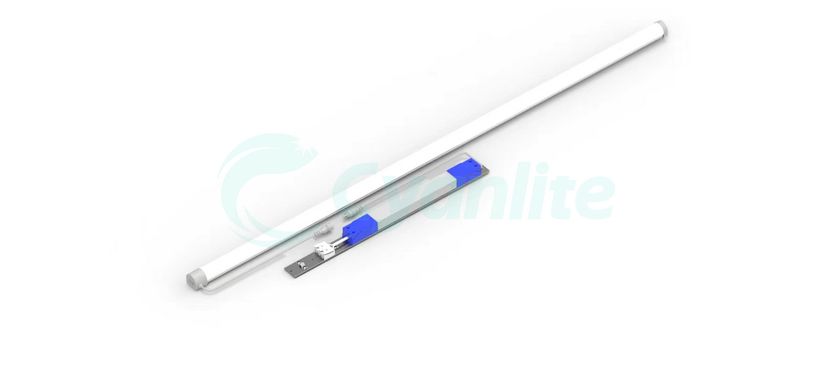

Single Model: 1 Driver for 1 Tube, Whole Set including LED Tube + Driver + Accessories

Model	Part No.	System Power	Lumen Output	Size	Power Adjustable
600	TB12W060R	12W @400mA 12-20W	1900 lm @400mA 1900-3200lm	φ26x560 mm	400mA/500mA/600mA/700mA 12W/15W/18W/20W 1900lm/2300lm/2900lm/3200lm
900	TB18W090R	18W @600mA 12-20W	2900 lm @600mA 1900-3200lm	φ26x860 mm	400mA/500mA/600mA/700mA 12W/15W/18W/20W 1900lm/2300lm/2900lm/3200lm
1200	TB23W120R	23W @850mA 20-30W	3700 lm @850mA 3200-4800lm	φ26x1160 mm	700mA/850mA/900mA/1050mA 20W/23W/26W/30W 3200lm/3700lm/4150lm/4800lm
1500	TB36W150R	36W @1200mA 33-42W	6000 lm @1200mA 5200-7000lm	φ26x1460 mm	1100mA/1200mA/1300mA/1400mA 33W/36W/39W/42W 5200lm/6000lm/6500lm/7000lm

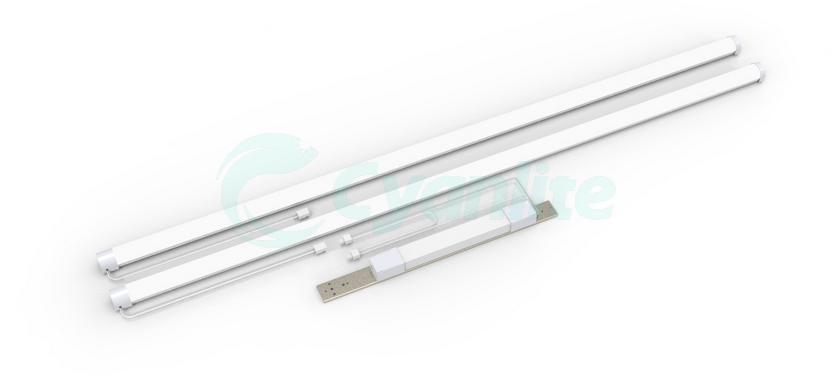

Twin Model: 1 Driver for 2 Tubes, Whole Set including 2xLED Tube +1x Driver + Accessories

Model	Part No.	System Power	Lumen Output	Size	Power Adjustable
600	TB12W060R-X2	12W x2 @400mA 12-20W x2	1900 lm x2 @400mA 1900-3200lm x2	φ26x560 mm	400mA/500mA/600mA/700mA 12W/15W/18W/20W x2 1900lm/2300lm/2900lm/3200lm x2
900	TB18W090R-X2	18W x2 @600mA 12-20W x2	2900 lm x2 @600mA 1900-3200lm x2	φ26x860 mm	400mA/500mA/600mA/700mA 12W/15W/18W/20W x2 1900lm/2300lm/2900lm/3200lm x2
1200	TB23W120R-X2	23W x2 @850mA 20-30W x2	3700 lm x2 @850mA 3200-4800lm x2	φ26x1160 mm	700mA/850mA/900mA/1050mA 20W/23W/26W/30W x2 3200lm/3700lm/4150lm/4800lm x2
1500	TB36W150R-X2	36W x2 @1200mA 33-42W x2	6000 lm x2 @1200mA 5200-7000lm x2	φ26x1460 mm	1100mA/1200mA/1300mA/1400mA 33W/36W/39W/42W x2 5200lm/6000lm/6500lm/7000lm x2

Triple Model: 1 Driver for 3 Tubes and Quadra Model: 1 Driver for 4 Tubes available, Please contact Cyanlite for more details for Quadra models.

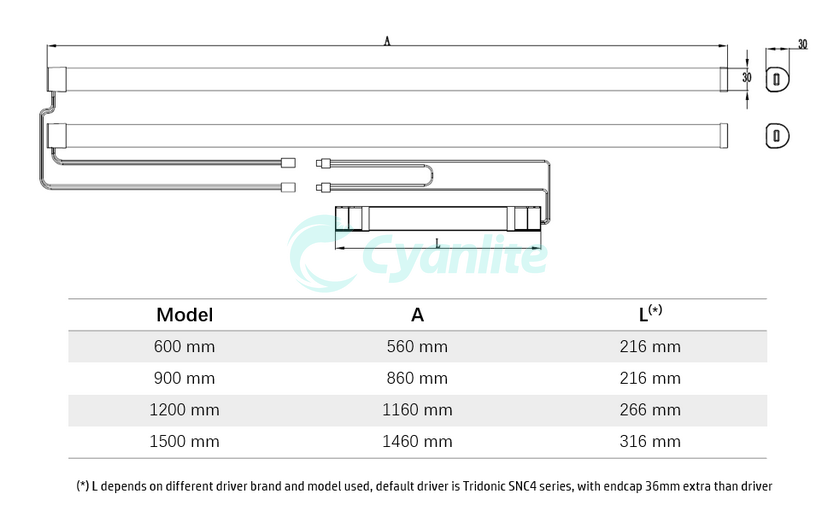

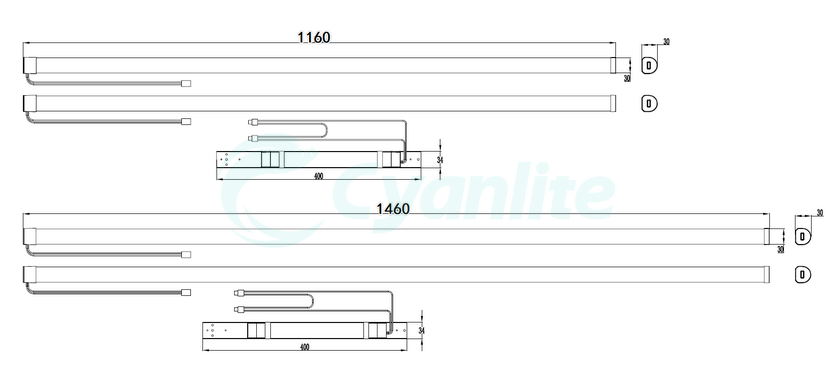

• Dimensions

- with optional driver plate

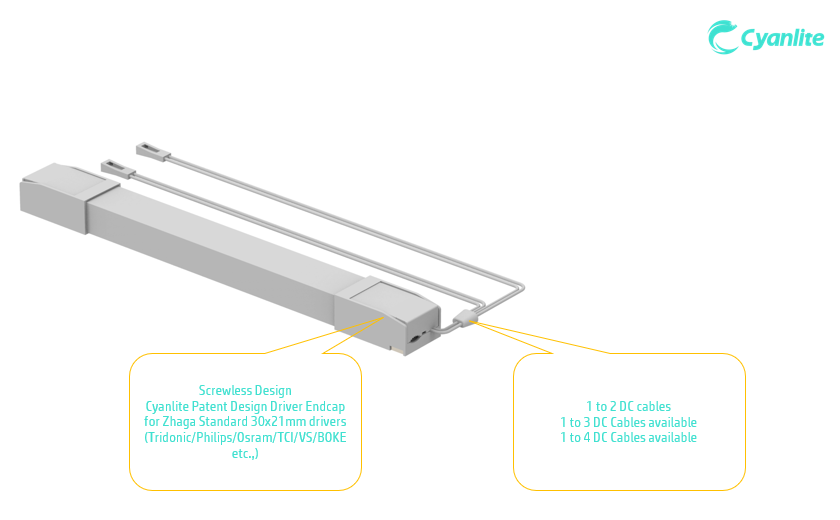

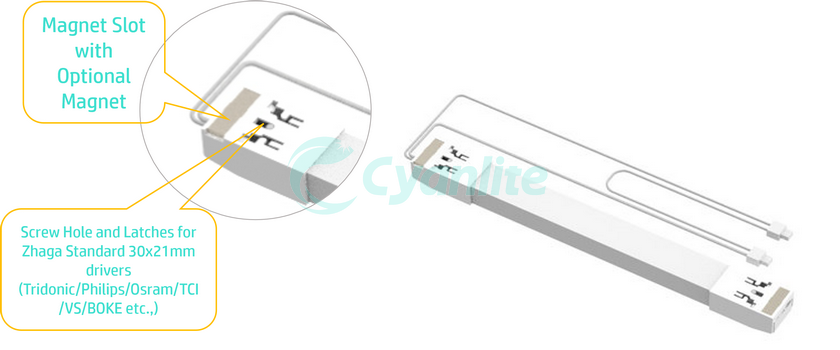

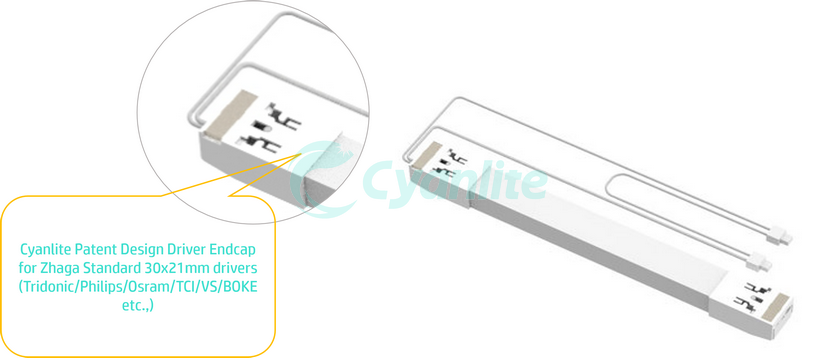

- with Cyanlite patented design driver endcap (integrated magnets and screw holes) for Zhaga standard 30x21mm linear drivers (Tridonic, Philips, TCI, VS, Osram, BOKE etc., )

• Certifications

• Installation

• Downloads

FITO Product Datasheet V1.5 [950Kb]

FITO Product Brochure V1.3 [1.2Mb]

FITO inside a IP65 sealed Tri-Proof housing Temperature Test Report  [1.2Mb]
