LED Lighting for Clip-In metal ceiling systems

LED Lighting for Clip-In metal ceiling systems

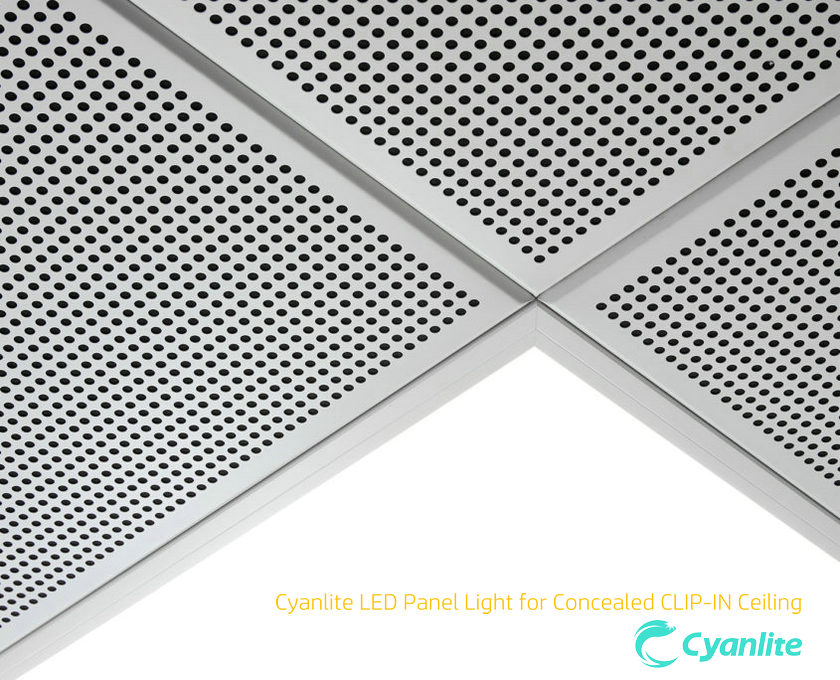

Cyanlite LED light for SAS120 SAS150 Clip In ceiling concealed ceiling


Structure of Clip-In metal ceilings


The CLIP-IN suspended ceiling system is made up of sheet metal panels supported by a hidden modular structure. This Clip-In metal ceiling system is the ideal choice for creating a ceiling with a simple and linear visual effect. The coupling of the tiles to the interlocking structure guarantees excellent flatness of the surfaces, maximum flexibility of use and durability of the product.

The smooth surface of the ceiling panels joined together continuously reduces the points where dirt could accumulate and facilitate cleaning. Cyanlite CI150 LED panel lights are specially designed for different Clip-In metal ceiling systems to ensure the perfect integration.

Ceiling tiles are available with either a right angle or a 45-degree bevel, Cyanlite also offers both edge designs as per customer’s requirements.

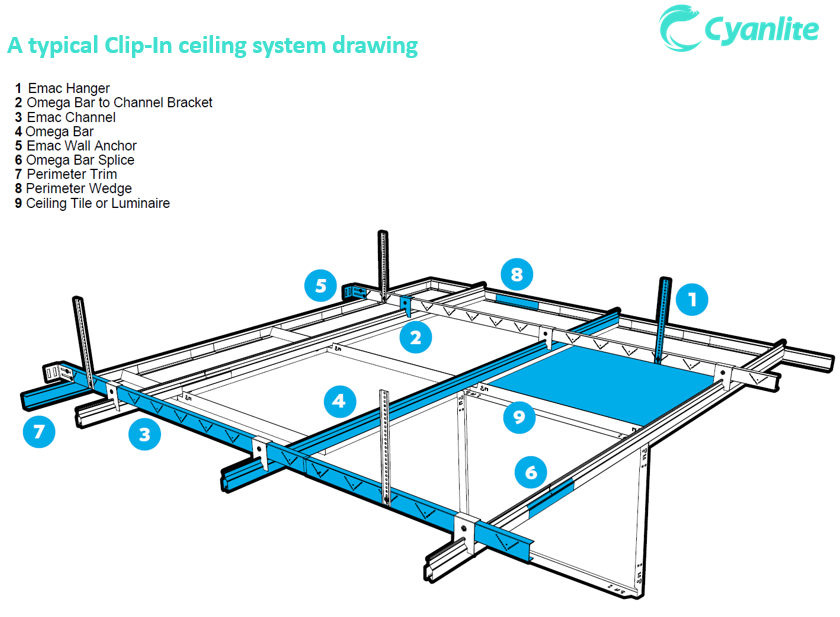

Below is a typical Clip-In ceiling system drawing example.

A typical Clip-In metal ceiling system drawing

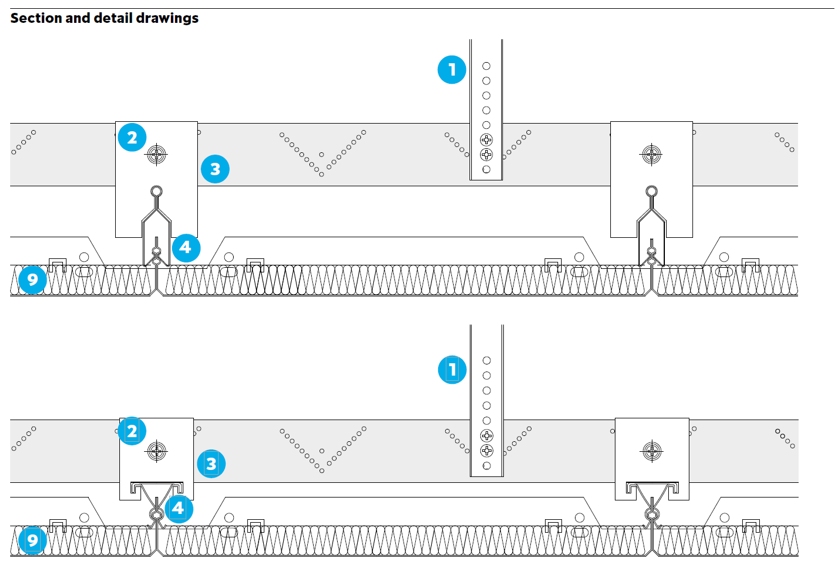

Below is the section drawing example of SAS120 and SAS150 Clip-In ceiling system from SAS.

A typical Clip-In metal ceiling system drawing

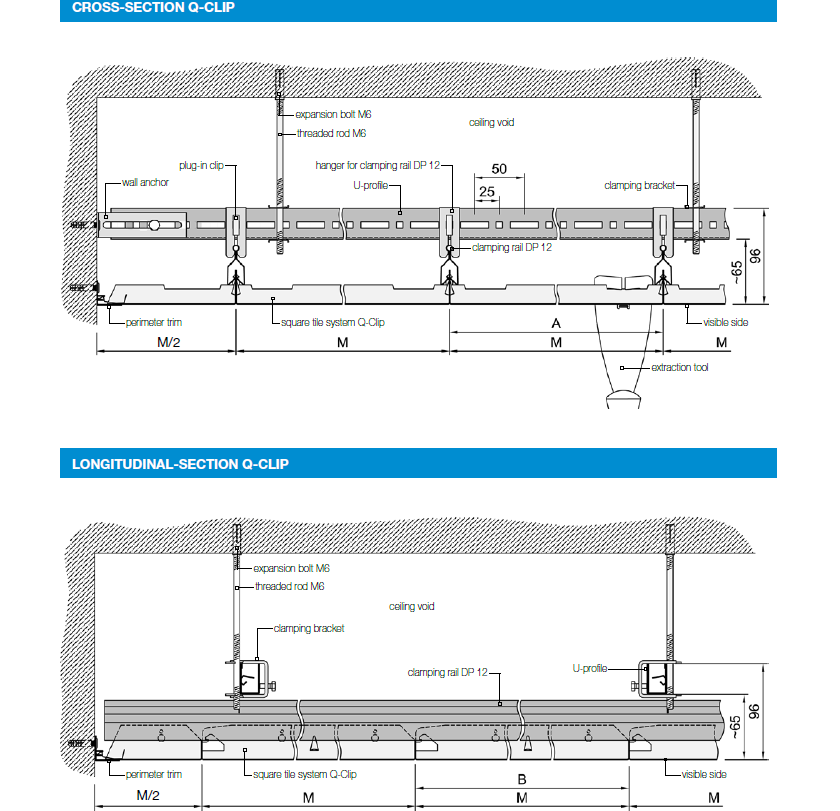

Below is the section drawing example of Q-CLIP Clip-In ceiling system from Armstrong.

Armstrong metal ceiling Q CLIP CLIP-IN ceiling drawing


Main advantages of Clip-In metal ceilings


Impermeability to the passage of dust

Ease of cleaning

Flexibility and ease of assembly

Quick inspection of the technical compartment above in case of maintenance

Ability to perform any drilling during production for the passage of cables, pipes or for the installation of ceiling devices

Can be integrated with lamps, filters or air diffusers


Features and Benefits of Clip-In metal ceilings


• A sealed ceiling design with simple clip-in panels provides easy access to enclosed plenum using the necessary tools

• Available in multiple squared and beveled edges to create customized visual effects

• Concealed suspension system offers a smooth appearance

• A wide range of colors, wood tones and perforation patterns

• Individually replaceable panels


Applications of Clip-In metal ceilings


Office areas, shopping malls, multiplexes, airports, exhibition centers, hotels, special care centers, hospitals, educational hubs, residential


The LED Lighting for Clip-In metal ceilings


The Cyanlite™ LED panel lights CI150 series has been designed specifically for seamlessly integrated with premium Clip-In, also called SAS120/SAS150 or A-BAR metal ceiling systems. These luminaires fit into the Clip-In ceiling systems perfectly and flush with the ceiling elements with seamless design. Tool-less installation saves huge time for installers and enable them to complete the project easily and quickly.


Cyanlite specially designed CI150 series LED panel lights for Clip-In metal ceiling systems are suitable for all major Clip-In ceiling brands and models, including but not limited to below list:

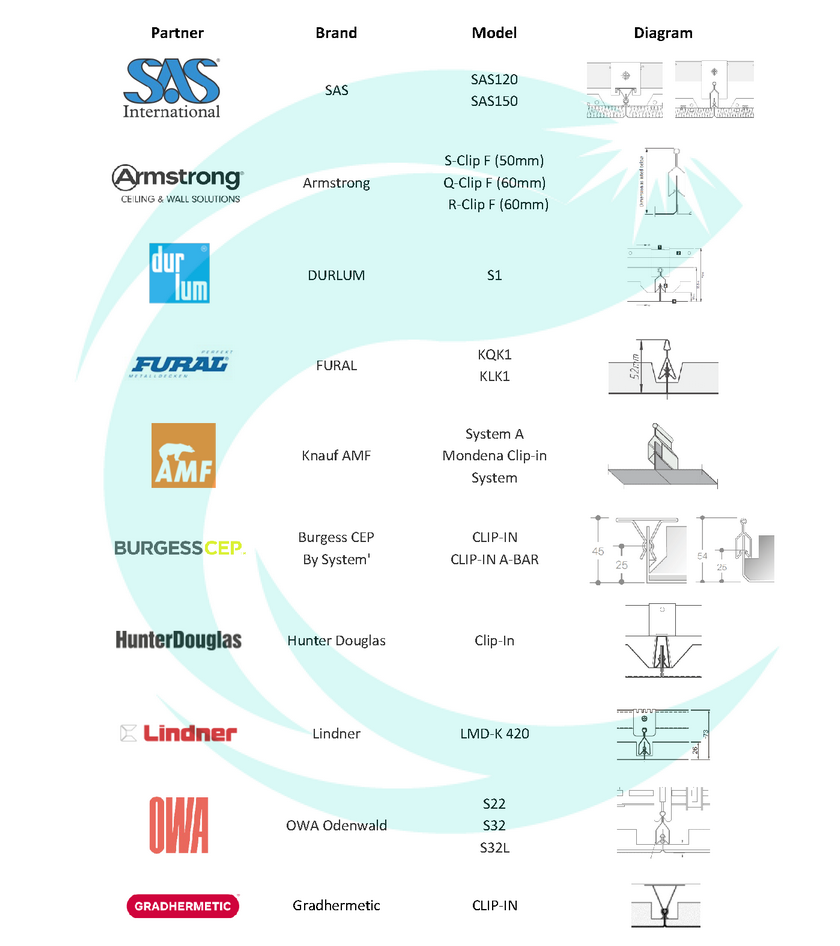

Cyanlite LED lighting for Clip-In metal ceiling of different ceiling brands

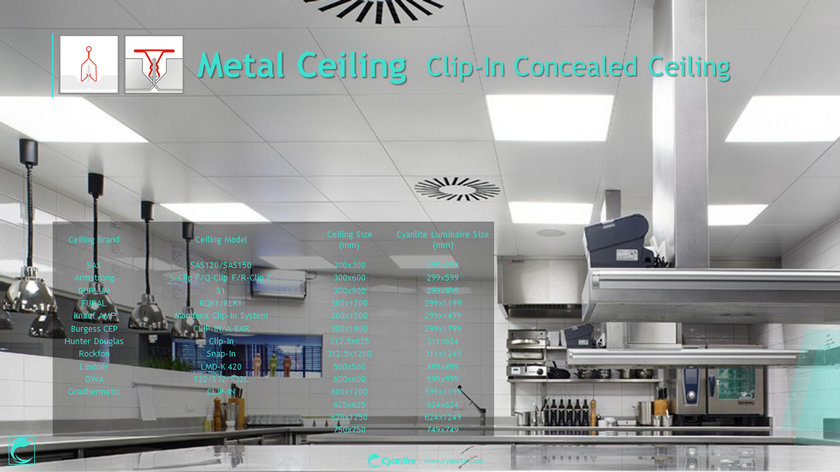

cyanlite led panel light for clip-in ceiling

Advantages

-          Specifically designed for Clip-In metal ceilings, perfectly match with the whole ceiling system

-          All installation brackets included, needs no additional accessories, saving material cost

-          Easy and fast installation, tool-less installation, saving installation cost

-          CI150 has a wide product range for all major standard Clip-In ceiling tile sizes

-          Flexible and customization oriented, bespoke sizes are welcome

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   Standard sizes (mm): 300x300, 300x600, 300x900, 300x1200, 300x1500, 300x1800, 312.5x625, 312.5x1250, 500x500, 600x600, 600x1200, 625x625, 625x1250, 750x750

l   RAL9010 as standard to match SAS ceiling colors, other RAL colors available on request

l   System Efficiency upto 125 lm/W

l   EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

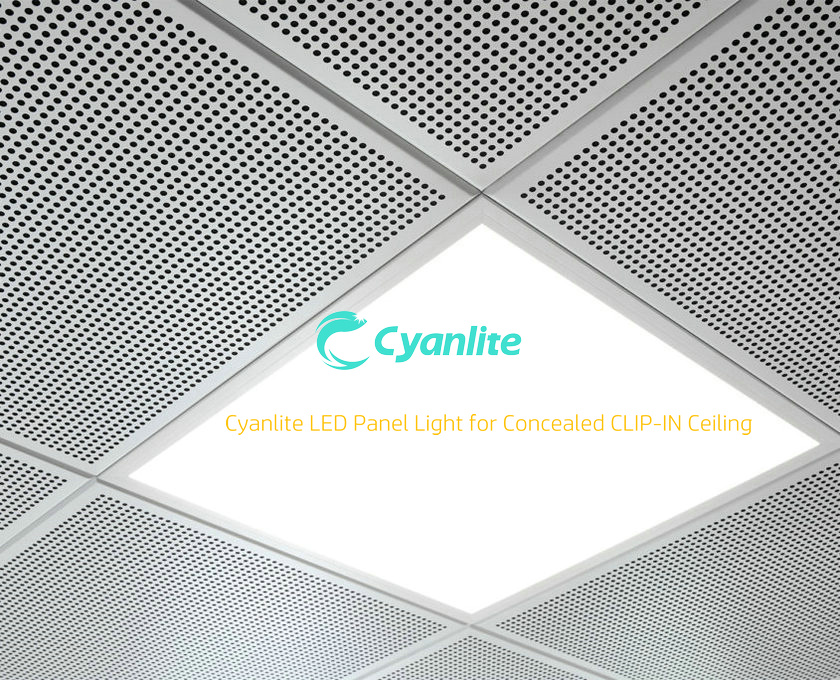

Cyanlite LED light for SAS120 SAS150 Clip In ceiling concealed ceiling

Installation of LED Lighting for Clip-In metal ceilings


Cyanlite offers CI150 LED panel lights for Clip-In metal ceilings in both Backlite version with CLIP-IN frame and Sidelite version with SIDE ARM SUPPORT design. The installation is very easy and fast and no need extra tools, after installation, the LED panel lights are perfectly integrated to the ceiling systems that flush with the ceiling elements in seamless design.

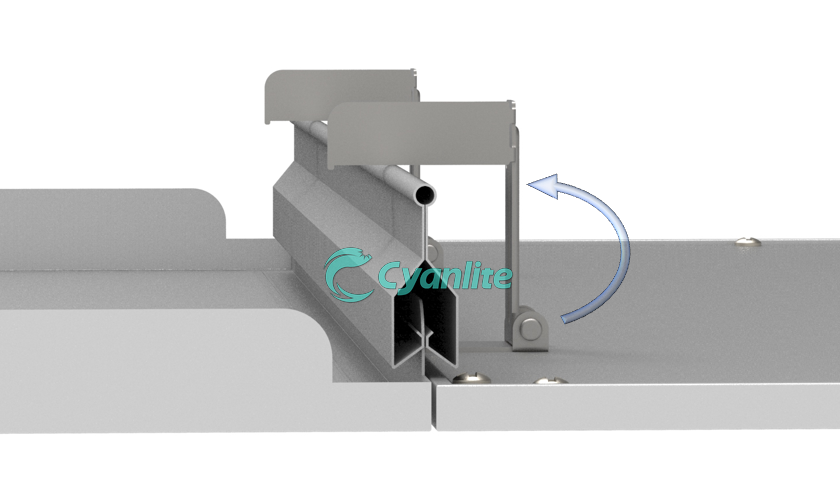

Cyanlite sidelite LED panel light for CLIP-IN metal ceiling with Side-Arm-Support design.

Cyanlite sidelite LED panel light for CLIP-IN metal ceiling with Side-Arm-Support

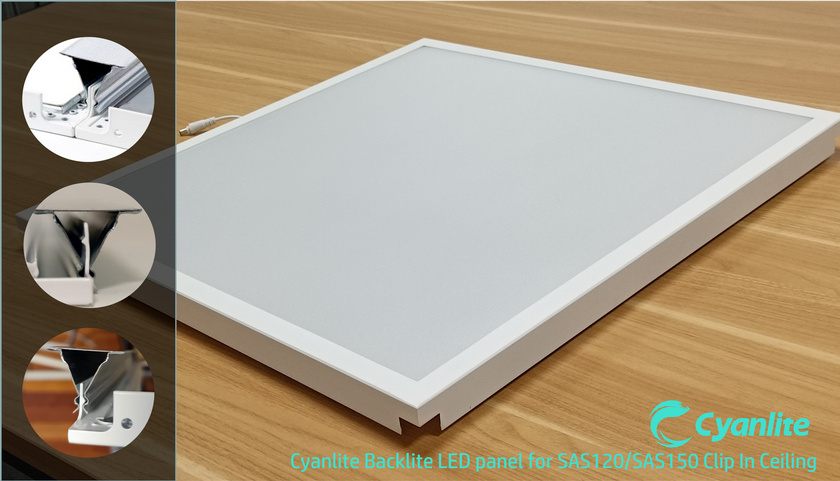

Cyanlite Backlite LED panel for CLIP-IN metal ceiling with Clip-In Frame design.

Cyanlite Backlite LED panel for SAS120 SAS150 Clip In ceiling

Downloads



Cyanlite CI150 Backlite LED Panel Light for Clip-In metal ceilings Datasheet

Cyanlite CI150 Sidelite LED Panel Light for Clip-In metal ceilings Datasheet

SAS120 Clip-In metal ceiling Datasheet

SAS150 Clip-In metal ceiling Datasheet

Armstrong Clip-In Metal Ceiling Q-CLIP datasheet


More about Cyanlite LED lighting for different ceiling systems

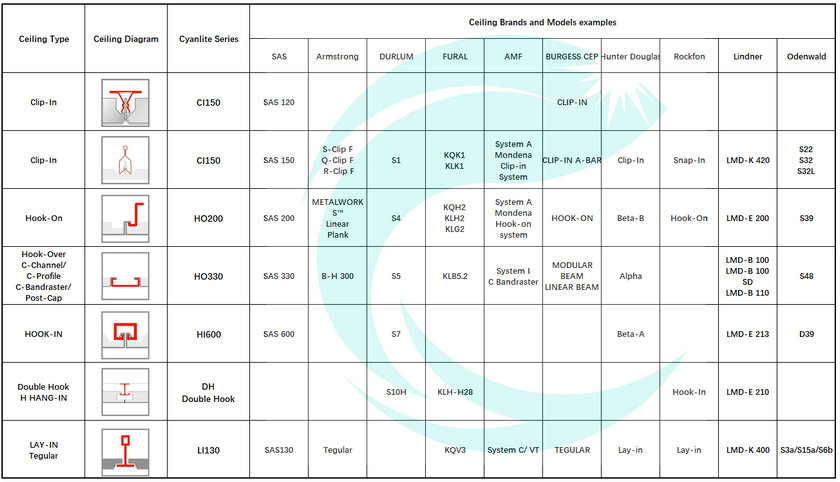

Cyanlite led panel light for different ceilings overview
