Clip-In Metal Ceiling

  • - Seamlessly integrated with premium Clip-In, also called SAS120/SAS150 or A-BAR metal ceiling systems
  • - EN 12464-1& LG7 Compliant, UGR<19 Optional
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • Product description:Cyanlite LED panel light for Clip-In Metal Ceiling for SAS120, SAS150, Armstrong S/Q/R Clip-F, DURLUM S1, FURAL KQK1/KLK1, Knauf AMF Clip-in, BURGESS CEP Clip-in/A-Bar, Linder LMD-K420, OWA S22...
  • Inquiry

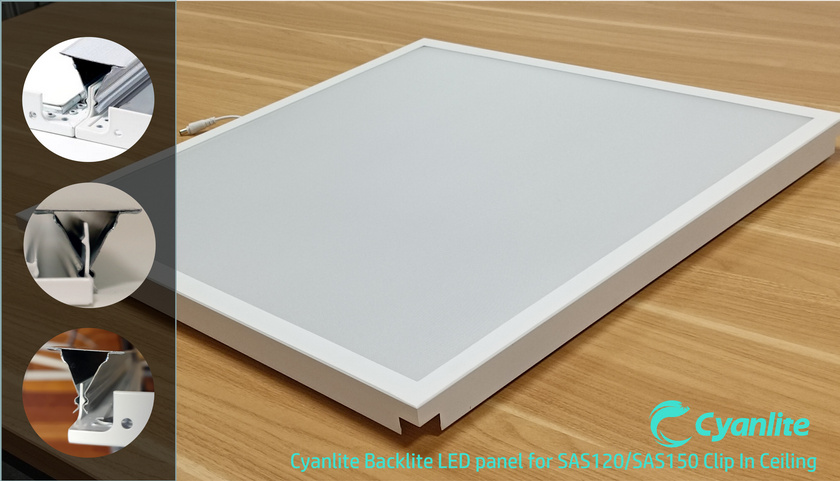

Cyanlite LED panel light CI150 series for Clip-In ceilings

Cyanlite LED panel light for clip-in ceilings

Cyanlite LED panel light for Clip-In <a href=/LED-panel-lights-for-Metal-ceiling.html target='_blank'>metal ceiling</a>

Cyanlite LED panel light CI150 series for Clip-In ceilings

Cyanlite LED panel light CI150 series for Clip-In ceilings

The Cyanlite™ LED panel lights CI150 series has been designed specifically for seamlessly integrated with premium Clip-In, also called SAS120/SAS150 or A-BAR metal ceiling systems. These luminaires fit into the Clip-In ceiling systems perfectly and flush with the ceiling elements with seamless design. Tool-less installation saves huge time for installers and enable them to complete the project easily and quickly.

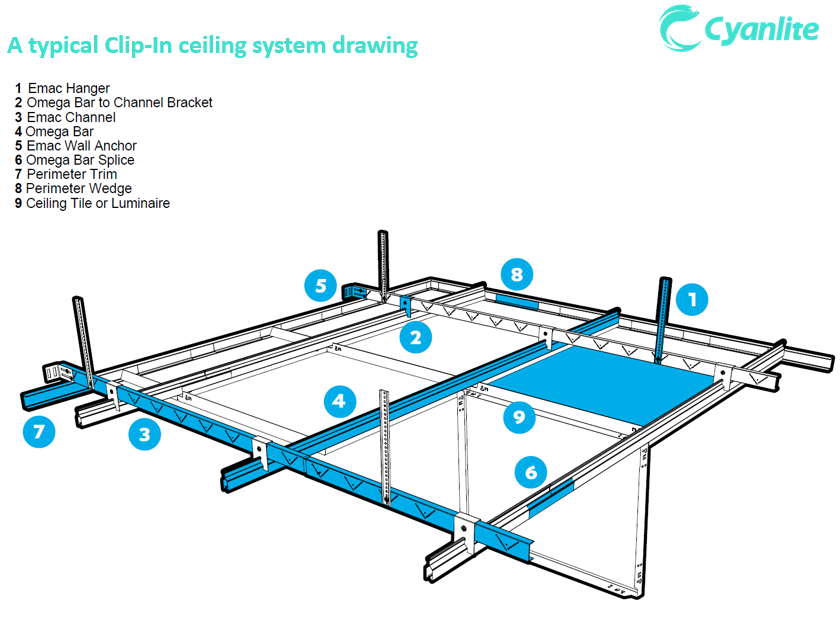

a typical clip-in celing system drawing

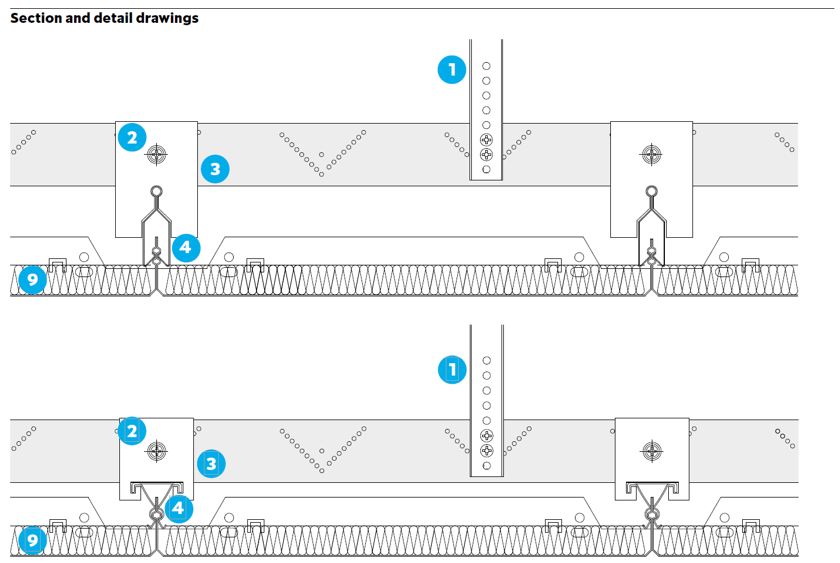

clip-in ceiling section and details

Advantages

-          Specifically designed for Clip-In metal ceilings, perfectly match with the whole ceiling system

-          All installation brackets included, needs no additional accessories, saving material cost

-          Easy and fast installation, tool-less installation, saving installation cost

-          CI150 has a wide product range for all major standard Clip-In ceiling tile sizes

-          Flexible and customization oriented, bespoke sizes are welcome

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   Standard sizes (mm): 300x300, 300x600, 300x900, 300x1200, 300x1500, 300x1800, 312.5x625, 312.5x1250, 500x500, 600x600, 600x1200, 625x625, 625x1250, 750x750

l   RAL9010 as standard to match SAS ceiling colors, other RAL colors available on request

l   System Efficiency upto 120 lm/W

l   EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

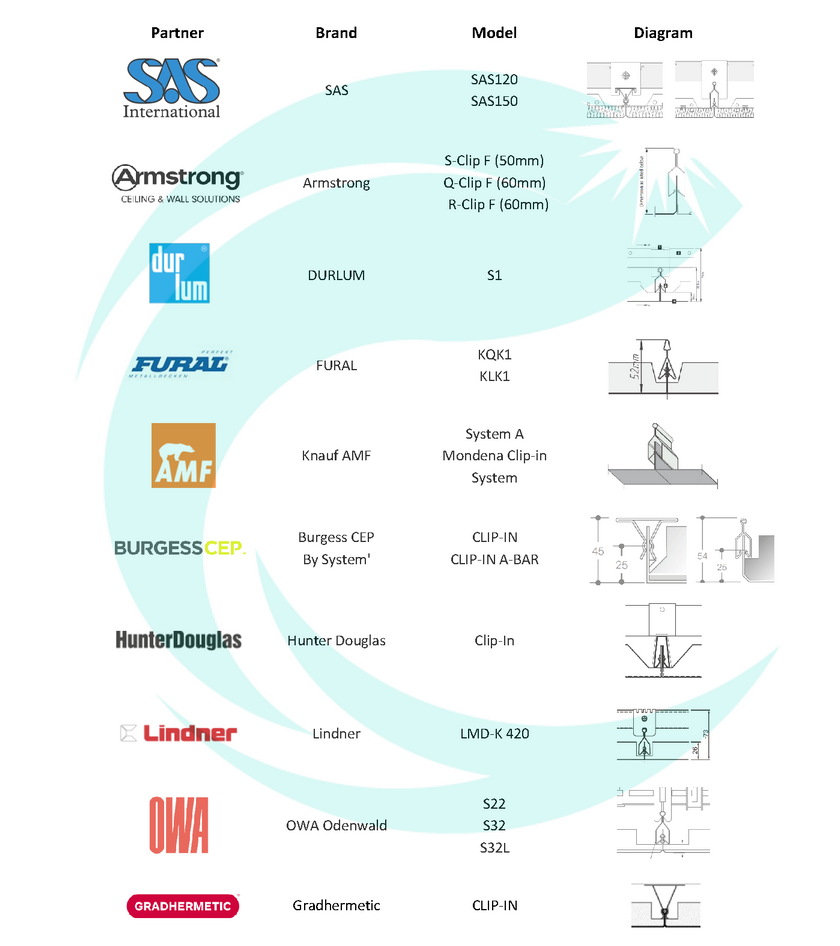

Suitable ceiling brands and models (included but not limited to)

Cyanlite LED panel light for Clip-In Metal Ceiling ceiling brands and models

Specifications

Model

Part Number

Dimension(mm)

Lumen Output

System Power

300x300

PS15W030C

299x299

1500 lm

15 W

300x600

PS20W306C

299x599

2400 lm

20 W

300x900

PS25W309C

299x899

3000 lm

25 W

300x1200

PS30W312C

299x1199

3600 lm

30 W

300x1500

PS35W315C

299x1499

4200 lm

35 W

300x1800

PS45W318C

299x1799

5400 lm

45 W

312.5x625

PS20W307C

311x624

2400 lm

20 W

312.5x1250

PS30W313C

311x1249

3600 lm

30 W

500x500

PS30W050C

499x499

3600 lm

30 W

600x600

PS30W060C

599x599

3600 lm

30 W

600x1200

PS50W612C

599x1199

6000 lm

50 W

625x625

PS30W062C

624x624

3600 lm

30 W

625x1250

PS50W613C

624x1249

6000 lm

50 W

750x750

PS50W075C

749x749

6000 lm

50 W

- Light Distribution

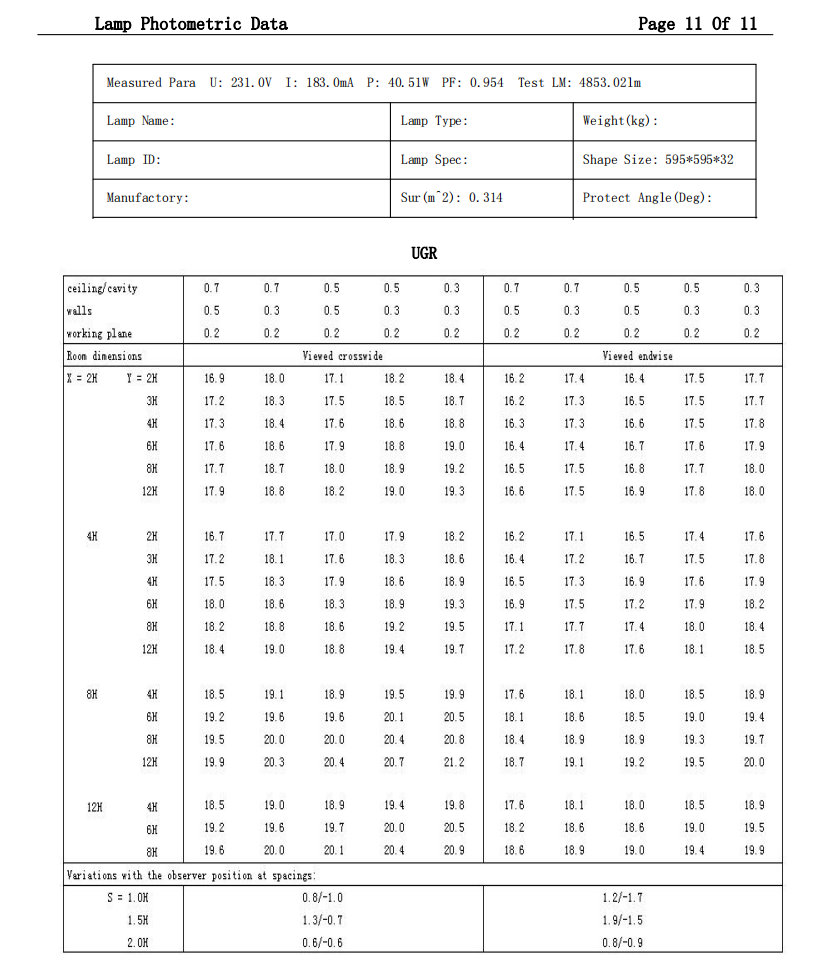

- UGR22 with Opalic diffuser                                        - UGR19 with Micro Prismatic diffuser

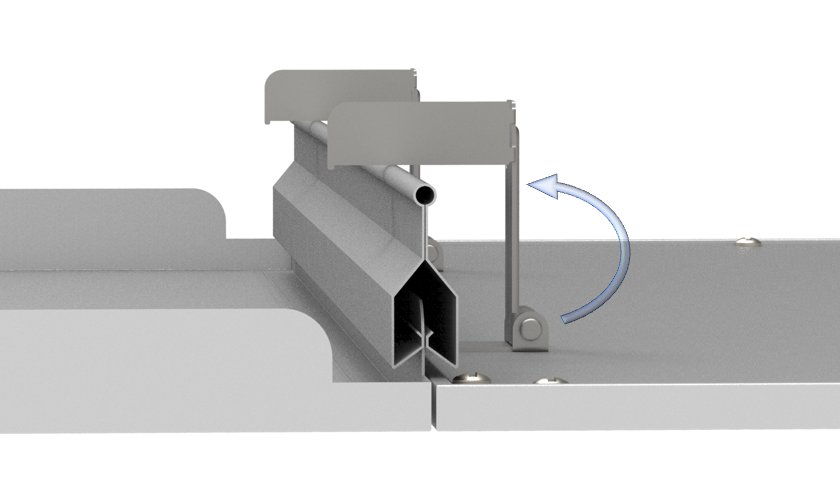

Installation

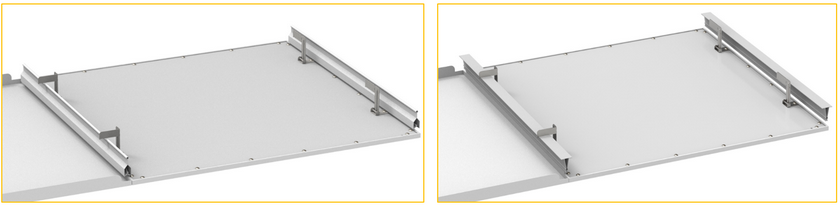

Cyanlite LED panel light CI150 series for Clip-In ceilings installation

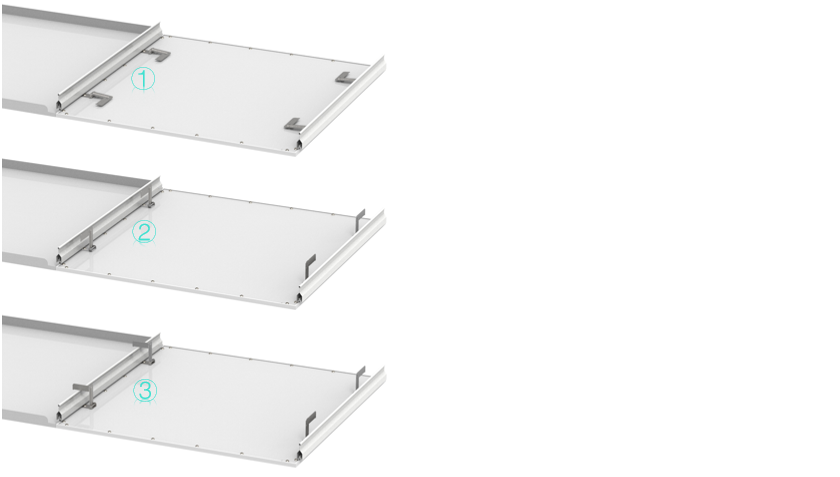

Cyanlite LED panel light CI150 series for Clip-In ceilings installation steps

Certifications


• Downloads


Cyanlite CI150 LED panel light for CLIP-IN concealed metal ceiling datasheet/installation manual/photometric data download
