​Luminaire with Air Con Slots Air Vents Retrofit Replacement Case Study

Luminaire with Air Con Slots/Air Vents Retrofit Replacement Case Study


This customer used about 500pcs traditional T8 fluorescent tube fittings with air con slot/ air vents in their building, they wanted to replaced all of those luminaires for energy saving, improving lux level and reducing the maintaenance cost. So Cyanlite customized this project for them, make the perfect retrofit replacement with LED panel light with air vents, in the same luminaire dimension, the same air vent and air return capacity specification, better light efficiency, longer life and better maintaenance cost.

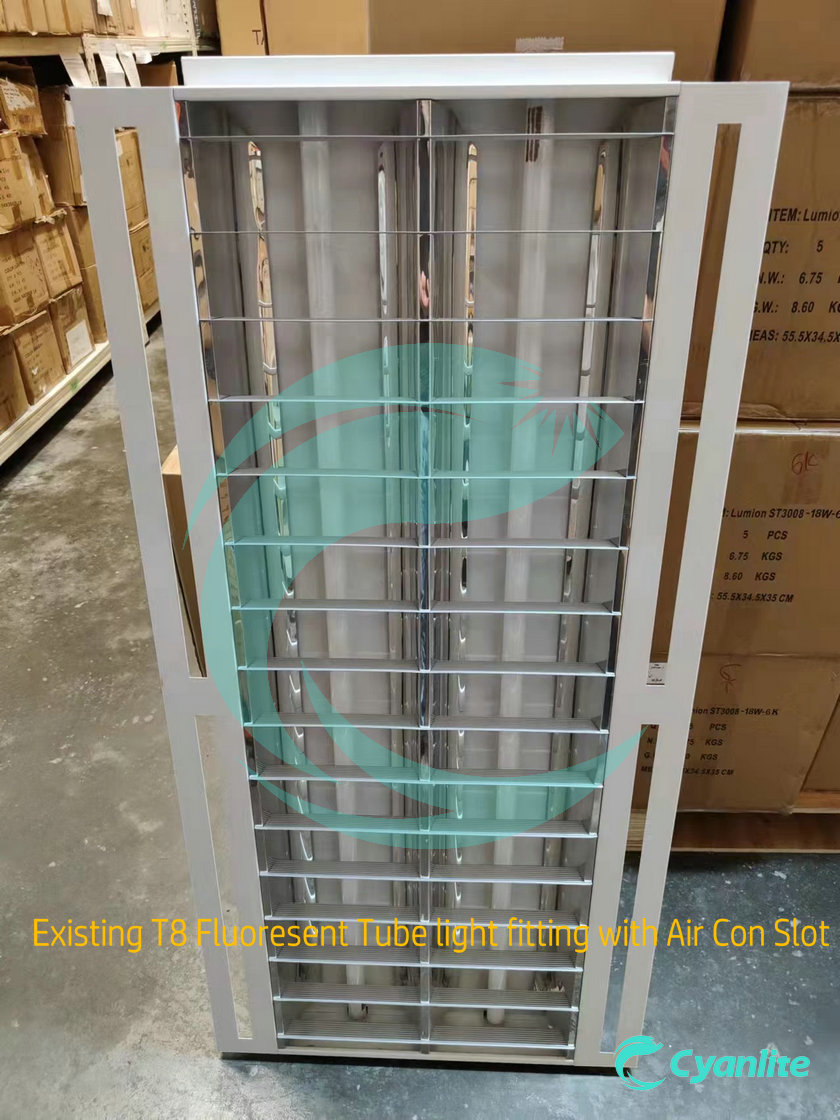

1, the previous T8 tube fitting with air vents used.

Cyanlite LED Light with Air con slot air vent retrofit

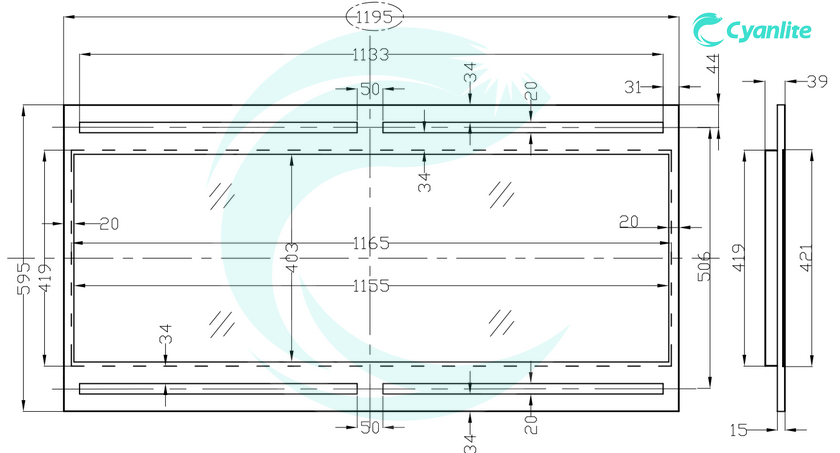

2, Cyanlite created the drawing and design based on previous luminaire and requirements.

Cyanlite LED Light with Air con slot air vent retrofit drawing

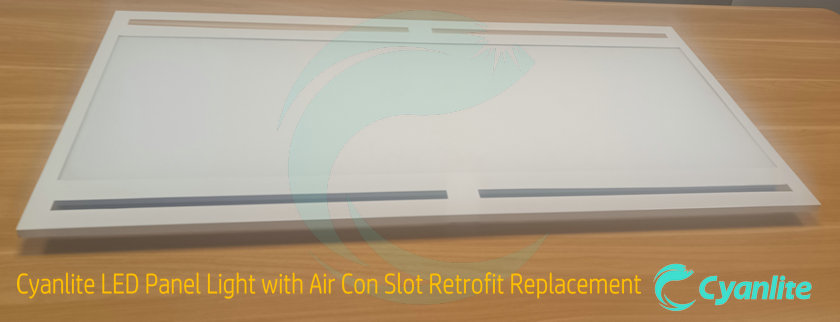

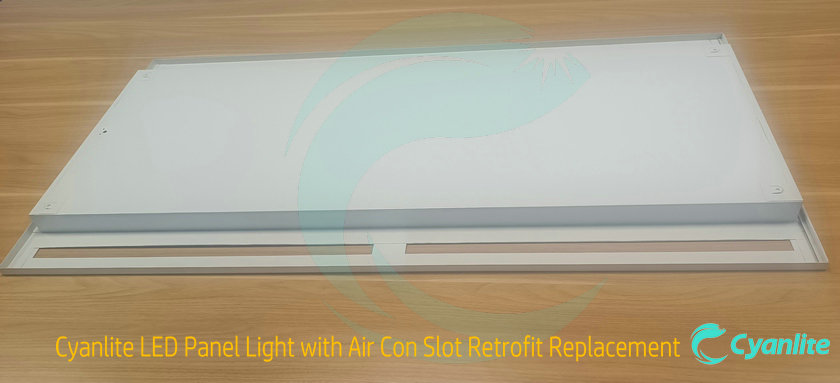

3, Cyanlite produced the LED panel light with air vents retrofit replacement.

Cyanlite LED Light with Air con slot air vent retrofit replacement

Cyanlite LED Light with Air con slot air vent retrofit

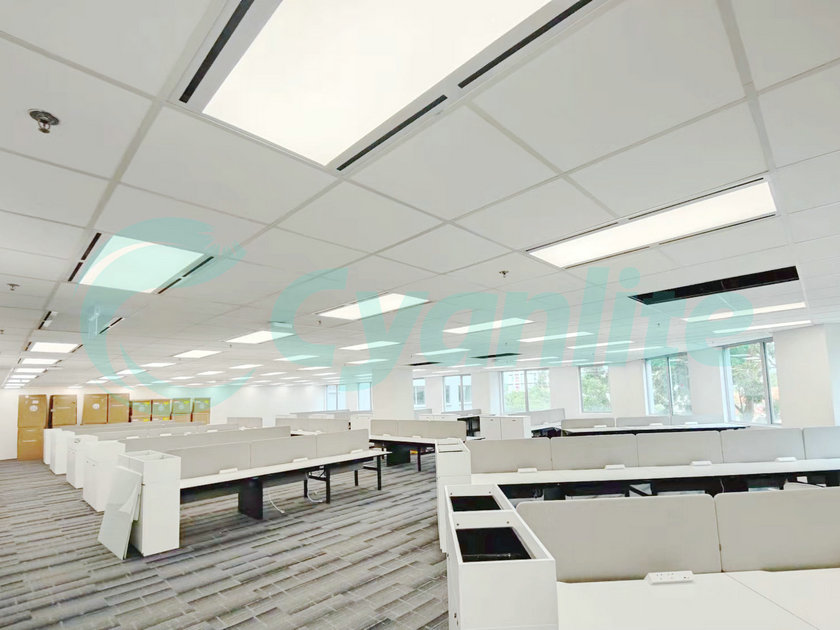

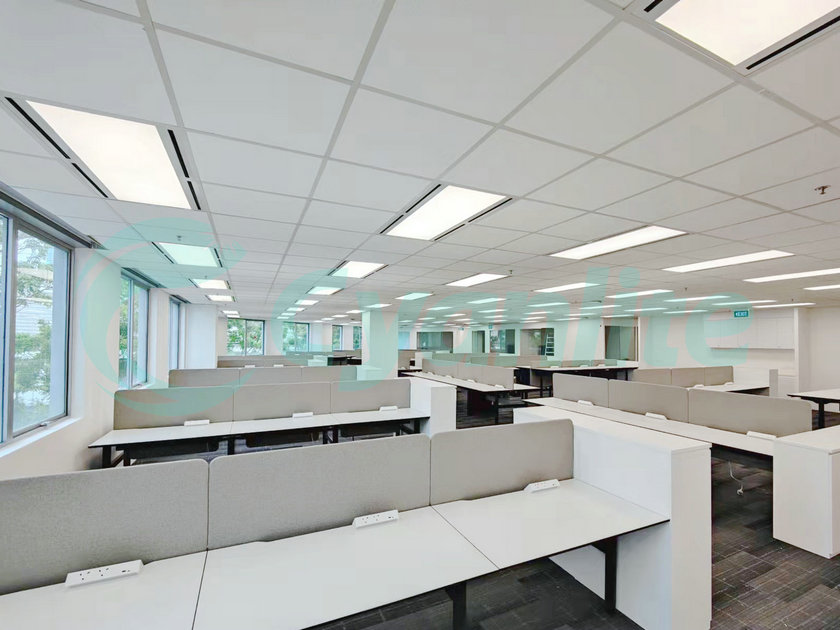

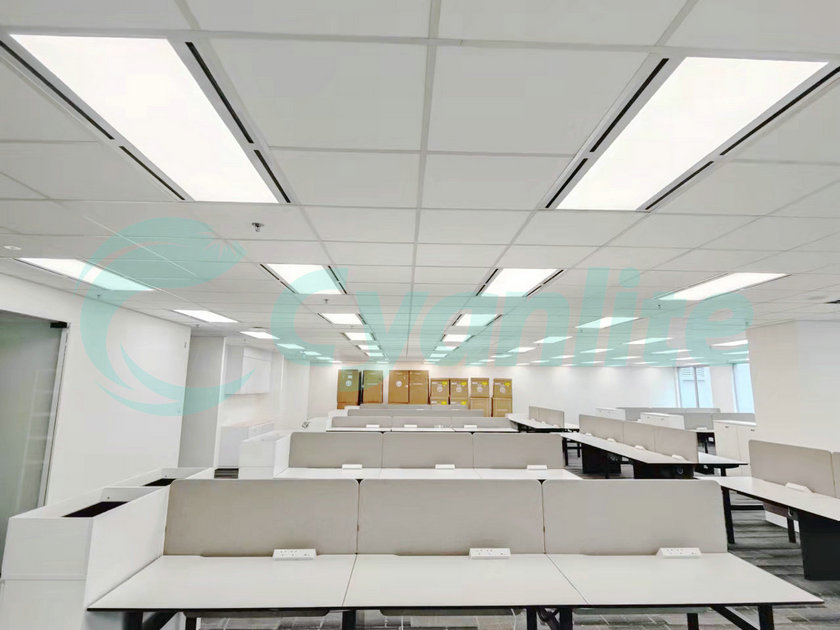

4,Installation is very easy and fast due to the retrofit design, perfectly integrated to the aircon and ceiling systems.

Cyanlite LED Panel Light with Air Vents AirCon Slots

Cyanlite LED Panel Light with Air Vents AirCon Slot

Cyanlite LED Lighting with Air Vents AirCon Slots

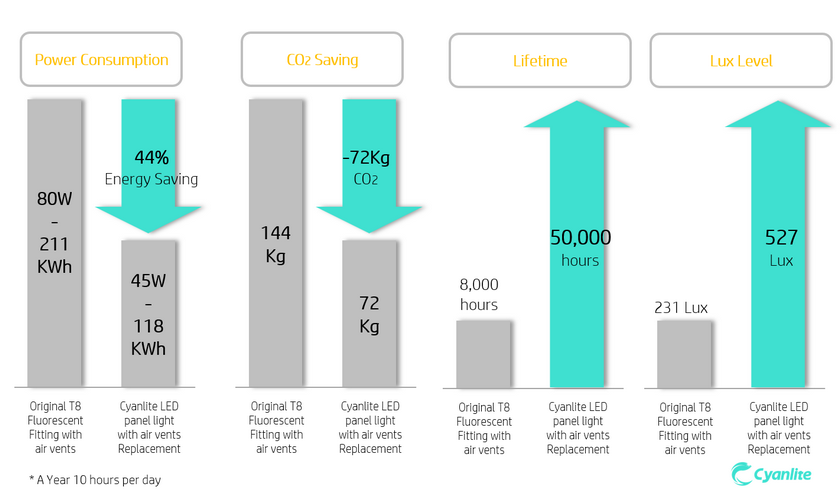

5, case study and analysis


By installing Cyanlite LED lighting replacement, the annual lighting power consumption reduced 46,500KWh in total, the electricity fee goes down significiantly, while the lux level increased sharply from average 231 lux on the table to 527 lux. Moreover, due to Cyanlite product longlife time and 5 years warranty, customer would save a lot from the maintenance and repair.

Luminaire with Air Con Slots Air Vents Retrofit Replacement Case Study Analysis

For more details about Cyanlite LED lighting with air vents/air slots, please check: https://www.cyanlite.com/product/cyanlite-led-panel-light-with-air-slots.html
