Aircon Slot

  • -With Air/Aircon Slots for air handing/return
  • - EN 12464-1& LG7 Compliant, UGR<19 Optional
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • - Air Vents for different system SAS150&SAS330
  • Product description:Cyanlite LED panel light with Aircon Slot/ Air slots/ Air Vents series is a product that combines premium LED panel light and air slots. Aesthetic simple design with double function.
  • Inquiry

Cyanlite LED Backlite panel light with Aircon Slots/ Air Vents for T-bar ceiling and SAS150/SAS330 ceiling systems

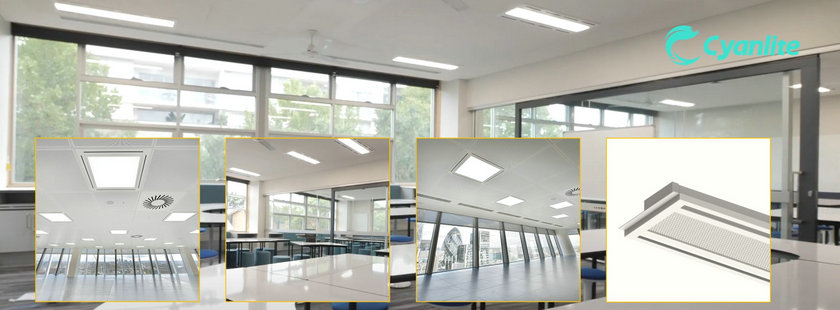

cyanlite led lighting with air vent/ air slot

Cyanlite Panel with Air Handling

Cyanlite LED Panel with Aircon Slot

The Cyanlite™ panel light with Aircon Slot series is a product that combines premium LED panel light and air slots. Aesthetic simple design with double function. Tool-less installation saves huge time for installers and enable them to complete the project easily and quickly. Besides the light with air vents for T-bar ceiling system, Cyanlite also offer LED lighting with air vents/ aircon slot for metal ceiling systems such as SAS150 CLIP-IN/ SAS330 HOOK-OVER etc.,

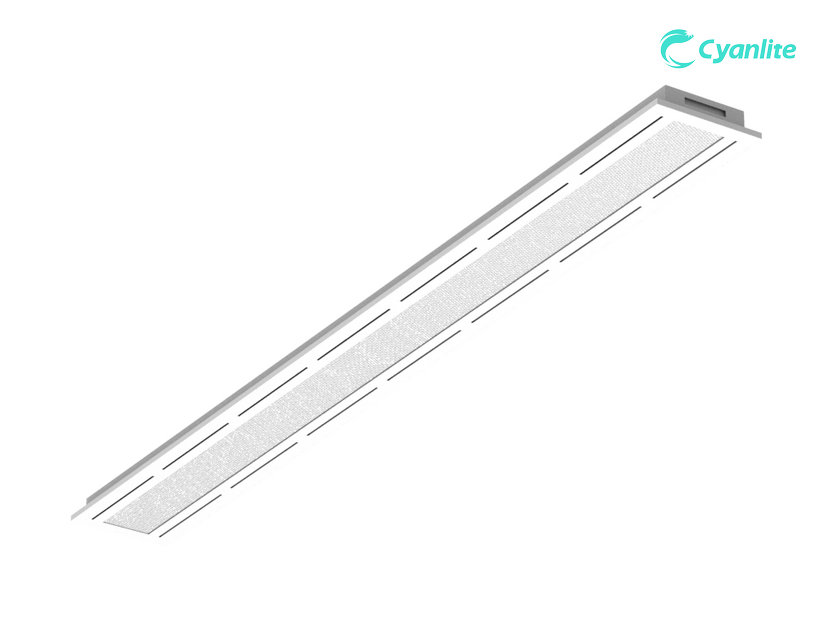

Cyanlite LED linear light with air vents

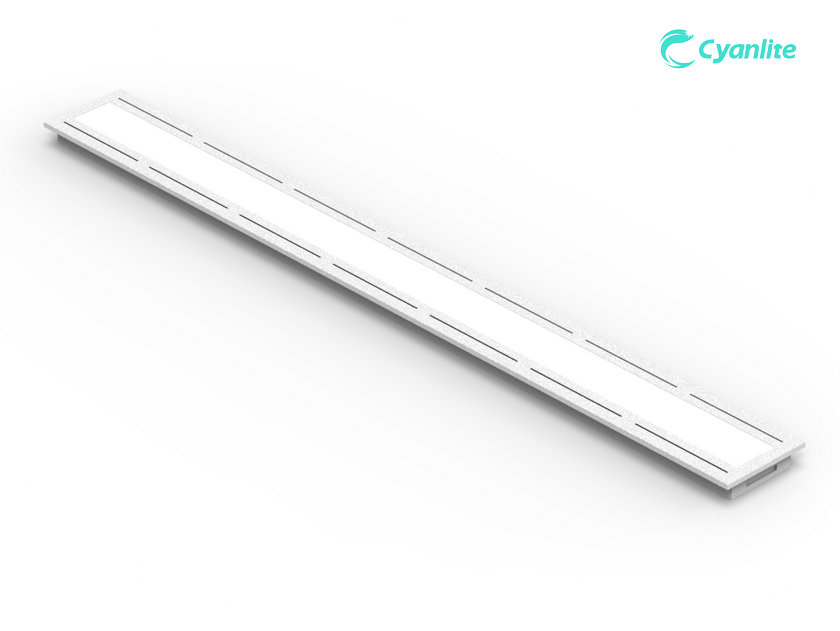

Cyanlite LED panel with air vents air slot

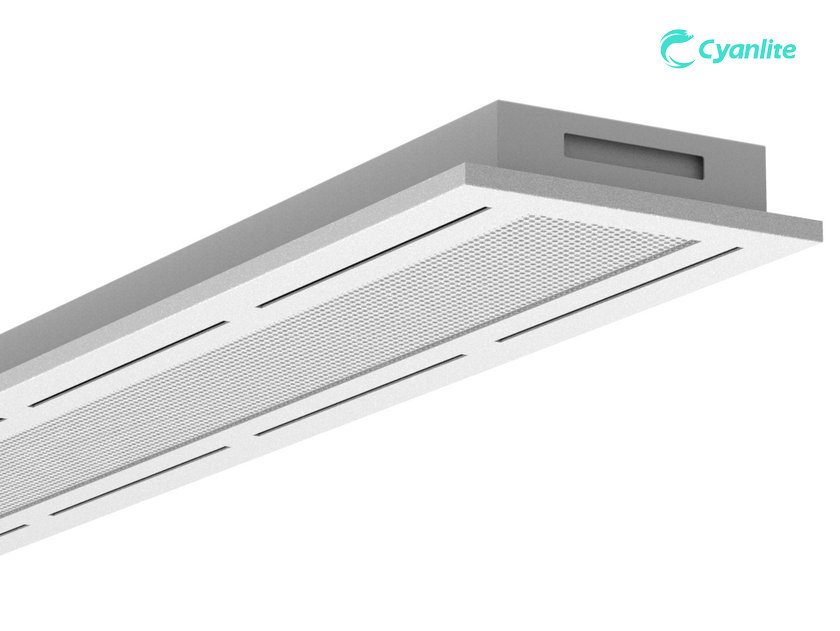

Cyanlite LED light with air return/air vents

Advantages

-          Specifically designed for places where requires LED light and air handing and air return.

-          Classy and morden appearance, perfectly match the ceiling where it's installated

-          Easy and fast installation, tool-less installation, saving installation cost

-          Flexible and customization oriented, bespoke sizes are welcome, suitable for SAS150&SAS330 ceilings.

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   Standard sizes (mm): 600x600, 300x1200, 600x1200, customized sizes are welcome

l   RAL9016 as standard, other RAL colors available on request

l   System Efficiency upto 125 lm/W

l   EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

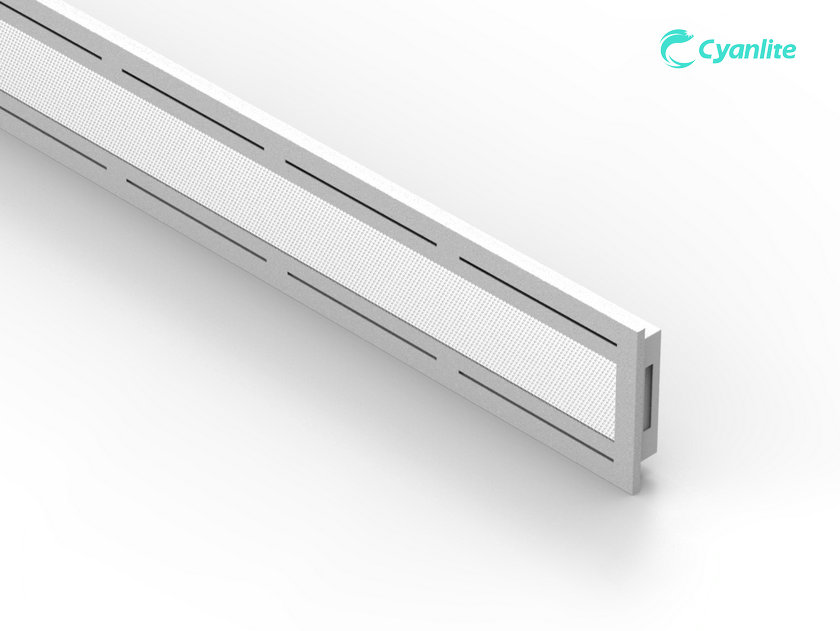

LED panel light with air slot/ air vents

Specifications

Model

Part Number

Dimension(mm)

Lumen Output

System Power

600x600

PB35W060P-AV

595x595

4375 lm

35 W

300x1200

PB35W312P-AV

295x1195

4375 lm

35 W

600x1200

PB45W612P-AV

595x1195

5625 lm

45 W

- Light Distribution


- UGR22 with Opalic diffuser                                        - UGR19 with Micro Prismatic diffuser


• Retrofit Replacement Case Study


This customer used about 500pcs traditional T8 fluorescent tube fittings with air con slot/ air vents in their building, they wanted to replaced all of those luminaires for energy saving, improving lux level and reducing the maintaenance cost. So Cyanlite customized this project for them, make the perfect retrofit replacement with LED panel light with air vents, in the same luminaire dimension, the same air vent and air return capacity specification, better light efficiency, longer life and better maintaenance cost.


1, the previous T8 tube fitting with air vents used.

Cyanlite LED Light with Air con slot air vent retrofit

2, Cyanlite created the drawing and design based on previous luminaire and requirements.

Cyanlite LED Light with Air con slot air vent retrofit drawing

3, Cyanlite produced the LED panel light with air vents retrofit replacement.

Cyanlite LED Light with Air con slot air vent retrofit replacement

Cyanlite LED Light with Air con slot air vent retrofit

4,Installation is very easy and fast due to the retrofit design, perfectly integrated to the aircon and ceiling systems.

Cyanlite LED Panel Light with Air Vents AirCon Slots

Cyanlite LED Panel Light with Air Vents AirCon Slot

Cyanlite LED Lighting with Air Vents AirCon Slots


Certifications


• Downloads


Cyanlite LED panel light with Aircon slots datasheet/installation manual/photometric data download

Cyanlite LED panel light selection guide download Cyanlite LED panel light selection guide[3.9 Mb PDF]

Cyanlite LED Panels with Air vents, IP65 protection, Built-in Sensor
