LED Panel Light with Built-In Sensor

  • - Occupancy sensing, daylight harvesting and task tuning in one device
  • - Operates with Philips Xitanium SR drivers and qualified wireless switches
  • - Simple room level energy reporting with CSV file saved on the phone
  • Product description:The Cyanlite SpaceWise LED backlite panel light is the ideal solution for flexible, energy-efficient LED lighting for workspaces. It combines Philips Xitanium SR LED driver and EasyAir wireless sensor
  • Inquiry

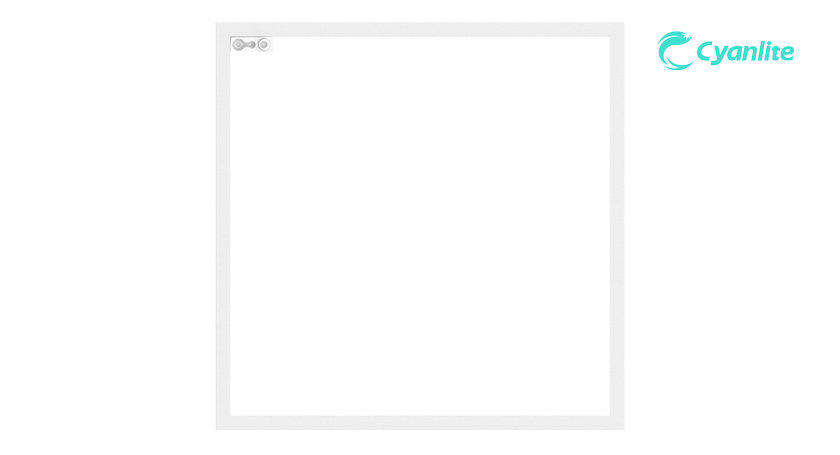

Cyanlite SpaceWise LED panel lights with Built-In dimmable Philips Easy Air Sensor

Cyanlite LED panel light with dimmable sensor

LED panels with daylight motion sensor

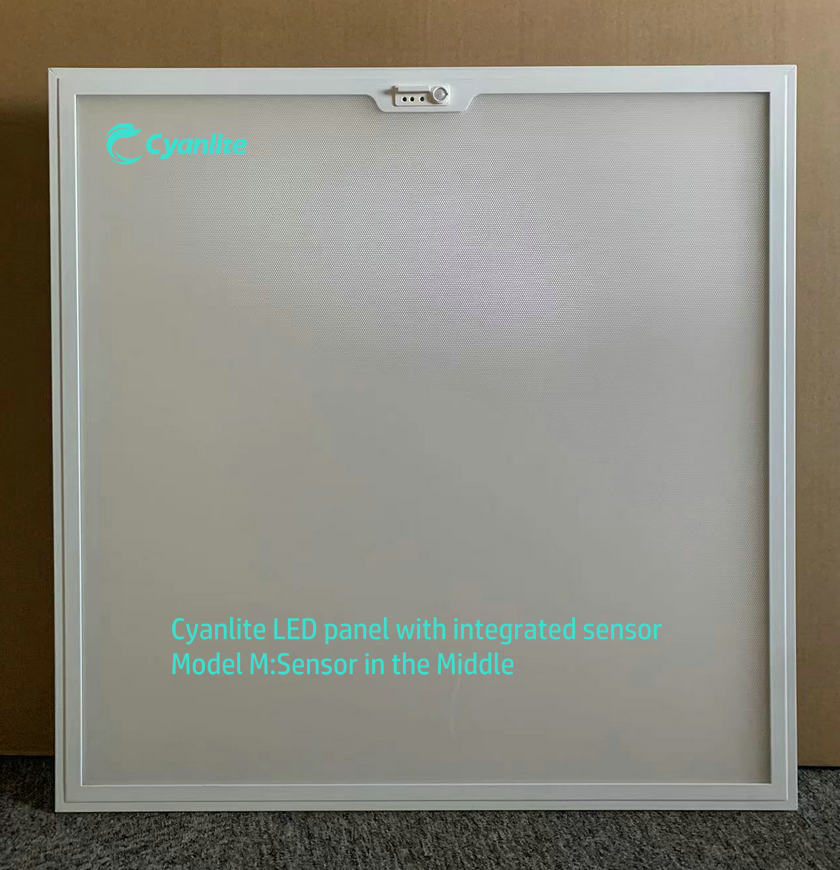

Cyanlite LED panel light with integrated Philips EasyAir sensor

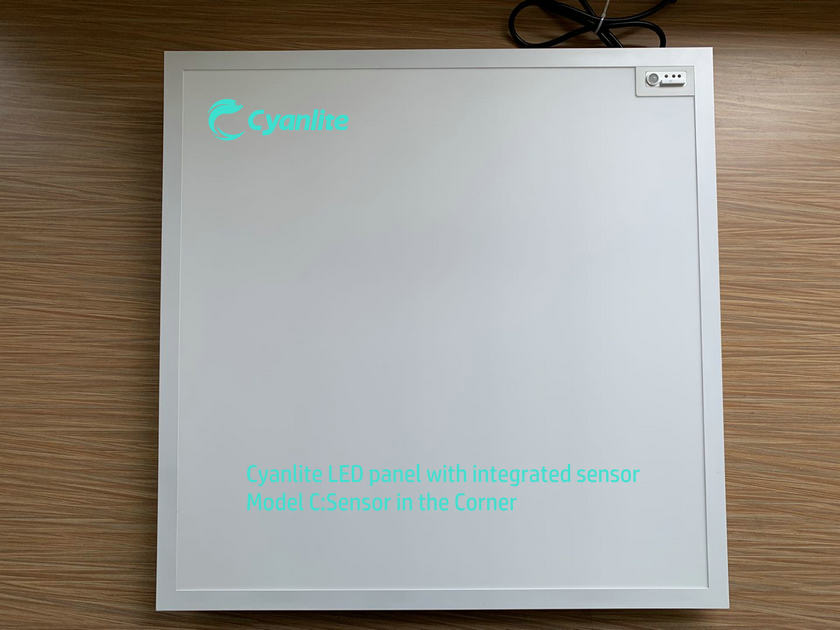

Cyanlite LED panel light with integrated Philips EasyAir sensors

Cyanlite_PHILIPS Distributor Certificate

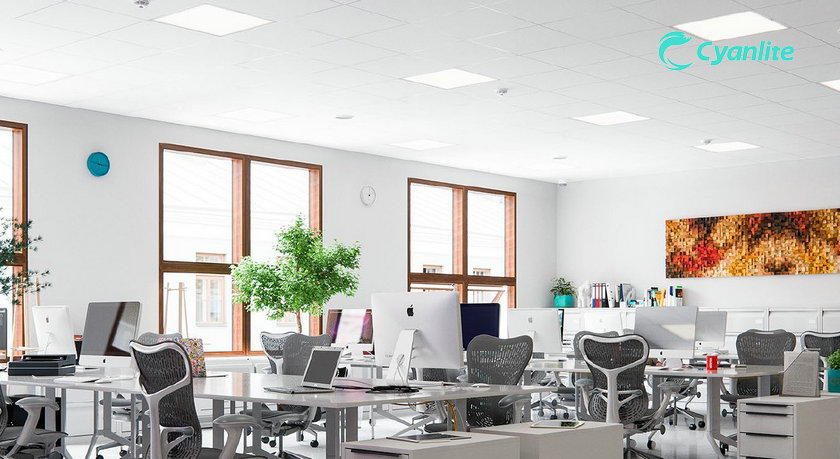

The Cyanlite SpaceWise LED backlite panel light is the ideal solution for flexible, energy-efficient LED lighting for workspaces. It combines Philips Xitanium SR LED driver and EasyAir wireless sensor SNS210. An intuitive Philips Field Apps on Android smartphone allows up to 40 of the luminaires to be grouped together and makes the overall configuration and commissioning during and after installation fast and easy. Wireless wall switch can be connected for manual scene control also.
The LED panel ensures lights is only on when and where it is needed via the integrated device of occupancy sensing, daylight harvesting and task tuning. The product comes in a family of slim square and rectangular – recessed, suspended and surface mounted with extra mounting kit – that can be used for all office areas and similar applications in schools and hospitals.

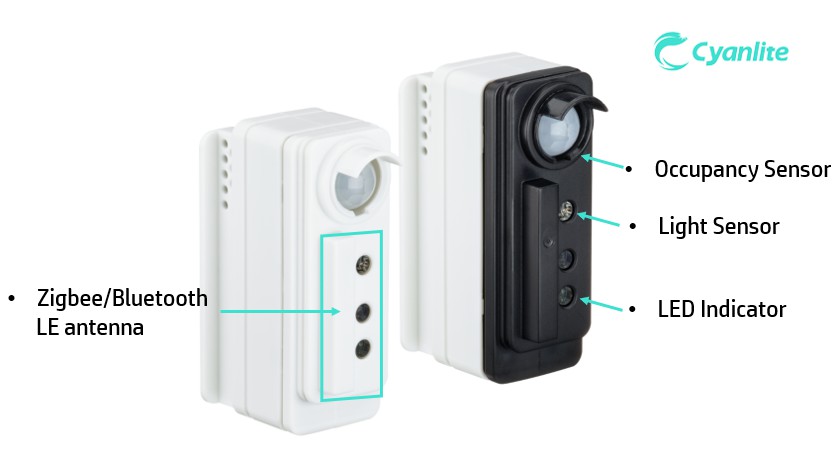

Cyanlite LED panel with Philips Easy Air sensor SNS210

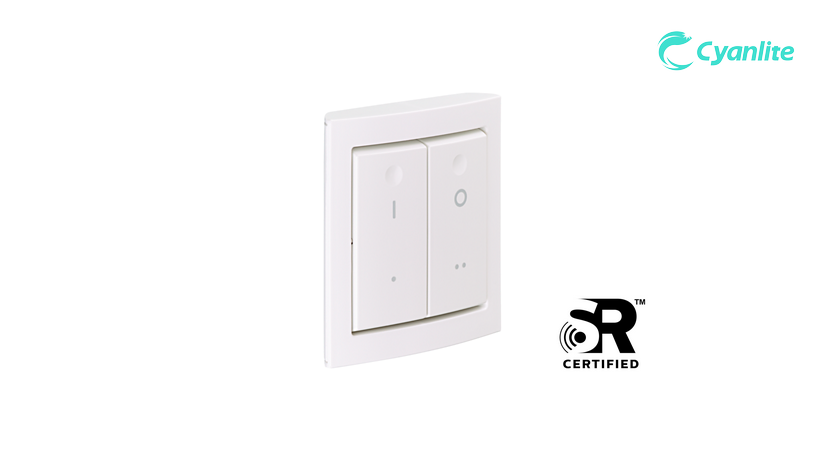

Cyanlite LED panel with Xitanium SR driver and wirelss switch dimmer

Cyanlite SpaceWise LED panel lights are using Philips Xitanium SR drivers, which are sensor ready, making them perfect for use in building management systems. You can power and interface with sensors directly from the driver without the need for additional modules, devices or power packs. The versatile and scalable DALI-2 open standard digital interface is used via a simple 2-wire connection to the sensor, so that you can confidently design flexible lighting, and incorporate your preferred sensors and networks, without worrying about potential incompatibilities.

Advantages

-          Enables multiple modes such as manual-on/auto-off or manual on/off

-          Non-yellowing PMMA lens and Flicker Free driver as standard

-          Quick task tuning in the field to optimize light levels, color temperature and power

-          Integrated power supply over DALI-2 to power sensors and wireless radios directly from the driver

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   Occupancy sensing, daylight harvesting and task tuning in one device

l   Operates with Philips Xitanium SR drivers and qualified wireless switches

l   System Efficiency upto 120 lm/W

l   EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser

l   Highly accurate power metering, accessible over DALI

l   5 Years Warranty

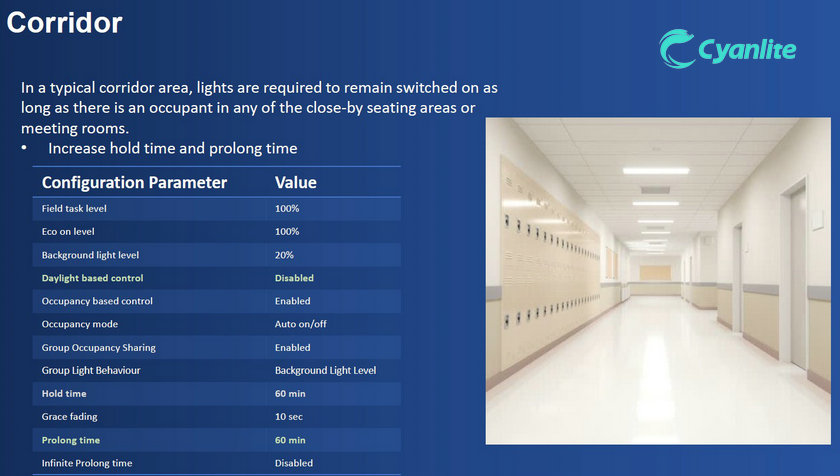

l   Configuration of sensor parameters– at group level or single light level

l   Emergency options available

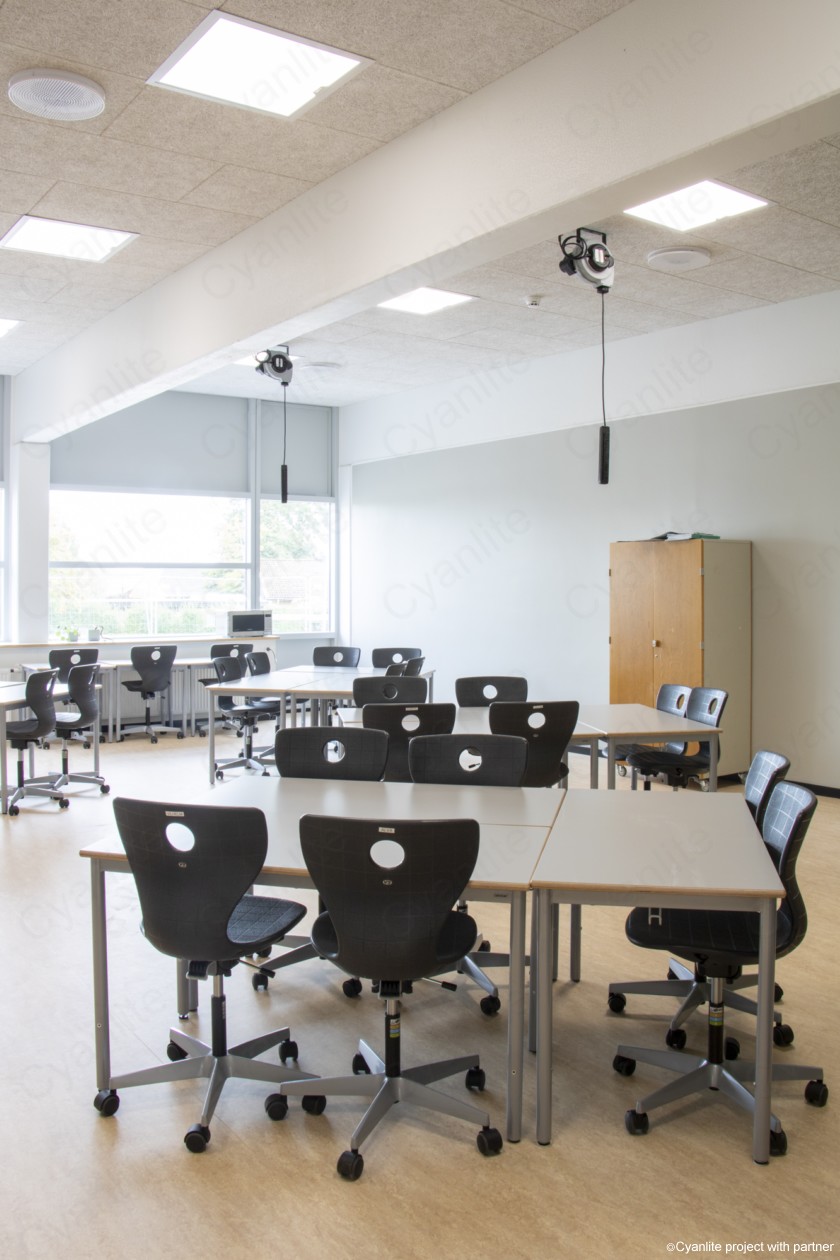

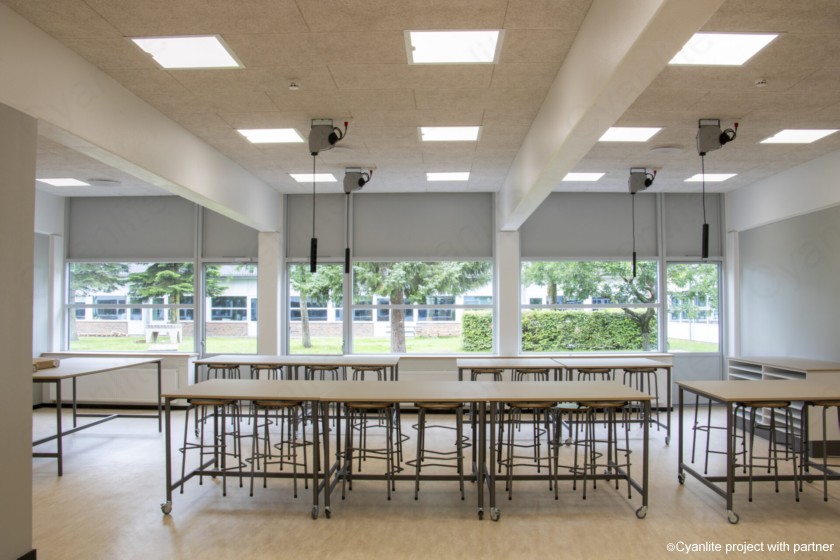

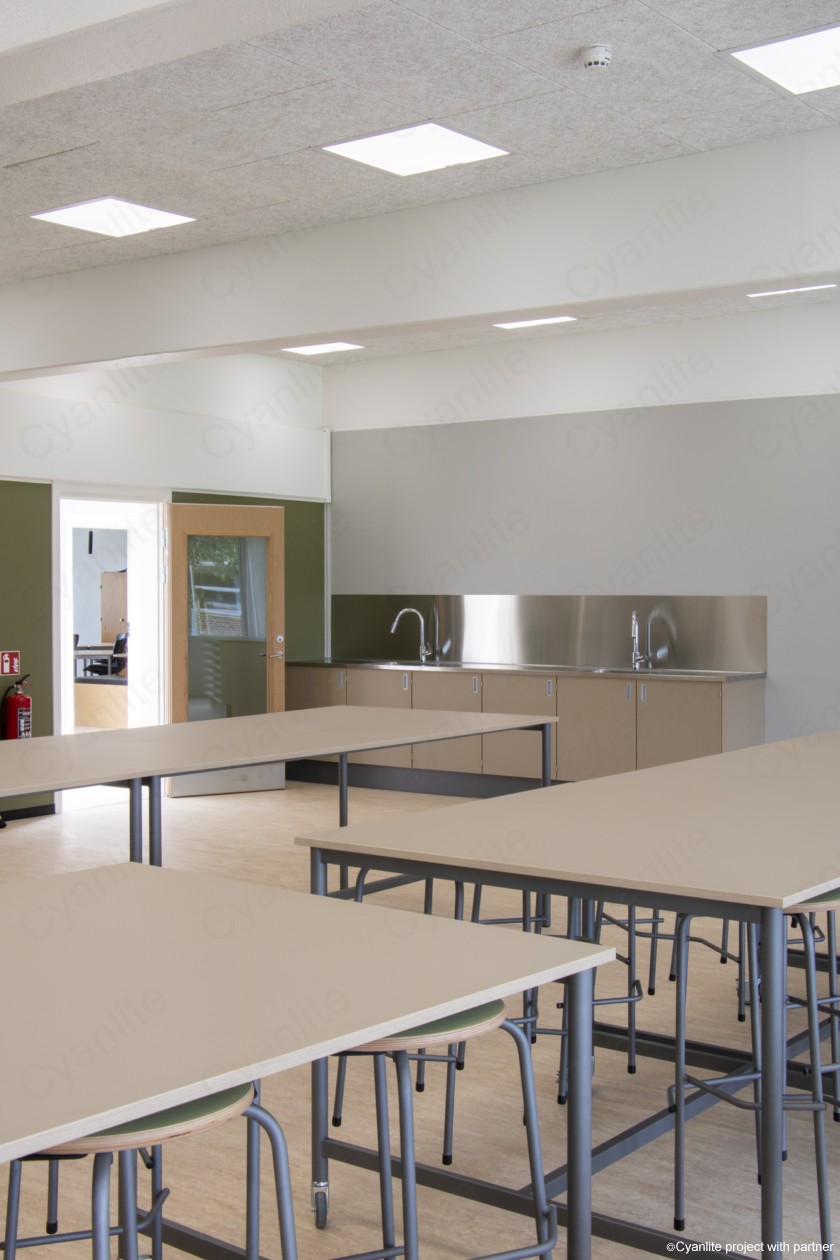

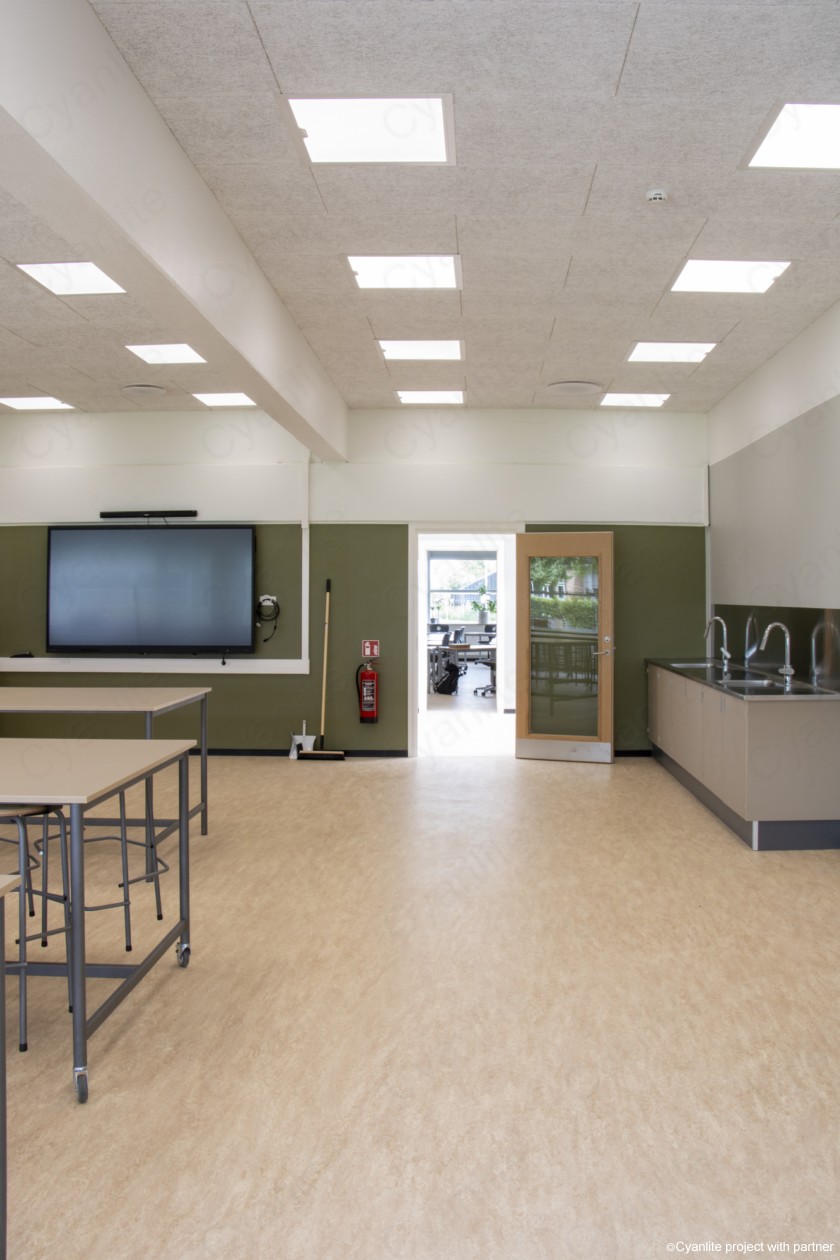

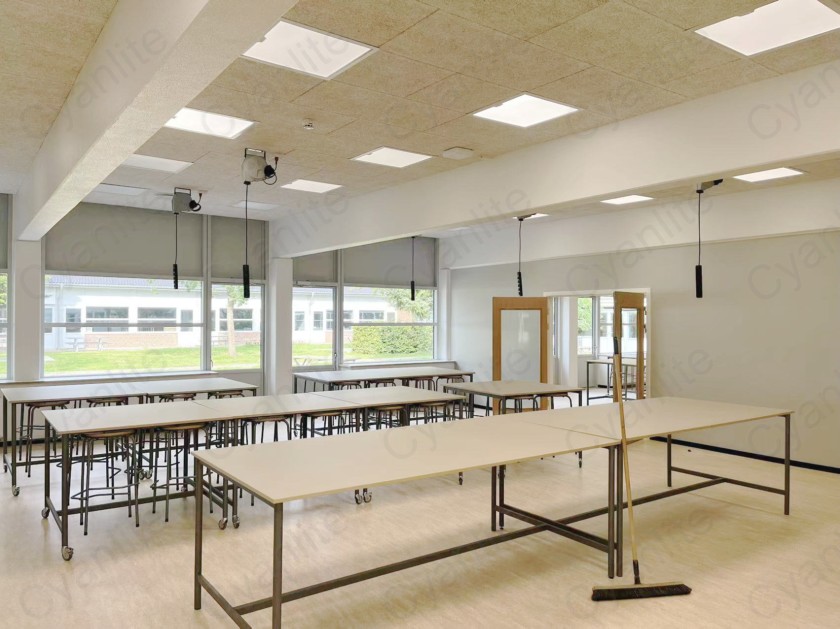

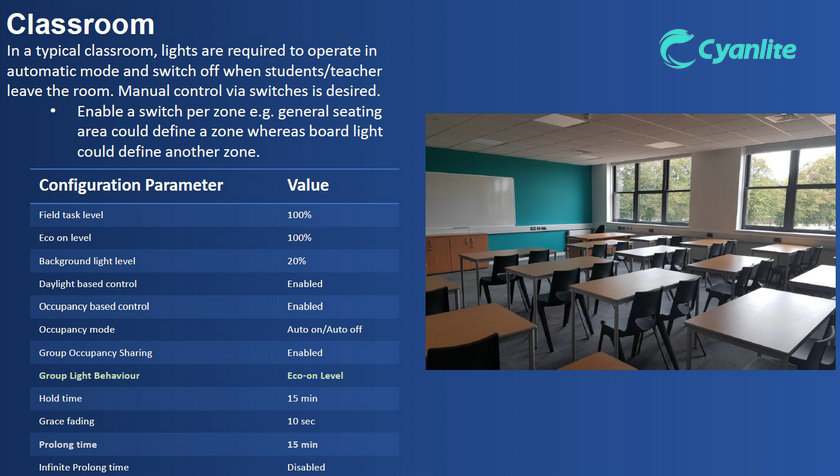

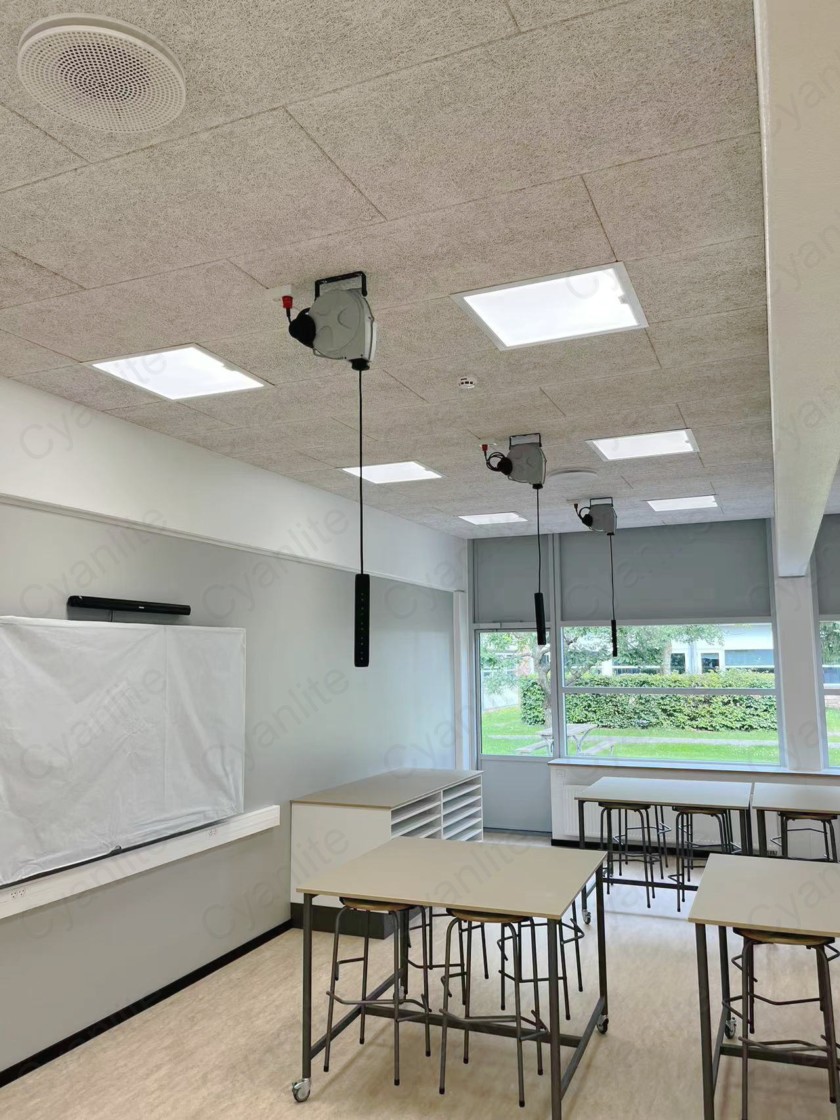

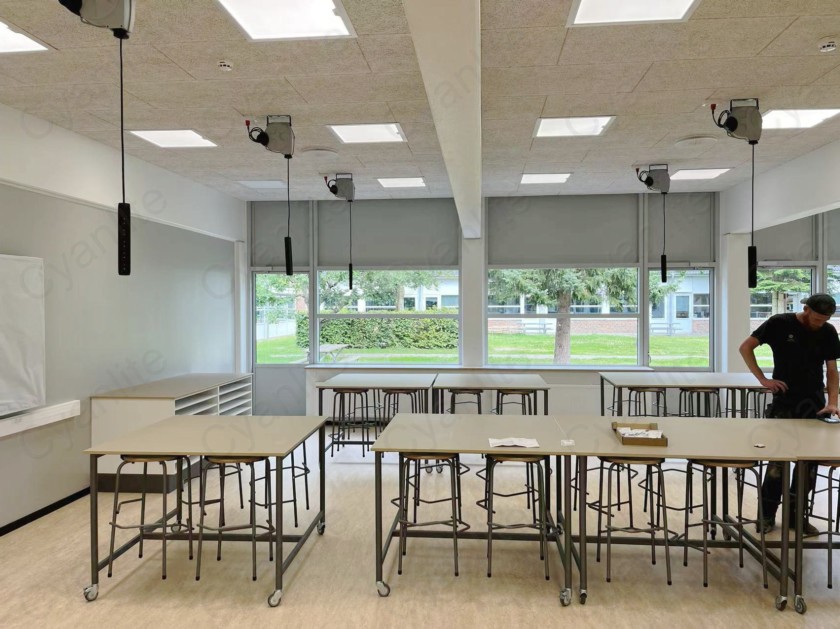

Cyanlite LED sensor panel application classroom

Cyanlite LED panel light with dimmable sensor Philips SR Xitanium SNS210MC application

Specifications

Model

Dimension

Product No.

Power

Luminous Flux

Efficiency @ 4000K

600 x 600

595 x 595 x 30mm

PB30W060P

30W

3750lm

125lm/W

PB35W060P

35W

4375lm

125lm/W

PB40W060E

40W

4000lm

100lm/W

625 x 625

620 x 620 x 30mm

PB30W062P

30W

3750lm

125lm/W

PB35W062P

35W

4375lm

125lm/W

PB40W062E

40W

4000lm

100lm/W

300 x 1200

295 x 1195 x 30mm

PB30W312P

30W

3750lm

125lm/W

PB35W312P

35W

4375lm

125lm/W

PB40W312E

40W

4000lm

100lm/W

600 x 1200

595 x 1195 x 30mm

PB45W612P

45W

5625lm

125lm/W

PB60W612E

60W

6000lm

100lm/W

- Light Distribution


- UGR22 with Opalic diffuser                                          - UGR19 with Micro Prismatic diffuser

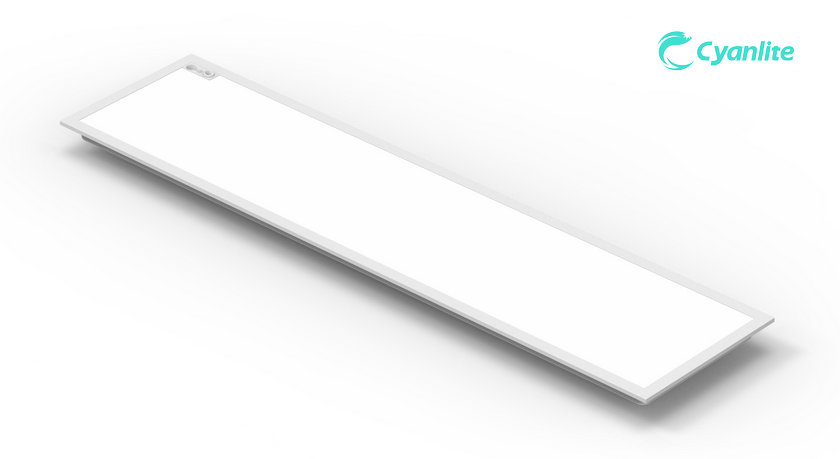

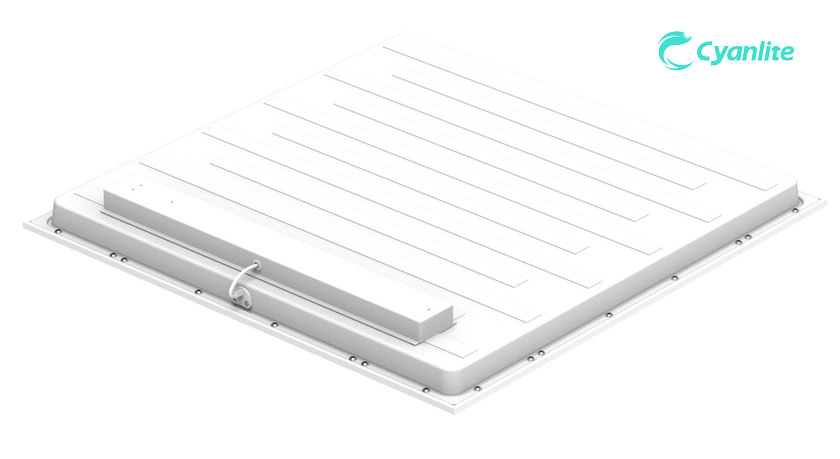

Cyanlite LED backlite panel SpaceWise sensor

Cyanlite LED backlite panel SpaceWise sensor

Certifications


• Downloads


Cyanlite LED Panel Light with Built-In Philips SNS210 Sensor datasheet (1.2MB, PDF)


Cyanlite LED Panels with Air vents, IP65 protection, Built-in Sensor
