Universal Design Snap-In Backlite LED Panel

  • - For T15/T24 T bar Lay-On ceiling and Plasterboard Cut-Out ceiling
  • - LED backlight technology, EN 12464-1& LG7 Compliant, UGR<19 Optional
  • - 5-7 Years Warranty; CE, RoHS2.0, REACH approval
  • - Snap frame design with trim to cover the cut-out hole
  • Product description:Cyanlite Backlite LED panel light for Lay-On T bar ceiling and Plasterboard cut-out ceiling, non-yellowing lens & FF driver. Upto 4800 lumen with UGR<19, upto 150 lumen per watt Premium quality.
  • Inquiry

Cyanlite Universal Design Backlite LED Panel Light for T15/T24 T bar Lay-On ceiling and Plasterboard Cut-Out ceiling

The Cyanlite™ backlite LED panel lights are the ideal luminaire for T15/T24 Lay-On ceiling and Plasterboard Cut-Out ceiling projects. It has perfect counterpoise of LPW and price, sysem efficiency ECO version 100 lumen/w, PRO version 125 lumen and PREMIUM version 150 lumen/w optional.

Cyanlite backlite LED panel lights supplied with the non-yellowing PMMA lens and nano-coated high reflective ratio backplate in the shape of a square angle for stiffness. More functions are available already, such as integrated with Philips occupancy sensing, daylight harvesting and task tuning, controlled with smartphone App; COI<3.3 compliant for medical lighting; tunable white from 3000K to 6000K for Human Centric Lighting; and RGBW for decorative lighting.

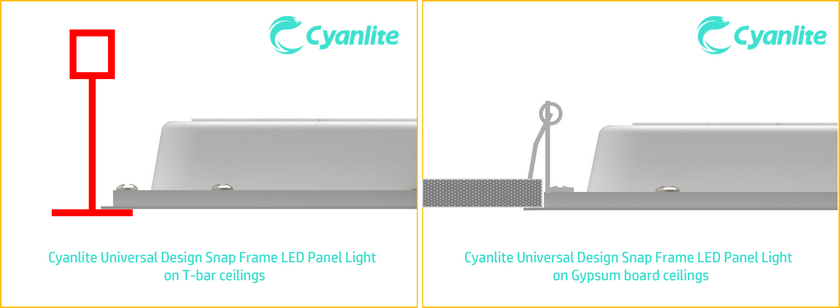

Cyanlite universal design LED backlite panel light for t-bar and gypsum board ceiling

Cyanlite universal design LED backlite panel light for t-bar and gypsum board ceilings

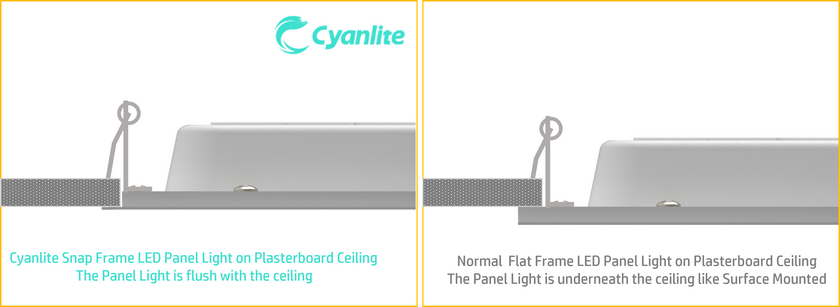

Cyanlite universal design LED backlite panel light for t-bar and gypsum-plaster board ceiling

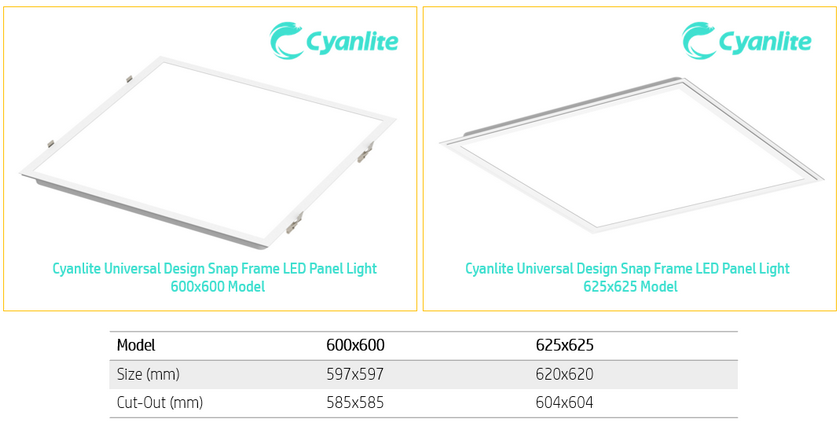

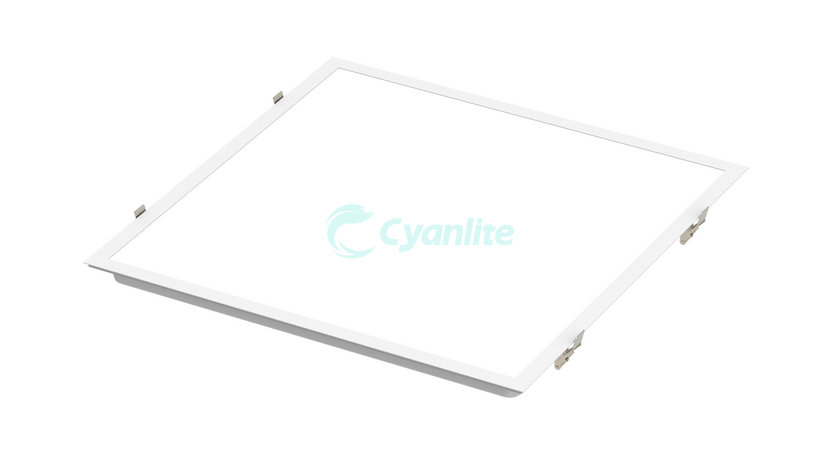

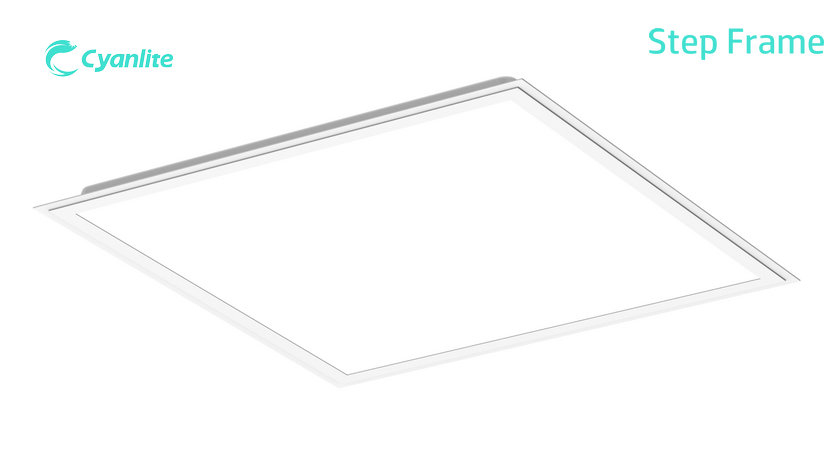

Cyanlite 600x600 625x625 backlite LED panel light universal snap-in design

Cyanlite 600x600 backlite LED panel light universal snap-in design

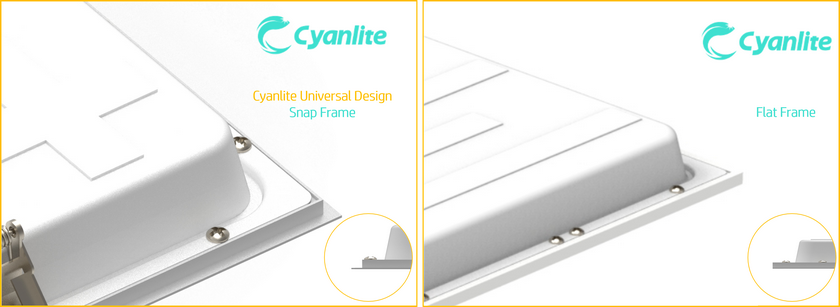

Cyanlite backlite LED panel light universal design SNAP frame


Advantages

-          Backlite technology for high system efficiency upto 150 lumen/watt

-          Non-yellowing PMMA lens and Flicker Free driver as standard

-          One product for multiple ceiling system installation

-          Easy and fast installation, tool-less installation, saving installation cost

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   Standard sizes (mm): 300x600, 600x600, 625x625, 300x1200, 300x1500, 600x1200

l   RAL9016 white as standard, other RAL colors available on request

l   System Efficiency upto 150 lm/W

l   EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K, SCCT and Tunable White

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

• Installations

Cyanlite LED backlight backlite panel light

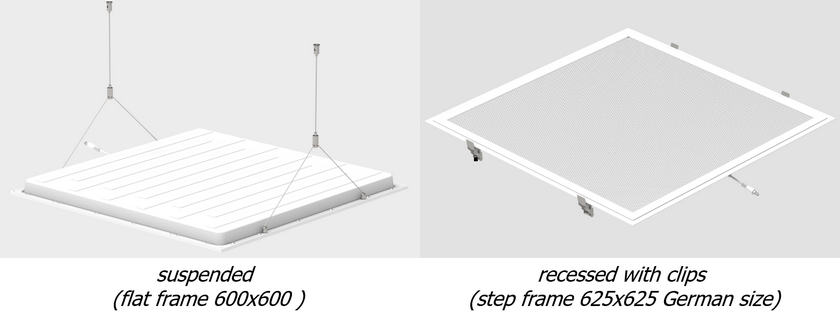

Universal Design for both T15/T24 Lay-On ceiling and Plaster board cut-out ceiling with step frame, one product- two installations.

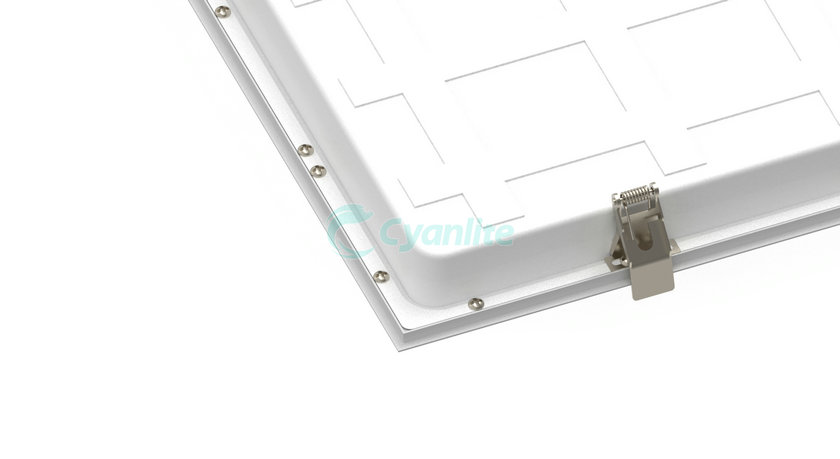

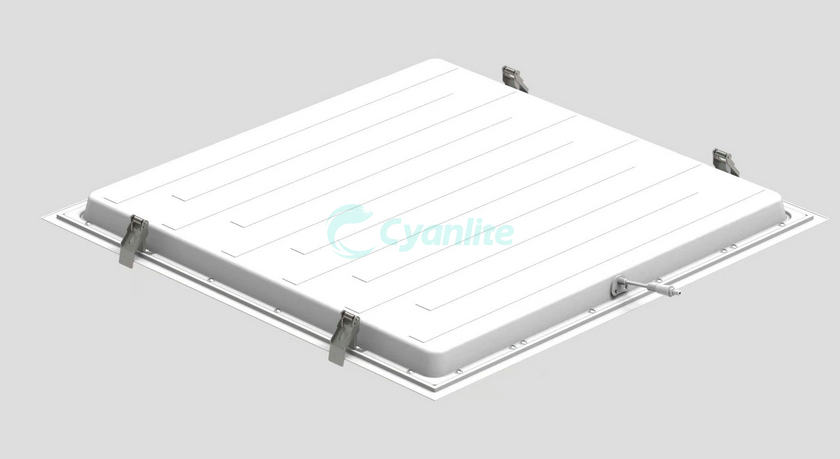

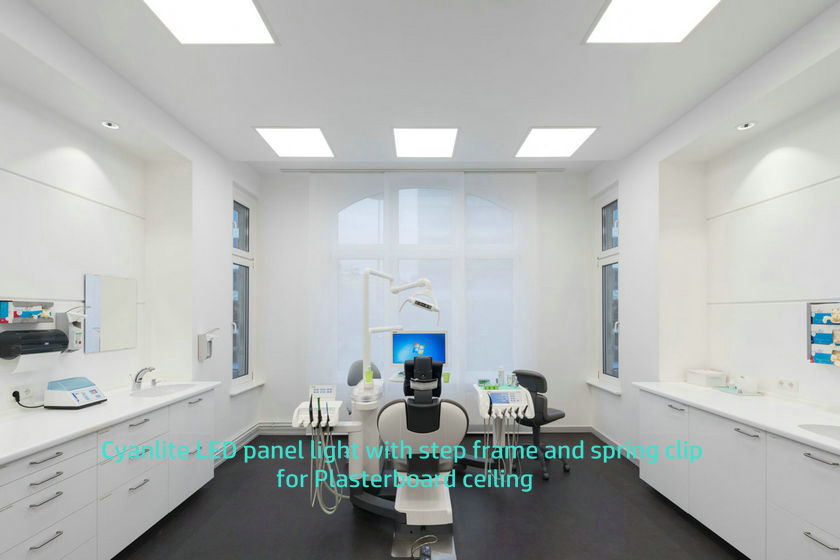

Cyanlite LED panel light with step frame and clip for plasterboard installation

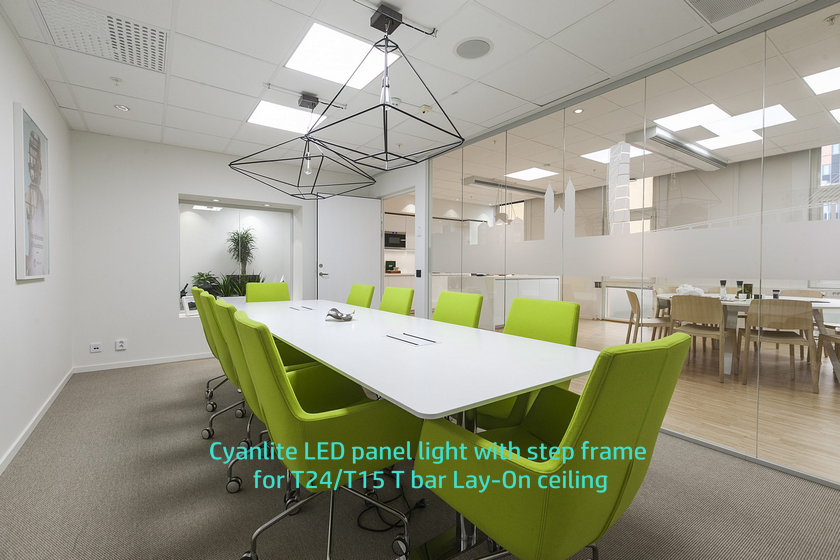

Cyanlite backlite LED panel light with step frame for t bar lay on ceiling installation

• Optional Accessories

Cyanlite Backlite LED panel light accessory

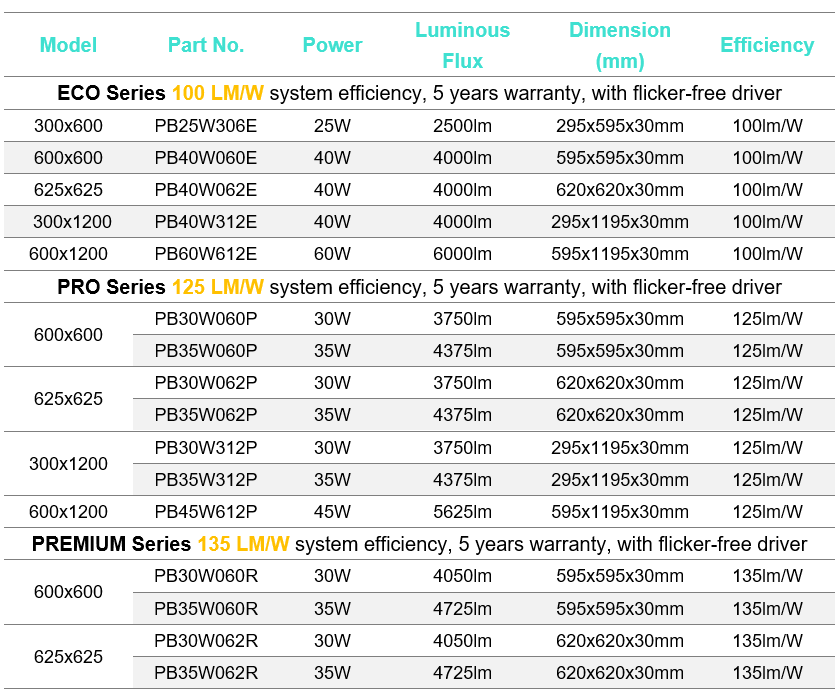

Specifications

Model

Part No.

System Power

Lumen

Dimension

(mm)

Luminaire

Efficiency

System Efficiency

ECO version 100 lm/W (5 Years Warranty)

600x600

PB40W060E

40W

4000lm

595x595/595x597

120 lm/W

100 lm/W

625x625

PB40W062E

40W

4000lm

620x620

120 lm/W

100 lm/W

300x1200

PB40W312E

40W

4000lm

295x1195/297x1197

120 lm/W

100 lm/W

600x1200

PB60W612E

60W

6000lm

595x1195/597x1197

120 lm/W

100 lm/W

PRO version 125 lm/W (5 Years Warranty)

300x600

PB20W306P

20W

2400lm

295x595/297x597

150 lm/W

120 lm/W

600x600

PB35W060P

35W

4375lm

595x595/595x597

150 lm/W

125 lm/W

625x625

PB35W062P

35W

4375lm

620x620

150 lm/W

125 lm/W

300x1200

PB35W312P

35W

4375lm

295x1195/297x1197

150 lm/W

125 lm/W

300x1500

PB45W315P

45W

5625lm

295x1495/297x1497

150 lm/W

125 lm/W

600x1200

PB45W612P

45W

5625lm

595x1195/597x1197

150 lm/W

125 lm/W

PREMIUM version 150 lm/W (7 Years Warranty)

600x600

PB30W060R

30W

4500lm

595x595/595x597

170 lm/W

150 lm/W

625x625

PB30W062R

30W

4500lm

620x620

170 lm/W

150 lm/W


Upto 4800lm and UGR<19

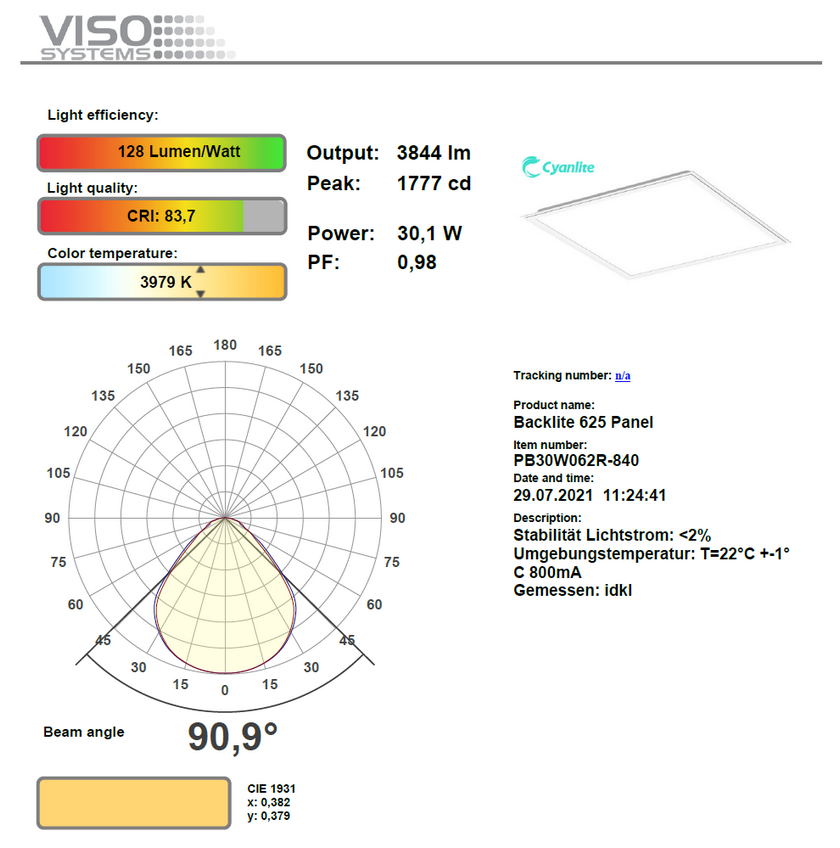

Cyanlite PREMIUM Backlite LED panel light measurement

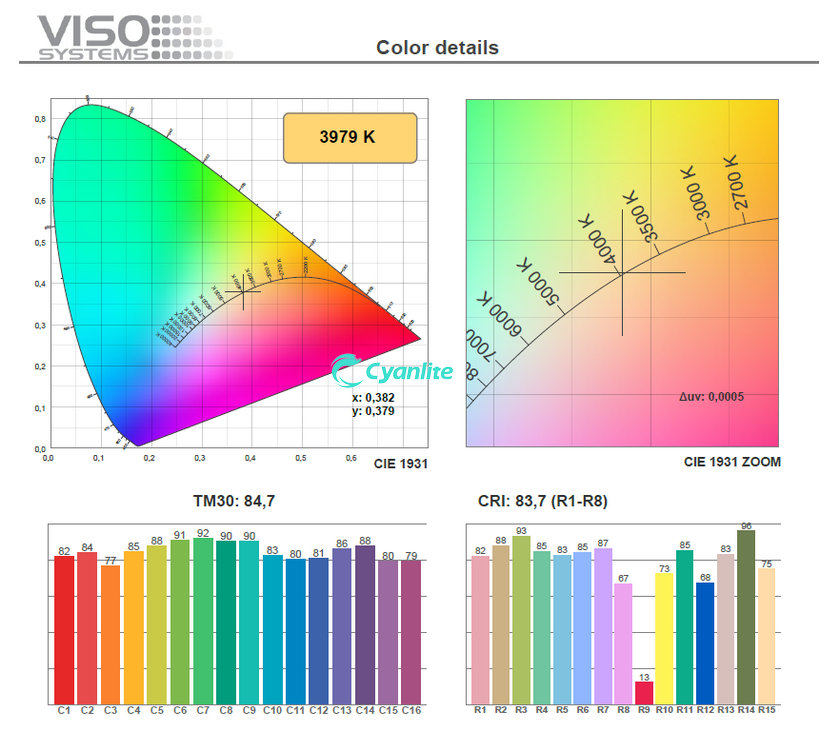

Cyanlite PREMIUM Backlite LED panel light measurement spectrum

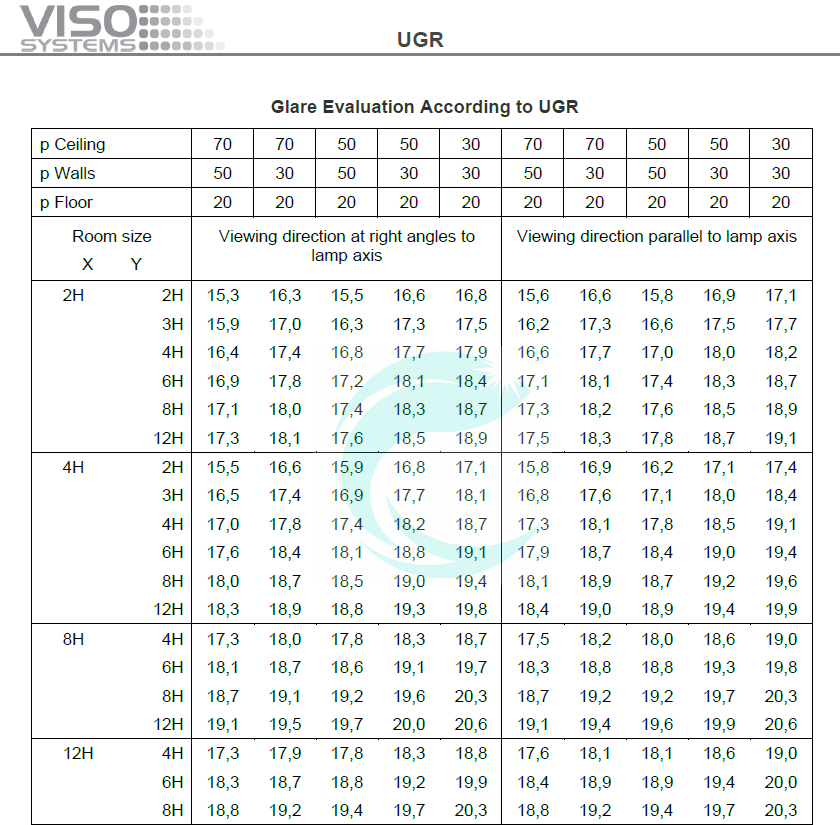

Cyanlite PREMIUM Backlite LED panel light measurement UGR19


Upto 7250lm and UGR<22

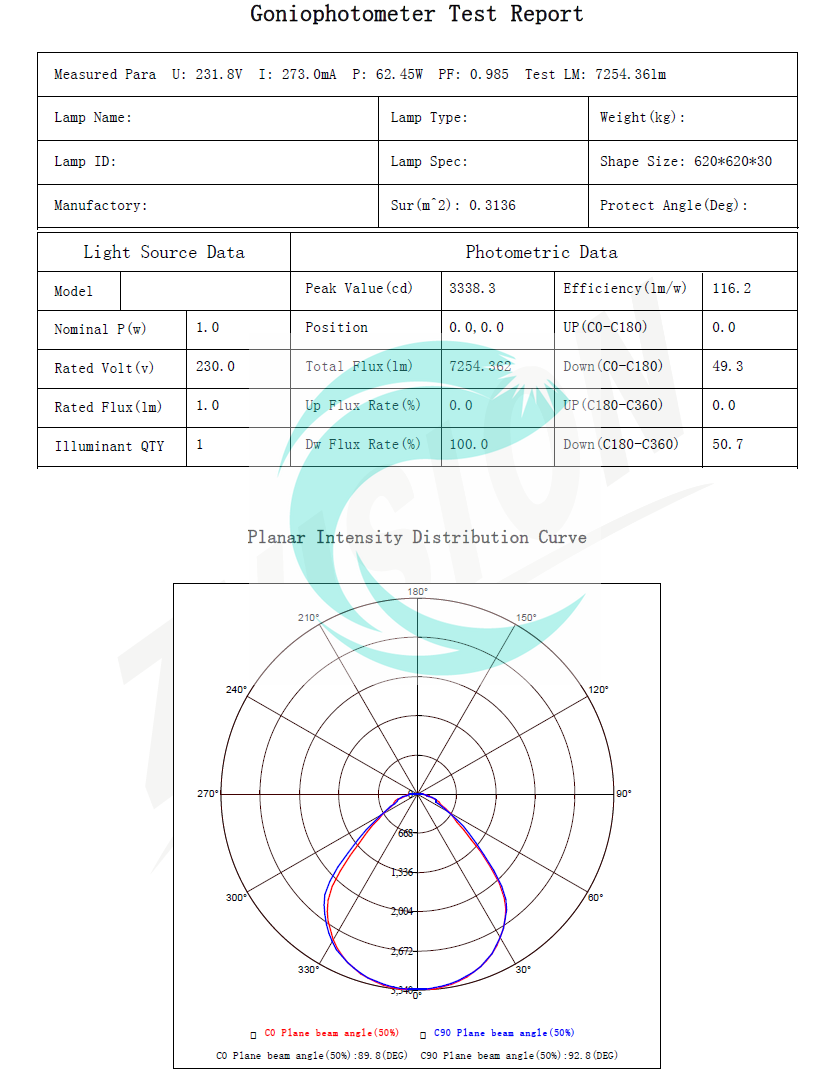

Cyanlite 7250lm backlite LED panel light test report ugr22

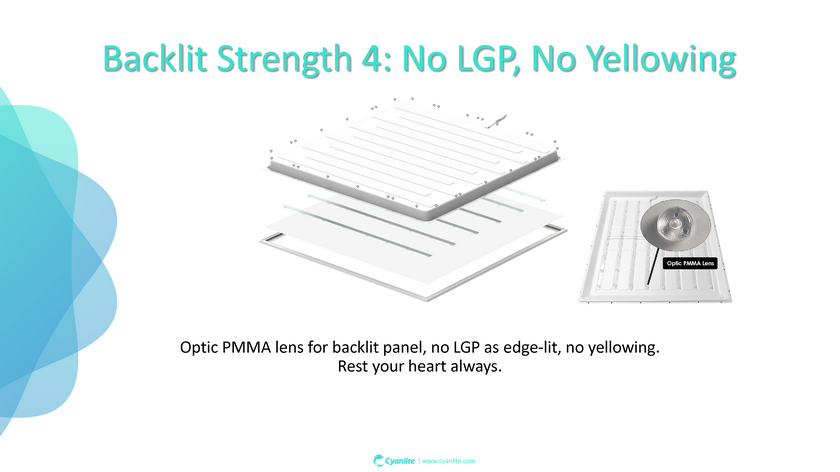

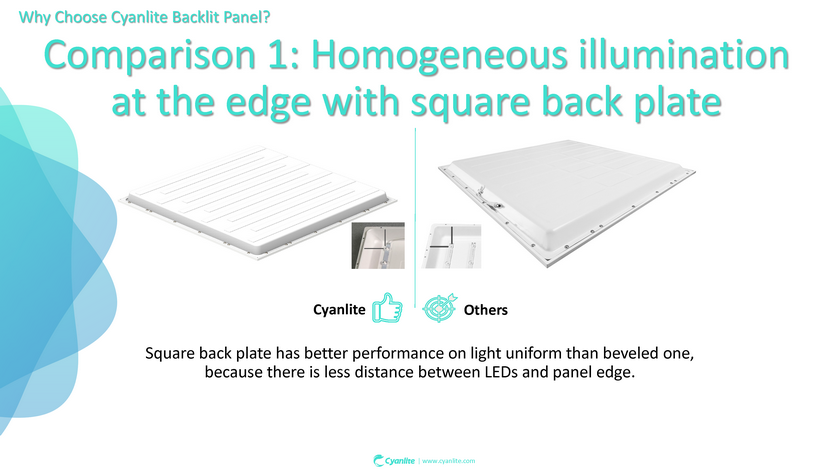

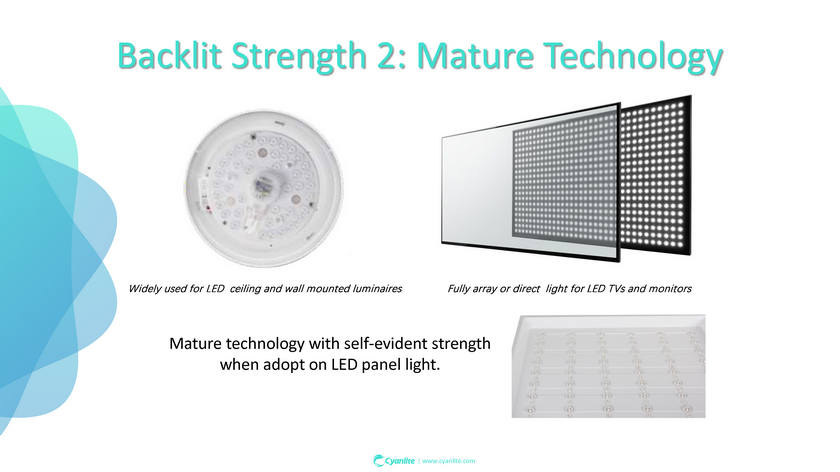

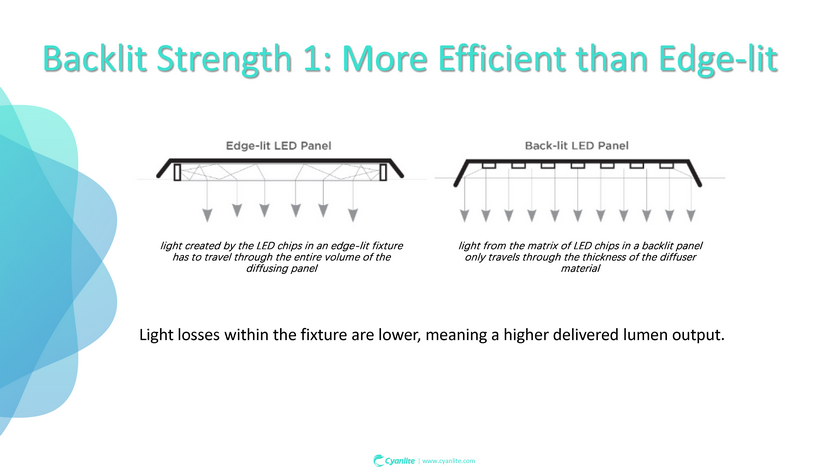

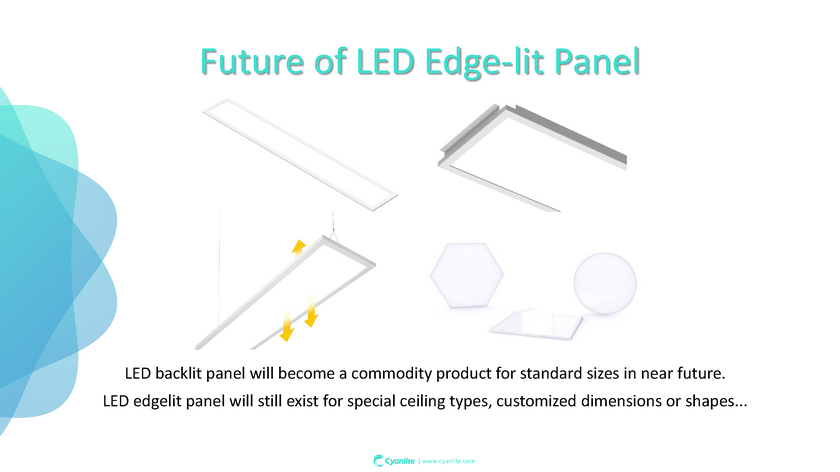

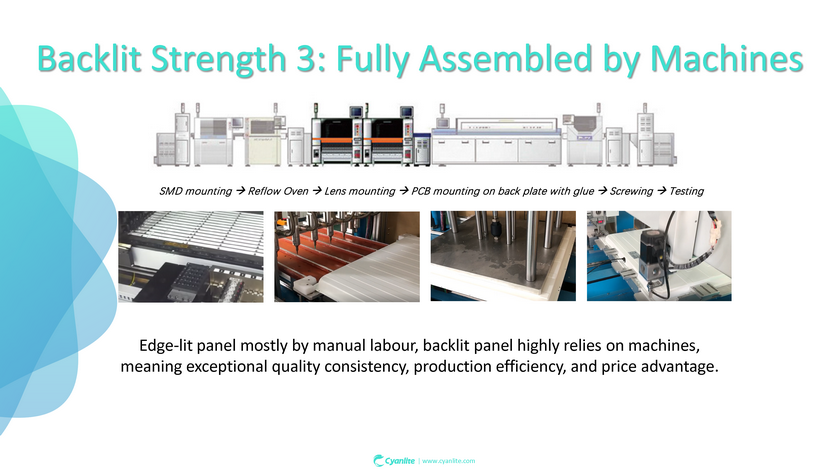

Backlite strength vs Sidelite/Edgelite

Cyanlite LED backlite panel light

Cyanlite LED backlite panel light

Cyanlite LED backlite panel light

Cyanlite LED backlite panel light

Cyanlite LED backlite panel light

Cyanlite LED backlite panel light

Cyanlite LED backlite panel light

Cyanlite LED backlite panel light

Cyanlite LED backlite panel light

Cyanlite LED backlite panel light

Cyanlite LED backlite panel light

Cyanlite LED backlite panel light

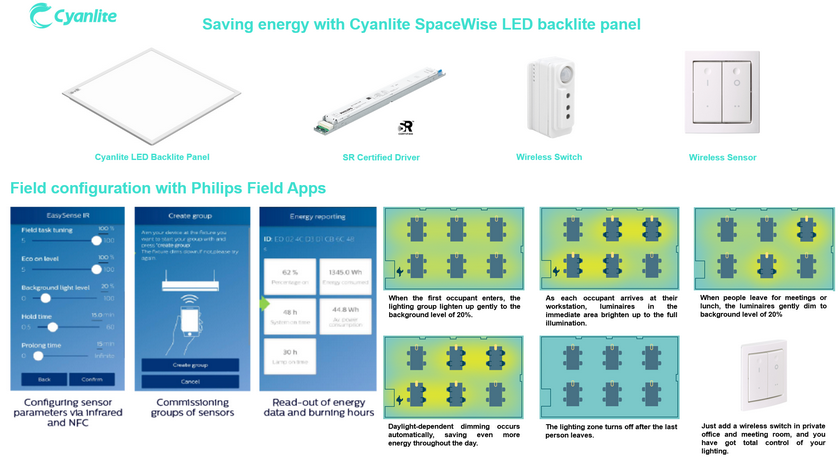

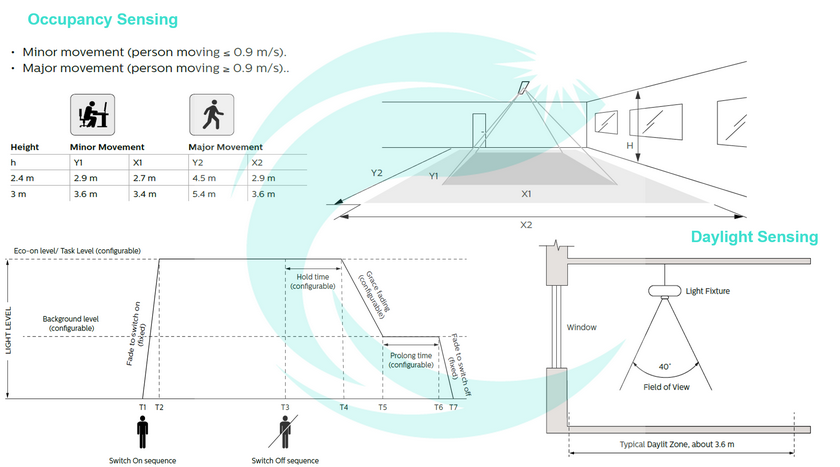

Cyanlite LED backlite panel SpaceWise sensor

Cyanlite LED backlite panel SpaceWise sensor

Certifications

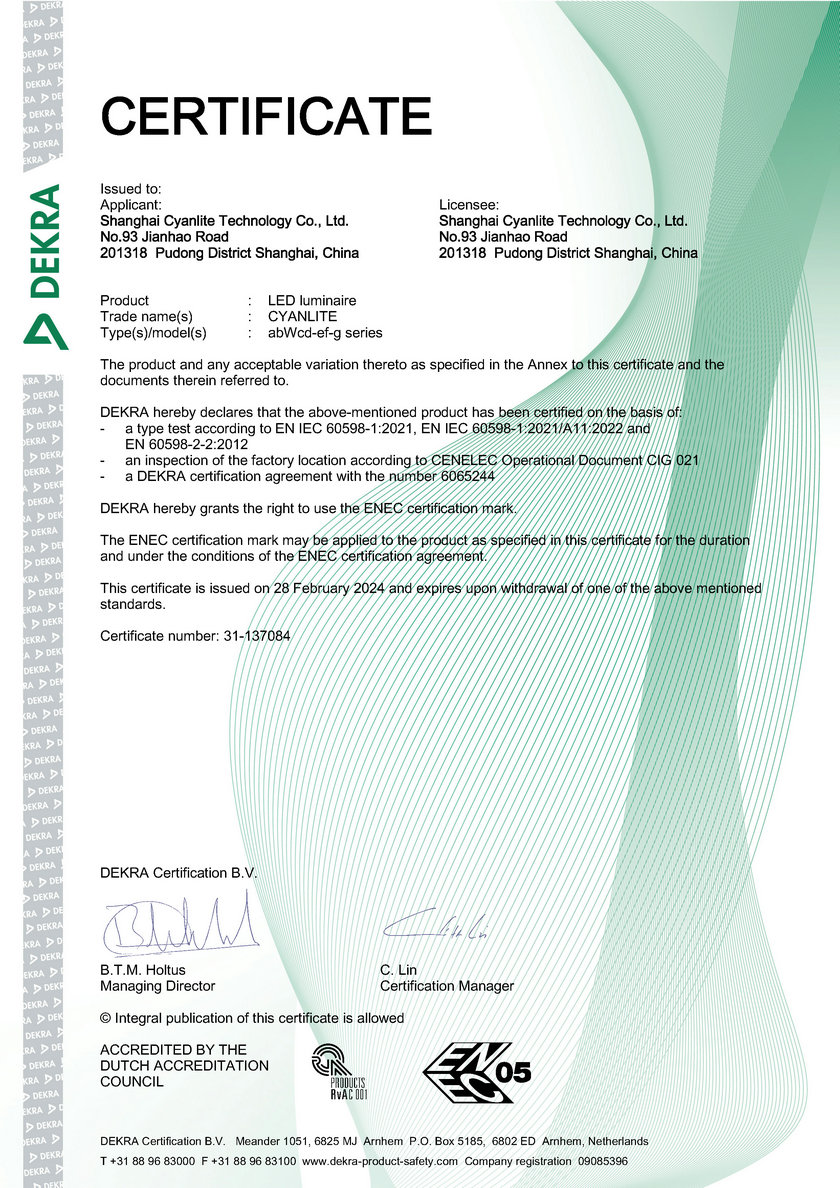

Cyanlite Dekra ENEC certificate 6166340

• Downloads


Cyanlite Backlite LED panel light for Lay-On ceiling datasheet/installation manual/photometric data download

Cyanlite LED panel light selection guide download Cyanlite LED panel light selection guide[3.9 Mb PDF]


Cyanlite LED Panels with Air vents, IP65 protection, Built-in Sensor
