Penda+ Linkable and built-In sensor

  • - Specifically designed for suspended installation with reinforced structure
  • - Direct light and indirect light versions available
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • - Black as standard coating color, RAL9010/9016 White colors available on request
  • Product description:The Cyanlite™ LED panel lights PENDA series has been designed specifically for suspended installation with reinforced structure, that the luminaire will not be bent during suspended.
  • Inquiry

Cyanlite linkable suspended LED linear luminaire PENDA with built-in sensor

The Cyanlite™ PENDA series of suspended LED luminaires offer both direct and indirect lighting options, providing versatility in the design and application of the lighting system. The direct lighting option delivers a concentrated beam of light, illuminating specific areas or objects, while the indirect lighting option provides a more diffuse, ambient light that can be used to create a warm and inviting atmosphere. This combination of direct and indirect lighting options allows for a customisable lighting solution that can be tailored to meet the specific needs of each environment.

The linear design of the PENDA series, combined with its sleek black/white/silver frame and housing, creates a premium and sophisticated ambiance. The series is available in standard sizes including 200x1200mm, 300x1200mm, 200x1500mm, and 300x1500mm, making it suitable for a variety of spaces and design needs. The uniform, anti-glare lighting and minimalist design make these luminaires ideal for use in high-end office spaces, creative zones, computer workstations, and prestigious retail environments. The luminaires can be equipped with built-in sensors and are designed for easy linking, offering further functionality such as occupancy detection and ambient light sensing. The reinforced structure ensures stability during suspension and prevents bending, making these luminaires a durable and reliable lighting solution.

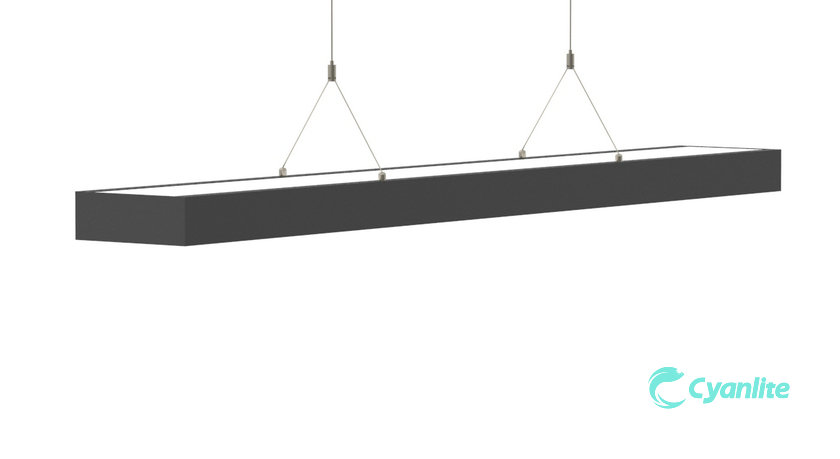

Cyanlite PENDA suspended luminaire direct and indirect light

Cyanlite PENDA suspended luminaire direct and indirect light

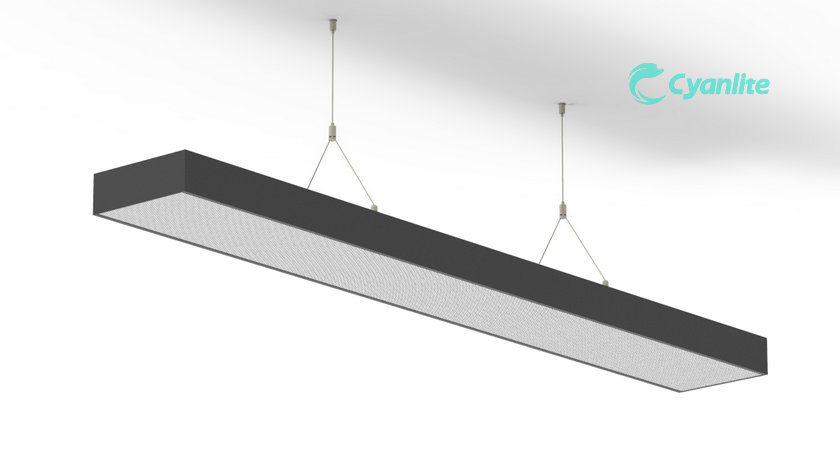

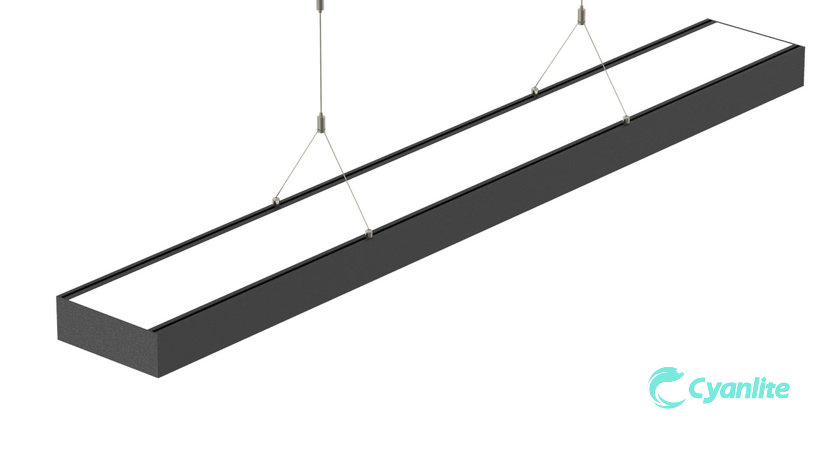

Cyanlite black frame PENDA suspended luminaire direct and indirect light

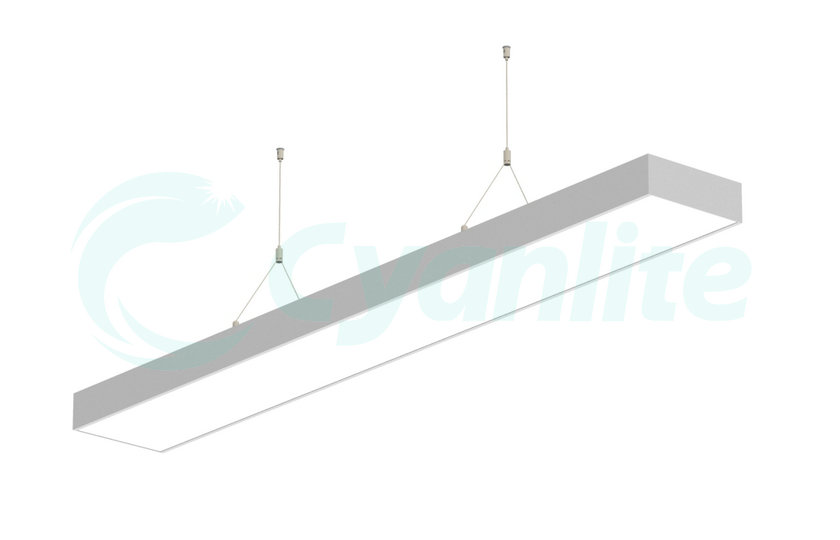

Cyanlite PENDA LED suspended linear light

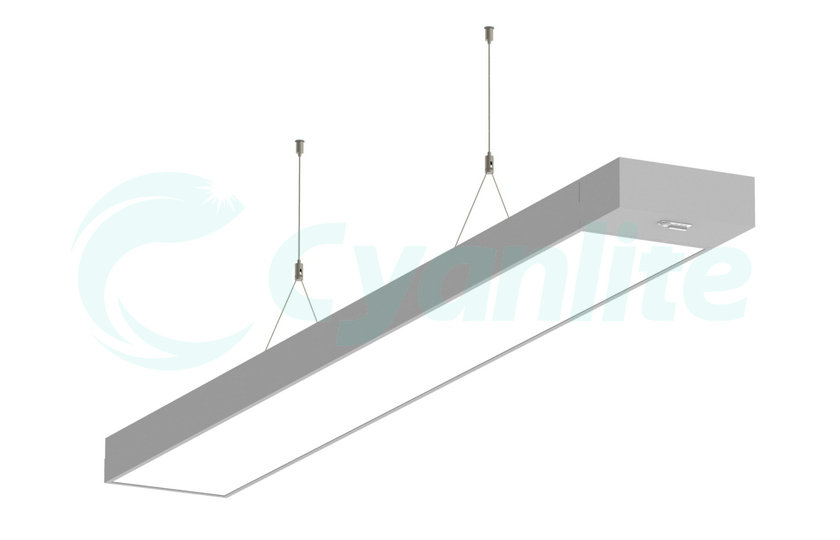

Built-In Sensor version:

Cyanlite PENDA LED suspended linear light with built-in sensor

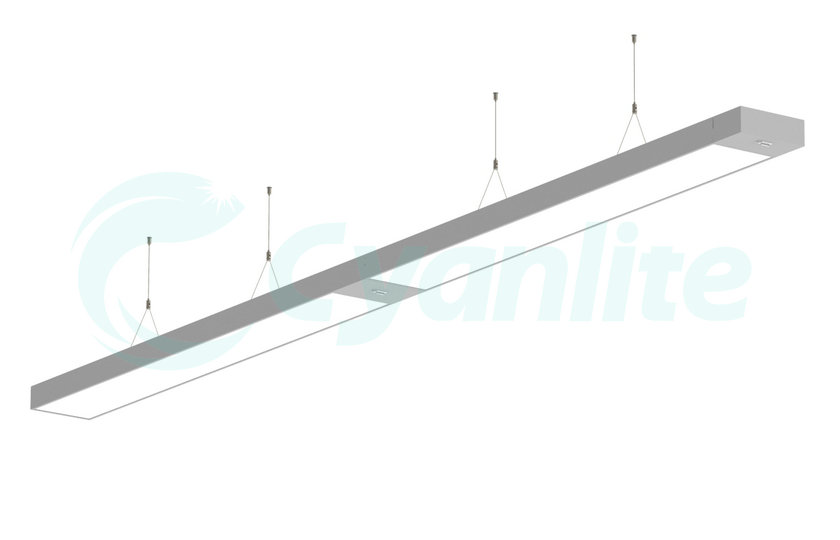

Linkable version with dummy blank section & Built-In Sensor

Cyanlite PENDA LED suspended linear light linkable

Direct and Indirect lighting (UP/Down) version with space for emergency battery pack and sensor units:

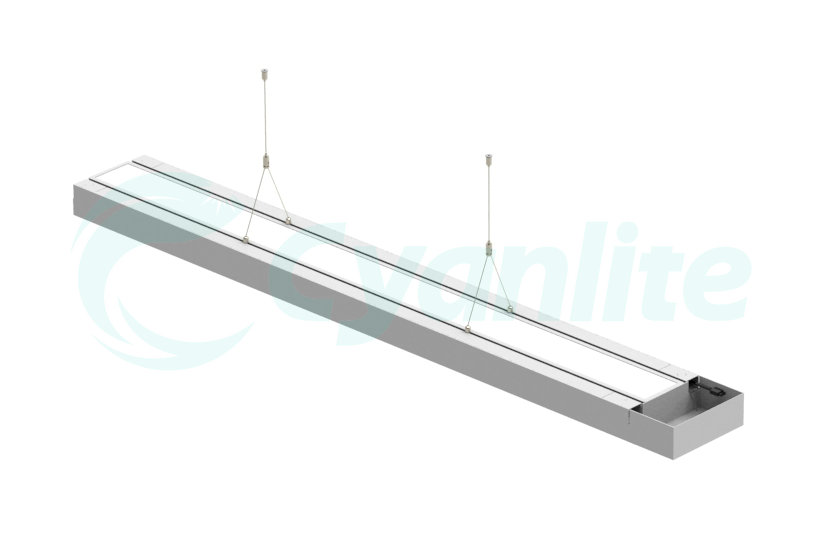

Cyanlite PENDA LED suspended linear light

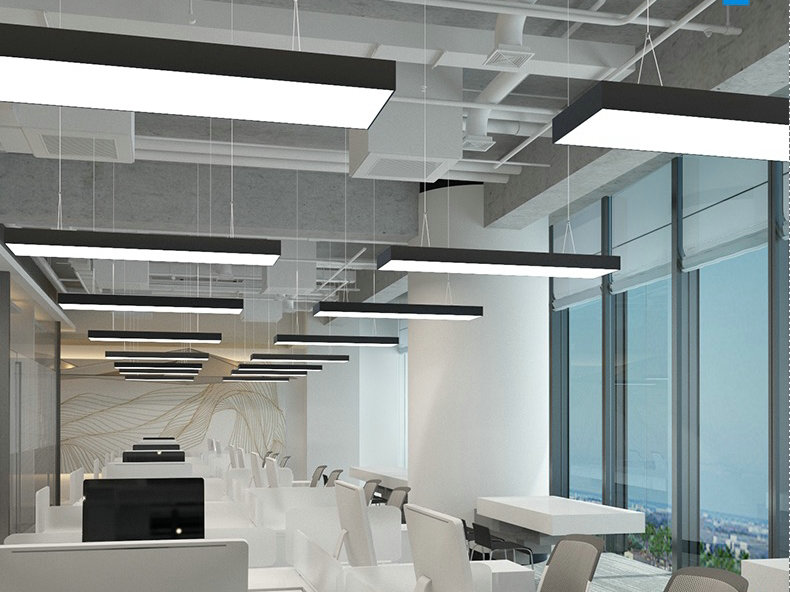

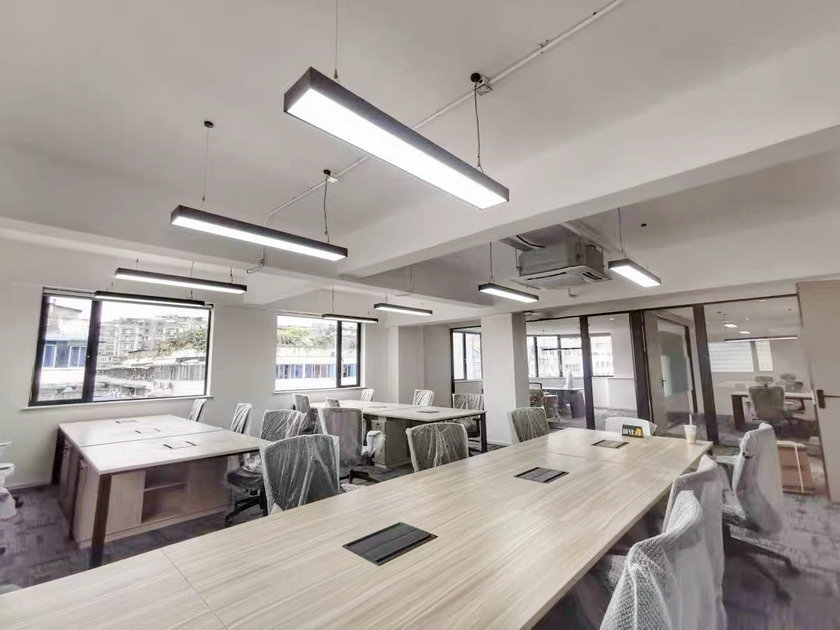

Cyanlite PENDA black housing suspended luminaire direct light project

Advantages

-          Direct and indirect light version available for harmonious luminous environment

-          Easy and fast installation, saving installation cost

-          Driver in the canopy and tidy wires for a classy appearance

-          Customization oriented, bespoke sizes are welcome

-          Specifically designed for suspended installation with reinforced structure

Features

l   30% upwards and 70% downwards with opalic and micro prismatic optional, other up/down ratio optional

l   Standard sizes (mm): 200x1200, 300x1200, 200x1500, 300x1500

l   Black/White/Silver housing as standard, other RAL colors and White available on request

l   System Efficiency upto 120 lm/W

l   EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

• Dimensions

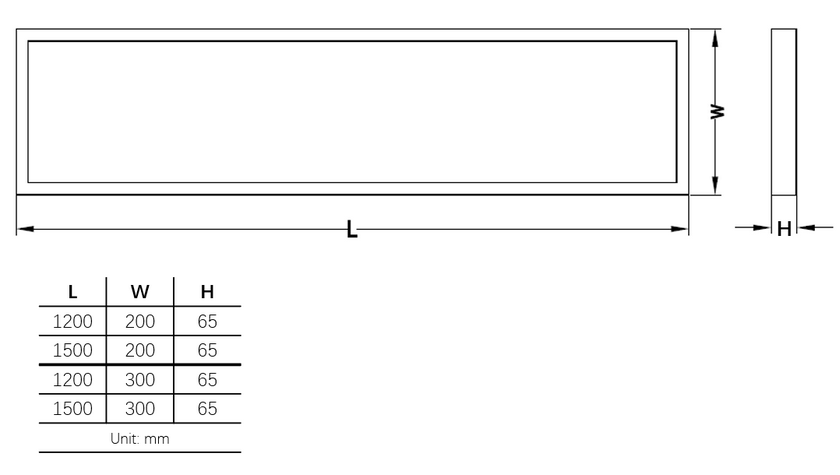

Cyanlite Penda black frame LED suspended light dimension

Specifications

Model

Part No.

Power

Luminous
Flux

Dimension
(mm)

200x1200

PB40W212PE-UD

40W

4800 lm

200x1200x65

200x1500

PB60W215PE-UD

60W

7200 lm

200x1500x65

300x1200

PB40W312PE-UD

40W

4800 lm

300x1200x65

300x1500

PB60W315PE-UD

60W

7200 lm

300x1500x65


- Light Distribution

- 30% up/ 70% down                            - 40% up/ 60% down

Certifications


• Downloads


Cyanlite suspended light PENDA datasheet/installation manual/photometric data download


• More info about Direct and Indirect Lighting


Architects and designers increasingly prefer the use of direct and indirect lighting due to its versatility and ability to create a desired mood and atmosphere within a space.

Direct lighting provides a highly concentrated beam of light, which is ideal for illuminating specific areas, objects, or tasks. This type of lighting is often used to accent architectural features or to provide focused task lighting in work spaces.

Indirect lighting, on the other hand, provides a more diffuse and ambient light that can be used to create a warm and inviting atmosphere. This type of lighting is often used to highlight the ceiling, walls, or other architectural features, and can be adjusted to provide a desired level of brightness. Indirect lighting also has a lower luminance and reduces glare, making it an ideal choice for environments where visual comfort is important.

By combining direct and indirect lighting, architects and designers can create a customisable lighting solution that meets the specific needs of each environment. Direct lighting can be used to provide task lighting and accent lighting, while indirect lighting can be used to create a desired atmosphere and provide general illumination, and Cyanlite Penda series linear light is a good example of such design.

Moreover, the use of direct and indirect lighting can also provide energy savings by reducing the need for additional lighting fixtures and allowing for more targeted and efficient use of light. The use of advanced lighting controls, such as occupancy sensors and ambient light sensors, can also further increase energy efficiency by automatically adjusting the lighting levels to meet the needs of the space. Cyanlite PENDA series equipped with Philips Easy Air sensor system and Xitanium SR DALI driver, the user and control and monitor the energy and lighting by Wall Switch/APP/DALI easily.

In conclusion, the ability to create a desired atmosphere and provide efficient and targeted lighting make the use of direct and indirect lighting an attractive option for architects and designers.

Direct Light Version:
