  • Libra UD
  • Libra UD
Libra UDLibra UD

Libra UD

  • - Super easy surface mounted installation, Up and Down light
  • - EN 12464-1& LG7 Compliant, UGR<19 Optional
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • Product description:The Cyanlite™ LED panel lights LIBRA series has been designed specifically for Surface Mounted installation on Plasterboard and Concrete ceilings. LIBRA UD is the up and down light version of LIBRA.
  • Inquiry

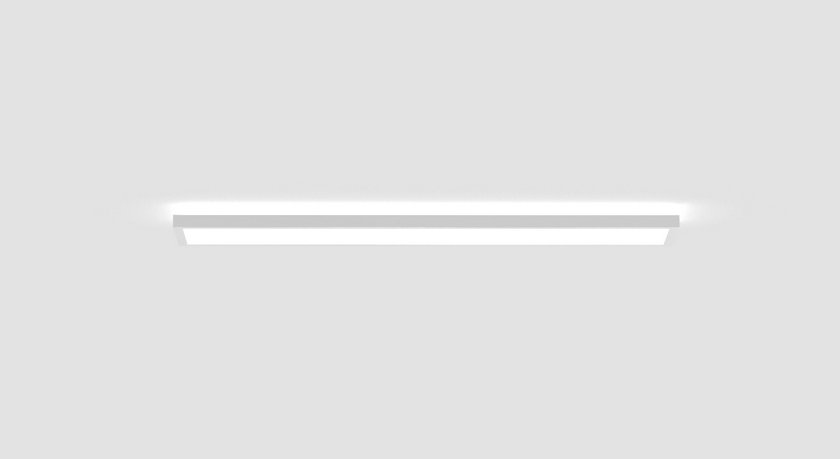

Cyanlite surface mounted LED panel light Libra UD - Up and Down light version

Libra UD surface mounted luminaire

The Cyanlite™ LED panel lights LIBRA series has been designed specifically for Surface Mounted installation on Plasterboard and Concrete ceilings. The Libra series surface mounted luminaires have a wide product portfolio includes square and rectangular shape, as well as direct/indirect lighting options, and multiple sizes to retrofit and replace the traditional T8 troffer luminaires.

With Cyanlite patented mounting fixture, the installer no need to make the positioning when install, so the installation is simple and easy, also no need to dismantle and reassemble as traditional surface mounted luminaires, saving huge time for installers and enabling them to complete the project easily and quickly.

Cyanlite Libra surface mounted luminaire

Advantages

-          Specifically designed for surface mounted installation

-          Libra has a wide product range for replacing traditional T8 troffer surface mounted luminaires

-          Easy and fast installation, saving installation cost

-          Flexible and customization oriented, bespoke sizes are welcome

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   Standard sizes (mm): 450x450, 600x600, 700x700; 300x1200, 300x1500; 184x1231, 184x1531; 284x1231, 284x1531; 310x1247, 310x1547

l   RAL9016 as standard to match SAS ceiling colors, other RAL colors available on request

l   System Efficiency upto 120 lm/W

l   EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

• Dimensions

Libra surface mounted led panel dimension

Specifications

Model

Part No.

Power

Luminous
Flux

Dimension
(mm)

450x450

SM25W045-UD

25W

300 lm↑2700 lm↓

450x450x70

600x600

SM30W060-UD

30W

360 lm↑3240 lm↓

600x600x70

700x700

SM40W070-UD

40W

480 lm↑4320 lm↓

700x700x70

300x1200

SM34W312-UD

34W

400 lm↑3600 lm↓

300x1200x70

300x1500

SM42W315-UD

42W

500 lm↑4500 lm↓

300x1500x70

184x1231

SM22W112-UD

22W

250 lm↑2250 lm↓

184x1231x70

184x1531

SM42W115-UD

42W

500 lm↑4500 lm↓

184x1531x70

284x1231

SM34W212-UD

34W

400 lm↑3600 lm↓

284x1231x70

284x1531

SM42W215-UD

42W

500 lm↑4500 lm↓

284x1531x70

310x1247

SM34W313-UD

34W

400 lm↑3600 lm↓

310x1247x70

310x1547

SM42W316-UD

42W

500 lm↑4500 lm↓

310x1547x70

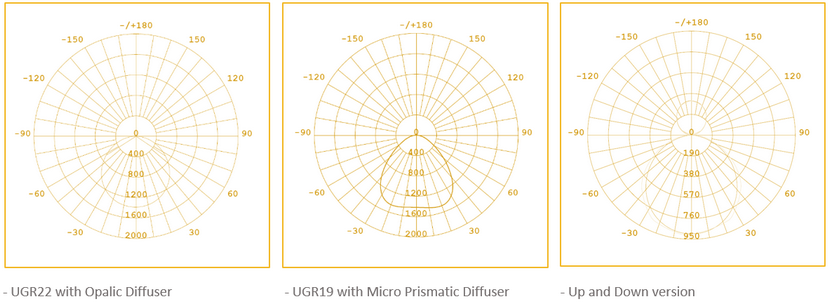

- Light Distribution


Installation

Libra surface mounted luminaire installation steps

Libra mounting fixture details

Certifications


• Downloads


Cyanlite surface mounted luminaire LIBRA datasheet/installation manual/photometric data download
