Home > Products > Direct/Indirect Lighting > Square/Rectangluar

  • Penda UD direct/indirect light
  • Penda UD direct/indirect light
  • Penda UD direct/indirect light
Penda UD direct/indirect lightPenda UD direct/indirect lightPenda UD direct/indirect light

Penda UD direct/indirect light

  • - Specifically designed for suspended installation with reinforced structure
  • - Direct light and indirect light versions available
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • - Black as standard coating color, RAL9010/9016 White colors available on request
  • Product description:The Cyanlite™ LED panel lights PENDA series has been designed specifically for suspended installation with reinforced structure, that the luminaire will not be bent during suspended.
  • Inquiry

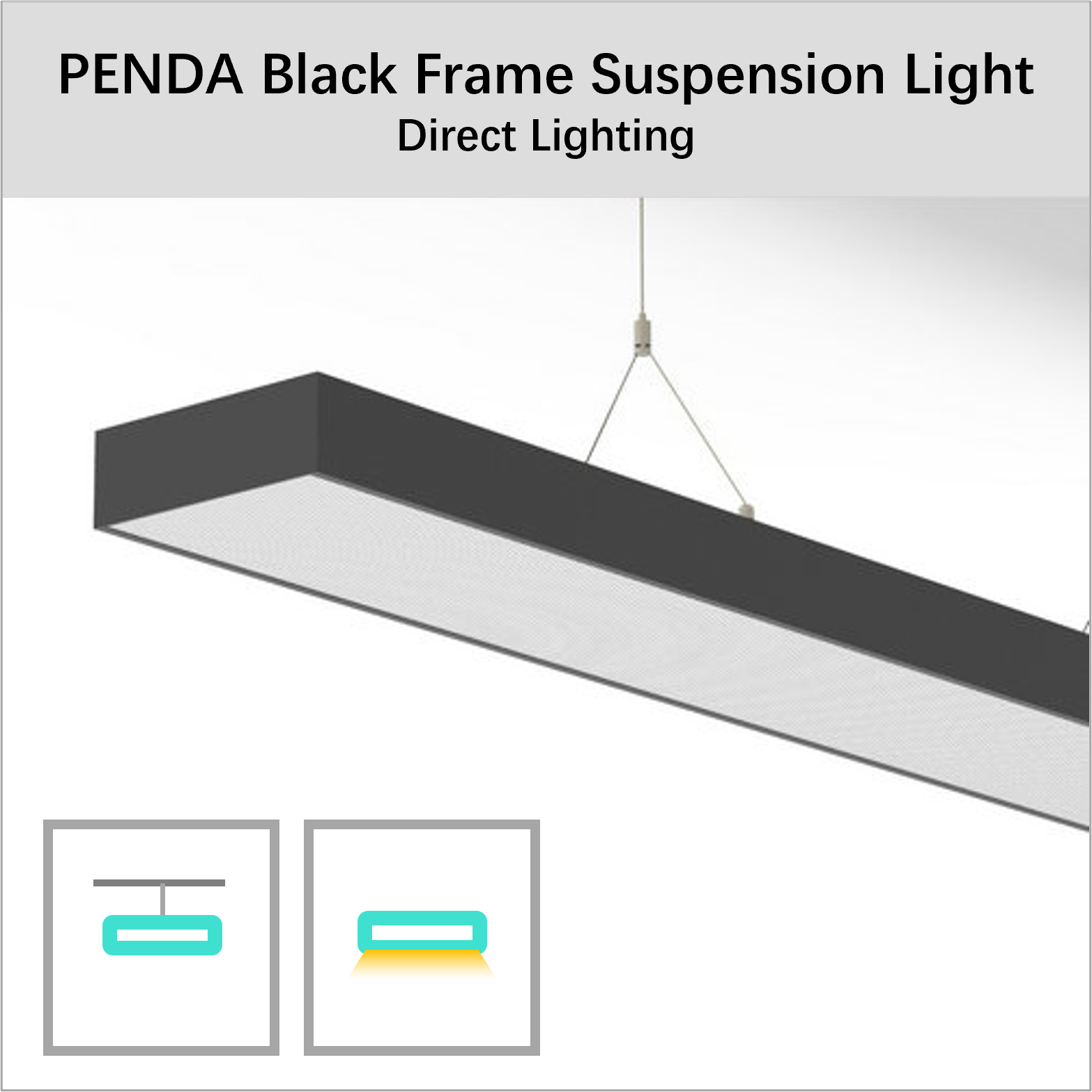

Cyanlite black frame suspended LED luminaire Penda UD with direct and indirect light

The Cyanlite™ LED panel lights PENDA series has been designed specifically for suspended installation with reinforced structure, that the luminaire will not be bent during suspended. The PENDA series suspended luminaire has a wide product portfolio includes different linear sizes, as well as direct/indirect lighting options.

The default black housing and frame makes the appearance high-end and elegant. Its uniform, glare-free light and modern, purist design lends any room a special look, and is ideal for offices, creative zones, VDU workstations and prestigious sales spaces.

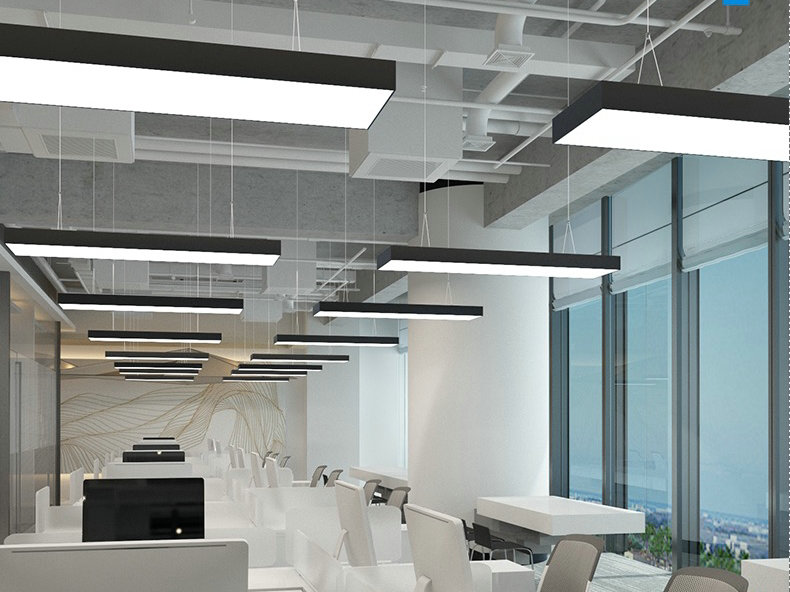

Cyanlite PENDA suspended luminaire direct and indirect light

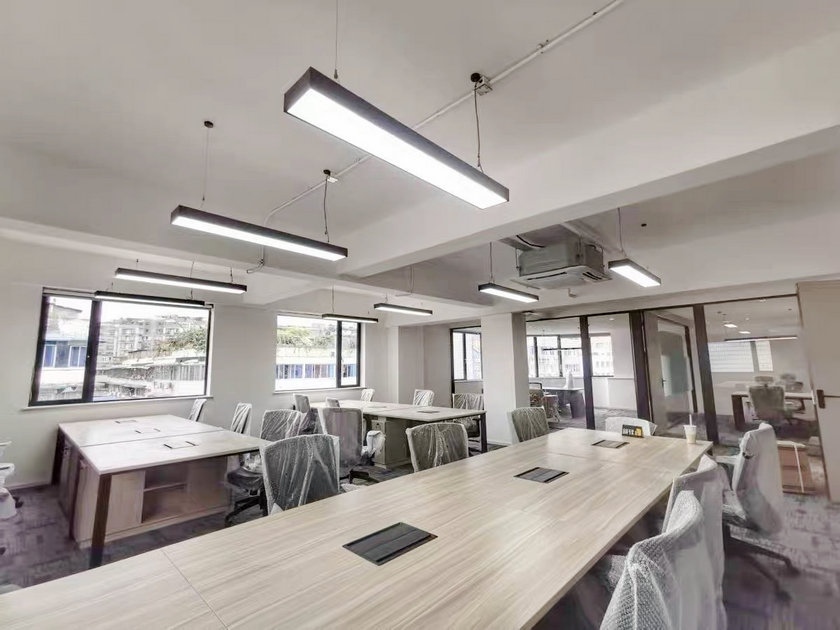

Cyanlite PENDA suspended luminaire direct and indirect light

Cyanlite black frame PENDA suspended luminaire direct and indirect light

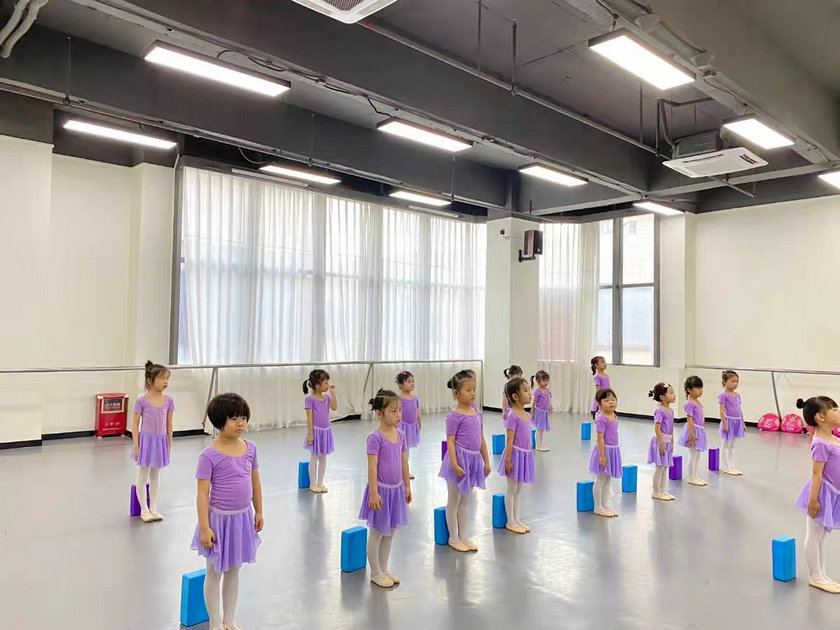

Cyanlite PENDA black housing suspended luminaire direct light project

Advantages

-          Direct and indirect light version available for harmonious luminous environment

-          Easy and fast installation, saving installation cost

-          Driver in the canopy and tidy wires for a classy appearance

-          Customization oriented, bespoke sizes are welcome

-          Specifically designed for suspended installation with reinforced structure

Features

l   30% upwards and 70% downwards with opalic and micro prismatic optional, other up/down ratio optional

l   Standard sizes (mm): 200x1200, 300x1200, 200x1500, 300x1500

l   Black housing as standard, other RAL colors and White available on request

l   System Efficiency upto 115 lm/W

l   EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

• Dimensions

Cyanlite Penda black frame LED suspended light dimension

Specifications

Model

Part No.

Power

Luminous
Flux

Dimension
(mm)

200x1200

PB40W212PE-UD

40W

4500 lm

200x1200x65

200x1500

PB60W215PE-UD

60W

7000 lm

200x1500x65

300x1200

PB40W312PE-UD

40W

4500 lm

300x1200x65

300x1500

PB60W315PE-UD

60W

7000 lm

300x1500x65


- Light Distribution

- 30% up/ 70% down                            - 40% up/ 60% down

Certifications


• Downloads


Cyanlite black housing suspended light PENDA datasheet/installation manual/photometric data download


Direct Light Version:
