  • Cynthia Stem Mounted
  • Cynthia Stem Mounted
Cynthia Stem MountedCynthia Stem Mounted

Cynthia Stem Mounted

  • - Durable stem mounted for high traffic location
  • - Down light only or both direct and indirect light, diameter from 40cm to 120cm
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • Product description:Cyanlite LED round panel family by stem mounted; direct light only or direct and indirect light optional, in diameter of 40cm, 50cm, 60cm, 80cm, 100cm or 120cm.
  • Inquiry

Cyanlite LED round panel light Cynthia Stem Mounted

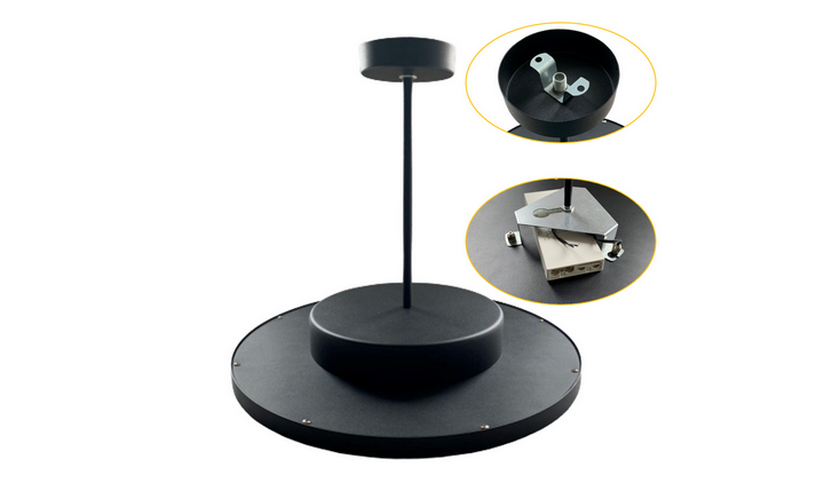

The Cyanlite™ LED round panel light Cynthia Stem Mounted series is an edge-lit luminaire in ultra slim design. The stem mounting itself increases the pendant’s durability. With the wiring tucked behind a sturdy metal stem, these pendant lights are capable of installation in high traffic location. The stem mounted panel can be down light only or direct and indirect light, and enable the space under uniform theme by combining round panels of various sizes, finishing, and etc.

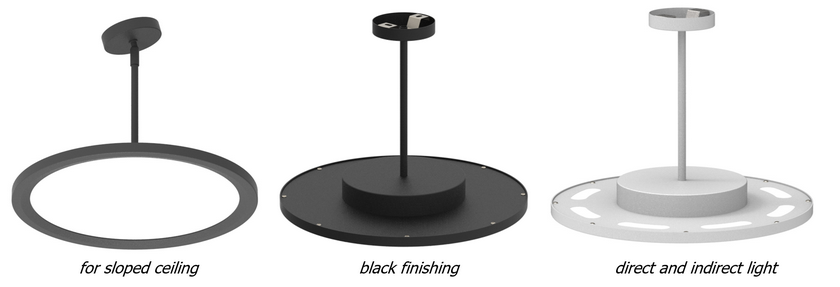

cyanlite led round panel stem mounted sloped ceiling

Cyanlite LED round panel stem mounted

Advantages

-          Stem mounting for durable design and timeless appearance

-          Direct light only or direct and indirect light for harmonious luminous environment

-          Offer concentrated light to the covered area

-          Freedom to mix and match the luminaires to modern spaces in various sizes, powder coatings, optics, and functions

-          Customization oriented, bespoke sizes are welcome

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   Durable stem mounted

l   Down light only, up & down light optional

l   Standard sizes (cm): D40, D50, D60, D80, D100, D120

l   RAL9016 white as standard, black and other RAL colors available on request

l   Single white and tunable white for Human Centric Light (HCL) optional

l   non-yellowing PMMA light guide; uniform light surface, no light spots, no shadow

l   One-piece foam and all-in package give 360 degree care for simple delivery, security on site, and quick unpacking

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Specifications

Model

Product Dimension

Item No.

Luminous Flux

System Power

Efficiency @ 4000K

D40

400*20mm

PR28WD40 ST

2940lm

28W

105lm/W

D50

500*20mm

PR32WD50 ST

3360lm

32W

105lm/W

D60

600*20mm

PR40WD60 ST

4800lm

40W

120lm/W

D80

780*20mm

PR55WD80 ST

6600lm

55W

120lm/W

D100

1000*20mm

PR75WDH0 ST

9000lm

75W

120lm/W

D120

1200*20mm

PR85WDH2 ST

10200lm

85W

120lm/W

D40

400*20mm

PR28WD40-UD ST

2940lm

28W

105lm/W

D50

500*20mm

PR32WD50-UD ST

3360lm

32W

105lm/W

D60

600*20mm

PR40WD60-UD ST

4800lm

40W

120lm/W

D80

780*20mm

PR55WD80-UD ST

6600lm

55W

120lm/W

D100

1000*20mm

PR75WDH0-UD ST

9000lm

75W

120lm/W

D120

1200*20mm

PR85WDH2-UD ST

10200lm

85W

120lm/W


- Light Distribution

Cyanlite LED round panel light stem mounted

Certifications


• Downloads


Cyanlite LED round panel light Cynthia Stem Mounted datasheet/installation manual/photometric data download
