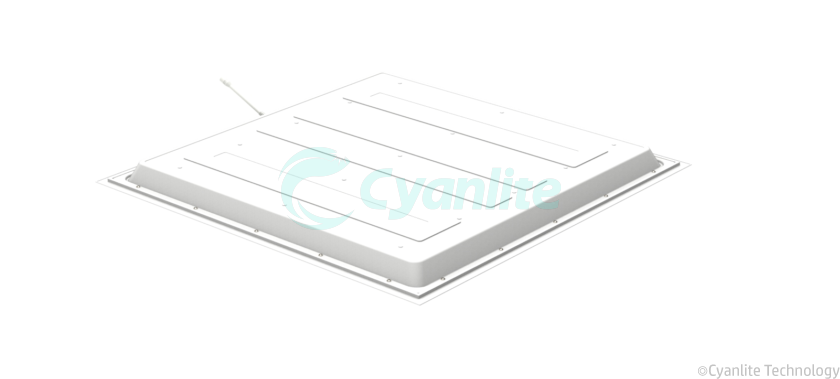

Cyanlite G2 Eco-Design Light Source Replaceable Backlite LED Panel Lights

Engineered for superior performance and unparalleled longevity, our high-efficiency backlight achieves a remarkable system efficacy of 150 lm/W. Beyond energy savings, this product is designed with sustainability and total cost of ownership at its core.

In full compliance with the EU Eco-Design Regulation (2019/2020), the luminaire is engineered for end-of-service-life maintenance. The modular LED light engine is mechanically affixed to the chassis, allowing for simple, tool-assisted removal and replacement without damaging the backplate. Electrical integration is achieved through a robust, pluggable terminal block, eliminating the need for soldering during installation or servicing.

This tool-maintainable design philosophy ensures that both the LED module and the separate control gear can be easily replaced by maintenance personnel, future-proofing your investment, minimizing waste, and fully adhering to circular economy principles. This approach not only meets regulatory mandates but also significantly reduces long-term maintenance costs and environmental impact

1, Light Source Replaceable

2, Control Gear Replaceable

Also with Universal Design Frame for both T-bar ceilings and Gypsum board ceilings.

• Advantages

- Backlite technology for high system efficiency upto 150 lumen/watt
- Full Eco-Design Compliance: Features a field-replaceable LED module and a separately replaceable driver, ensuring full compliance with EU Regulation 2019/2020 and reducing long-term ownership costs.

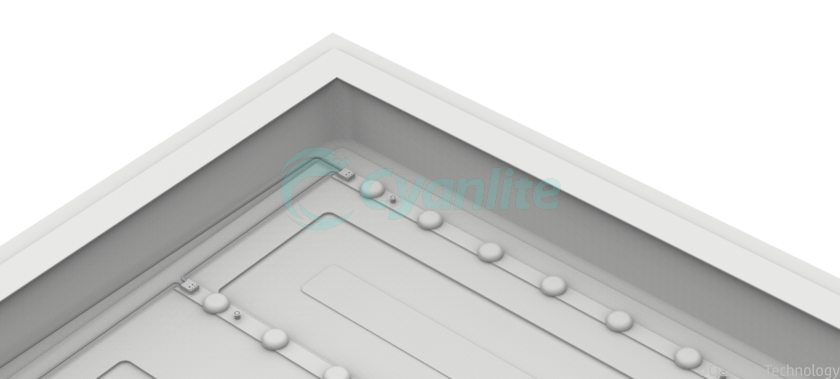

- Tool-Maintainable Design: The LED PCB is mechanically secured via captive fasteners, and all electrical connections use pluggable terminals. This enables swift servicing, extends product lifespan, and supports a circular economy.

• Features

l   Standard sizes (mm): 600x600, 625x625, 300x1200

l   RAL9016 white as standard, other RAL colors available on request

l   System Efficiency upto 150 lm/W

l   EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K, SCCT and Tunable White

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

• Installations

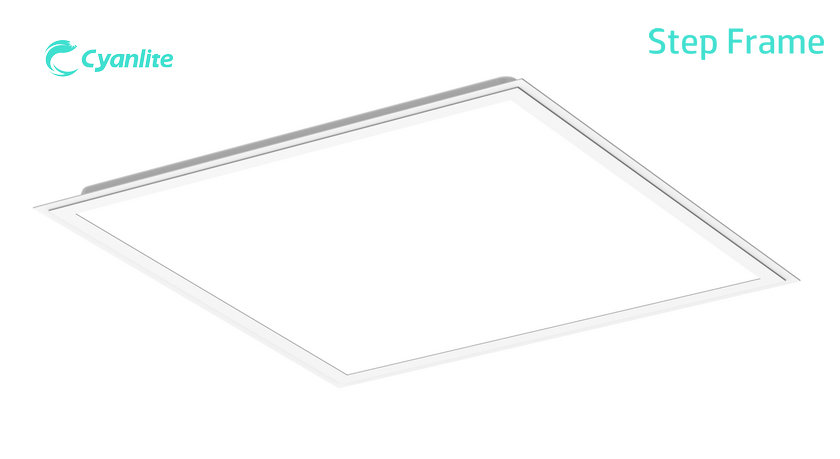

Universal Design for both T15/T24 Lay-On ceiling and Plaster board cut-out ceiling with step frame, one product- two installations.

• Optional Accessories

• Specifications

Model	Part No.	System Power	Lumen	System Efficiency	Dimension
600x600	PB30W060G	30W	4500lm	150lm/W	595x595x30 mm
625x625	PB30W062G	30W	4500lm	150lm/W	620x620x30 mm
300x1200	PB30W312G	30W	4500lm	150lm/W	295x1195x30 mm

• Measurements

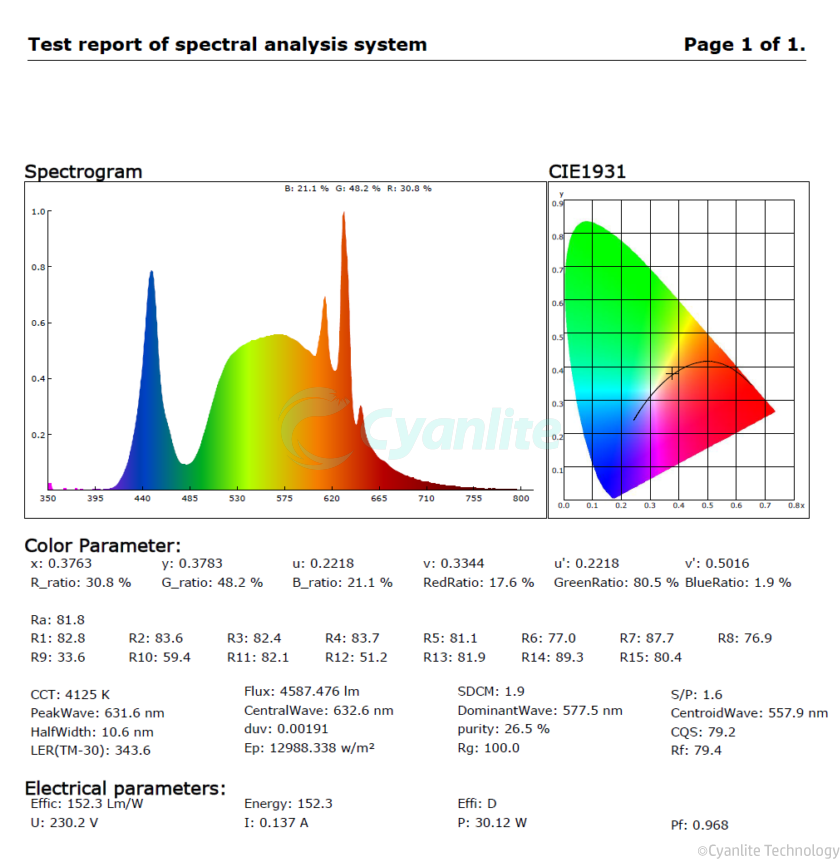

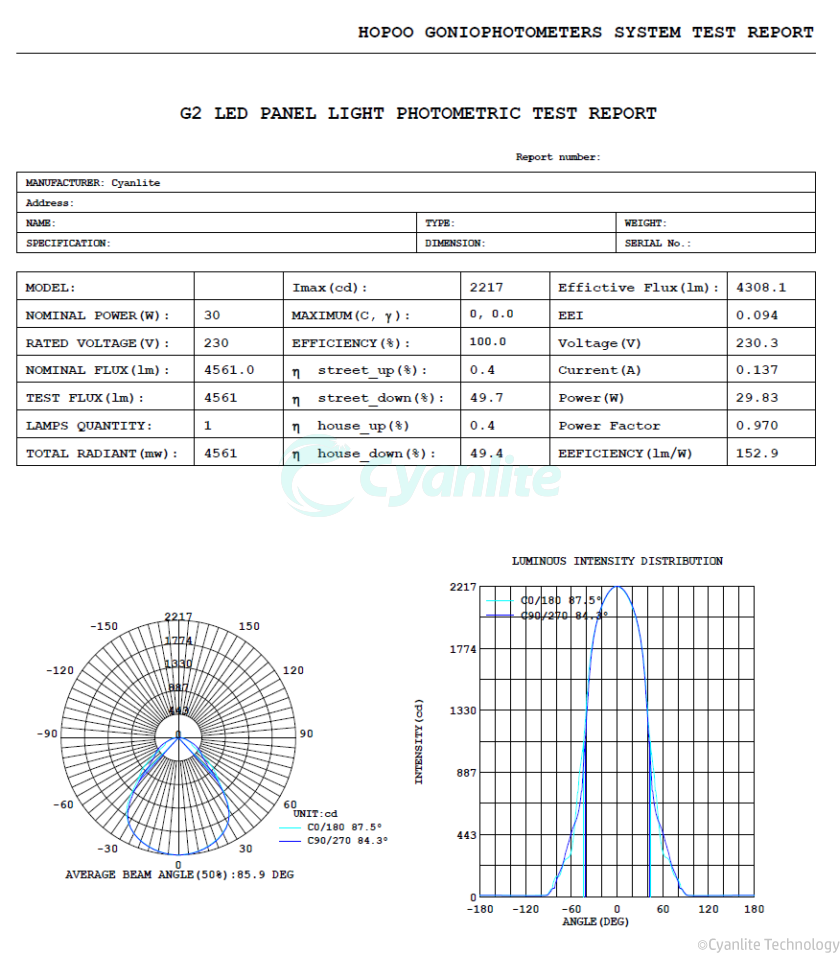

Upto 4800lm and UGR<19 and System Efficiency (including driver) over 150lm/W

• Certifications

• Downloads

Cyanlite G2 ECO DESIGN Light Source Replaceable Backlite LED Panel Light Datasheet [1.3 Mb PDF]

>>>Learn More about What is ECO DESIGN?
