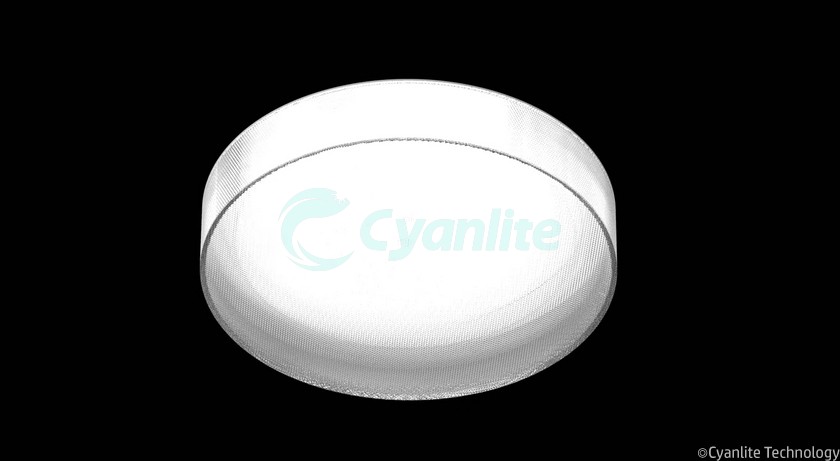

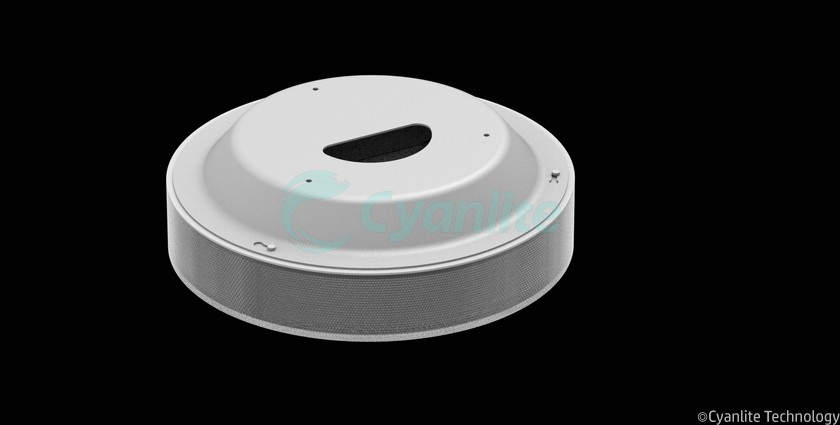

Cyanlite AURA Drop Lens Surface Mounted LED Ceiling Light

The Cyanlite AURA ceiling light combines elegant design with exceptional performance. Featuring a unique drop lens design, it provides not only downward illumination but also side emission, creating a wide, uniform light distribution that beautifully illuminates entire spaces. With multiple mounting options and size variations, AURA adapts to various architectural requirements for commercial, residential, and institutional applications.

The AURA ceiling light delivers exceptional, multi-directional illumination through its unique drop lens, which projects light both downward and to the sides for spacious, uniform coverage. With an Ra90 high color rendering index for true color fidelity and an IP54 rating for indoor/outdoor versatility, it combines performance with durability. Offering ultimate flexibility, it features switchable color temperatures (3000K/4000K/6500K), dimming capabilities, and multiple mounting options (surface, suspension, rod). Available in round (30cm, 40cm, 60cm) and square sizes with opalic or microprismatic diffusers, AURA adapts seamlessly to any commercial or residential space.

• Advantages

 Multi-Directional Light Distribution- Drop lens design enables both downward and side illumination for spacious coverage
 High Color Rendering Index- Ra90 rating ensures true color representation for enhanced visual comfort
 Weather Resistant- IP54 rating protects against dust and water splashes for indoor/outdoor use
 Adjustable Settings- CCT switchable (3000K/4000K/6500K) and dimmable for flexible lighting control
 Versatile Mounting- Surface mount, suspension, or rod suspension options
 Multiple Sizes- Available in round (30cm, 40cm, 60cm) and square configurations
 Diffuser Options- Opalic and microprismatic diffuser choices

• Features

l   Standard sizes:  ⌀300mm (10’’)/ ⌀400mm (14’’) ⌀600mm (22’’) as a big range

l   140 lm/w system effieiency, Opalic and Micro Prismatic diffuser optional

l   RAL9016 white as standard, black and other RAL colors available on request

l   non-yellowing PMMA light guide; uniform light surface, no light spots, no shadow

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

• Specifications

Model	Part No.	Size (mm)	CCT Switchable (Ra90)	Default Power (W)	Default Lumen Output (lm)	Adjustable Power (W)	Adjustable Lumen Output (lm)
D30	BR30WD30AS-9CS	D300x80	3000K/4000K/6500K	30 @650mA	4200	18-40	2520-5600
D40	BR40WD40AS-9CS	D400x80	3000K/4000K/6500K	40 @900mA	5600	18-40	2520-5600
D60	BR60WD60AS-9CS	D600x80	3000K/4000K/6500K	60 @1300mA	8400	40-75	5600-10500

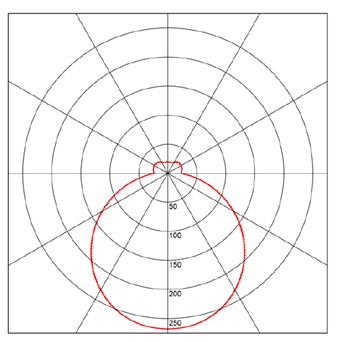

- Light Distribution

• Installations

With optional different mounting designs depending on customers' requirement and preferences.

• Certifications

• Downloads

Cyanlite AURA Drop Lens LED Ceiling Light datasheet [674Kb PDF]
