HO330i Multi-Mount LED Linear Light Customized for Metal Ceiling Systems

Developed by Cyanlite, HO330i LED linear light series is specially tailored to perfectly match hook-over bandraster metal ceiling structures systems. This luminaire can directly substitute the original C-shaped structural beams inside B-H330, SAS330 and C-Bandraster suspended metal ceilings, delivering neat integrated visual effects alongside premium lighting performance. The product range covers two types: single independent units and continuous wiring through versions. Equipped with three flexible mounting structures, the fixture greatly simplifies on-site installation work, helping construction crews finish ceiling & lighting integration efficiently and cut project labor cycles significantly.

• Core Advantages

-          Custom engineered for hook-over metal ceiling systems such as B-H330, SAS330 and C-Bandraster, achieving unified visual coordination with full ceiling frameworks.

-          The complete HO330i size lineup covers all mainstream standard dimensions of hook-over metal ceiling panels.

-          Three optional mounting modes: suspended hanging, recessed embed and lay-in grid installation to fit diverse design demands.

-          Tool-free rapid assembly without extra drilling or component adjustment steps, effectively lowering overall construction costs.

-          Strong customization support, custom lengths and surface finishes are acceptable for unique project requirements.

-          Professional LED lighting factory providing stable ODM service for top European lighting brands to eliminate cooperation risks.

• Product Features

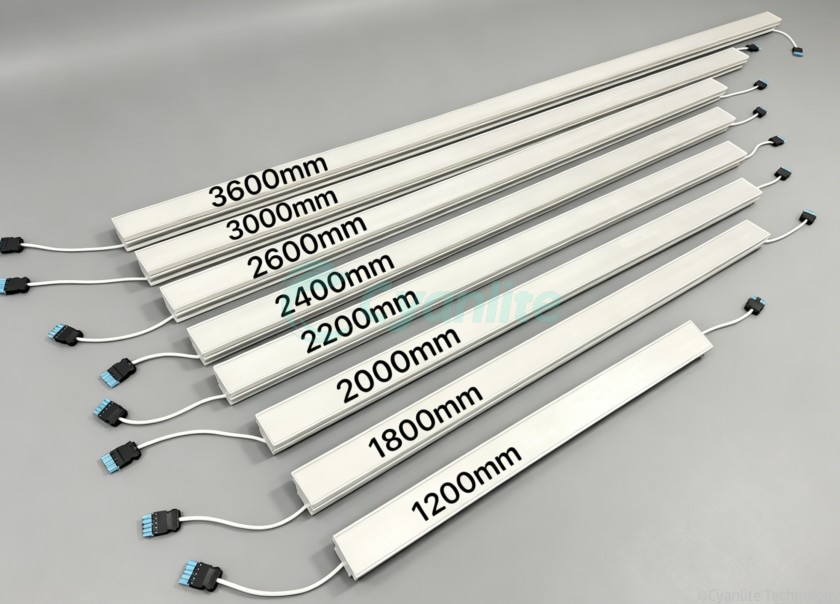

l   Standard dimensions (mm): 1200x100, 1800x100, 2400x100, 3000x100, 3600x100; customized non-standard lengths are supported.

l   Standard housing color RAL9010/RAL9016 to coordinate with original SAS metal ceiling shades, other RAL coating colors available on request

l   Max system luminous efficiency reaches 120 lm/W with Ra90, 4000K neutral white light (940)

l   Fully complies with EN 12464-1 & LG7 office lighting standards; micro prismatic diffuser can be equipped to reach optional UGR<19 low glare performance

l   Wide color temperature range available: 3000K, 3500K, 4000K, 5000K and 6000K

l   Global 5-year factory warranty for all HO330i series linear lights

l   Multiple dimming control options including 0-10V analog dimming, DALI digital dimming and simple switch step dimming

l   Emergency backup lighting module can be added as an optional configura

• Compatible Metal Ceiling Brands & Models (applicable scope is not limited to below options)

• Complete Technical Specifications (Custom dimensions & parameters are supported)

- Light Distribution

- Standard opal diffuser reaches UGR22                                         - Upgrade micro prismatic diffuser to achieve UGR<19 low glare

• Three Available Installation Modes

• Product Certifications

• Download Resources

HO330i LED Linear Lighting Datasheet for SAS Series Hook-Over Metal Ceiling [1.0 Mb]
