  • Up/Down Round Corner LED Panel ROCKY TP
Up/Down Round Corner LED Panel ROCKY TP

Up/Down Round Corner LED Panel ROCKY TP

  • Product Item : ROCKY TP
  • - Direct and indirect light with opalic diffuser and non-yellowing PMMA light guide
  • - 120lm/W, LED square and rectangular panel with rounded corners
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • Product description:Cyanlite LED panel light Rocky TP family for direct and indirect light by suspended installation, 120lm/W, square and rectangular panel with rounded corners, non-yellowing transparent PMMA LGP.
  • Inquiry

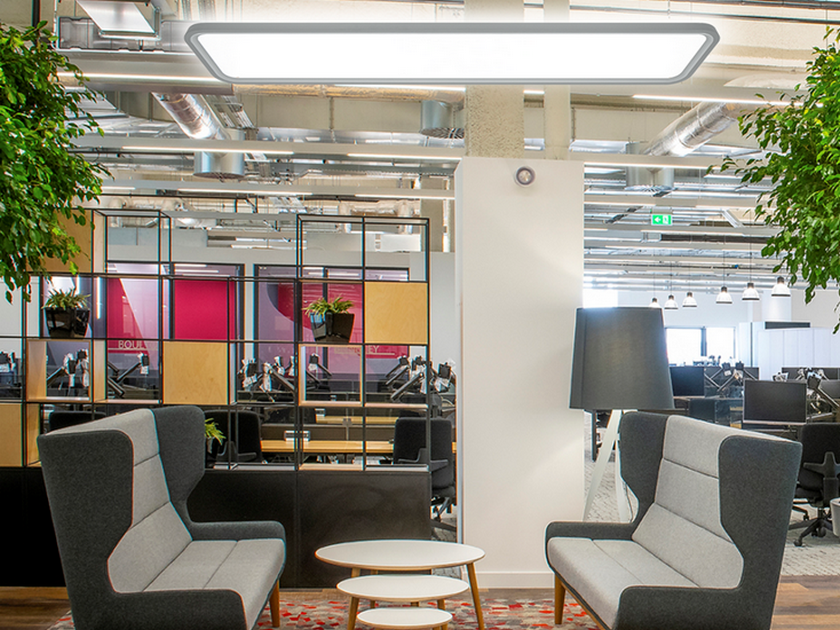

Cyanlite direct and indirect LED transparent panel light with rounded corners Rocky TP

The Cyanlite™ LED panel lights Rocky TP series is an appealing luminaire that is in shape of square or rectangle with rounded corners that is easier on the human eyes and the brain than those with sharp edges. Because of the rounded corners, LED panel lights Rocky TP can be utilized to create an illuminated environment of comfort, warmth, and trust. It adopts non-yellowing transparent PMMA light guide for direct and indirect light by suspended installation.

Cyanlite LED Panel Light with Rounded Corners Rocky

Cyanlite LED panel with rounded corners Rocky Transparent

Cyanlite LED Panel Light with Rounded Corners Rocky

Cyanlite LED panel with rounded corners Rocky Transparent

Advantages

-          Special design based on the aesthetic beauty of rounded corner

-          Easy and fast installation, saving installation cost

-          Transparent appearance achieving a space of penetration and low glare

-          Flexible and customization oriented, bespoke sizes are welcome

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   direct/indirect lighting for harmonious luminous environment

l   Standard sizes (mm): 400x400, 500x500, 600x600; 400x800, 300x1200

l   RAL9016 white as standard, other RAL colors available on request

l   System Efficiency upto 120lm/W

l   EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

Specifications

Model

Part No.

Power

Luminous Flux

Dimension

Efficiency @ 4000K

400x400

PR28WS40-TP

28W

1470 lm1470 lm

400x400x20

105lm/W

500x500

PR32WS50-TP

32W

1680 lm1680 lm

500x500x20

105lm/W

600x600

PR40WS60-TP

40W

2400 lm2400 lm

600x600x20

120lm/W

400x800

PR40WS48-TP

40W

2400 lm2400 lm

400x800x20

120lm/W

300x1200

PR45WS31-TP

45W

2700 lm2700 lm

300x1200x20

120lm/W

- Light Distribution

Cyanlite LED round panel rounded corners Rocky

- Rocky TP transparent diffuser

Certifications


• Downloads


Cyanlite LED Panel Light with Rounded Corners Rocky TP datasheet/installation manual/photometric data download
