Architectural Troffer TROFA for Lay-On ceiling

  • Product Item : TROFA
  • - For T15/T24 Lay-On ceiling
  • - Double Prismatic Diffuser UGR<19
  • - Certification: CE, RoHS
  • - 5 Years Warranty
  • Product description:TROFA - LED architectural troffer light
  • Inquiry

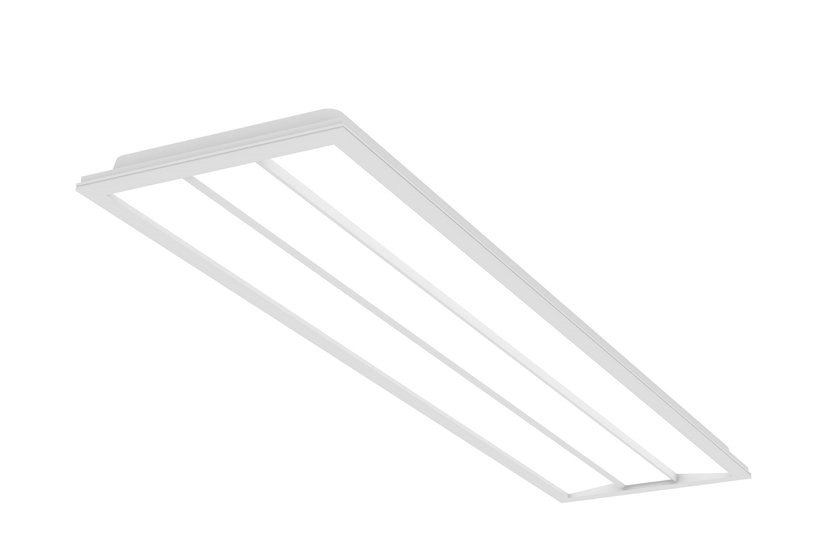

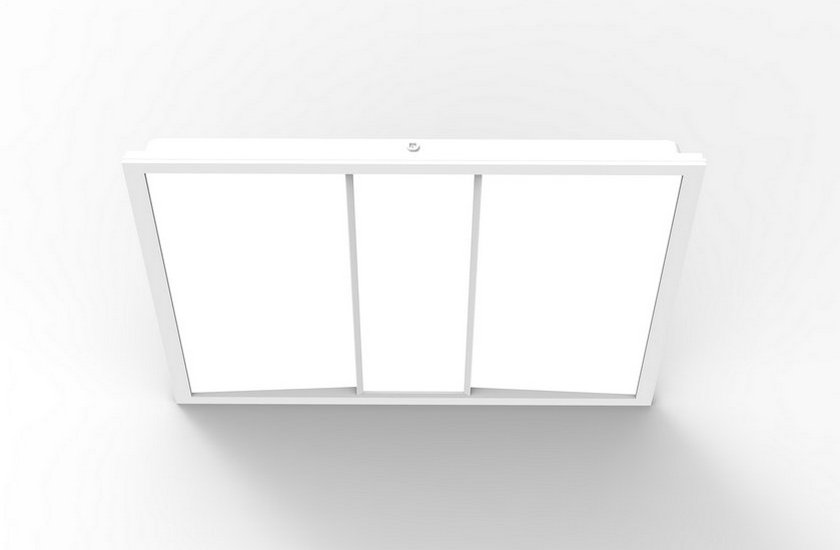

Cyanlite LED Architectural Troffer - TROFA

The Cyanlite™ TROFA series LED Architectural troffer, delivering soft, high-quality light with excellent glare control UGR<19. With its flush-mount white housing, the TROFA troffers blend seamlessly into any ceiling design and softly illuminate the space through highly diffused performance optics. The new architectural look suitable for applications such as corporate offices, up-market retail merchandising spaces and automotive retail applications.

Cyanlite LED architectural troffer light TROFA double prismatic diffuser UGR19

Advantages

-          Special double Prismatic Diffuser optics control, UGR<19.

-          No light guide, no yellowish problem.

-          Architectural design with even light distribution.

-          Easy and fast installation, no additional job for screws or adjustment, saving installation cost

-          A wide product range for all major standard Lay-on ceiling tile sizes

-          Flexible and customization oriented, bespoke sizes are welcome

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership


Features

l   Standard sizes (mm): 595x595, 620x620, 295x1195, 595x1195

l   RAL9016 as standard, other RAL colors available on request

l   EN 12464-1& LG7 Compliant, UGR<19 as standard

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

Light Distribution


Cyanlite TROFA LED architectural troffer light UGR table

Specifications

Model

Part No.

Power

Luminous
Flux

Dimension
(mm)

600x600

PB40W060-T1

40W

4000 lm

595x595x43

625x625

PB40W062-T1

40W

4000 lm

620x620x43

300x1200

PB40W312-T1

40W

4000 lm

295x1195x43

600x1200

PB60W612-T1

60W

6000 lm

595x1195x43


• Dimension


Certifications


• Downloads


Cyanlite LED architectural Troffer datasheet download


Check the LED Architectural Panel Light models from NOVA series>>>

Cyanlite Architectural Lighting NOVA series
