Cyanlite VISTRA Frameless Suspended Linear LED Light | Up & Down Bi-direction Office Pendant Light

Product Overview

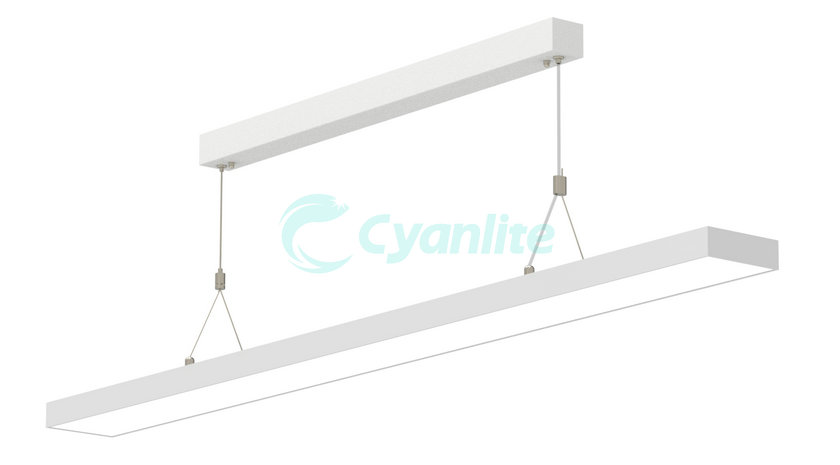

Cyanlite VISTRA is a minimalist frameless suspended linear light specially developed for high-end European commercial office spaces. Adopting ultra-slim 40mm thin aluminium housing, this bi-direction up & down emitting pendant light delivers soft, even lighting with certified UGR<19 low glare effect to eliminate screen reflection during long office hours.

The core innovation lies in the integrated all-in-one suspension structure that combines hanging cables and power lines into one assembly, drastically simplifying field installation work. Built-in DIP switch enables installers to adjust power output and lumen brightness on-site without replacing lamps. Standard multiple width & length options are ready for fast delivery, plus fully customized dimension service for bespoke project layouts. All VISTRA linear lights are covered with a full 5-year manufacturer warranty.

Core Competitive Advantages

1. Minimalist Frameless Aesthetic & Premium Optical Performance

• - Pure frameless slim profile, clean & generous modern design matching Nordic & German office decoration style
• - Dual-sided up & down light emission, uniform seamless illumination without LED hotspots
• - Two diffuser options: Micro Prismatic lens achieves UGR<19 ultra-low glare; Opal lens delivers UGR22 soft wide light
• - Stable color consistency SDCM<3, standard Ra>80, optional high CRI Ra>90 for medical & high-end office

2. One-piece Cable & Suspension Rope – Ultra Fast Installation

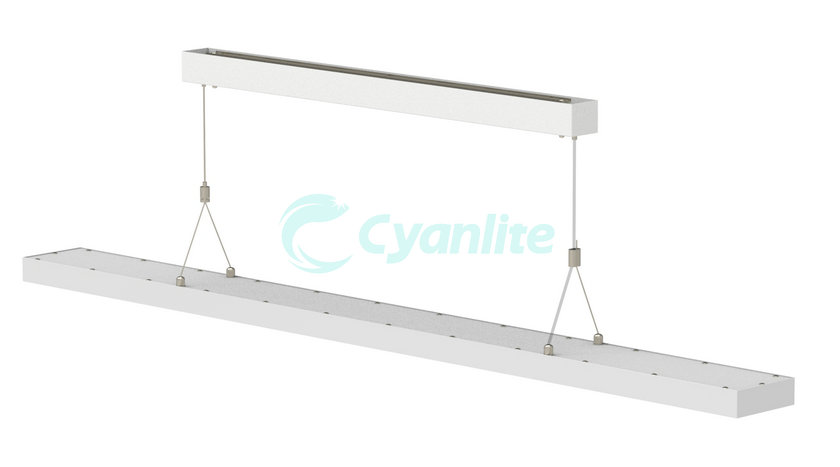

Unlike traditional suspended linear lights that separate power cords and hanging wires, VISTRA integrates suspension cable and power line as a single component. Contractors only need to fix the ceiling base plate and hang the lamp body in one step, cutting more than half of on-site assembly time, lowering labor cost for large-scale renovation projects. Standard suspension height supports 0.5m drop, adjustable upon request.

3. DIP Switch Adjustable Power & Multi Lumen Output (Key Parameter Highlight)

Every VISTRA linear light is equipped with internal DIP toggle switch, supporting 3 levels of power and luminous flux switching in one single fixture. No extra stock of different wattage lamps is required; brightness can be flexibly tuned according to room area, window daylight and client lighting demands during site construction.

4. Flexible Standard & Custom Sizing

• - Standard housing height: 40mm ultra-thin
• - Standard widths: 100mm / 150mm / 200mm
• - Standard lengths: 1200mm / 1500mm
• - Fully bespoke custom length & width available for special ceiling layouts

Full Standard Model Size & Parameter Table

*Custom length, width, CRI and CCT specifications are acceptable for project orders

Full Technical Specifications

• - Luminous Efficacy: 125lm/W @4000K Ra>80
• - Color Rendering Index: Standard Ra>80, optional premium Ra>90
• - Color Temperature: Switchable 3000K/4000K; 6500K available on request
• - Light Emission Type: Backlit, up & down dual-side output
• - LED Chip: SMD2835 high efficiency light source
• - Color Consistency: SDCM<3 MacAdam ellipse
• - Optical Options: 90° Micro Prismatic (UGR<19) / 120° Opal (UGR22)
• - Service Life: L80B10 ≥50,000 hours under 25℃ ambient
• - Protection Class: IP40 dust resistant, IK04 impact resistance, 650℃ glow wire retardant
• - Driver: Standard flicker-free constant current power supply
• - Optional Dimming Control: 1-10V analog, DALI digital, Push Dim, Bluetooth smart dimming
• - Electrical Parameter: 200~240V input, PF>0.9, 50/60Hz, halogen-free internal wiring
• - Structure Material: Aluminium frame + steel back housing, standard RAL9016 white finish
• - Diffuser Material: Standard PS, optional PMMA / PC anti-yellowing panel
• - Operating Temp: -20℃ ~ +45℃; Storage Temp: -40℃ ~ +80℃
• - Mounting Type: Suspended pendant installation
• - Warranty: 5-year global official manufacturer warranty
• - Certifications: CE, RoHS compliant

Application Scenarios

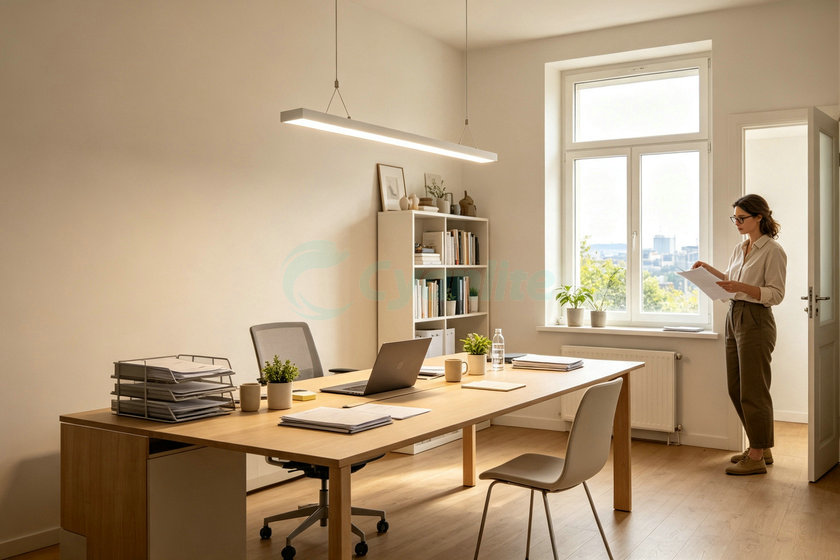

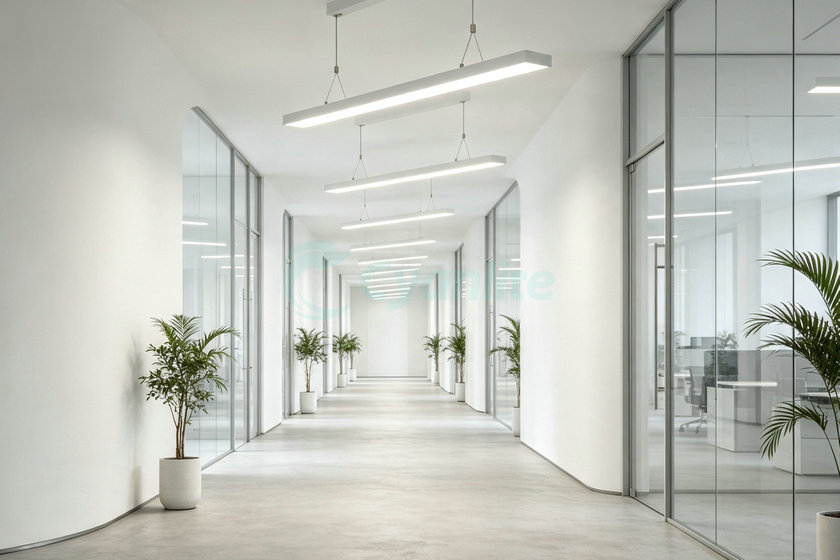

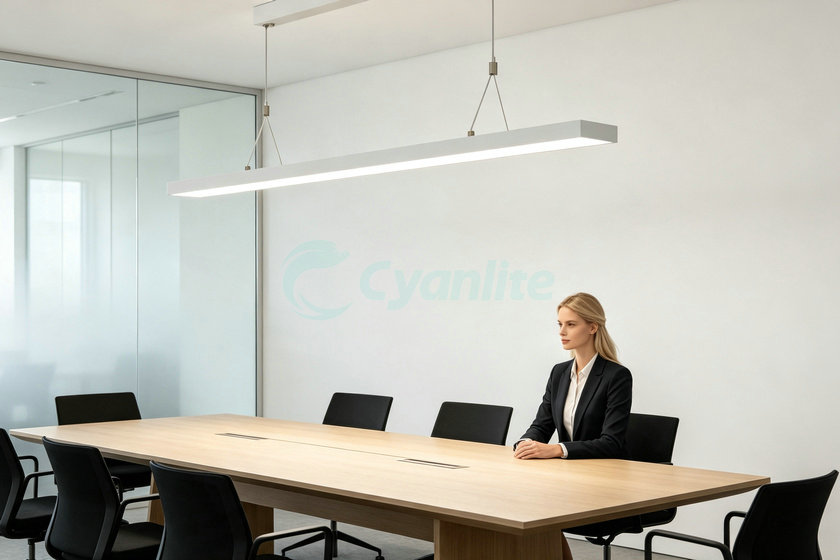

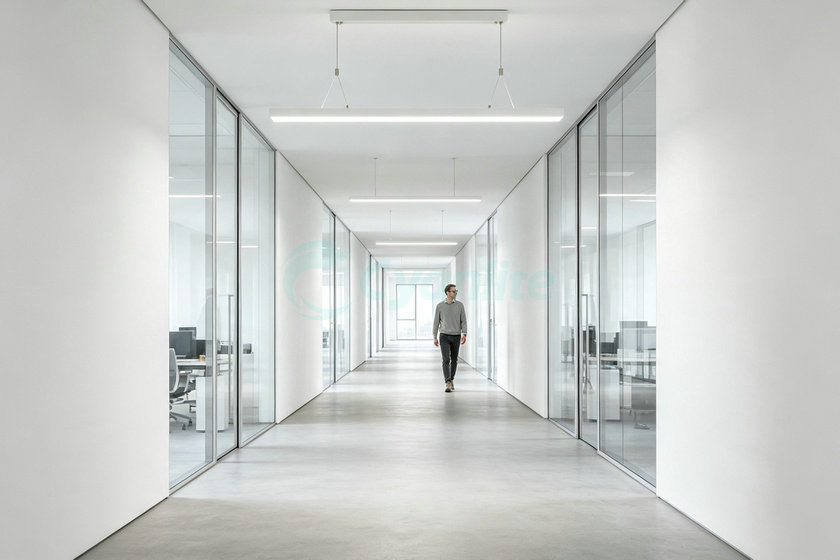

VISTRA frameless suspended linear light is perfectly matched for European minimalist office projects, widely applied to open workstations, meeting rooms, manager offices, lobby corridors and premium retail spaces. The low-profile lamp body serves as hidden functional ceiling lighting without overshadowing interior decoration. Scene pictures with scaled office staff are available to show real 1.2m / 1.5m lamp length visual proportion.

Datasheet & Document Download

Cyanlite VISTRA Frameless Suspended Linear Light datasheet [667Kb PDF]

For custom size, dimming solution and bulk project quotation, please email our professional lighting engineers at sales@cyanlite.com.
