Cyanlite HIPO Frameless Recessed LED Panel | Premium Replacement for German Recessed Einbauleuchte

Product Overview

Cyanlite HIPO series frameless recessed LED panel is designed as a high-end alternative to traditional European recessed ceiling lights. It fully inherits all premium optical and decorative strengths of imported Einbauleuchte fixtures, while upgrading core practical functions including easier field installation and adjustable multi-power/lumen parameters to satisfy diverse engineering project demands.

Adopting backlit multi-layer Micro Prismatic optic technology, this frameless panel delivers 100% even light output without visible LED dot spots. Equipped with laser-welded sealed light chamber, it realizes touch safety, dust and insect blocking, matching the high standard lighting performance of German recessed luminaires, yet brings unique adjustable power function and optimized spring mounting structure that greatly cut construction time and stock cost for distributors & contractors.

Core Advantages: Match German Luminaire Premium Performance + Our Exclusive Upgrades

1. Consistent High-End Optical & Aesthetic Performance

• -Borderless frameless flush design, creating seamless integrated ceiling visual effect
• -Multi-layer micro prismatic backlight diffuser, uniform illumination without hot spots
• -Strict SDCM＜3 color consistency, high Ra＞90, standard 4000K neutral white
• -90° beam angle with UGR＜19 low glare, compliant with EN 12464; low high-angle luminance avoids reflection on office monitors & medical screens
• -L90 50,000hrs long LED service life, stable long-term operation
• -Laser-welded fully sealed light cavity, prevents dirt and bugs entering the luminaire interior
• -Smooth high-grade PMMA outer surface, super easy daily cleaning

2. Unique Competitive Strengths: Easier Installation & Switchable Power/Lumen

Superior Simplified Recessed Installation

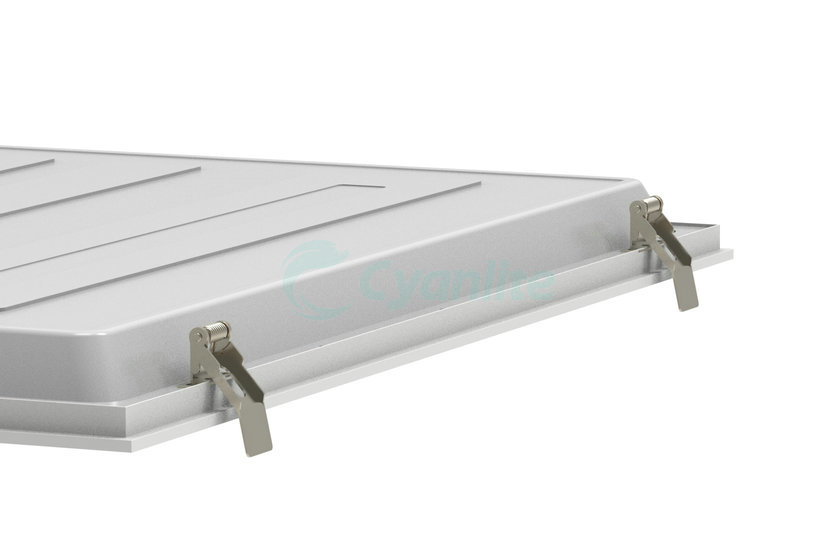

Optimized built-in elastic spring clips with larger adaptive tolerance for ceiling cutouts. Compatible with both concealed and exposed modular ceiling keels. No extra separate mounting kits required, installers can finish single luminaire or continuous cluster layout much faster than German fixed-output recessed lights, effectively lowering project labor expenditure.

DIP Switch Adjustable Power & Lumen (One Lamp Multiple Outputs)

The biggest highlight differentiating us from conventional German fixed-power recessed luminaires: internal dip switch design allows on-site power switching between 28W / 35W / 42W, corresponding to 3640 / 4550 / 5460 lumens without replacing fixtures.

• -Single SKU covers three brightness grades, reduce warehouse inventory pressure
• -Flexible brightness adjustment on-site to match different room areas & daylight conditions
• -No extra spare lamp preparation needed for later project modification

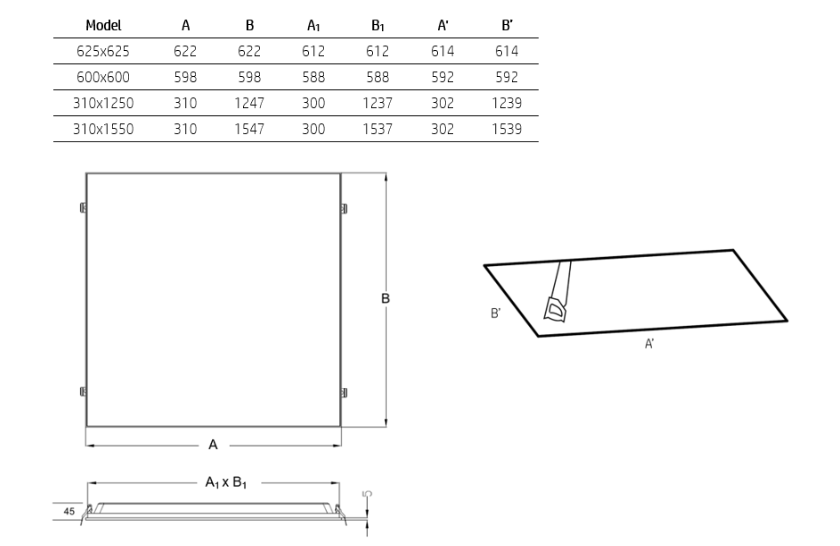

Dimensions

Complete Standard Model Range

*Custom sizes, color temperatures and optical configurations are available upon request

Full Technical Specifications

• -Luminous Efficacy: 130lm/W standard, optional 140lm/W high efficiency version (Ra80)
• -Color Rendering: Ra＞90 standard, optional Ra＞80
>Color Temperature: 4000K default, customizable 3000K warm white
• -Light Source: SMD2835 LED chips
• -Color Consistency: SDCM＜3 MacAdam ellipse
• -Optical Options: 90° Micro Prismatic Diffuser (UGR＜19) / 120° Opal Diffuser (UGR22)
• -Lifespan: L80＞60,000 hours under 25℃ ambient temperature
• -Protection Grade: IP40 dustproof, IK04 impact resistance, 650℃ glow wire resistant
• -Driver: Standard flicker-free constant current driver; Optional 0-10V / DALI / Push Dim / Bluetooth dimming control
• -Electrical: 200~240V input, PF＞0.9, 50/60Hz frequency, halogen-free wiring
• -Structure: Aluminum frame + steel back housing, standard RAL9016 white finish
• -Material: PMMA lens, optional PMMA/PC diffuser instead of standard PS
• -Working Temperature: -20℃ ~ +45℃; Storage Temperature: -40℃ ~ +80℃
• -Warranty: 5-year global official manufacturer warranty
• -Certifications: CE & RoHS compliant

Application Scenarios

Ideal replacement solution for imported German recessed Einbauleuchte, widely used in modern offices, medical clinics, schools, shopping malls and high-end commercial spaces. Compatible with pre-cut ceiling openings and all types of concealed & exposed modular metal/plaster ceiling systems, supports single lamp installation or continuous multi-lamp cluster layout.

Certifications

Download

Cyanlite HIPO Frameless Recessed LED Panel Light datasheet [601Kb PDF]

Contact our professional ceiling lighting engineers via sales@cyanlite.com for custom project quotation and tailored lighting solutions.
