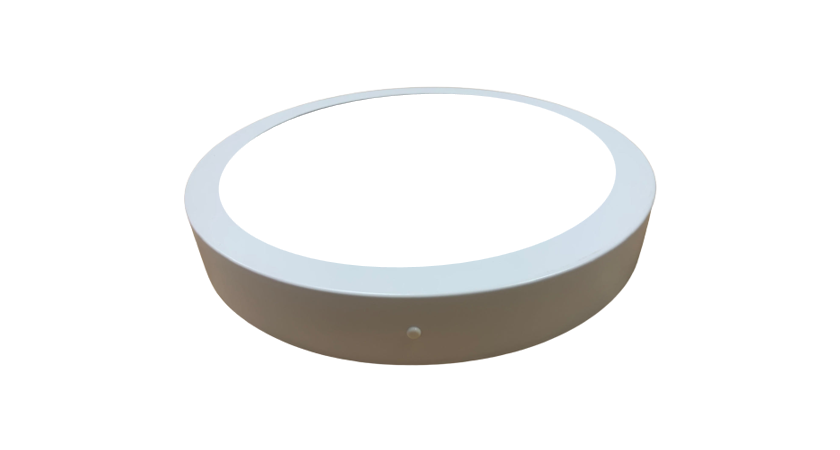

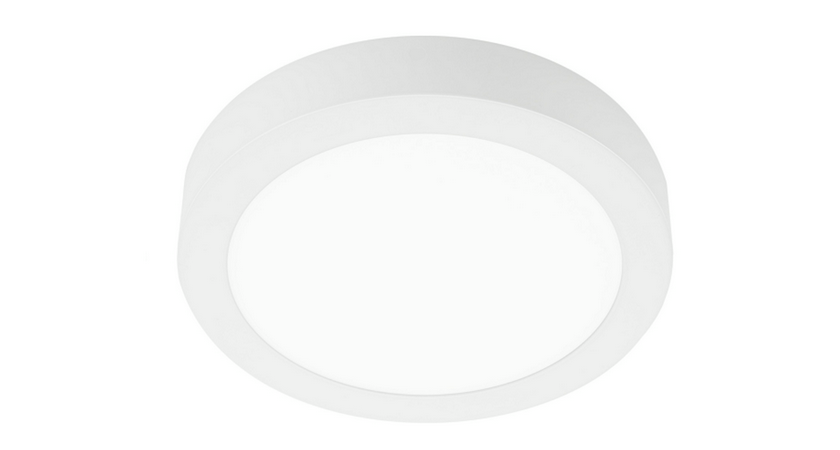

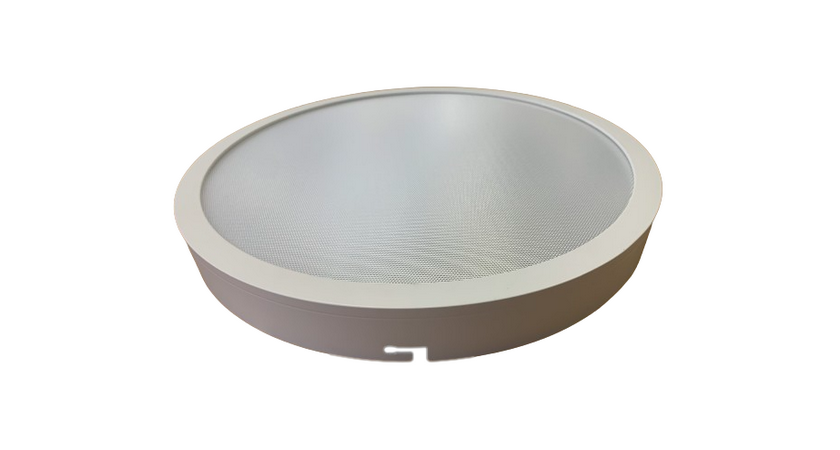

Cyanlite AVIA SM Surface Mounted LED Flat Downlight

The Cyanlite™ LED Slim Down Light AVIA series adopt super bright LED as its luminous body, powered by low voltage constant current driver. Aluminum die-casting housing with baking varnish disposal makes it stylish and fashionable with everlasting color.

Excellent thermal management can effectively guarantee the LED's long-term stability. The front panel board is high translucent acrylic, which ensures the light even, soft and high transmittance. Instant start, no flickering, no humming, no hazardous material.

Different from many other similar products in the market, Cyanlite always aim to provide higher level luminaire performance and light quality with 120 lm/w and UGR<19 precise glare control in these small sizes round panel lights. With more professional look that no air slots on the housing, and the screws can be replaced by special designed white plastic screws for a better and consistence appearance.

• Advantages

-          Aluminum housing and PMMA LGP ensures stable quality with 5 years warranty.

-          Upto 120 lm/w for the system efficiency with UGR<19 prismatic diffuser.

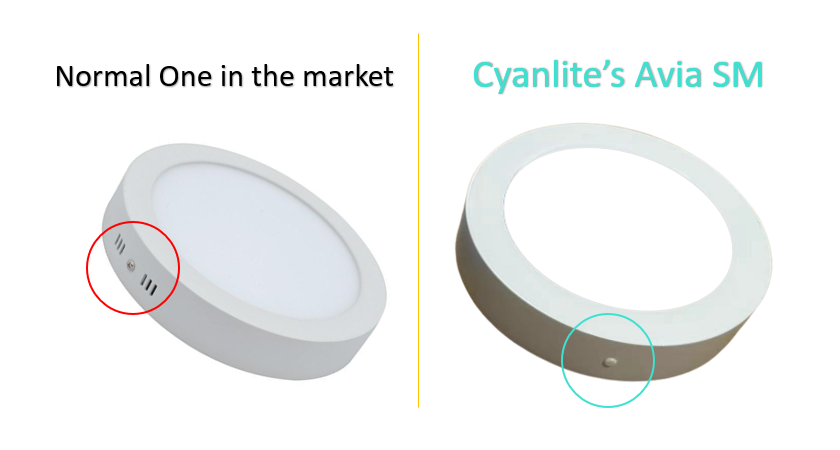

-          No air slot as cheap products in the market.

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership.

• Features

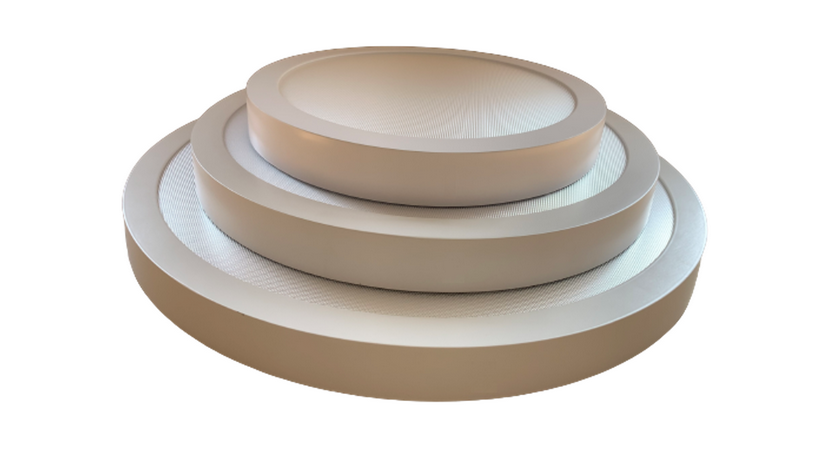

l   Standard sizes:  ⌀145mm (4’’)/ ⌀180mm (6’’)/ ⌀240mm (8’’)/ ⌀300mm (10’’)/ ⌀400mm (14’’)/ ⌀500mm (18’’)/ ⌀600mm (22’’) as a big range

l   120 lm/w system effieiency, Opalic and Micro Prismatic diffuser optional

l   RAL9016 white as standard, black and other RAL colors available on request

l   non-yellowing PMMA light guide; uniform light surface, no light spots, no shadow

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

• Specifications

Model	Part No.	Power	Luminous Flux	Dimension (mm)
4’’/D15	PR08WD04P-SM	8W	960 lm	⌀145x35
6’’/D18	PR12WD06P-SM	12W	1440 lm	⌀180x35
8’’/D24	PR20WD08P-SM	20W	2400 lm	⌀240x35
10’’/D30	PR24WD10P-SM	24W	2800 lm	⌀300x35
14’’/D40	PR35WD14P-SM	35W	4200 lm	⌀400x35
18’’/D50	PR40WD18P-SM	40W	4800 lm	⌀500x35
22’’/D60	PR40WD22P-SM	40W	4800 lm	⌀600x35

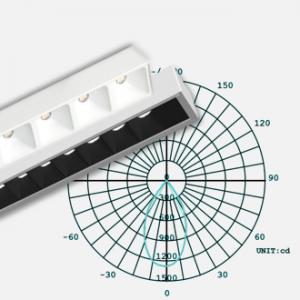

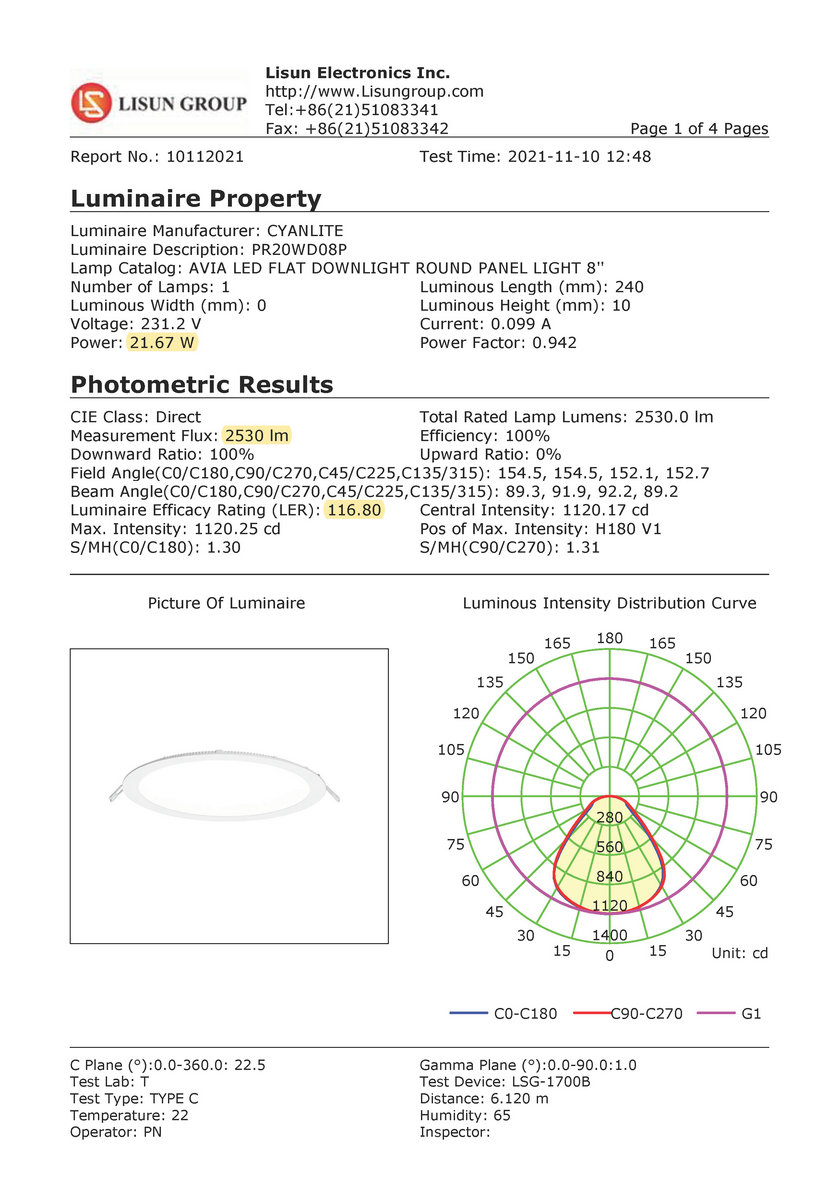

- Light Distribution

• Installations

With optional different mounting designs depending on customers' requirement and preferences.

• Packages

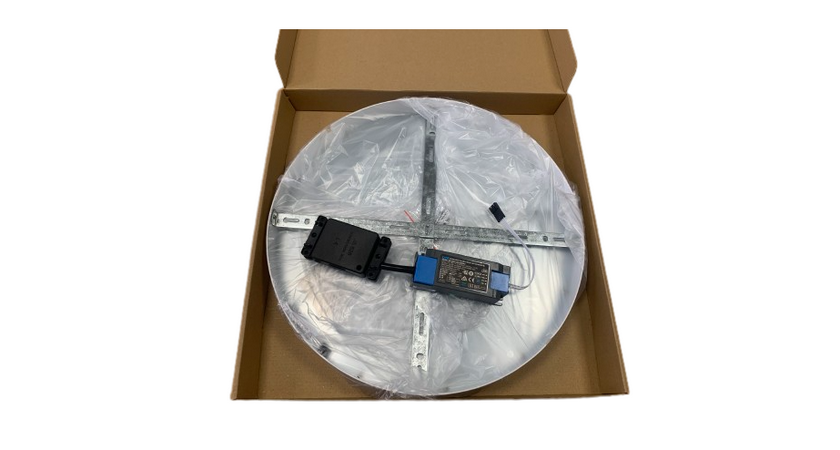

Solid Pizza box design gift box (inner carton) with all in one (bracket accessory, screws, drivers, terminal box etc.,) packing.

• Certifications

• Downloads

Cyanlite AVIA  SM LED Flat Downlight Slim Round Panel datasheet/installation manual/photometric data download
