  • MONA D
  • MONA D
MONA DMONA D

MONA D

  • - LED desktop luminaire with uniform light panel
  • - UGR<18, 100lm/W, 50% direct and 50% indirect, touch dimming
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • Product description:Cyanlite LED desktop luminaire MONA D, UGR<18, direct and indirect light distribution, integrated PIR presence sensor and daylight sensor optional, touch dimming synchronous control
  • Inquiry

Cyanlite LED desktop luminaire MONA D

The Cyanlite™ LED desktop luminaire MONA D is of edge-lit technology for one 1*2m working plane with flat luminaire head. As a desktop luminaire, it is suitable for all types of fixed and height-adjustable desks. Thanks to exquisite combination of non-yellowing PMMA LGP, smooth micro prismatic and opalic diffuser, the luminaire is of 50% direct and 50% indirect light emission. Electrical connection via 2.5m connection cable and plug. With integrated PIR presence sensor and daylight sensor for constant illuminance in the luminaire surroundings when the luminaire is switched on and for natural light incidence.

Cyanlite LED desktop luminaire MONA D

Cyanlite LED free standing luminaire MONA D

Cyanlite LED desktop luminaire MONA D

Advantages

-          Modern office environment for fixed and height-adjustable desks

-          Easy and fast installation, saving installation cost

-          Touch dimming and optional integrated PIR presence sensor and daylight sensor with the benefit of saving electricity

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   100lm/W, 50% direct and 50% indirect, 60W and 80W available

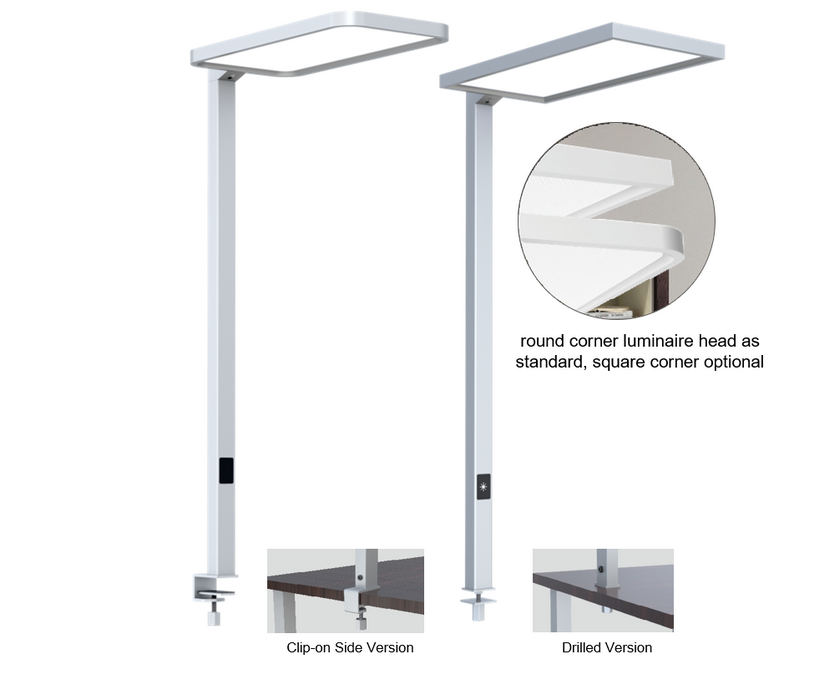

l   Standard table clamp for fixing to the edge of desk surface, drilled mounting kit optional

l   Touch dimming synchronous control

l   non-yellowing PMMA light guide and prismatic diffuser for uniform light surface

l   RAL9016 white as standard, black, silver and other RAL colors available on request

l   Integrated PIR presence sensor and daylight sensor optional

Specifications

Function

Product Dimension

Item No.

Luminous Flux

System Power

Efficiency @ 4000K

Touch Dim

692 x 310 x 1200mm

FS60WDM

3000lm↑/3000lm↓

60W (30W↑/30W↓)

100lm/W

692 x 310 x 1200mm

FS80WDM

4000lm↑/4000lm↓

80W (40W↑/40W↓)

100lm/W

Touch Dim
Motion Sensor

692 x 310 x 1200mm

FS60WDM-M

3000lm↑/3000lm↓

60W (30W↑/30W↓)

100lm/W

692 x 310 x 1200mm

FS80WDM-M

4000lm↑/4000lm↓

80W (40W↑/40W↓)

100lm/W

Touch Dim
Motion Sensor
Daylight Sensor

692 x 310 x 1200mm

FS60WDM-D

3000lm↑/3000lm↓

60W (30W↑/30W↓)

100lm/W

692 x 310 x 1200mm

FS80WDM-D

4000lm↑/4000lm↓

80W (40W↑/40W↓)

100lm/W

- Light Distribution

Cyanlite LED free standing luminaire MONA

Certifications


• Downloads


Cyanlite LED Desktop Luminaire MONA D datasheet/installation manual/photometric data download
