TWINS D

TWINS D

  • - LED desktop luminaire head in classic design
  • - UGR<17, 110lm/W, 50% direct and 50% indirect, knob dimming
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • Product description:Cyanlite LED desktop luminaire TWINS D, UGR<17, direct and indirect light distribution, integrated PIR presence sensor and daylight sensor optional, knob dimming synchronous control
  • Inquiry

Cyanlite LED desktop luminaire TWINS D

The Cyanlite™ LED desktop luminaire TWINS D is for one 1*2m working plane with luminaire head in classic design. As a desktop luminaire, it is suitable for all types of fixed and height-adjustable desks. Thanks to fine-prism lens (downlight) and PMMA clear lens (uplight), the luminaire is of 50% direct and 50% indirect light emission. Electrical connection via 2.5m connection cable and plug. With integrated PIR presence sensor and daylight sensor for constant illuminance in the luminaire surroundings when the luminaire is switched on and for natural light incidence.

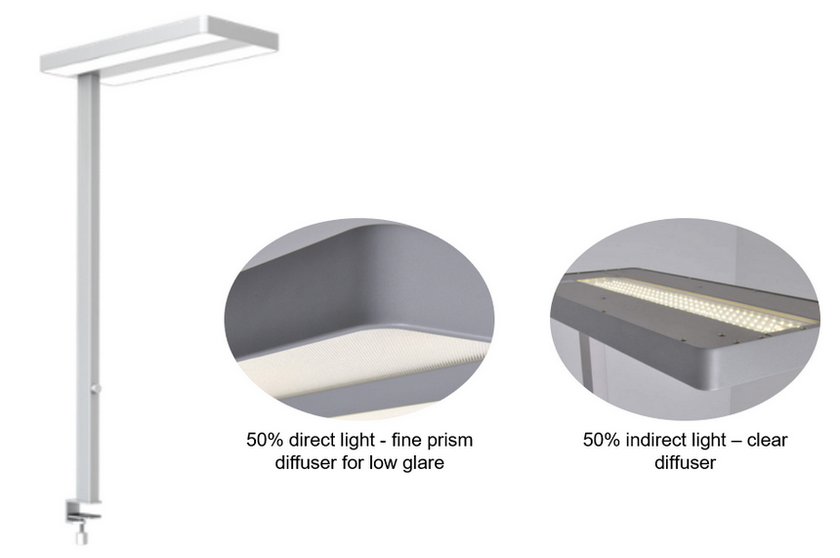

Cyanlite LED desktop luminaire TWINS D detail



Cyanlite LED desktop luminaire TWINS D

Advantages

-          Modern office environment in classic design for fixed and height-adjustable desks

-          Easy and fast installation, saving installation cost

-          Knob dimming and optional integrated PIR presence sensor and daylight sensor with the benefit of saving electricity

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   110lm/W, 50% direct and 50% indirect, 60W and 80W available

l   Standard table clamp for fixing to the edge of desk surface, drilled mounting kit optional

l   Knob dimming synchronous control

l   Fine-prism lens for excellent glare control UGR<17

l   RAL9016 white as standard, black, silver and other RAL colors available on request

l   Integrated PIR presence sensor and daylight sensor optional

Specifications

Function

Product Dimension

Item No.

Luminous Flux

System Power

Efficiency @ 4000K

Knob Dim

610 x 280 x 1200mm

FS60WDT

3500lm↑/3100lm↓

60W (30W↑/30W↓)

110lm/W

610 x 280 x 1200mm

FS80WDT

4600lm↑/4200lm↓

80W (40W↑/40W↓)

110lm/W

Knob Dim
Motion Sensor

610 x 280 x 1200mm

FS60WDT-M

3500lm↑/3100lm↓

60W (30W↑/30W↓)

110lm/W

610 x 280 x 1200mm

FS80WDT-M

4600lm↑/4200lm↓

80W (40W↑/40W↓)

110lm/W

Knob Dim
Motion Sensor
Daylight Sensor

610 x 280 x 1200mm

FS60WDT-D

3500lm↑/3100lm↓

60W (30W↑/30W↓)

110lm/W

610 x 280 x 1200mm

FS80WDT-D

4600lm↑/4200lm↓

80W (40W↑/40W↓)

110lm/W

- Light Distribution

Cyanlite LED free standing luminaire TWINS

Certifications


• Downloads


Cyanlite LED Desktop Luminaire TWINS D datasheet/installation manual/photometric data download
