  • LINA D
  • LINA D
LINA DLINA D

LINA D

  • - LED desktop luminaire linear shaped
  • - UGR<6, 120lm/W, 30% direct and 70% indirect, touch dimming
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • Product description:Cyanlite LED desktop luminaire LINA D, UGR<6, direct and indirect light distribution, integrated PIR presence sensor and daylight sensor optional, touch dimming asynchronous control
  • Inquiry

Cyanlite LED desktop luminaire LINA D

The Cyanlite™ LED free standing luminaire LINA D is for two 1*2m working planes with linear luminaire head. As a desktop luminaire, it is suitable for all types of fixed and height-adjustable desks. Thanks to unique designed reflector cup and anti-glare lens module, the luminaire is of UGR<6 and achieves 70% direct and 30% indirect light emission. Electrical connection via 2.5m connection cable and plug. With integrated PIR presence sensor and daylight sensor for constant illuminance in the luminaire surroundings when the luminaire is switched on and for natural light incidence. Touch dimming for asynchronous control on direct / indirect light and tunable white.

Cyanlite LED desktop luminaire LINA D

Cyanlite LED free standing luminaire LINA D

Advantages

-          Modern office environment for fixed and height-adjustable desks

-          Easy and fast installation, saving installation cost

-          Touch dimming and optional integrated PIR presence sensor and daylight sensor with the benefit of saving electricity

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   120lm/W, 30% direct and 70% indirect, 80W

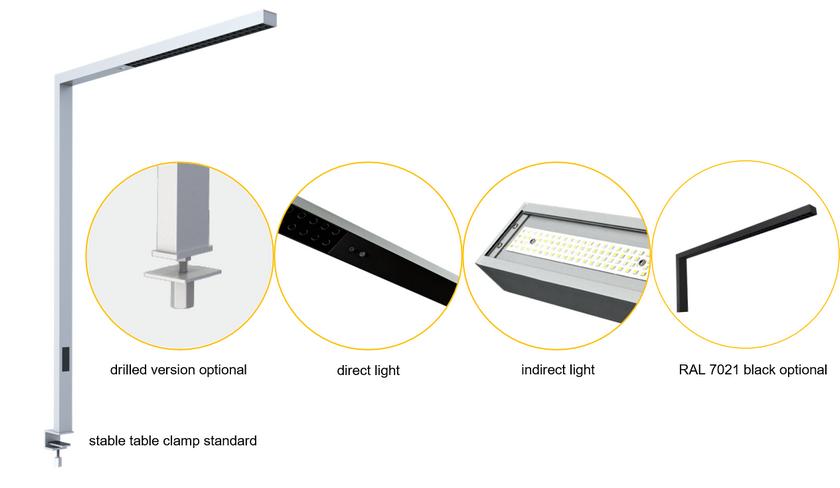

l   Standard table clamp for fixing to the edge of desk surface, drilled mounting kit optional

l   Touch dimming asynchronous control

l   Tunable white optional for Human Centric Lighting (HCL)

l   Unique designed reflector cup and anti-glare lens module to achieve UGR<6

l   RAL9016 white as standard, black, silver and other RAL colors available on request

l   Integrated PIR presence sensor and daylight sensor optional

Cyanlite LED free standing luminaire LINA D

Specifications

Function

Product Dimension

Item No.

Luminous Flux

System Power

Efficiency @ 4000K

Color Temperature

Touch Dim

1056 x 64 x 1200mm

FS80WDL

6600lm↑/3000lm↓

80W (55W↑/25W↓)

120lm/W

3000K/4000K/6000K

Touch Dim
Motion Sensor
Daylight Sensor

1056 x 64 x 1200mm

FS80WDL-D

6600lm↑/3000lm↓

80W (55W↑/25W↓)

120lm/W

3000K/4000K/6000K

Touch Dim
Motion Sensor
Daylight Sensor
Tunable White

1056 x 64 x 1200mm

FS80WDL-C

5500lm↑/2500lm↓

80W (55W↑/25W↓)

100lm/W

3000K~6000K

- Light Distribution

Cyanlite LED free standing luminaire LINA

Certifications


• Downloads


Cyanlite LED Desktop Luminaire LINA D datasheet/installation manual/photometric data download
