Frame Panel for Lay-On ceiling

  • Product Item : Glam
  • - Perfectly recessed into the T15/T24 Lay-On ceilings easily and fast
  • - EN 12464-1& LG7 Compliant, UGR<19 Optional
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • Product description:The Cyanlite™ LED Frame Lights can be perfectly recessed into the T15/T24 Lay-On ceilings easily and fast, no need any modifications for the ceiling or tile.
  • Inquiry

Cyanlite LED Frame Panel Light Glam series for Lay-On ceilings

Cyanlite LED Frame Panel Glam Series

Ordinary LED panel lights are the most used luminaires for normal T15/T24 Lay-On ceiling systems, however, in some projects architects want something different, and here it comes!

The Cyanlite™ LED Frame Lights can be perfectly recessed into the T15/T24 Lay-On ceilings easily and fast, no need any modifications for the ceiling or tile, the luminaire will be under the original ceiling tile and perfectly integrated with the whole ceiling system. Opalic and Prismatic diffusers are optional.

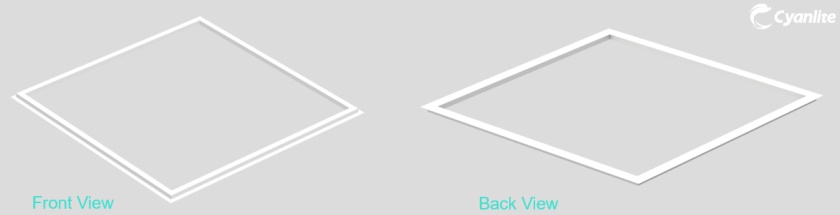

Cyanlite LED Frame Panel light Glam Series

Cyanlite LED Frame panel light Glam series for Lay-On ceilings

Advantages

-          Perfectly recessed into the T15/T24 Lay-On ceilings easily and fast

-          Needs no additional installation accessories for RECESSED installation, saving material cost

-          Easy and fast installation, no additional job for screws or adjustment, saving installation cost

-          A wide product range for all major standard Lay-on ceiling tile sizes

-          Flexible and customization oriented, bespoke sizes are welcome

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   Standard sizes (mm): 300x1200, 600x600, 600x1200, 625x625, 625x1250

l   RAL9016 as standard coating colors, other RAL colors available on request

l   System Efficiency upto 120 lm/W

l   Opalic and Micro Prismatic diffuser available

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

Specifications

T bar
Width

Model

Part No.

Power

Luminous
Flux

Dimension
(mm)

Inner Size
(mm)

T24


300x1200

PF30W312F

30 W

3600 lm

295x1195x16

274x1174

600x600

PF30W060F

30 W

3600 lm

595x595x16

574x574

600x1200

PF40W612F

40 W

4800 lm

595x1195x16

574x1174

625x625

PF30W062F

30W

3600 lm

620x620x16

599x599

625x1250

PF40W613F

40 W

4800 lm

620x1245x16

599x1224

T15


300x1200

PF30W312V

30 W

3600 lm

295x1195x16

284x1184

600x600

PF30W060V

30 W

3600 lm

595x595x16

584x584

600x1200

PF40W612V

40 W

4800 lm

595x1195x16

584x1184

625x625

PF30W062V

30 W

3600 lm

620x620x16

609x609

625x1250

PF40W613V

40 W

4800 lm

620x1245x16

609x1234

- Light Distribution


- UGR22 with Opalic diffuser                                         - UGR19 with Micro Prismatic diffuser

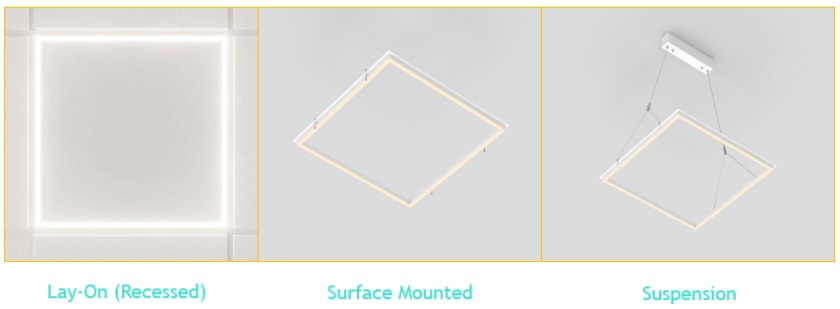

Installation

Cyanlite LED Frame Panel Glam series Installation

Certifications


• Downloads


Cyanlite GLAM LED Frame Panel Light datasheet/installation manual/photometric data download
