Home > Products > Direct/Indirect LED Panel Light > Round

  • Cynthia Up & Down
  • Cynthia Up & Down
Cynthia Up & DownCynthia Up & Down

Cynthia Up & Down

  • - One family with uniform aluminum profile and diameter from 40cm to 120cm
  • - Direct and indirect light with help of opalic diffuser and non-yellowing PMMA light guide
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • Product description:Cyanlite LED round panel light family for direct and indirect light, in diameter of 40cm, 50cm, 60cm, 80cm, 100cm or 120cm; suspended with tidy wires; Ra>97 optional for medical lighting.
  • Inquiry

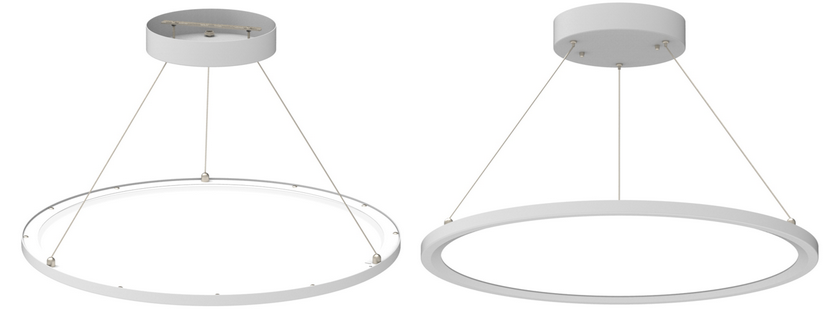

Cyanlite LED round panel light Cynthia UD for direct and indirect light

The Cyanlite™ LED round panel light Cynthia UD series is an edge-lit luminaire for both direct and indirect light. Thanks to opalic diffuser and non-yellowing PMMA, light distribution achieves 70% downwards and 30% upwards, so that there is competent luminous intensity on workplane and harmonious light to the ceiling. The product family adopts same aluminum profile in diameter from 40 cm to 120 cm, enable the space under uniform theme by combining various sizes.

Cyanlite LED round panel light for direct indirect light

Advantages

-          Direct and indirect light for harmonious luminous environment

-          Freedom to mix and match the luminaires to modern spaces in various sizes, powder coatings, optics, and functions

-          Suspended with tidy wires and driver in the canopy, in a classy appearance

-          Ra>97, R1-R15>90, bring out more real colors of an object, perfect for hospital and shops

-          Customization oriented, bespoke sizes are welcome

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   30% upwards and 70% downwards with opalic and micro prismatic optional

l   Standard sizes (cm): D40, D50, D60, D80, D100, D120

l   RAL9016 white as standard, black and other RAL colors available on request

l   Single white and tunable white for Human Centric Light (HCL) optional

l   non-yellowing PMMA light guide; uniform light surface, no light spots, no shadow

l   One-piece foam and all-in package give 360 degree care for simple delivery, security on site, and quick unpacking

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Specifications

Model

Product Dimension

Item No.

Luminous Flux

System Power

Efficiency @ 4000K

D40

400*20mm

PR28WD40-UD

2940lm

28W

105lm/W

D50

500*20mm

PR32WD50-UD

3360lm

32W

105lm/W

D60

600*20mm

PR40WD60-UD

4800lm

40W

120lm/W

D80

780*20mm

PR55WD80-UD

6600lm

55W

120lm/W

D100

1000*20mm

PR75WDH0-UD

9000lm

75W

120lm/W

D120

1200*20mm

PR85WDH2-UD

10200lm

85W

120lm/W









- Light Distribution

Cyanlite LED round panel light for direct and indirect light

Installation

Cyanlite LED round panel light for direct and indirect light

Certifications


• Downloads


Cyanlite LED round panel light Cynthia UD datasheet/installation manual/photometric data download
