Dropod - Drop Lens Panel Light

Product Item : Dropod - Drop Lens Panel Light
- Ra80, IP44, 3000K/4000K/6500K Single CCT&SCCT
- Downward Lighting and Sideward Lighting
- 5 Years Warranty; CE, RoHS2.0, REACH approval
- Super fast Tool-less installation for T-bar and Gypsum ceilings
Product description：DROPOD light is featuring a unique drop lens design, it provides not only downward illumination but also side emission, creating a wide, uniform light distribution that illuminates entire spaces.
Inquiry

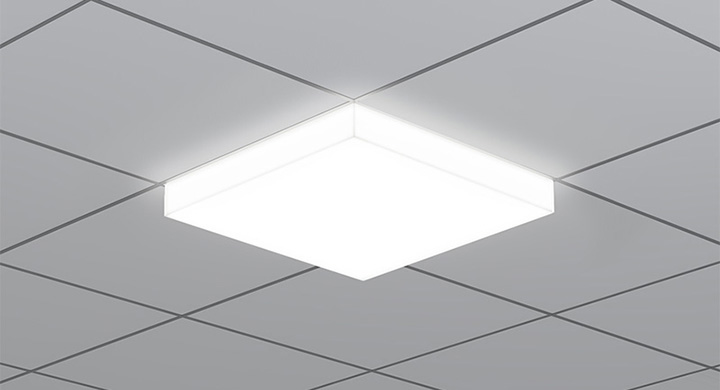

Cyanlite DROPOD Drop Lens LED Panel Light

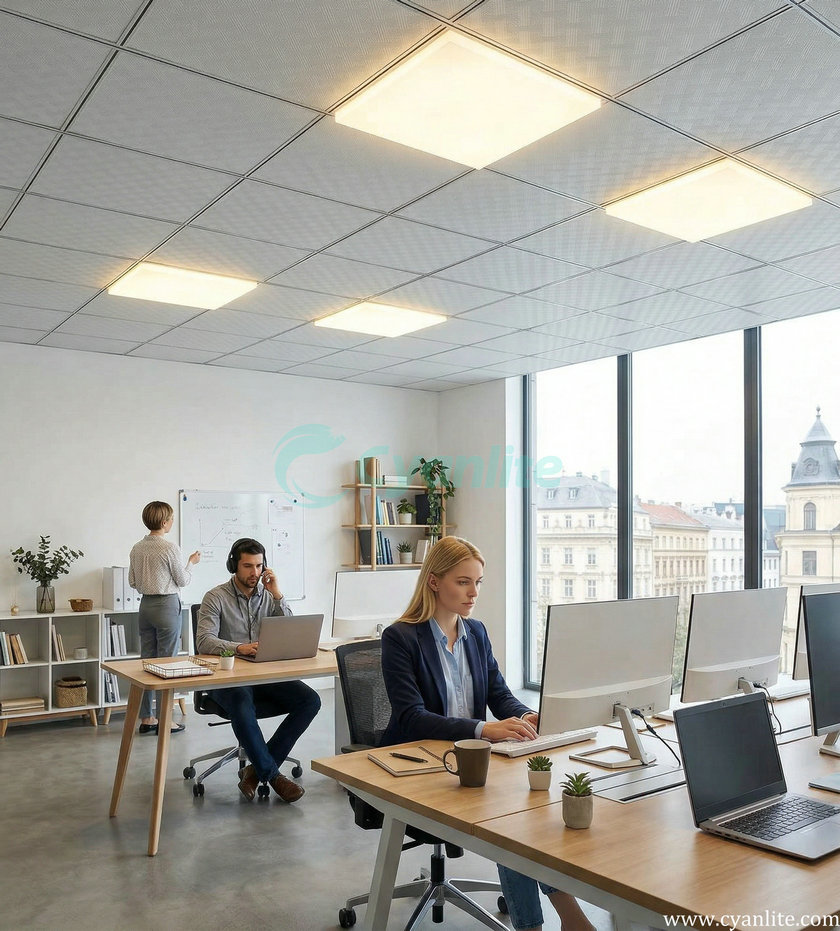

Cyanlite DROPOD drop lens LED Panel Light applications

The Cyanlite DROPOD light combines elegant design with exceptional performance. Featuring a unique drop lens design, it provides not only downward illumination but also side emission, creating a wide, uniform light distribution that beautifully illuminates entire spaces. With its unique design, DROPOD can integrate into the T-bar ceilings and gypsum board ceilings perfectly for office, commercial, and institutional applications

Cyanlite DROPOD drop lens LED Panel Light

• Advantages

 Multi-Directional Light Distribution- Drop lens design enables both downward and side illumination for spacious coverage
 High Efficiency- System efficiency up to 150 lm/W.
 Adjustable Settings- CCT switchable (3000K/4000K/6500K) and dimmable for flexible lighting control
 Easy Installation- Tool-less and superfast installation for all kinds of T-bar and Gypsum board ceilings
 Diffuser Options- Opalic and microprismatic diffuser choices

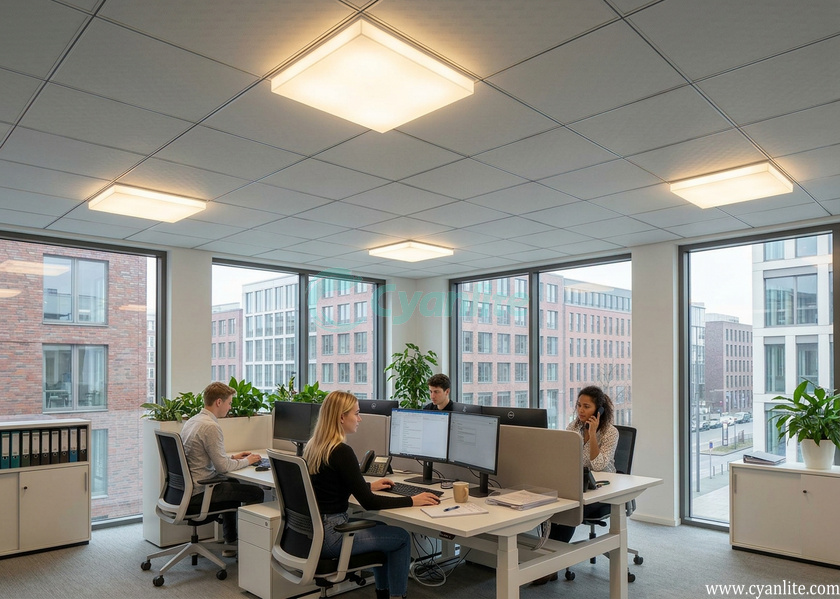

Cyanlite DROPOD drop lens LED Panel Light applications

• Features

l Standard sizes: For 625x625 and 600x600 T-bar ceilings and Gypsum board cut-out ceilings

l 150 lm/w system efficiency, Opalic and Micro Prismatic diffuser optional

l 45mm drop height as standard, the other drop height is optional

l Various dimming options, including 0-10V, DALI, Switch Dim etc.

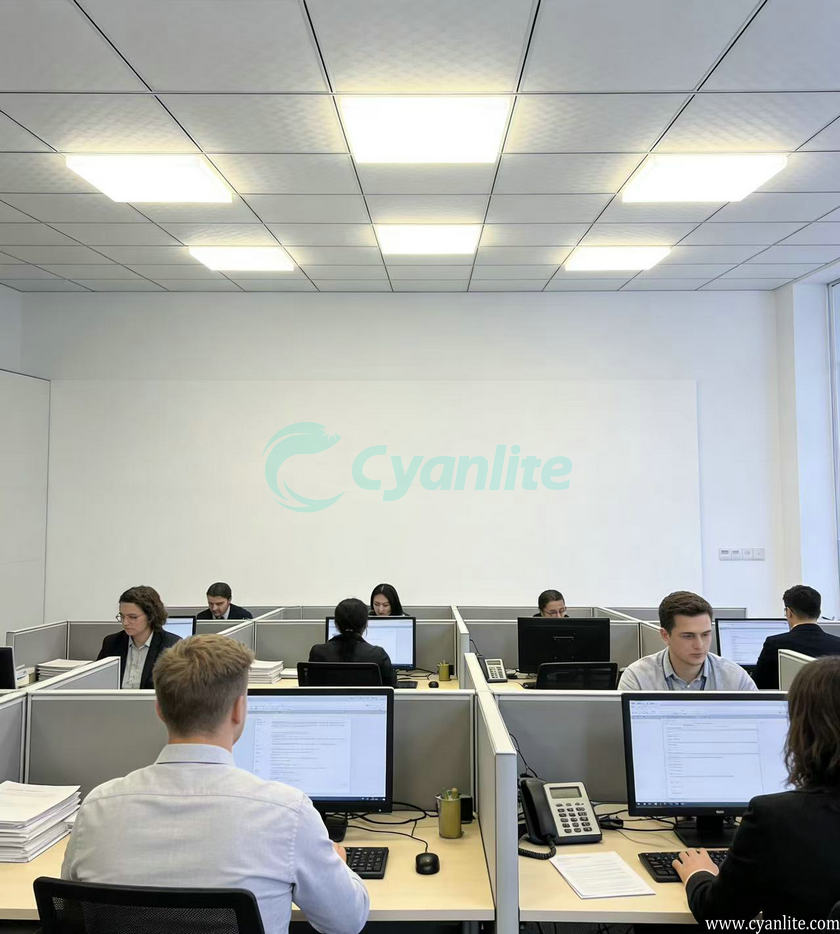

LED Panel Light with drop lens

• Specifications

Model	Part No.	Diffuser	Outer Size (mm)	Inner Drop Size (mm)	CCT	Ra	Default Power (W)	Default Lumen Output (lm)
600x600	PB30W060AS-DP-OP	Opalic	595x595x75	570x570x45	3000K/4000K/6500K	>80	30	4500
600x600	PB30W060AS-DP-MP	Prismatic	595x595x75	570x570x45	3000K/4000K/6500K	>80	30	4500
625x625	PB30W062AS-DP-OP	Opalic	620x620x75	595x595x45	3000K/4000K/6500K	>80	30	4500
625x625	PB30W062AS-DP-MP	Prismatic	620x620x75	595x595x45	3000K/4000K/6500K	>80	30	4500
