  • - 4mm narrow frame design, frames of Panel Light are completely hidden under the T grid after installation
  • - EN 12464-1& LG7 Compliant, UGR<19 Optional
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • Product description:The Cyanlite™ LED panel lights Narrow Frame series has been designed for the high-class premium projects, which requires the frames of panel lights are invisible after installation.
  • Inquiry

Cyanlite Narrow Frame LED panel light NF series for Lay-On ceilings

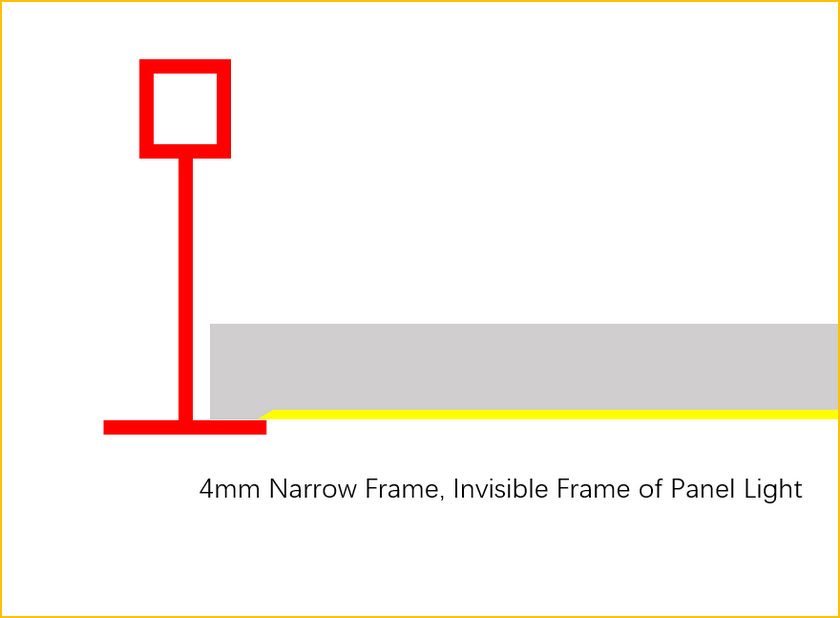

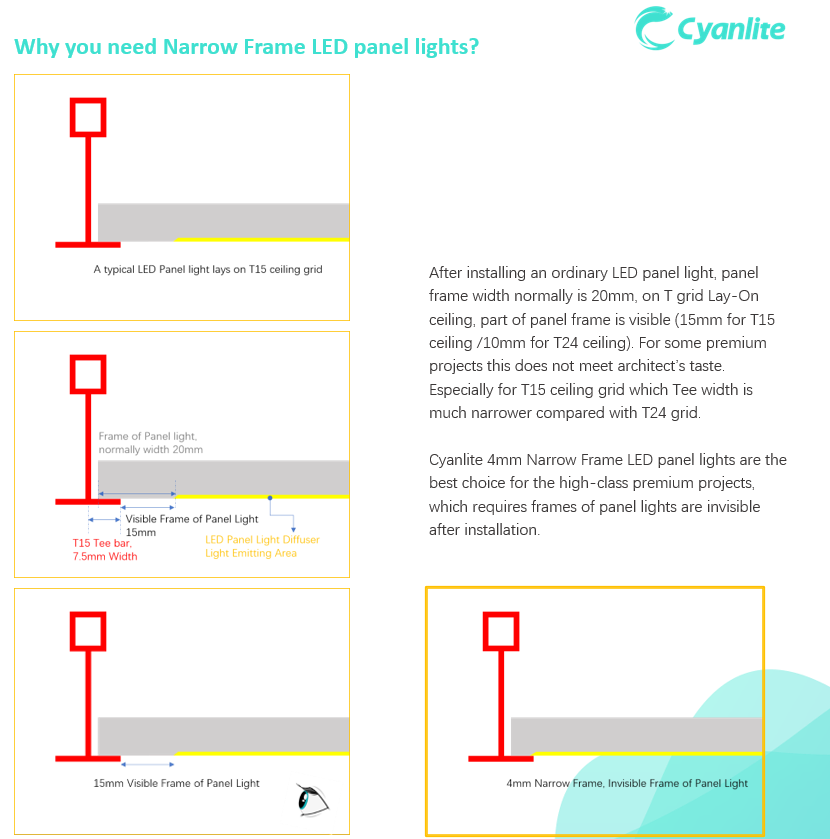

The Cyanlite™ LED panel lights Narrow Frame series has been designed for the high-class premium projects, which requires the frames of panel lights are invisible after installation. These luminaires fit into the Lay-On ceiling systems perfectly, the 4mm width narrow frames are completely hidden under the T grid after installation, making the whole ceiling system uniform and elegant.

Advantages

-          Frames of Panel Light are completely hidden under the T grid after installation

-          Needs no additional installation accessories, saving material cost

-          Easy and fast installation, no additional job for screws or adjustment, saving installation cost

-          A wide product range for all major standard Lay-On ceiling tile sizes

-          Flexible and customization oriented, bespoke sizes are welcome

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   Standard sizes (mm): 300x1200, 500x500, 600x600, 600x1200, 625x625, 750x750

l   RAL9016 as standard coating colors, other RAL colors available on request

l   System Efficiency upto 120 lm/W

l   EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

Specifications

Model

Part No.

Power

Luminous
Flux

Dimension
(mm)

300x1200

PS30W312N

30 W

3600 lm

295x1195x15

500x500

PS30W050N

30 W

3600 lm

495x495x15

600x600

PS30W060N

30 W

3600 lm

595x595x15

600x1200

PS50W612N

50 W

6000 lm

595x1195x15

625x625

PS30W062N

30 W

3600 lm

620x620x15

750x750

PS50W075N

50 W

6000 lm

745x745x15

- Light Distribution


- UGR22 with Opalic diffuser                                         - UGR19 with Micro Prismatic diffuser

Installation


Certifications


• Downloads


Cyanlite 4mm Narrow Frame LED panel light for LAY-ON ceiling datasheet/installation manual/photometric data download
