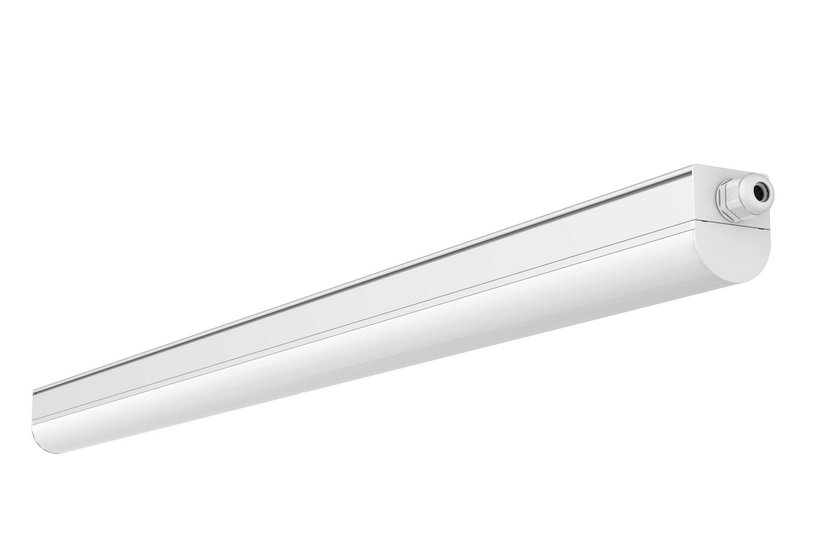

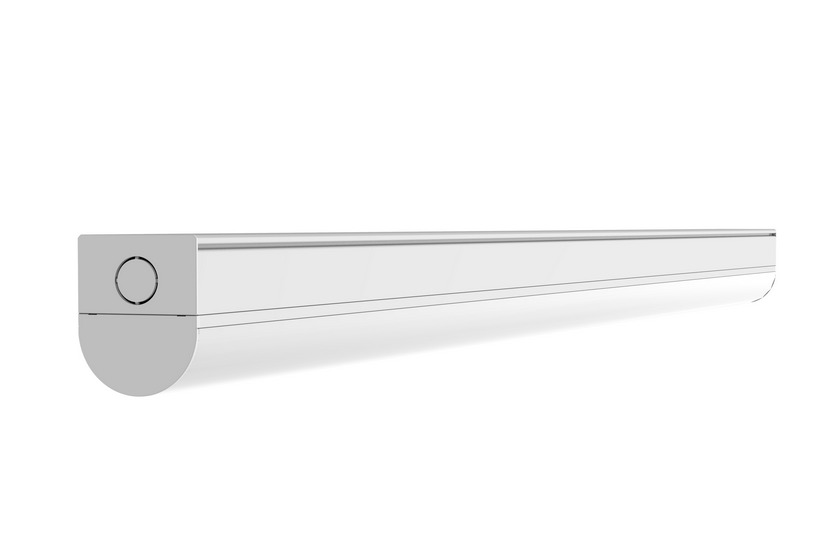

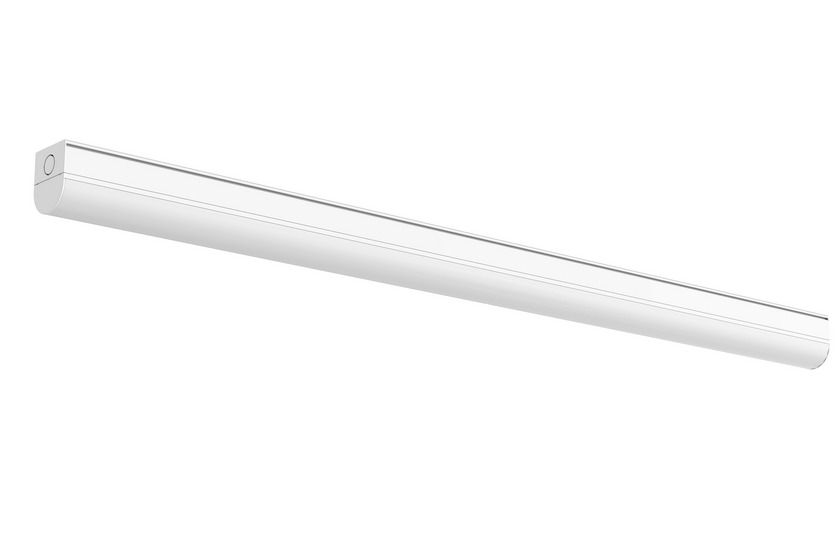

Turbo - LED Batten

  • - Super easy surface mounted installation
  • - CCT and Power Adjustable
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • Product description:Cyanlite Turbo is a design-driven, high performance Linear LED Batten that replaces fluorescent battens and tube fixtures. It is really easy to install, CCT and Power adjustable.
  • Inquiry

TURBO - LED Linear Batten Light


Cyanlite Turbo is a design-driven, high-performance Linear LED Batten that replaces fluorescent battens and tube fixtures. Thanks to its unique clip mechanism, it is very easy to install. The lens drops down to let the fitting be screwed securely into place – meaning it can be installed very fast and safe. Delivering up to 140Lm/W, the Cyanlite Turbo LED Batten provides ultra-bright light output and up to 65% energy savings.

The Turbo LED Batten is designed with multi-colour white LEDs that produce Switchable Colour Temperatures and Power Adjustable function. The output can be selected from Daylight (5000K) through to Natural (4000K) to Warm (3000K) and different power consumption and brightness within the same fitting. It significantly reduces the SKU stock stress and the complexity of project product management.

Ideal for lighting car parks, industrial spaces, offices, food and drink production and healthcare environments. Available in 0.6m, 1.2m, 1.5m and 1.8 lengths with models including Standard and Emergency.


Advantages

-          Color Temperature Switchable, Power Adjustable

-          Back wiring and Side wiring versions available, linkable loop-in/loop-out design

-          Easy and fast installation, saving installation cost

-          Flexible and customization oriented, bespoke sizes are welcome

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   Standard length (mm): 600mm/1150mm/1450mm/1750mm

l   System Efficiency upto 140 lm/W

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K, CCT switchable

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

• Dimensions


Specifications

Model

Part No.

Dimension
(mm)

Power
(W)

Lumen

Beam

CCT

600 mm

LB20W060T

600x56x68

20W
adjust 17W 14W 11W by switch

max 2600 lm

130°

3000K
4000K
5000K
6000K

1200 mm

LB35W120T

1150x56x68

35W
adjust 30W 25W 20W by switch

max 4800 lm

130°

3000K
4000K
5000K
6000K

LB35W120T-CS

1150x56x68

35W
adjust 30W 25W 20W by switch

max 4800 lm

130°

Color Switchable
3000-4000-5000K
3000-4500-6000K
4000-5000-6000K

1500 mm

LB60W150T

1450x56x68

60W
adjust 50W 42W 32W by switch

max 8100 lm

130°

3000K
4000K
5000K
6000K

LB50W150T-CS

1450x56x68

50W
adjust 42W 34W 27W by switch

max 7000 lm

130°

Color Switchable
3000-4000-5000K
3000-4500-6000K
4000-5000-6000K

1800 mm

LB70W180T

1750x56x68

70W
adjust 60W 50W 40W by switch

max 10,000 lm

130°

3000K
4000K
5000K
6000K

- Light Distribution

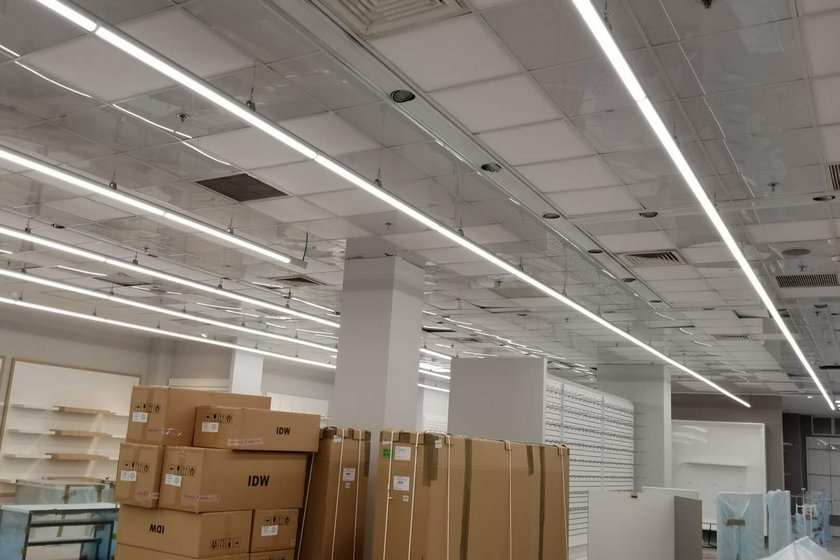

Installations

Certifications


• Downloads


Cyanlite LED batten light TURBO datasheet/installation manual/photometric data download
