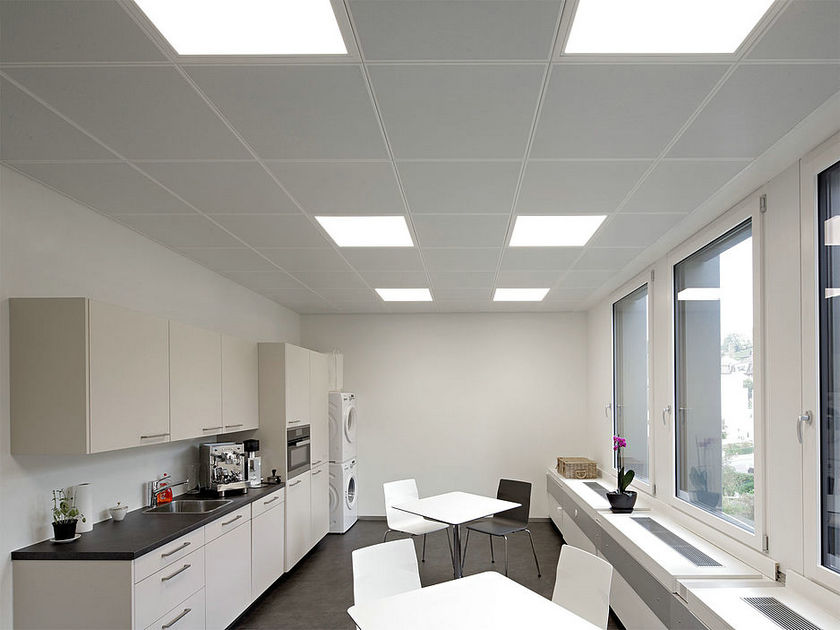

Cyanlite LED panel light HO200 series for Hook-On metal ceilings

Cyanlite LED panel light HO200 series for Hook-On metal ceilings

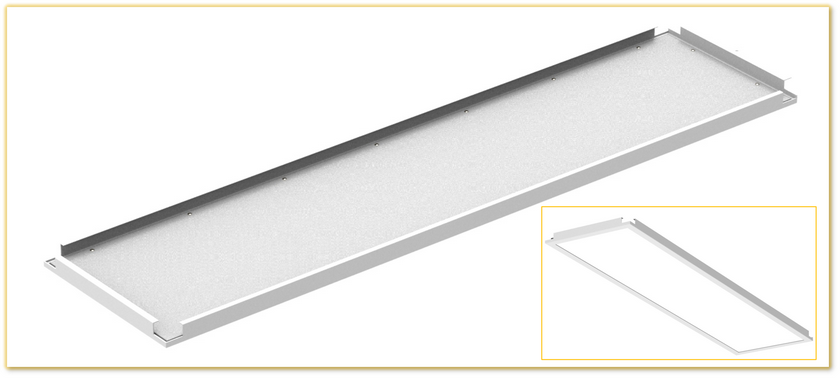

Cyanlite LED panel light HO200 series for Hook-On ceilings

The Cyanlite™ LED panel lights HO200 series has been designed specifically for seamlessly integrated with premium Hook-On, also called SAS200 or Hang-In metal ceiling systems. These luminaires fit into the Hook-On ceiling systems perfectly and flush with the ceiling elements with seamless design. Tool-less installation saves huge time for installers and enable them to complete the project easily and quickly..

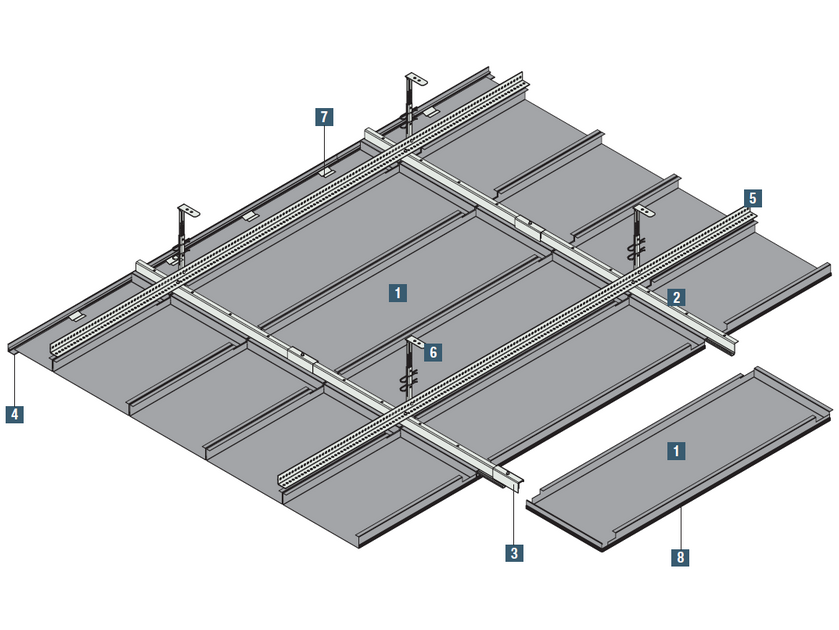

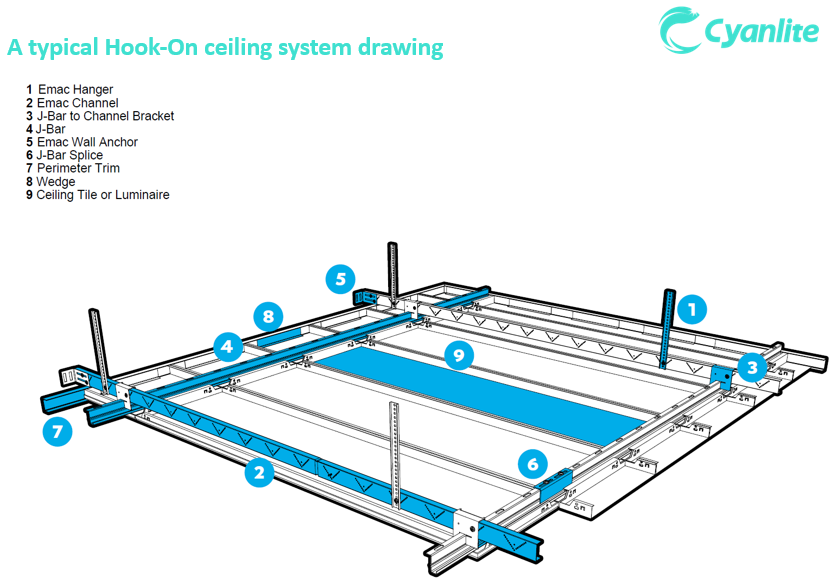

a typical Hook-On ceiling system

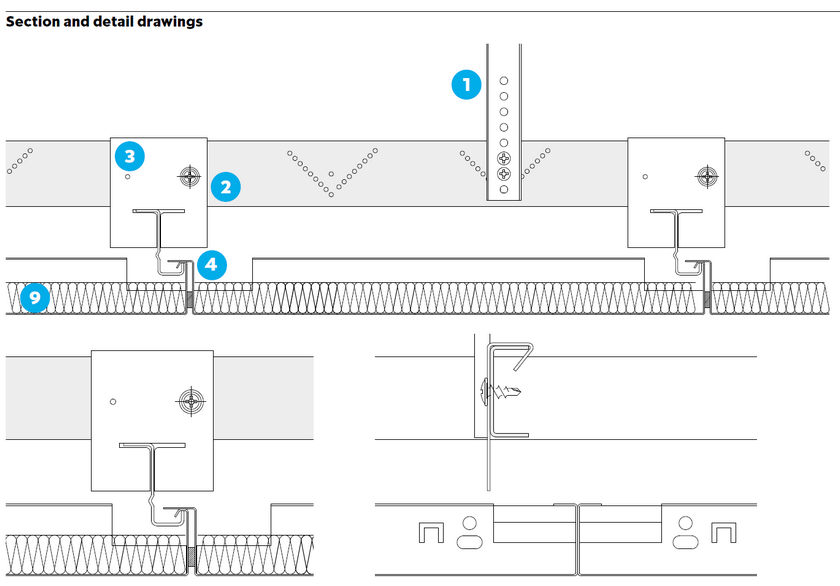

a typical hook-on metal ceiling system details


Advantages

-          Specifically designed for Hook-On metal ceilings, perfectly match with the whole ceiling system

-          Needs no additional installation accessories, saving material cost

-          Easy and fast installation, tool-less installation, saving installation cost

-          HO200 has a wide product range for all major standard Hook-On ceiling tile sizes

-          Flexible and customization oriented, bespoke sizes are welcome

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   Standard sizes (mm): 300x1200, 312.5x1250, 600x600, 600x1200, 600x1800, 625x625, 625x1250, 625x1875

l   RAL9010 as standard to match SAS ceiling colors, other RAL colors available on request

l   System Efficiency upto 120 lm/W

l   EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

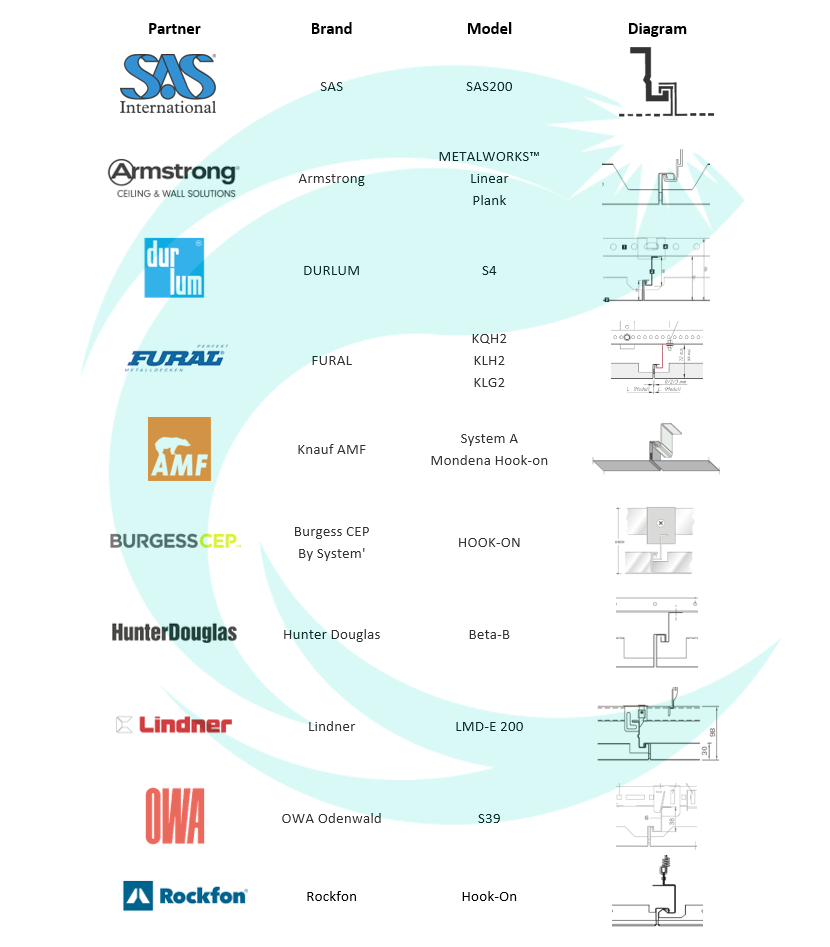

Suitable ceiling brands and models (included but not limited to)

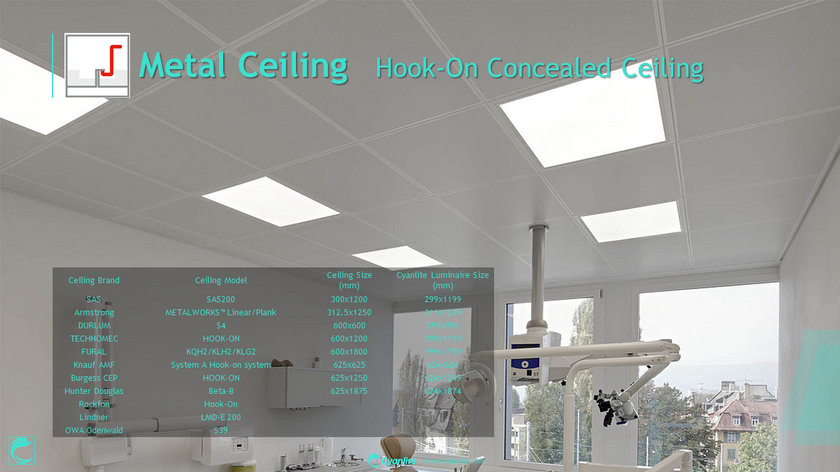

Cyanlite HO200 LED panel light for hook-on ceilings brands and models

Specifications

Model

Part Number

Dimension(mm)

Lumen Output

System Power

300x1200

PS30W312O

299x1199

3600 lm

30 W

312.5x1250

PS30W313O

311x1249

3600 lm

30 W

600x600

PS30W060O

599x599

3600 lm

30 W

600x1200

PS50W612O

599x1199

6000 lm

50 W

600x1800

PS65W618O

599x1799

7800 lm

65 W

625x625

PS30W062O

624x624

3600 lm

30 W

625x1250

PS50W613O

624x1249

6000 lm

50 W

625x1875

PS65W619O

624x1874

7800 lm

65 W

- Light Distribution


- UGR22 with Opalic diffuser                                        - UGR19 with Micro Prismatic diffuser

Installation

Cyanlite LED panel light HO200 series for Hook-On ceilings installation

Certifications


• Downloads


Cyanlite HO200 LED panel light for HOOK-ON concealed metal ceiling datasheet/installation manual/photometric data download
