Hook-Over Metal Ceiling

  • - Specifically designed for Hook-Over, also called SAS330 ceiling systems.
  • - EN 12464-1& LG7 Compliant, UGR<19 Optional
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • Product description:Cyanlite LED panel light for Hook-Over Metal Ceiling for SAS330, Armstrong B-H300, DURLUM S5, FURAL KLB5.2, Knauf AMF C-Bandraster, BURGESS CEP Beam, Linder LMD-B100, OWA S48...
  • Inquiry

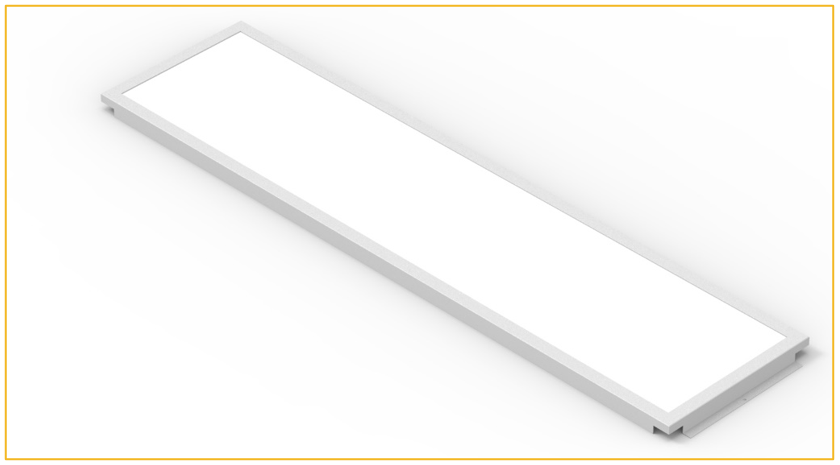

Cyanlite LED panel light HO330 series for Hook-Over metal ceilings

Cyanlite LED panel light for SAS330 hook-over ceiling

Cyanlite HO330 LED panel light for hook-over SAS330 ceiling

The Cyanlite™ LED panel lights HO330 series has been designed specifically for seamlessly integrated with premium Hook-Over, also called SAS330 or C-Channel/C-Profile/C-Bandraster/Post-Cap metal ceiling systems. These luminaires fit into the Hook-Over ceiling systems perfectly and no need any additional accessories, saving huge time for installers and enable them to complete the project easily and quickly.

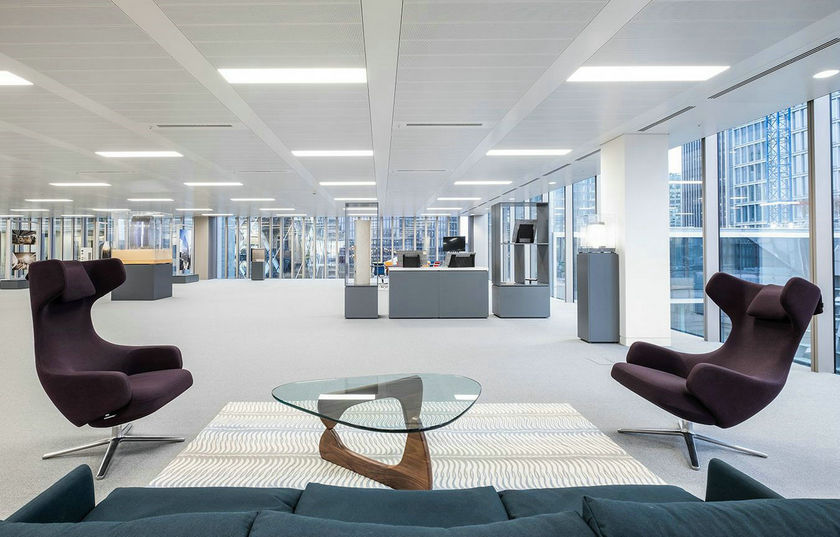

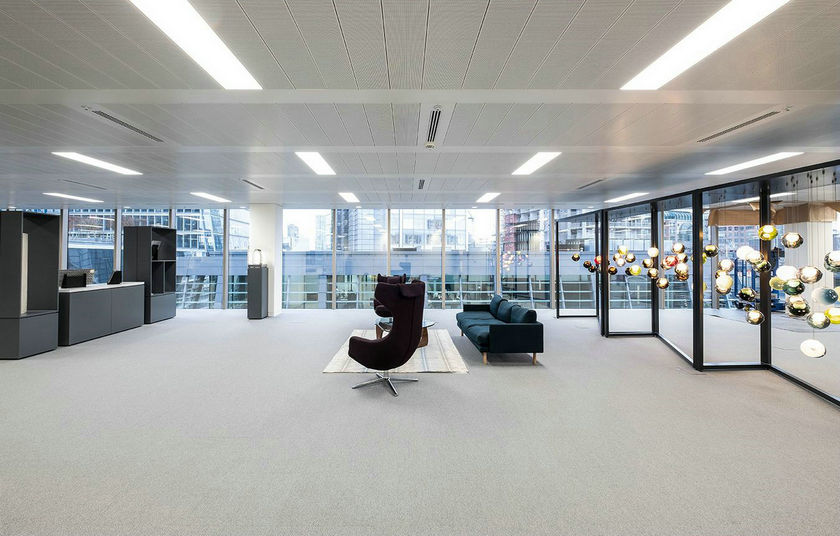

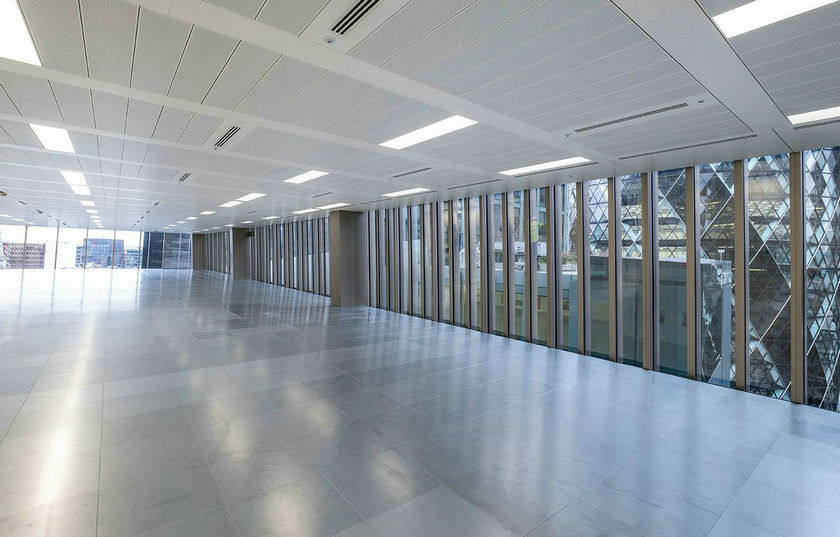

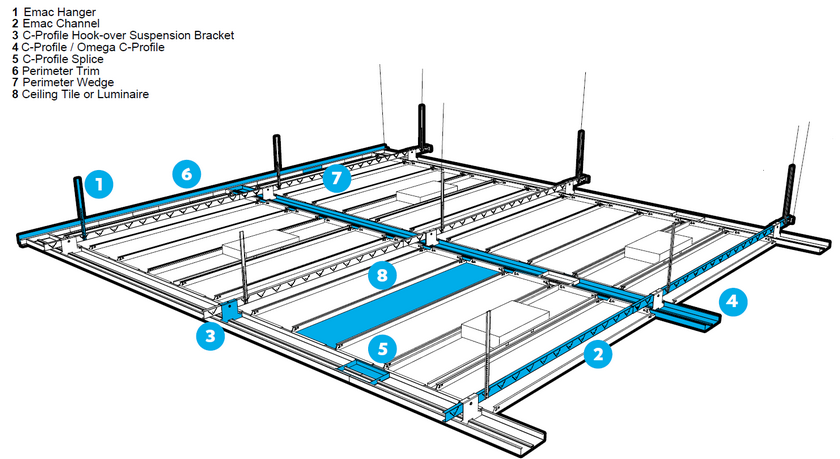

a typical Hook-Over ceiling SAS330

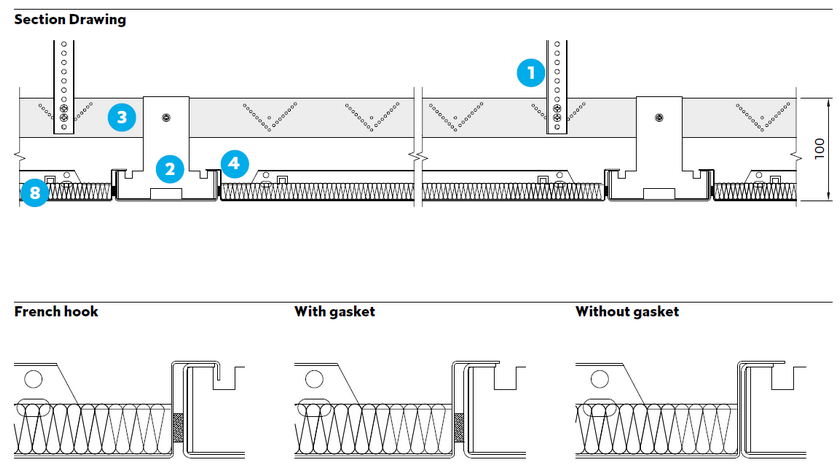

sas330 hook-over ceiling details


Advantages

-          Specifically designed for Hook-Over metal ceilings, perfectly match with the whole ceiling system.

-          Needs no additional installation accessories, saving material cost.

-          Easy and fast installation, no additional job for screws or adjustment, saving installation cost.

-          HO330 has a wide product range for all major standard Hook-Over ceiling tile sizes.

-          Flexible and customization oriented, bespoke sizes are welcome.

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership.

Features

l   Standard sizes (mm): 300x1200, 300x1350, 300x1400, 312.5x1250, 400x1800, 450x1350, 600x1200

l   RAL9010 as standard to match SAS ceiling colors, other RAL colors available on request

l   System Efficiency upto 120 lm/W

l   EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

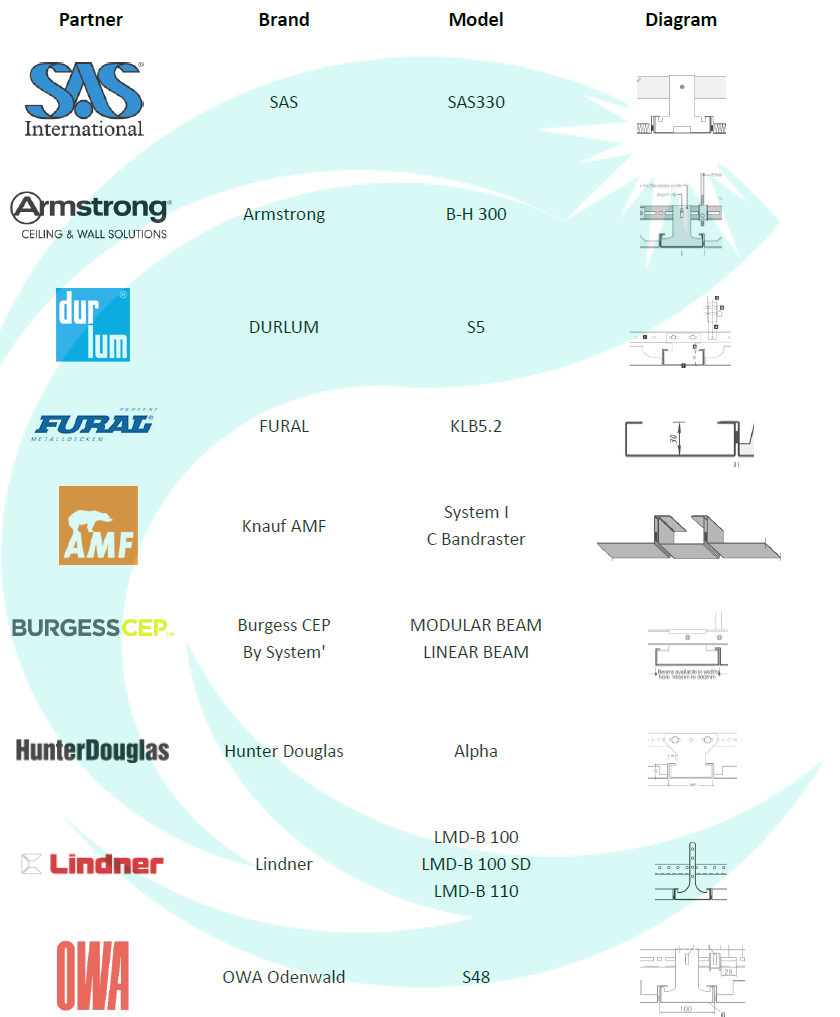

Suitable ceiling brands and models (included but not limited to)

Cyanlite HO330 LED panel light for hook-over ceiling brands and models

Specifications (Any other customized dimension and specification are welcome)

Model

Product No.

Dimension(mm)

Luminous Flux

System Power

300x1200

PS30W312H

299x1199x30

3600lm

30W

300x1350

PS35W313H

299x1349x30

4200lm

35W

300x1400

PS35W314H

299x1399x30

4200lm

35W

312.5x1250

PS30W313H

311x1249x30

3600lm

30W

400x1800

PS45W418H

399x1799x30

5400lm

45W

450x1350

PS35W414H

449x1349x30

4200lm

35W

600x1200

PS50W612H

599x1199x30

6000lm

50W

- Light Distribution


- UGR22 with Opalic diffuser                                        - UGR19 with Micro Prismatic diffuser

Installation

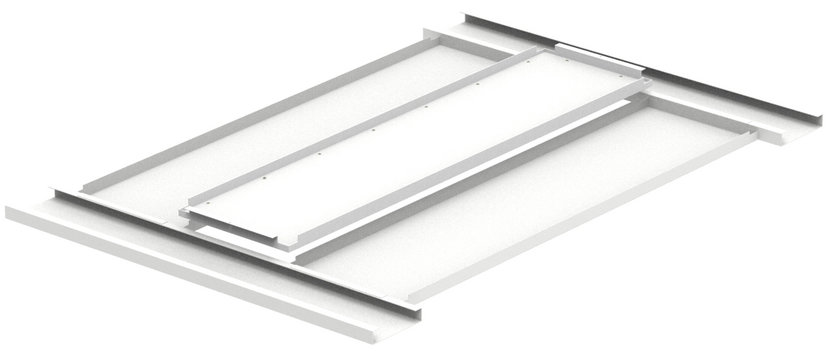

Cyanlite HO330 LED panel light for hook-over metal ceiling installation

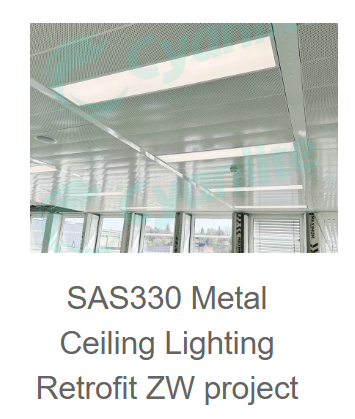

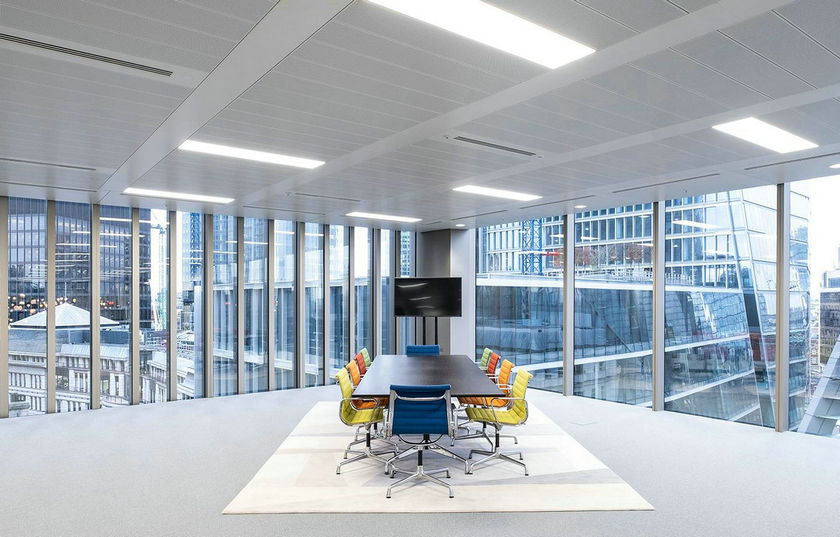

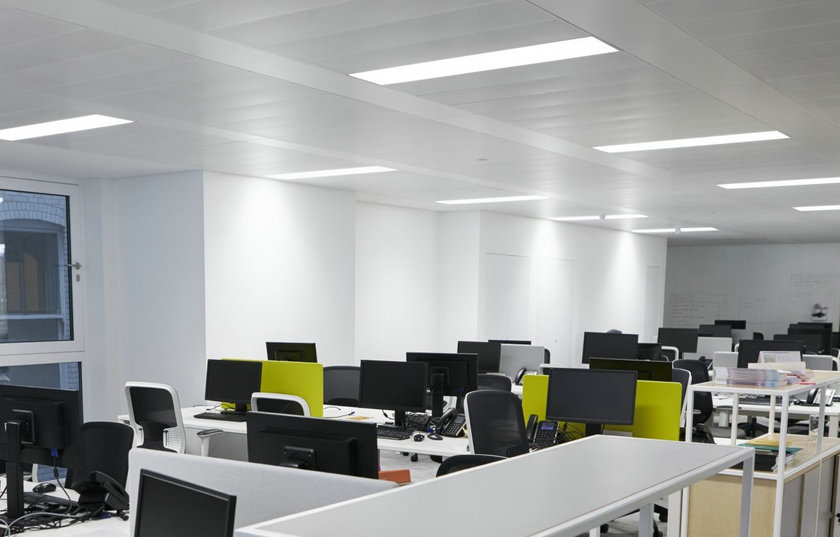

• Case Study

Certifications


Cyanlite Dekra ENEC certificate 6166340

• Downloads


Cyanlite HO330 LED panel light for HOOK-OVER concealed metal ceiling datasheet/installation manual/photometric data download
