  • - One family with uniform aluminum profile and diameter from 40cm to 120cm
  • - Same panel by suspended, stem mounted, surface mounted, and recessed just with different accessories
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • Product description:Cyanlite LED round panel light family in diameter of 40cm, 50cm, 60cm, 80cm, 100cm or 120cm; suspended, stem mounted, surface mounted, and recessed achievable. Ra>97 optional for medical lighting.
  • Inquiry

Cyanlite LED round panel light Cynthia for direct light Diameter 40cm/50cm/60cm/70cm/80cm/100cm/120cm

The Cyanlite™ LED round panel light Cynthia series is an edge-lit luminaire. It looks like a perfect family by adopting same aluminum profile from diameter 40 cm to 120 cm, enable the space under uniform theme via combining various sizes. These round panels can be installed by suspended, stem mounted, surface mounted, and recessed; same panel, just with different accessories, make it easy for stock control and installation without limits on ceilings.

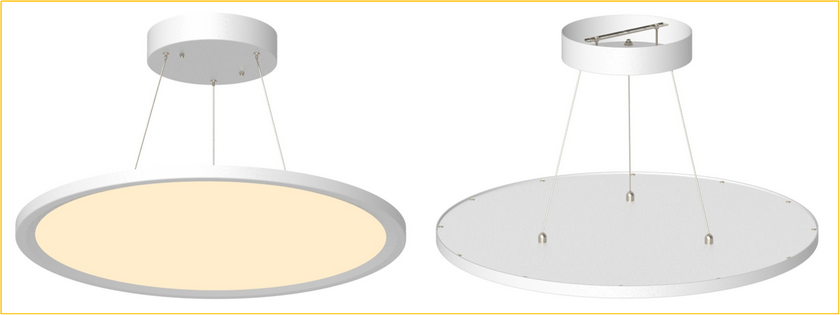

Cyanlite LED round panel light Cynthia Pendant Suspended

cyanlite led round panel



cyanlite led round panel black finishing

Advantages

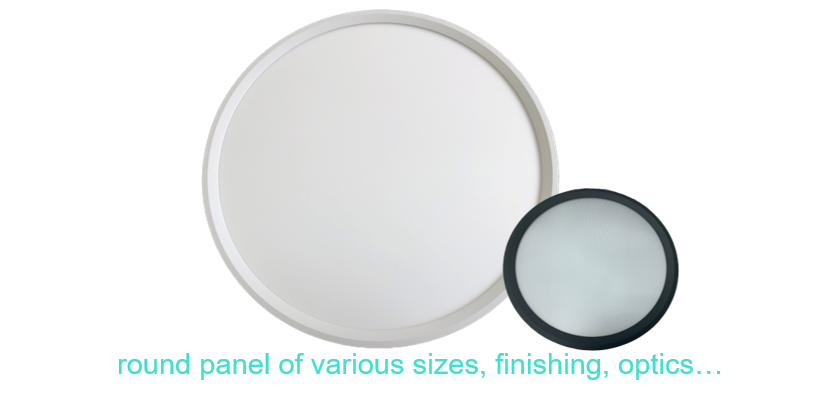

-          Freedom to mix and match the luminaires to modern spaces in various sizes, powder coatings, optics, and functions

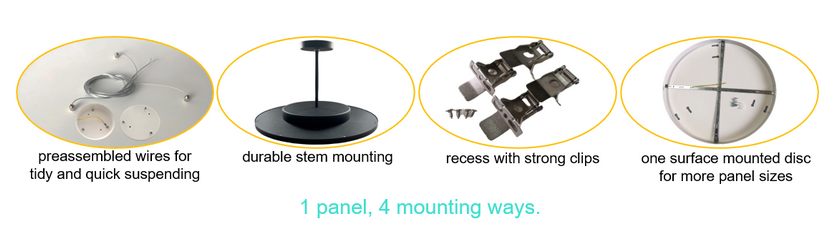

-          Flexible installation via suspended, stem mounted (even for a sloped ceiling), surface mounted and recessed. No limits on ceilings

-          Same panel, different accessory kits for an easy stock control

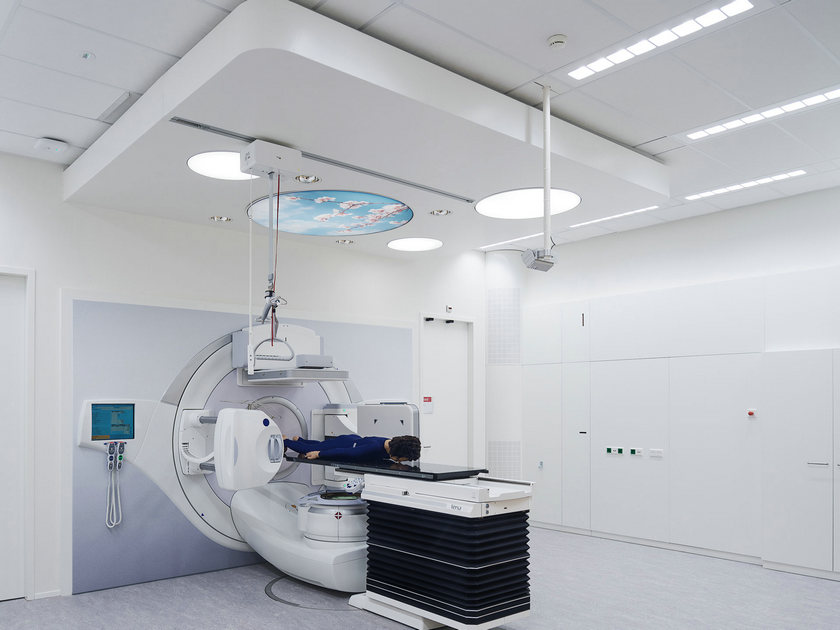

-          Ra>97, R1-R15>90, bring out more real colors of an object, perfect for hospital and shops

-          Customization oriented, bespoke sizes are welcome

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   Standard sizes (cm): D40, D50, D60, D80, D100, D120

l   RAL9016 white as standard, black and other RAL colors available on request

l   Single white and tunable white for Human Centric Light (HCL) optional

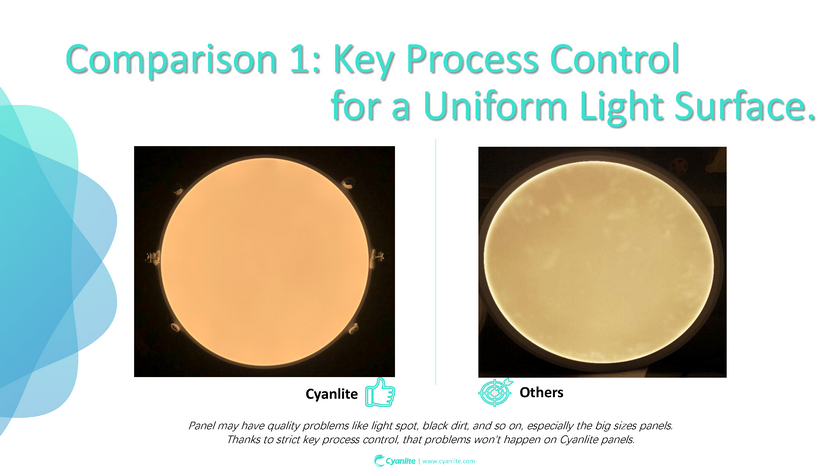

l   non-yellowing PMMA light guide; uniform light surface, no light spots, no shadow

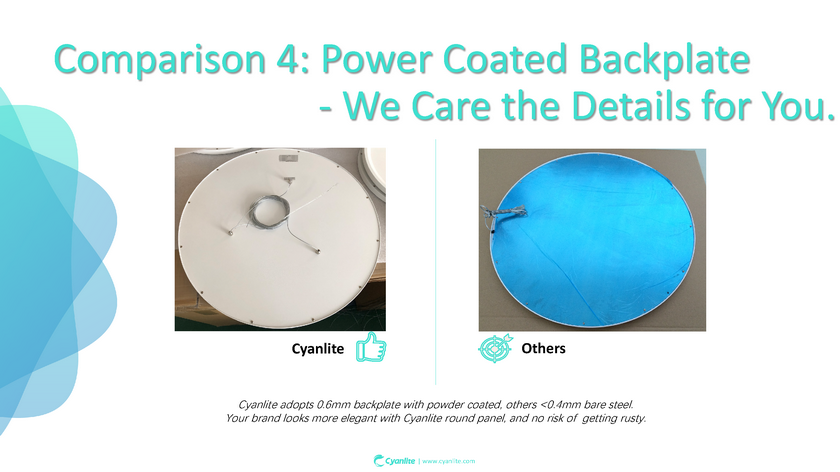

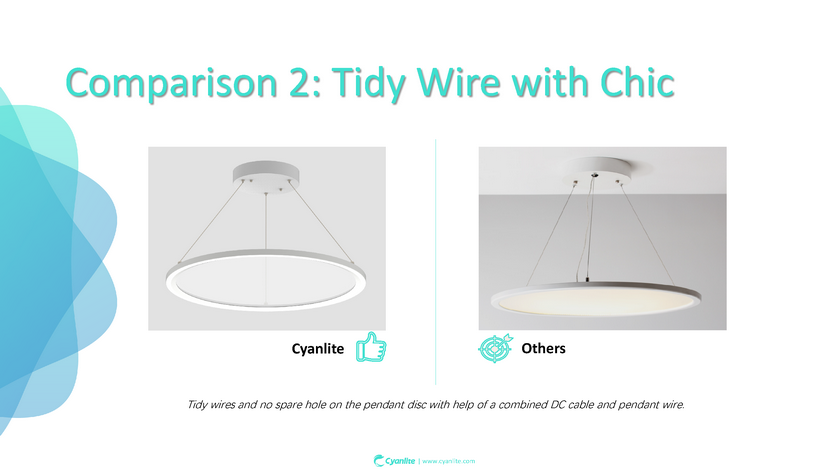

l   Powder coated back plate and tidy wires for elegant look

l   One-piece foam and all-in package give 360 degree care for simple delivery, security on site, and quick unpacking

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

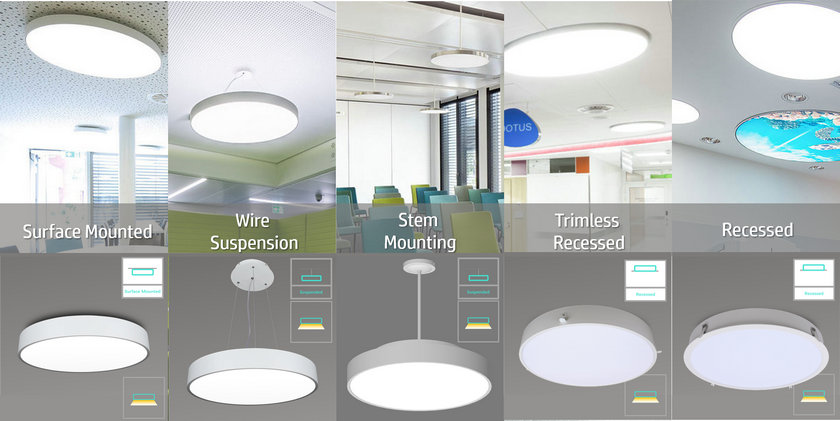

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Specifications

Model

Product Dimension

Item No.

Luminous Flux

System Power

Efficiency @ 4000K

D40

400*20mm

PR28WD40

2940lm

28W

105lm/W

D50

500*20mm

PR32WD50

3360lm

32W

105lm/W

D60

600*20mm

PR40WD60

4800lm

40W

120lm/W

D80

780*20mm

PR55WD80

6600lm

55W

120lm/W

D100

1000*20mm

PR75WDH0

9000lm

75W

120lm/W

D120

1200*20mm

PR85WDH2

10200lm

85W

120lm/W

- Light Distribution


- UGR22 with Opalic diffuser                                        - UGR19 with Micro Prismatic diffuser

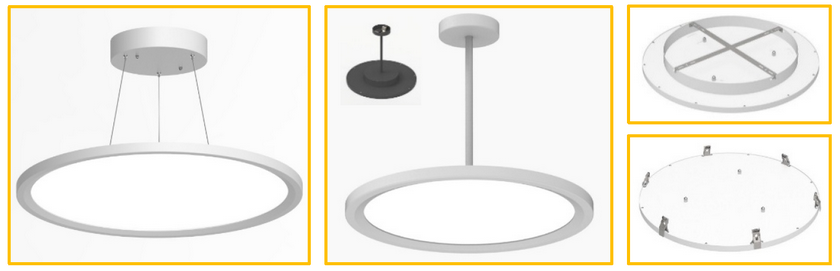

Installation

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Certifications


• Downloads


Cyanlite LED round panel light Cynthia datasheet/installation manual/photometric data download
