  • Cynthia Surface Mounted
Cynthia Surface Mounted

Cynthia Surface Mounted

  • - Easy surface mounted for any ceilings including concrete ceiling
  • - Down light only or both direct and indirect light, diameter from 40cm to 120cm
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • Product description:Cyanlite LED round panel light family by surface mounted; direct light only or direct and indirect light optional, in diameter of 40cm, 50cm, 60cm, 80cm, 100cm or 120cm.
  • Inquiry

Cyanlite LED round panel light Cynthia Surface Mounted

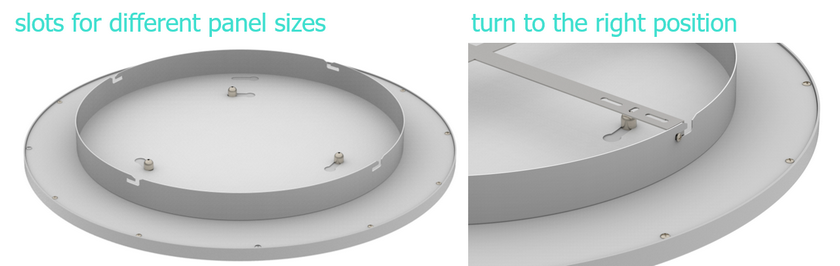

The Cyanlite™ LED round panel light Cynthia Surface Mounted series is an edge-lit luminaire by disc surface mounted with direct light only or both direct and indirect light optional. The mounting bracket and disc enable quick and simple installation on any ceilings including concrete ceiling. The product family adopts same aluminum profile in diameter from 40 cm to 120 cm, enable the space under uniform theme by combining various sizes.

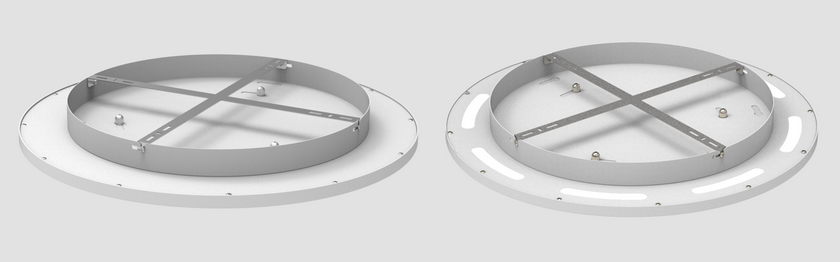

Cyanlite LED round panel surface mounted

Cyanlite LED round panel light Surface Mounted

Advantages

-          Disc surface mounted for easy installation on any ceilings

-          direct light only or direct and indirect light for harmonious luminous environment

-          Freedom to mix and match the luminaires to modern spaces in various sizes, powder coatings, optics, and functions

-          Customization oriented, bespoke sizes are welcome

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l Easy disc surface mounted on any ceiling type

l   Standard sizes (cm): D40, D50, D60, D80, D100, D120

l   RAL9016 white as standard, black and other RAL colors available on request

l   Single white and tunable white for Human Centric Light (HCL) optional

l   non-yellowing PMMA light guide; uniform light surface, no light spots, no shadow

l   One-piece foam and all-in package give 360 degree care for simple delivery, security on site, and quick unpacking

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Specifications

Model

Product Dimension

Item No.

Luminous Flux

System Power

Efficiency @ 4000K

D40

400*20mm

PR28WD40 D

2940lm

28W

105lm/W

D50

500*20mm

PR32WD50 D

3360lm

32W

105lm/W

D60

600*20mm

PR40WD60 D

4800lm

40W

120lm/W

D80

780*20mm

PR55WD80 D

6600lm

55W

120lm/W

D100

1000*20mm

PR75WDH0 D

9000lm

75W

120lm/W

D120

1200*20mm

PR85WDH2 D

10200lm

85W

120lm/W

D40

400*20mm

PR28WD40-UD D

2940lm

28W

105lm/W

D50

500*20mm

PR32WD50-UD D

3360lm

32W

105lm/W

D60

600*20mm

PR40WD60-UD D

4800lm

40W

120lm/W

D80

780*20mm

PR55WD80-UD D

6600lm

55W

120lm/W

D100

1000*20mm

PR75WDH0-UD D

9000lm

75W

120lm/W

D120

1200*20mm

PR85WDH2-UD D

10200lm

85W

120lm/W

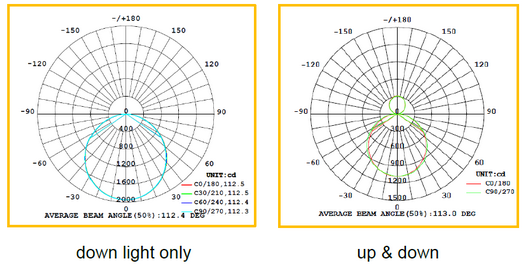

- Light Distribution

Cyanlite LED round panel light Cynthia surface mounted

Certifications


• Downloads


Cyanlite LED round panel light Cynthia Surface Mounted datasheet/installation manual/photometric data download
