Libra

  • - Super easy surface mounted installation
  • - EN 12464-1& LG7 Compliant, UGR<19 Optional
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • Product description:The Cyanlite™ LED panel lights LIBRA series has been designed specifically for Surface Mounted installation on Plasterboard and Concrete ceilings.
  • Inquiry

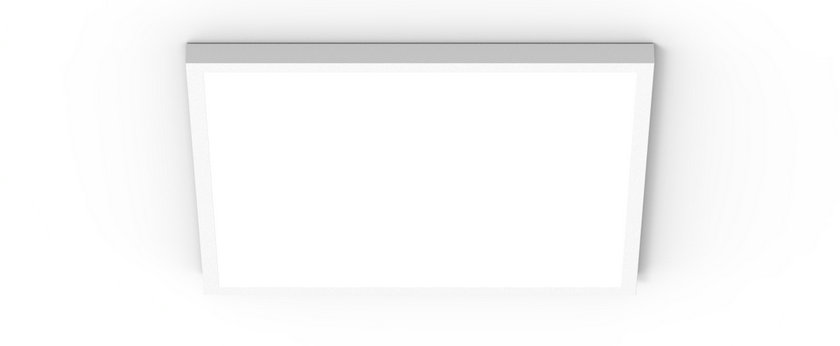

Cyanlite surface mounted LED panel light Libra

Cyanlite Libra surface mounted luminaire

The Cyanlite™ LED panel lights LIBRA series has been designed specifically for Surface Mounted installation on Plasterboard and Concrete ceilings. The Libra series surface mounted luminaires have a wide product portfolio includes square and rectangular shape, as well as direct/indirect lighting options, and multiple sizes to retrofit and replace the traditional T8 troffer luminaires.

With Cyanlite patented mounting fixture, the installer no need to make the positioning when install, so the installation is simple and easy, also no need to dismantle and reassemble as traditional surface mounted luminaires, saving huge time for installers and enabling them to complete the project easily and quickly.

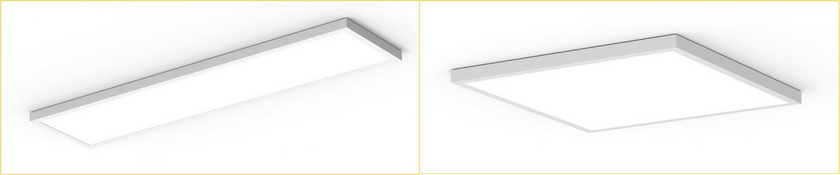

Cyanlite surface mounted LED panel light Libra

Cyanlite surface mounted LED panel light Libra

Advantages

-          Specifically designed for surface mounted installation

-          Libra has a wide product range for replacing traditional T8 troffer surface mounted luminaires

-          Easy and fast installation, saving installation cost

-          Flexible and customization oriented, bespoke sizes are welcome

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   Standard sizes (mm): 450x450, 600x600, 700x700; 300x1200, 300x1500; 184x1231, 184x1531; 284x1231, 284x1531; 310x1247, 310x1547

l   RAL9016 as standard to match SAS ceiling colors, other RAL colors available on request

l   System Efficiency upto 120 lm/W

l   EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

• Dimensions

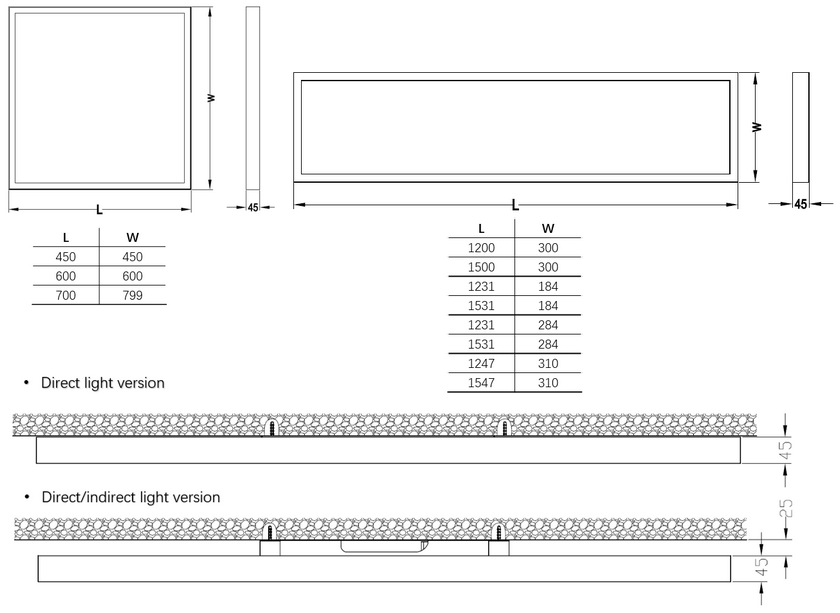

Libra surface mounted led panel dimension

Specifications

Model

Part No.

Power

Luminous
Flux

Dimension
(mm)

450x450

SM25W045

25W

3000 lm

450x450x45

600x600

SM30W060

30W

3600 lm

600x600x45

700x700

SM40W070

40W

4800 lm

700x700x45

300x1200

SM34W312

34W

4000 lm

300x1200x45

300x1500

SM42W315

42W

5000 lm

300x1500x45

184x1231

SM22W112

22W

2500 lm

184x1231x45

184x1531

SM42W115

42W

5000 lm

184x1531x45

284x1231

SM34W212

34W

4000 lm

284x1231x45

284x1531

SM42W215

42W

5000 lm

284x1531x45

310x1247

SM34W313

34W

4000 lm

310x1247x45

310x1547

SM42W316

42W

5000 lm

310x1547x45

- Light Distribution


- UGR22 with Opalic diffuser                                        - UGR19 with Micro Prismatic diffuser

Installation

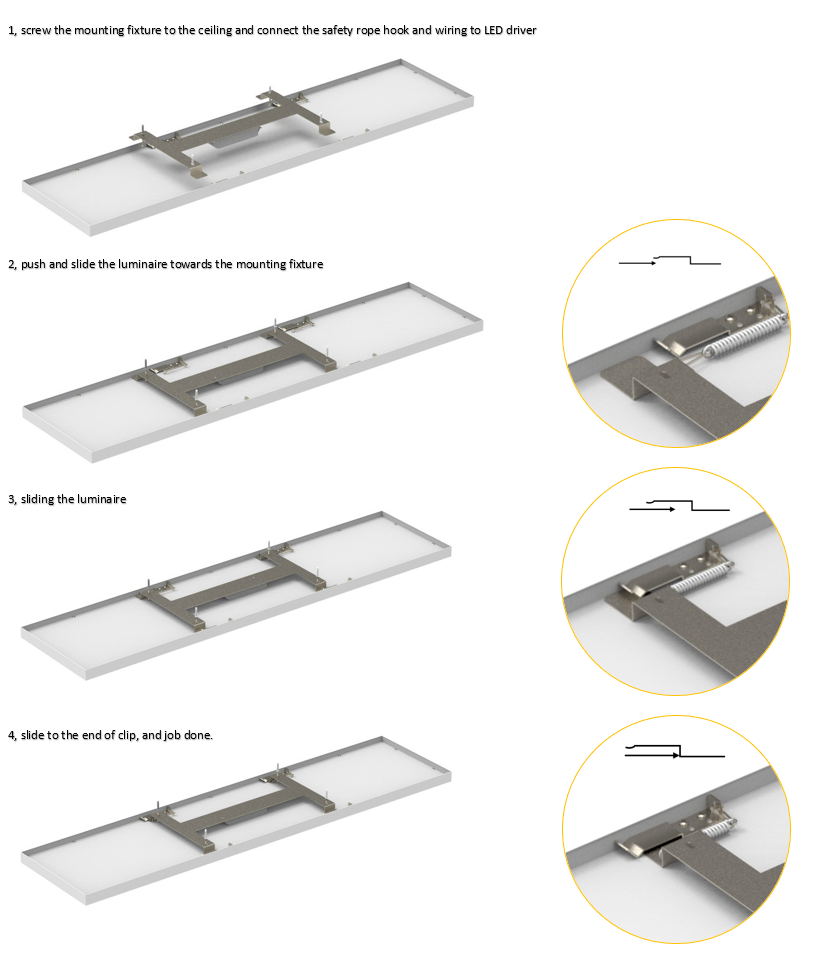

Libra surface mounted luminaire installation steps

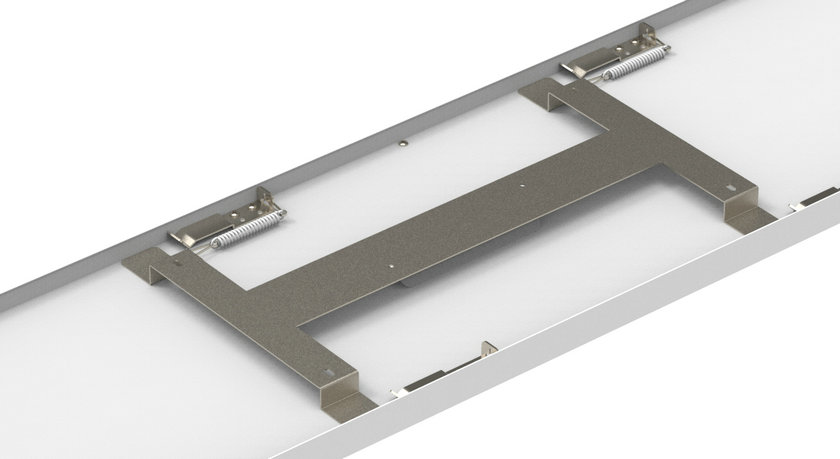

Libra mounting fixture details

Certifications


• Downloads


Cyanlite surface mounted luminaire LIBRA datasheet/installation manual/photometric data download
