Sagitta

  • - Super easy surface mounted installation
  • - EN 12464-1& LG7 Compliant, UGR<19 Optional
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • - No Screws Visible
  • Product description:The Cyanlite™ backlite LED panel lights SAGITTA series has been designed specifically for Surface Mounted installation on Plasterboard and Concrete ceilings.
  • Inquiry

Cyanlite Backlite Surface Mounted LED panel light SAGITTA

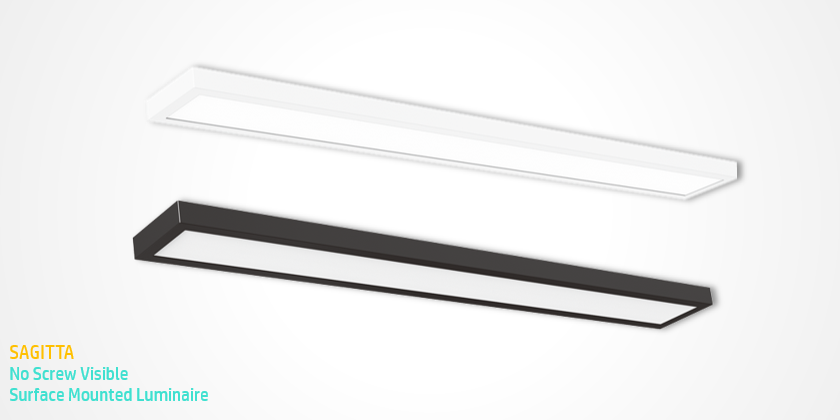

Cyanlite Sagitta surface mounted light series Black and White housing

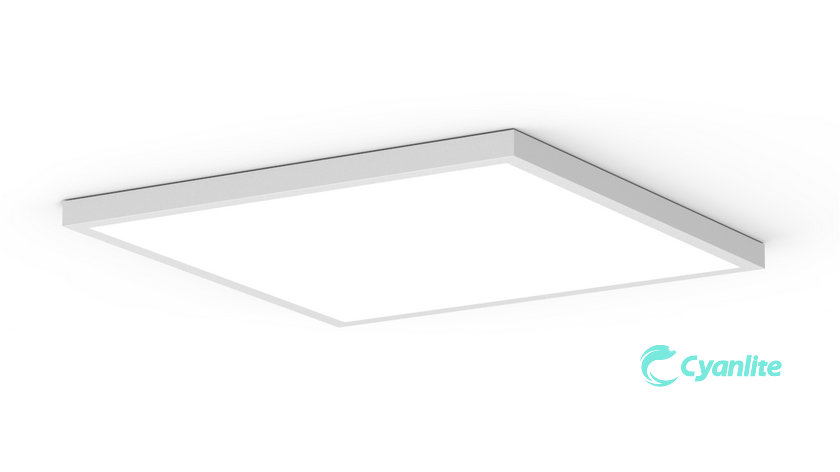

Sagitta 600 620 surface mounted backlite LED panel

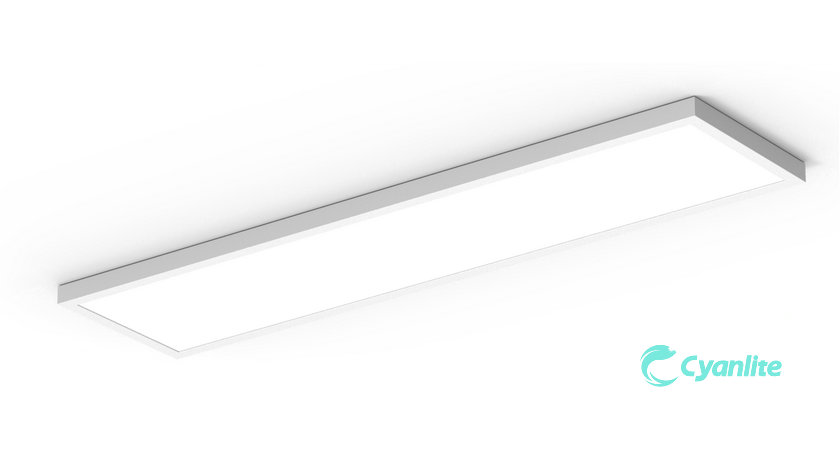

Sagitta surface mounted backlite LED panel 300x1200 300x1500

Cyanlite Sagitta surface mounted light series

The Cyanlite™ backlite LED panel lights SAGITTA series has been designed specifically for Surface Mounted installation on Plasterboard and Concrete ceilings. The Sagitta series surface mounted luminaires have a wide product portfolio includes square and rectangular shape. The default housing is in WHITE, other finishing as BLACK and SILVER are optional.

With Cyanlite patented mounting fixture, the installer no need to make the positioning when install, so the installation is simple and easy, also no need to dismantle and reassemble as traditional surface mounted luminaires, saving huge time for installers and enabling them to complete the project easily and quickly.

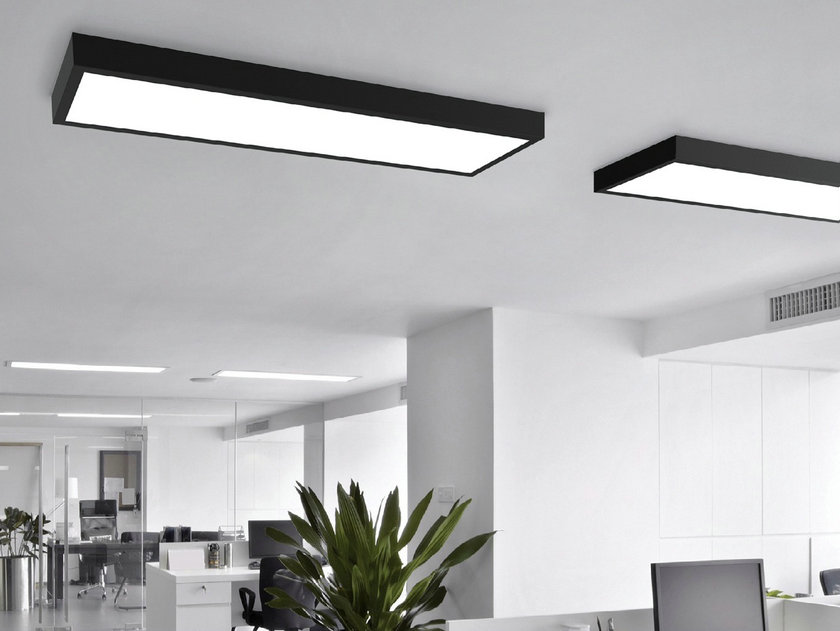

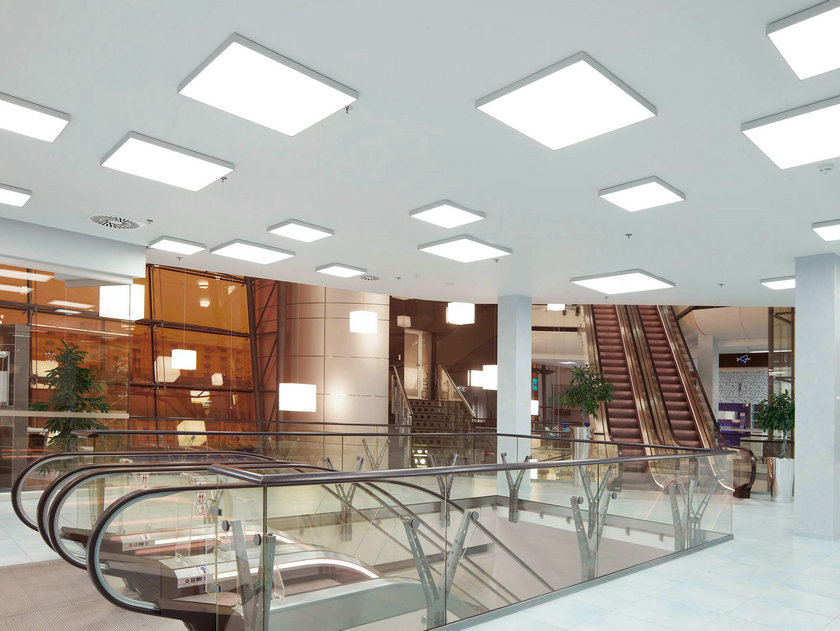

black frame Sagitta surface mounted backlite panel application

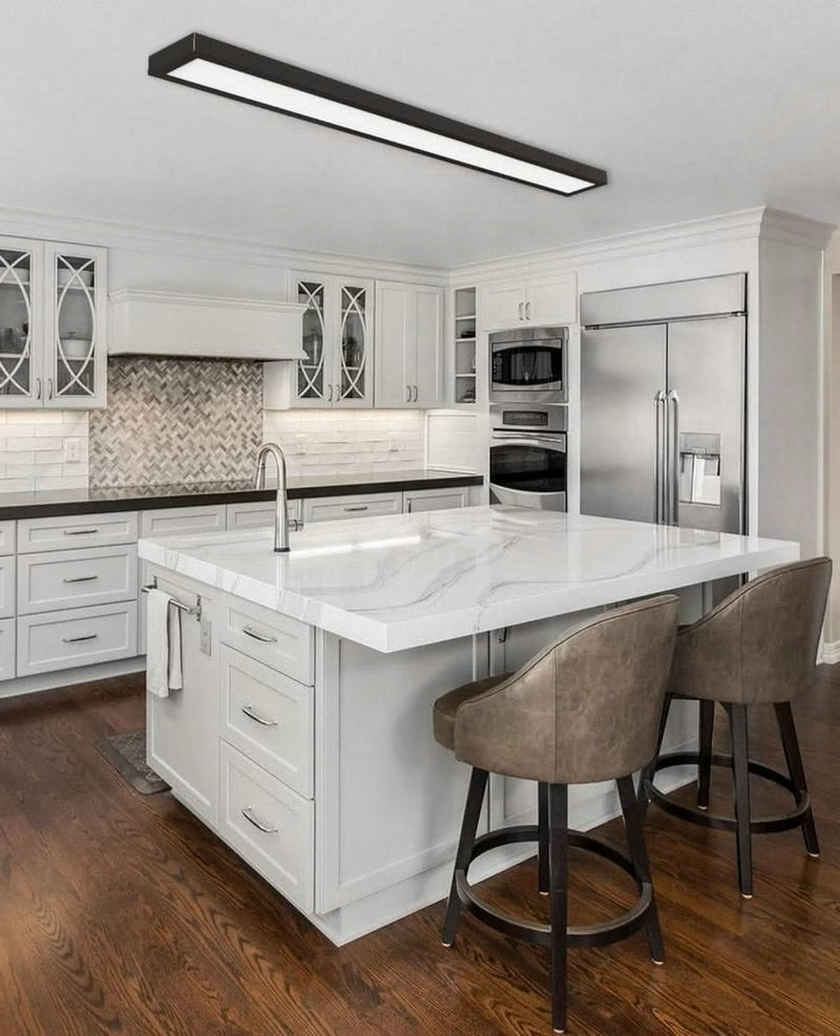

Cyanlite Sagitta Linear surface mounted LED light

Advantages

-          Specifically designed for surface mounted installation, No gap between luminare and ceiling

-          Backlite technology make the product cost more competitive

-          Flexible and customization oriented, bespoke sizes are welcome

-          No screws visible for an elegant and high-end appearance

-          Easy and fast installation, saving installation cost

Features

l   Standard Models: 600x600, 625x625; 150x625, 150x1200, 150x1500; 200x1200, 200x1500; 300x1200, 300x1500; other customized sizes accepted.

l   RAL9016 White as standard finishing color, Black and Silver finishing color available on request

l   System Efficiency upto 150 lm/W

l   EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K or 3000K-4000K-6500K SCCT (Switchable CCT)

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

• Dimensions

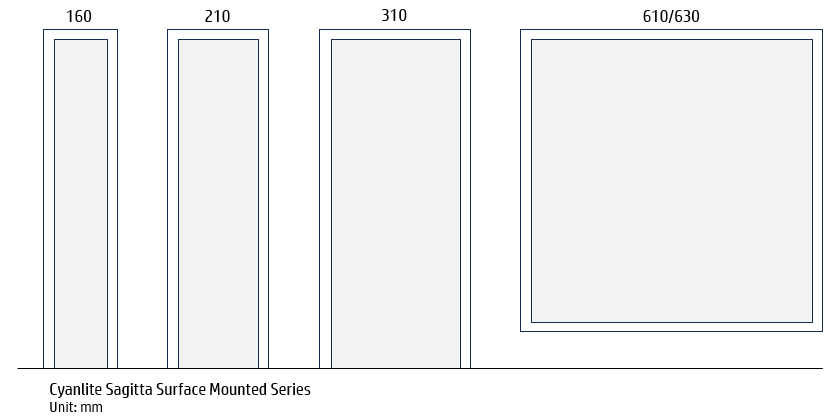

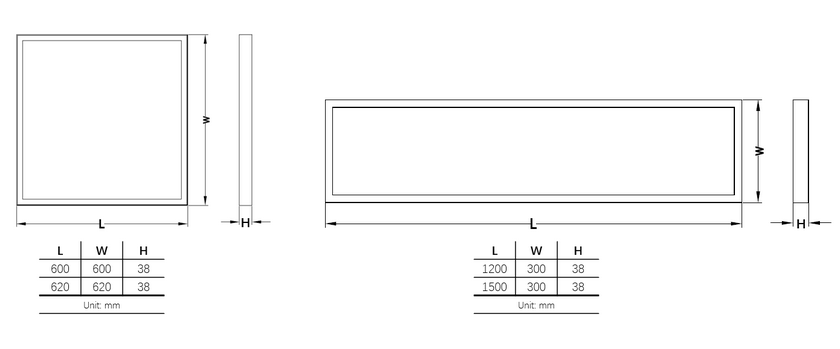

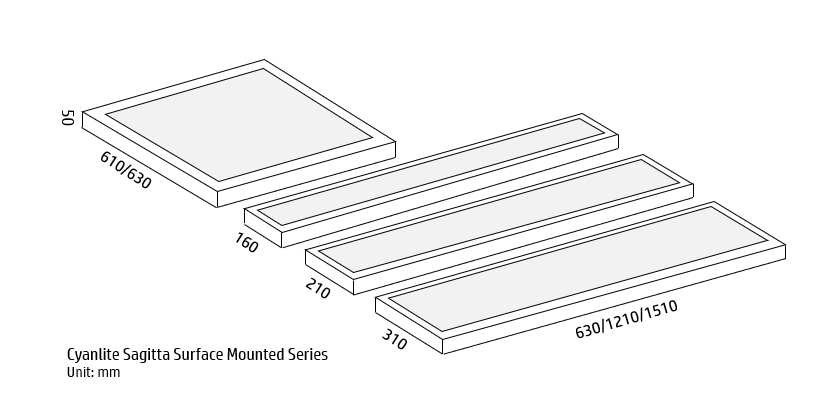

Cyanlite Sagitta surface mounted LED panel light Dimension

Specifications

Model

Part No.

Power

Luminous
Flux

Dimension
(mm)

600x600

SM30W060SA

30W

4500 lm

610x610x50

625x625

SM30W062SA

30W

4500 lm

630x630x50

150x625

SM20W106SA

20W

2800 lm

160x630x50

150x1200

SM30W112SA

30W

4200 lm

160x1210x50

150x1500

SM40W115SA

40W

5600 lm

160x1510x50

200x1200

SM30W212SA

30W

4200 lm

210x1210x50

200x1500

SM40W215SA

40W

5600 lm

210x1510x50

300x1200

SM30W312SA

30W

4200 lm

310x1210x50

300x1500

SM40W315SA

40W

5600 lm

310x1510x50

- Light Distribution


- UGR22 with Opalic diffuser                                        - UGR19 with Micro Prismatic diffuser

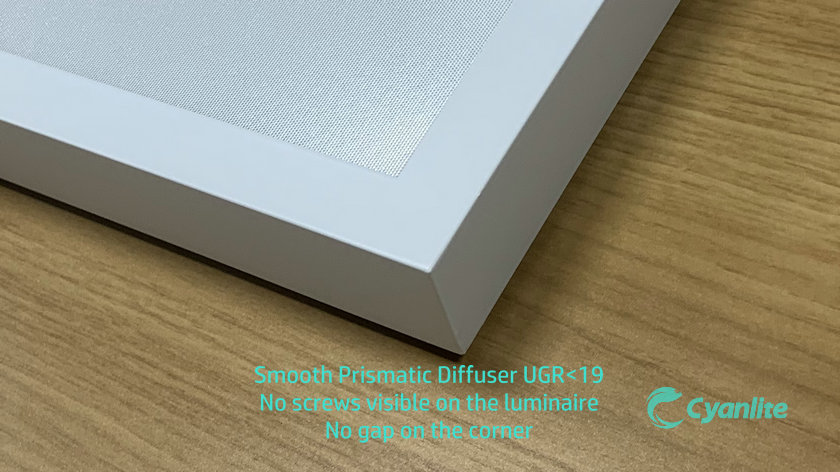

no screw Sagitta surface mounted backlite panel details

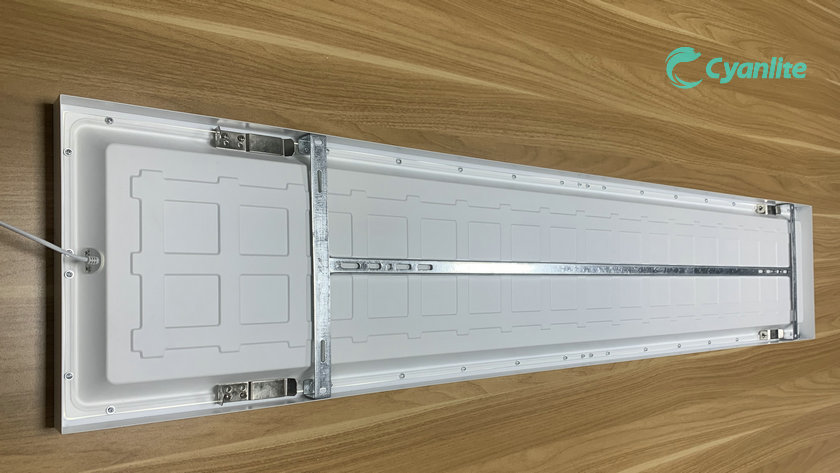

Sagitta surface mounted backlite panel

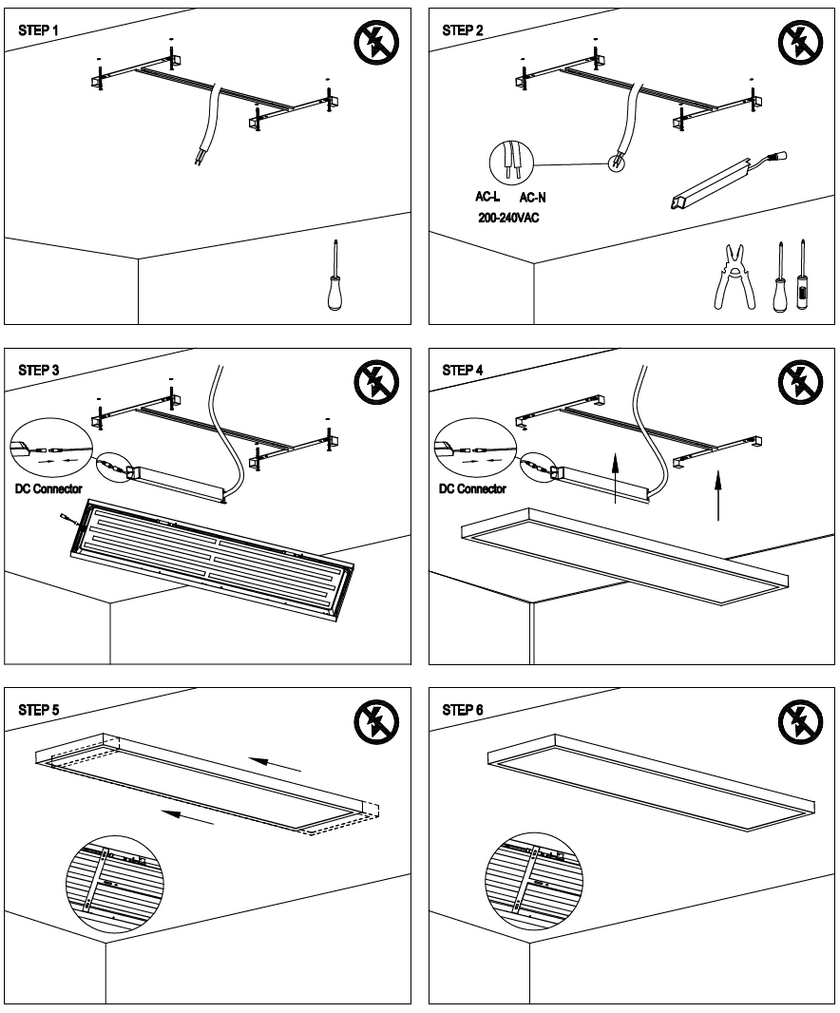

Installation

Sagitta LED surface mounted luminaire IM

Certifications


• Downloads


Cyanlite surface mounted luminaire SAGITTA datasheet V1.2 [890 Kb]

Cyanlite surface mounted luminaire SAGITTA Installation Manual [370 Kb]
