Astro - Asymmetric Linear Light

  • Product Item : ASTRO
  • - Asymmetric light distribution
  • - Customization accepted
  • - Operates with Philips Xitanium SR drivers and qualified wireless switches

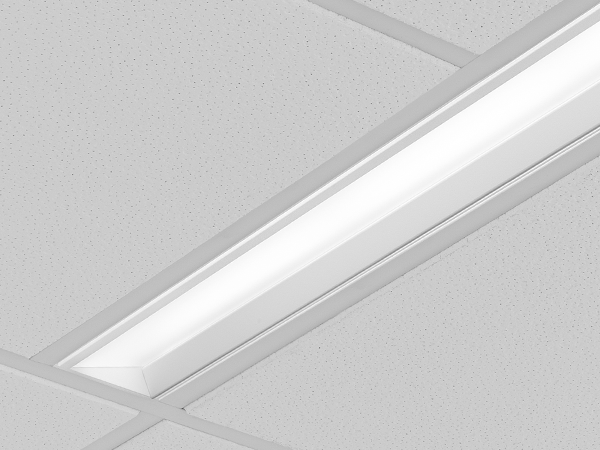

  • Product description:The Cyanlite™ LED asymmetrical luminaire ASTRO can be recessed for suspended ceilings with visible T-bars directly and installed in gypsum board with additional accessory.
  • Inquiry

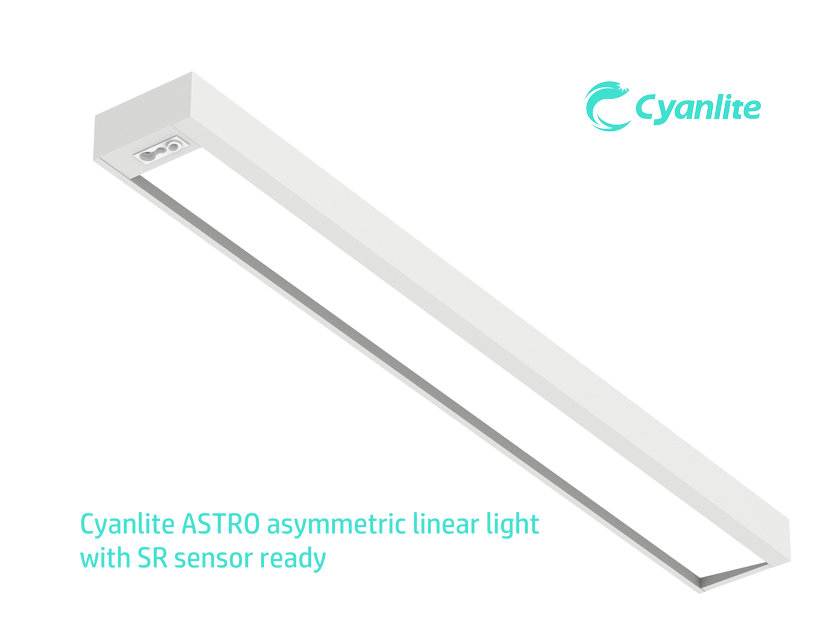

Cyanlite Astro LED asymmetric linear light with SR Sensor Ready

Cyanlite ASTRO Asymmetric Linear Light with Sensor

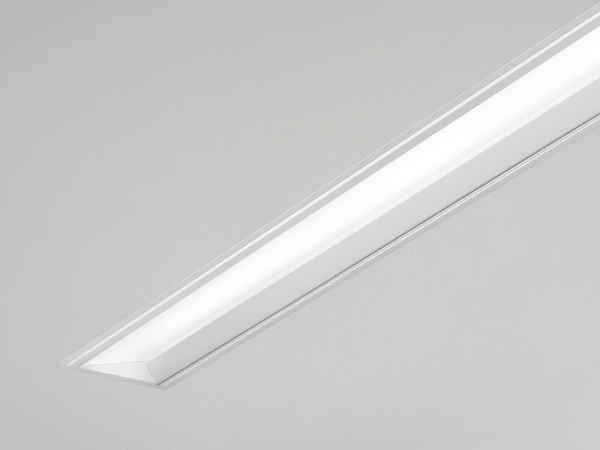

The Cyanlite™ LED asymmetrical luminaire ASTRO can be recessed for suspended ceilings with visible T-bars directly and installed in gypsum board with additional accessory. Easy and fast installation, no additional job for screws or adjustment, saving installation cost. The luminaire creates even, glare-free, vertical lighting to achieve good visual comfort. The ASTRO SR version ensures light is only on when and where it is needed via the integrated Philips Xitanium SR driver and EasyAir wireless sensor SNS210 of occupancy sensing, daylight harvesting and task tuning. It can be used for corridor, classroom, conference room, and other similar applications.



Cyanlite LED panel with Philips Easy Air sensor SNS210

Cyanlite LED panel with Xitanium SR driver and wirelss switch dimmer

Cyanlite Astro LED asymmetric linear lights SR version are using Philips Xitanium SR drivers, which are sensor ready, making them perfect for use in building management systems. You can power and interface with sensors directly from the driver without the need for additional modules, devices or power packs. The versatile and scalable DALI-2 open standard digital interface is used via a simple 2-wire connection to the sensor, so that you can confidently design flexible lighting, and incorporate your preferred sensors and networks, without worrying about potential incompatibilities.

Advantages

-          Special designed asymmetric lighting optics

-          Upto 115lm/w high efficiency and Ra97 optional

-          SR version with Quick task tuning in the field to optimize light levels and power

-          Integrated power supply over DALI-2 to power sensors and wireless radios directly from the driver

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   Occupancy sensing, daylight harvesting and task tuning in one device

l   Operates with Philips Xitanium SR drivers and qualified wireless switches

l   System Efficiency upto 115 lm/W

l   Highly accurate power metering, accessible over DALI

l   5 Years Warranty

l   Configuration of sensor parameters– at group level or single light level

l   Emergency options available

Features

- Classrooms

- Corridors

- Meeting Rooms

- Galleries

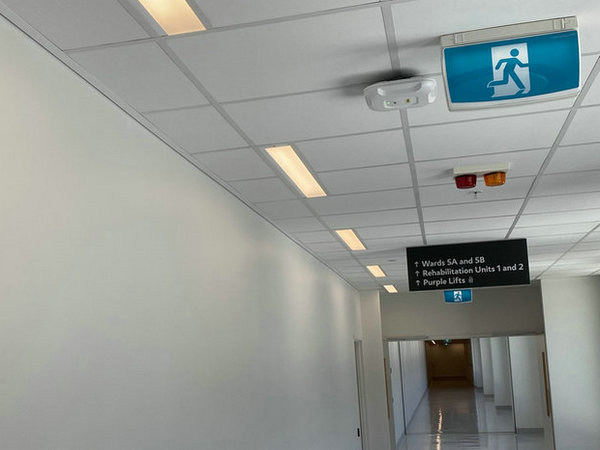

Cyanlite LED panel light with dimmable sensor Philips SR Xitanium SNS210MC application

Specifications

Model

Part No.

Power

Luminous
Flux

Dimension
(mm)

1200x150

PB26W212

26W

3000 lm

LxWxH:1195x145x60

1500x150

PB35W215

35W

4000 lm

LxWxH:1495x145x60

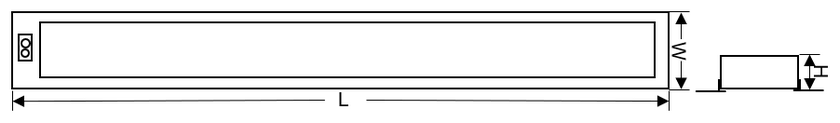

- Dimension

Astro asymmetric linear light dim

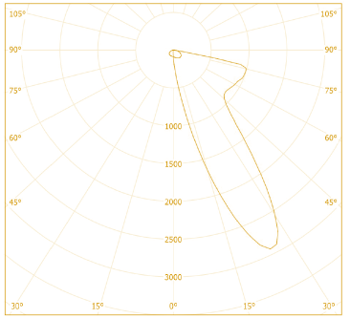

- Light Distribution (Customization acceptable)

Astro asymmetric linear light distribution


Cyanlite LED backlite panel SpaceWise sensor

Cyanlite LED backlite panel SpaceWise sensor

Certifications


• Downloads


Cyanlite Astro LED asymmetric linear light datasheet (1.2MB, PDF)


Cyanlite LED Panels with Air vents, IP65 protection, Built-in Sensor
