  • 3CCT Swichable LED Backlite Panel
3CCT Swichable LED Backlite Panel

3CCT Swichable LED Backlite Panel

  • - For T15/T24 Lay-On ceiling
  • - 3CCT in 1 Panel
  • - LED backlight technology, EN 12464-1& LG7 Compliant, UGR<19 Optional
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval

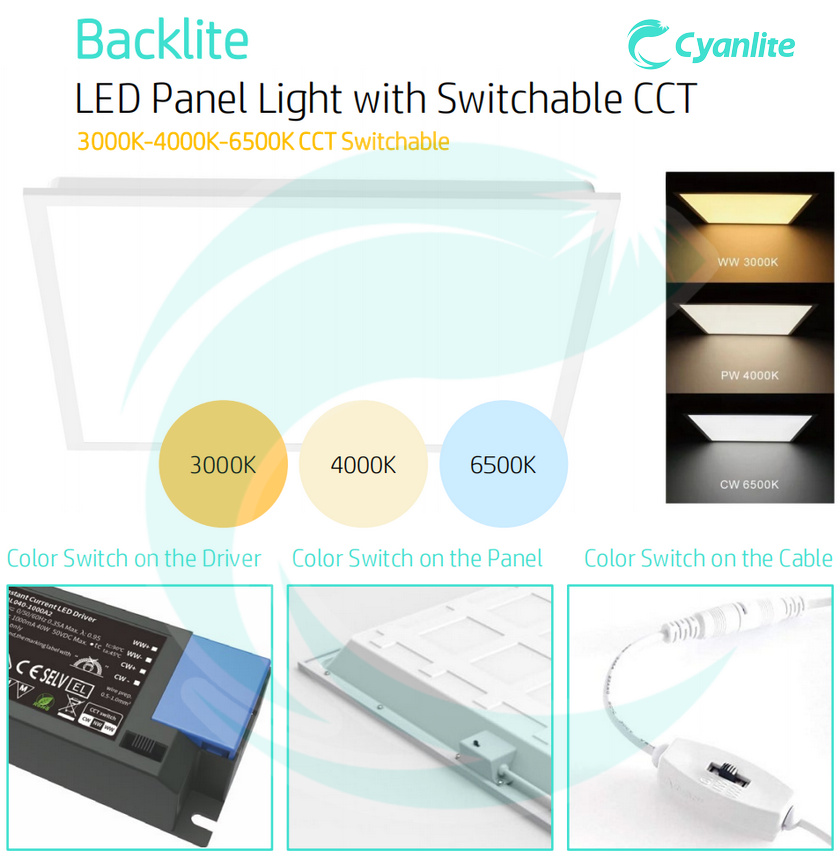

  • Product description:The Cyanlite 3CCT LED backlit panel light is equipped with high energy efficiency LED, offering 100LM/W and 125LM/W. 3CCT in 1 Panel. Light color could be switched through the switch in the cable
  • Inquiry

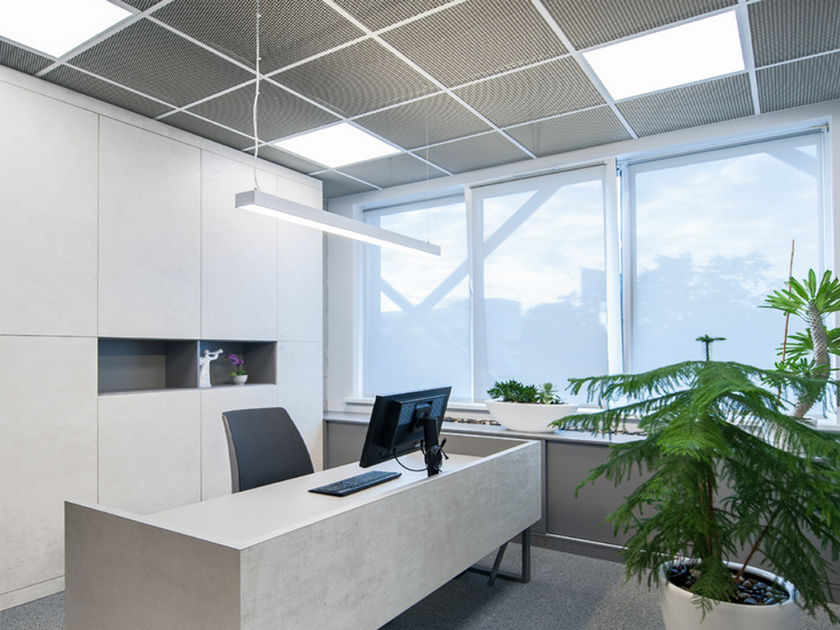

Cyanlite Backlite LED panel lights for Lay-On ceilings

Cyanlite LED backlite panel light

The Cyanlite 3CCT LED backlit panel light series is a luminaire with a very slim profile, measuring only 30mm. Equipped with high energy efficiency LED, this luminaire offers 100LM/W and 125LM/W and is powered by low constant current driver, which is safe, energy-saving, and has long-life span. 3CCT in 1 Panel. Light color could be switched through the switch in the cable (3000 K ,4000 K, 5700 K), easing clients from stock pressure. The aluminum frame is stylish and fashionable, stable, and with excellent thermal management. Flicker free, on off as standard; 1-10V and DALI dimming are optional.

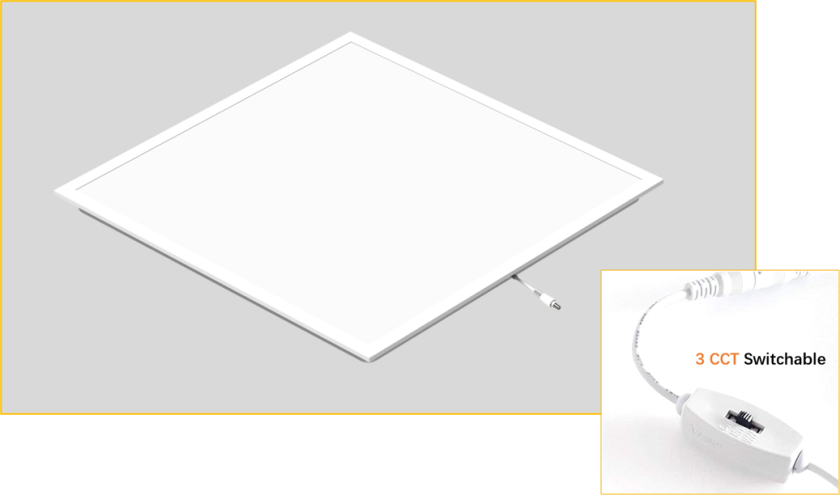

3CCT Switchable LED Panel

Advantages

-          Backlight technology for high efficiency.

-          3CCT in 1 Panel, simply switch the one needed. Less stock pressure for clients.

-          Non-yellowing PMMA lens and Flicker Free driver as standard

-          Exceptional quality consistency thanks to fully assembled by machines

-          Easy and fast installation, tool-less installation, saving installation cost

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   Standard sizes (mm): 600x600, 625x625, 300x1200, 600x1200

l   RAL9016 white as standard, other RAL colors available on request

l   System Efficiency upto 120 lm/W

l   EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

• Suspended with pendant ropes or recessed with clips for cutout installation, except recessed in Lay-On ceilings

Cyanlite LED backlight backlite panel light

Specifications

Model

Dimension

Product No.

Power

Luminous Flux

Efficiency @ 4000K

600 x 600

595 x 595 x 30mm

PB30W060P-CS

30W

3750lm

125lm/W

PB35W060P-CS

35W

4375lm

125lm/W

PB40W060E-CS

40W

4000lm

100lm/W

625 x 625

620 x 620 x 30mm

PB30W062P-CS

30W

3750lm

125lm/W

PB35W062P-CS

35W

4375lm

125lm/W

PB40W062E-CS

40W

4000lm

100lm/W

300 x 1200

295 x 1195 x 30mm

PB30W312P-CS

30W

3750lm

125lm/W

PB35W312P-CS

35W

4375lm

125lm/W

PB40W312E-CS

40W

4000lm

100lm/W

600 x 1200

595 x 1195 x 30mm

PB45W612P-CS

45W

5625lm

125lm/W

PB60W612E-CS

60W

6000lm

100lm/W

- Light Distribution


- UGR22 with Opalic diffuser                                          - UGR19 with Micro Prismatic diffuser

Certifications


• Downloads


Cyanlite 3CCT LED Backlite Panel Lights for Lay-On ceiling datasheet/installation manual/photometric data download
