  • Lunar Surface Mounted
  • Lunar Surface Mounted
  • Lunar Surface Mounted
  • Lunar Surface Mounted
Lunar Surface MountedLunar Surface MountedLunar Surface MountedLunar Surface Mounted

Lunar Surface Mounted

  • Product Item : Lunar Surface Mounted
  • - A strong family with various installation ways: Recessed/Surface Mounted/Pendant
  • - Wide range from diameter 40cm to 120 cm
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • - With Down light only and Up/Down light options
  • Product description:Lunar - Cyanlite architectural LED round panel light with pendant installation - Surface Mounted
  • Inquiry

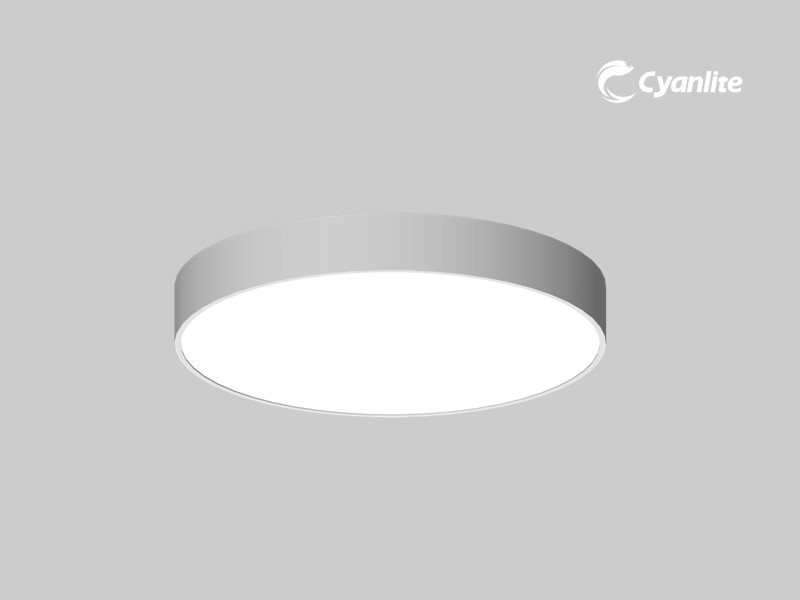

Cyanlite Surface Mounted Round LED Panel Light - LUNAR Surface Mounted

Cyanlite Lunar series architectural LED rounal panel lights

The Cyanlite™ round LED panel light Lunar series are stylish designed backlite luminaires, with a wide range from diameter 30cm to 120cm. Lunar floats below the ceiling like a moon. With its uniform, glare-free light and modern, purist design this series of round luminaires lends any room a special look, and is ideal for e.g. offices, meeting rooms, creative zones, VDU workstations and prestigious sales spaces.


The standard Lunar comes with Surface Mounted installation kit, and you can have it Pendant installed with optional suspension wire kit or stem mounting kit. Besides this, Lunar series also has Recessed version and Trimless Recessed version to meet different requirements of architects and projects.

Cyanlite Lunar architectural LED round panel surface mounted intallation


Advantages

-          A strong family with various installation ways: Recessed/Surface Mounted/Pendant

-          Easy and fast installation, saving installation cost

-          Lunar has a wide product range with down light only and direct/indirect light options

-          Flexible and customization oriented, bespoke specification are welcome

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   Standard sizes (mm): ⌀300/ ⌀400/ ⌀480/ ⌀600/ ⌀900/ ⌀1200 (mm)

l   RAL9016 as standard, other RAL colors available on request

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.,

l   Emergency options available

Specifications

Cyanlite architectural LED rounal panel light Lunar

Standard Surface Mounted Lunar Down Light

Cyanlite architectural LED rounal panel light up and down light Lunar

Standard Surface Mounted Lunar Up/Down Light

Model

Part No.

Power

Luminous
Flux

Dimension
(mm)

D30

BR15WD30S

15W

1275 lm

300x65

D40

BR20WD40S

20W

1700 lm

400x65

D50

BR25WD50S

25W

2125 lm

480x95

D60

BR40WD60S

40W

3400 lm

600x95

D90

BR90WD90S

90W

7650 lm

900x95

D120

BRH5WDH2S

150W

12750 lm

1200x95

D50-UD

BR50WD50S-UD

50W

1700lm2550lm

480x95

D60-UD

BR80WD60S-UD

80W

2550lm4250lm

600x95

D90-UD

BRH2WD90S-UD

120W

4080lm6120lm

900x95

D120-UD

BRH5WDH2S-UD

150W

4250lm8500lm

1200x95

Light Distribution

Cyanlite Lunar series architectural LED rounal panel light distribution

• Dimension

Cyanlite Lunar series architectural LED rounal panel light dimension

• Installation

Cyanlite Lunar series architectural LED rounal panel lights installation

Certifications


• Downloads


Cyanlite LED architectural lighting LUNAR datasheet/installation manual/photometric data download
