  • Antibacterial IP65
  • Antibacterial IP65
Antibacterial IP65Antibacterial IP65

Antibacterial IP65

  • - IP65 waterproof design
  • - Stable under strong ultraviolet and acid rain conditions
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval

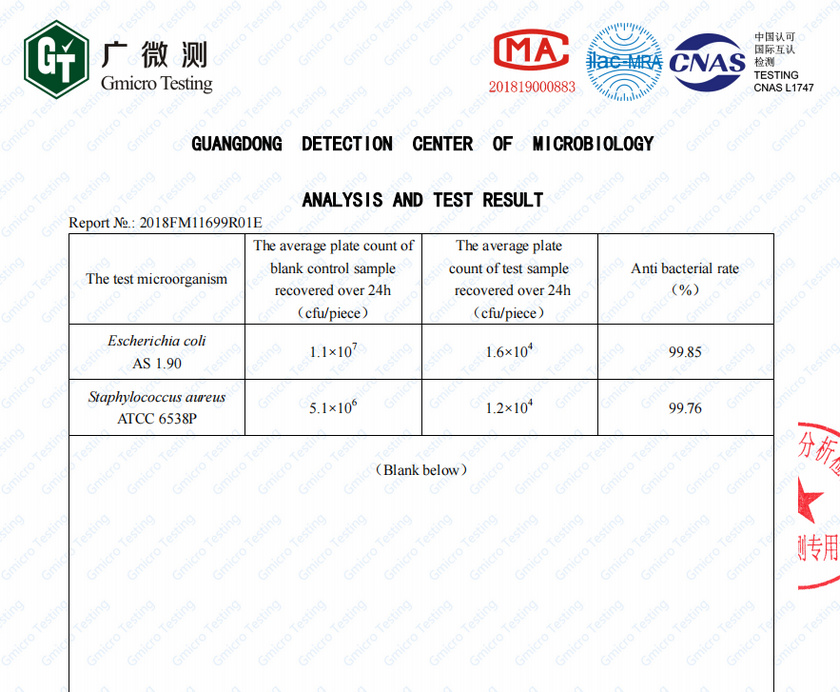

  • - The bacteriostasis rate of Escherichia coli, staphylococcus aureus and candida albicans is more than 99%
  • Product description:The Cyanlite™ IP65 antibacterial LED panel light designed for the hospitals, food industries and health care projects. Embedded nano silver ion antimicrobial technology is impregnated into the diffuse
  • Inquiry

Cyanlite IP65 Antibacterial LED panel light

Antibacterial LED panel light

antibacterial IP65 LED panel light

The Cyanlite™ IP65 antibacterial LED panel light designed for the hospitals, food industries and health care projects. It adopts IP65 waterproof structure design, and embedded nano silver ion antimicrobial technology is impregnated into the diffuser sheet at the time of manufacture, offering unrivalled protection against bacterial growth. Installation is easy, that directly fits into the Lay-On ceiling systems perfectly, no need for extra accessories. Flicker free, on/off IP65 driver as standard; 1-10V and DALI dimming are optional. Standard sizes come with 600x600/625x625/300x1200 models, bespoke sizes, watts, efficiency are available on request.

Advantages

-          The bacteriostasis rate of Escherichia coli, staphylococcus aureus and candida albicans is more than 99%.

-          Harmless to human body, no skin irritation, safe and non-toxic

-          Stable under strong ultraviolet and acid rain conditions

-          Easy and fast installation, tool-less installation, saving installation cost

-          Flexible and customization oriented, bespoke sizes are welcome

Features

l   Standard sizes (mm): 600x600, 625x625, 300x1200

l   RAL9016, other RAL colors available on request

l   System Efficiency upto 100 lm/W

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

• Applications

- Hosptitals.

- Food industries.

- Healthcare applications.

- High traffic public places.

Specifications

Model

Part No.

Power

Luminous
Flux

Dimension
(mm)

600x600

PS36W060-AB

36 W

3600 lm

595x595x10

625x625

PS36W062-AB

36 W

3600 lm

620x620x10

300x1200

PB36W312-AB

36 W

3600 lm

295x1195x10


- Light Distribution

Cyanlite LED Panel IP65 Distributions

- UGR22 with Opalic diffuser

Certifications


• Downloads


Cyanlite IP65 Anti-Bacterial LED Panel light datasheet/installation manual/photometric data download
