  • TWINS
TWINS

TWINS

  • - LED free standing luminaire head in classic design and assembled support column
  • - UGR<17, 110lm/W, 50% direct and 50% indirect, knob dimming
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • Product description:Cyanlite LED free standing luminaire TWINS, UGR<17, direct and indirect light distribution, integrated PIR presence sensor and daylight sensor optional, knob dimming synchronous control, assembled sup
  • Inquiry

Cyanlite LED free standing luminaire TWINS

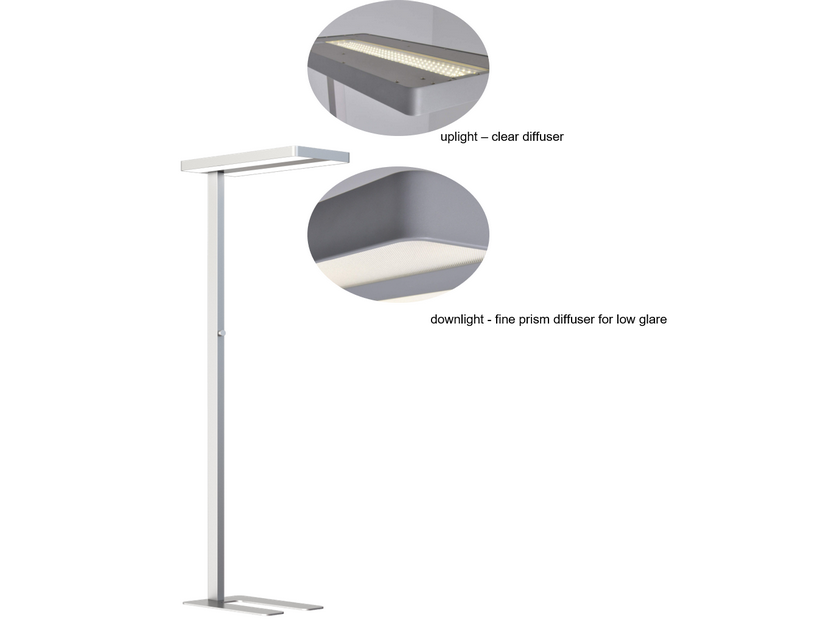

The Cyanlite™ LED free standing luminaire TWINS is for one 1*2m working plane with luminaire head in classic design. Flat steel base plate for high stability and space-saving positioning with office furniture. Thanks to fine-prism lens (downlight) and PMMA clear lens (uplight), the luminaire is of 50% direct and 50% indirect light emission. Electrical connection via 2.5m connection cable and plug. With integrated PIR presence sensor and daylight sensor for constant illuminance in the luminaire surroundings when the luminaire is switched on and for natural light incidence. Support column is of assembled aluminum profile shaped rectangular, making it possible for all-in package in benefit of easy transportation and flexible sales.

Cyanlite LED free standing luminaire TWINS

Cyanlite LED free standing luminaire TWINS

Advantages

-          Modern office environment in classic design

-          Assembled support column and all-in package for easy transportation and flexible sales

-          Easy and fast installation, saving installation cost

-          Knob dimming and optional integrated PIR presence sensor and daylight sensor with the benefit of saving electricity

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   110lm/W, 50% direct and 50% indirect, 60W and 80W available

l   Support column of assembled aluminum profile shaped rectangular

l   Flat steel base plate, “U” shaped standard, and “one-piece” optional

l   Knob dimming synchronous control

l   Fine-prism lens for excellent glare control UGR<17

l   RAL9016 white as standard, black, silver and other RAL colors available on request

l   Integrated PIR presence sensor and daylight sensor optional

Cyanlite LED free standing luminaire TWINS

Specifications

Function

Product Dimension

Item No.

Luminous Flux

System Power

Efficiency @ 4000K

Knob Dim

610 x 280 x 1950mm

FS60WFT

3500lm↑/3100lm↓

60W (30W↑/30W↓)

110lm/W

610 x 280 x 1950mm

FS80WFT

4600lm↑/4200lm↓

80W (40W↑/40W↓)

110lm/W

Knob Dim
Motion Sensor

610 x 280 x 1950mm

FS60WFT-M

3500lm↑/3100lm↓

60W (30W↑/30W↓)

110lm/W

610 x 280 x 1950mm

FS80WFT-M

4600lm↑/4200lm↓

80W (40W↑/40W↓)

110lm/W

Knob Dim
Motion Sensor
Daylight Sensor

610 x 280 x 1950mm

FS60WFT-D

3500lm↑/3100lm↓

60W (30W↑/30W↓)

110lm/W

610 x 280 x 1950mm

FS80WFT-D

4600lm↑/4200lm↓

80W (40W↑/40W↓)

110lm/W

- Light Distribution

Cyanlite LED free standing luminaire TWINS

Certifications


• Downloads


Cyanlite LED Free Standing Luminaire TWINS datasheet/installation manual/photometric data download
