  • MONA
  • MONA
MONAMONA

MONA

  • - LED free standing luminaire with uniform light panel
  • - UGR<18, 100lm/W, 50% direct and 50% indirect, touch dimming
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • Product description:Cyanlite LED free standing luminaire MONA, UGR<18, direct and indirect light distribution, integrated PIR presence sensor and daylight sensor optional, touch dimming synchronous control
  • Inquiry

Cyanlite LED free standing luminaire MONA

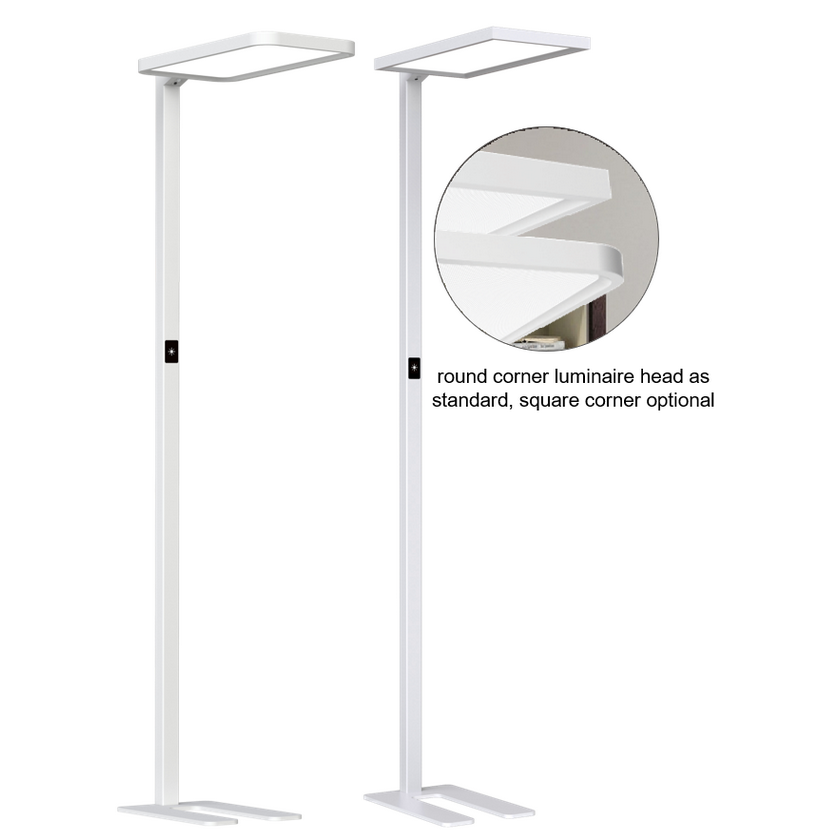

The Cyanlite™ LED free standing luminaire MONA is of edge-lit technology for one 1*2m working plane with flat luminaire head. Flat steel base plate for high stability and space-saving positioning with office furniture. Thanks to exquisite combination of non-yellowing PMMA LGP, smooth micro prismatic and opalic diffuser, the luminaire is of 50% direct and 50% indirect light emission. Electrical connection via 2.5m connection cable and plug. With integrated PIR presence sensor and daylight sensor for constant illuminance in the luminaire surroundings when the luminaire is switched on and for natural light incidence.

Cyanlite LED free standing luminaire MONA





Cyanlite LED free standing luminaire MONA



Cyanlite LED free standing luminaire MONA

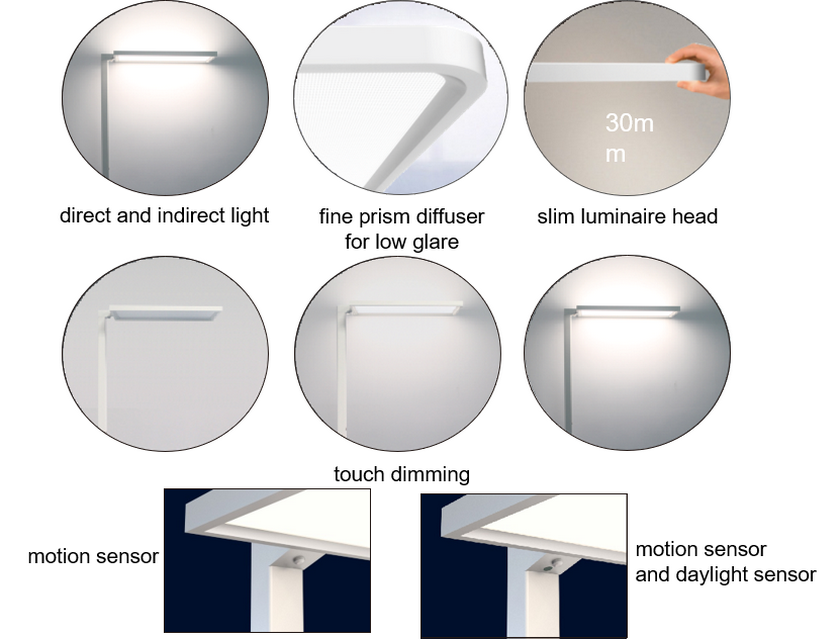

Advantages

-          Modern office environment for open planed space and individual office applications

-          Easy and fast installation, saving installation cost

-          Touch dimming and optional integrated PIR presence sensor and daylight sensor with the benefit of saving electricity

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   100lm/W, 50% direct and 50% indirect, 60W and 80W available

l   Flat steel base plate, “U” shaped standard, and “one-piece” optional

l   Touch dimming synchronous control

l   non-yellowing PMMA light guide and prismatic diffuser for uniform light surface

l   RAL9016 white as standard, black, silver and other RAL colors available on request

l   Integrated PIR presence sensor and daylight sensor optional

Cyanlite LED free standing luminaire MONA

Specifications

Function

Product Dimension

Item No.

Luminous Flux

System Power

Efficiency @ 4000K

Touch Dim

692 x 310 x 1950mm

FS60WFM

3000lm↑/3000lm↓

60W (30W↑/30W↓)

100lm/W

692 x 310 x 1950mm

FS80WFM

4000lm↑/4000lm↓

80W (40W↑/40W↓)

100lm/W

Touch Dim
Motion Sensor

692 x 310 x 1950mm

FS60WFM-M

3000lm↑/3000lm↓

60W (30W↑/30W↓)

100lm/W

692 x 310 x 1950mm

FS80WFM-M

4000lm↑/4000lm↓

80W (40W↑/40W↓)

100lm/W

Touch Dim
Motion Sensor
Daylight Sensor

692 x 310 x 1950mm

FS60WFM-D

3000lm↑/3000lm↓

60W (30W↑/30W↓)

100lm/W

692 x 310 x 1950mm

FS80WFM-D

4000lm↑/4000lm↓

80W (40W↑/40W↓)

100lm/W

- Light Distribution

Cyanlite LED free standing luminaire MONA

Certifications


• Downloads


Cyanlite LED Free Standing Luminaire MONA datasheet/installation manual/photometric data download
