Lay-In Ceiling

  • - Specifically designed for Lay-In, also called SAS130 ceilings.
  • - EN 12464-1& LG7 Compliant, UGR<19 Optional
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • Product description:Cyanlite LED panel light for Lay-In ceilings for SAS130, Armstrong Tegular, Rockfon Lay-In, FURAL KQV3, Knauf AMF System C/VT, Linder LMD-K400, OWA S3a/S15a/S6b/S15b, Gradhermetic Semivista..
  • Inquiry

Cyanlite LED panel light LI130 series for Lay-In ceilings

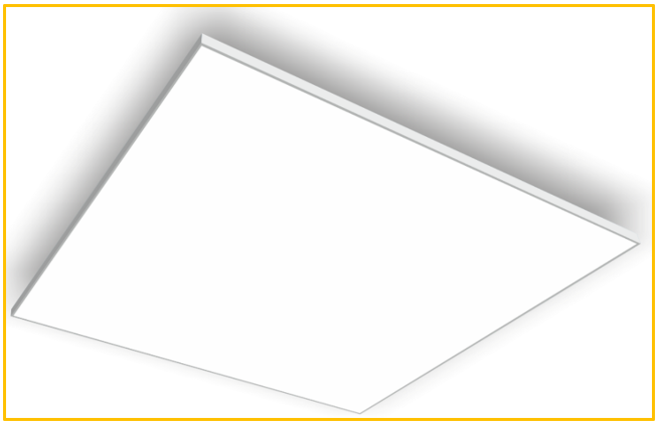

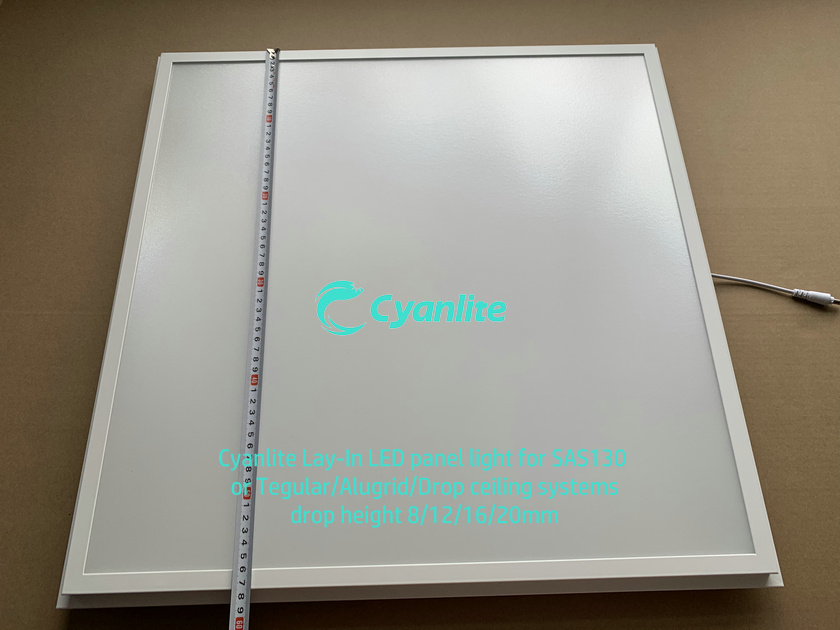

Cyanlite LED panel light for Lay-In Ceiling

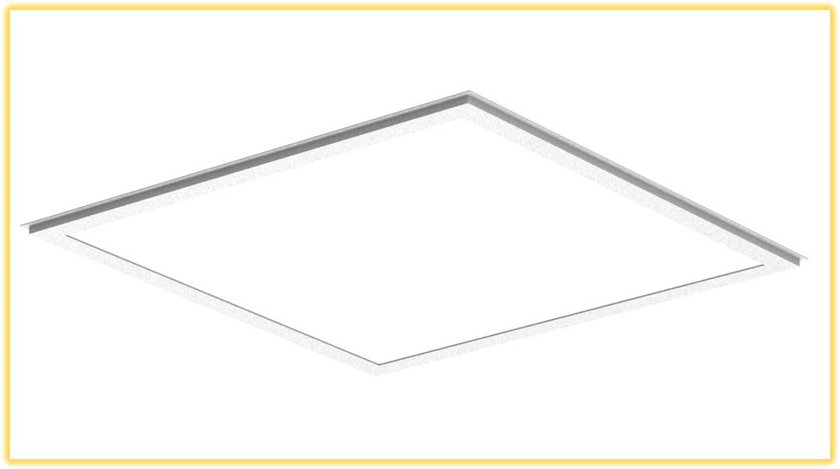

Cyanlite LED panel light for Lay-In Ceiling

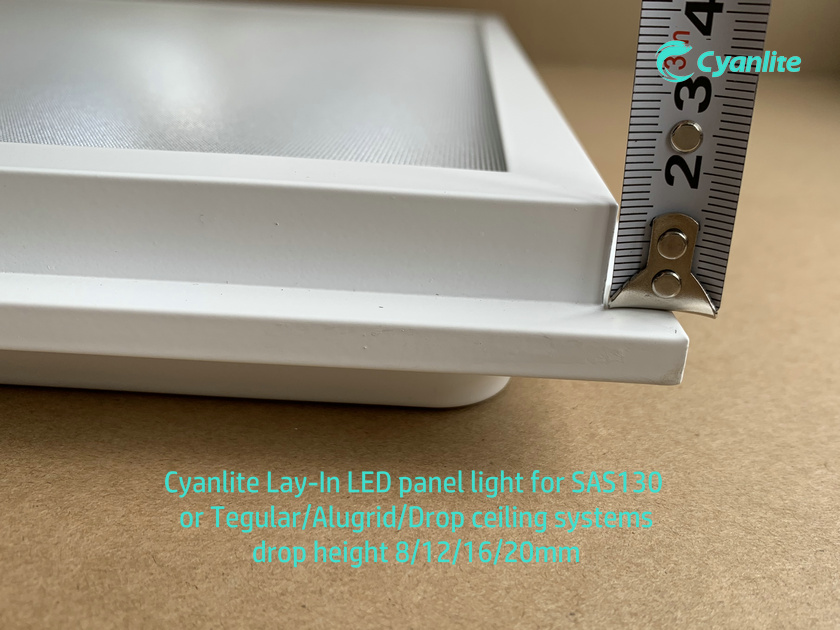

The Cyanlite™ LED panel lights LI130 series has been designed specifically for seamlessly integrated with premium Lay-In, also called SAS130 or Tegular/Alugrid/Drop ceiling systems. These luminaires fit into the Lay-In ceiling systems perfectly and flush with the other ceiling tiles, making the whole ceiling system uniform and elegant. Moreover, besides the normal width frame, Cyanite also has the options for Narrow Frame (4mm width) and Frameless designs for customers’ different preferences.

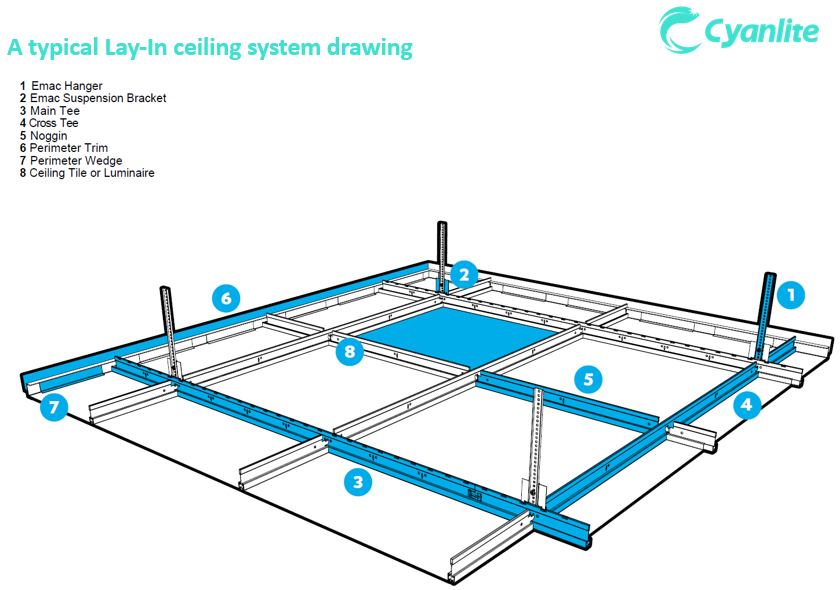

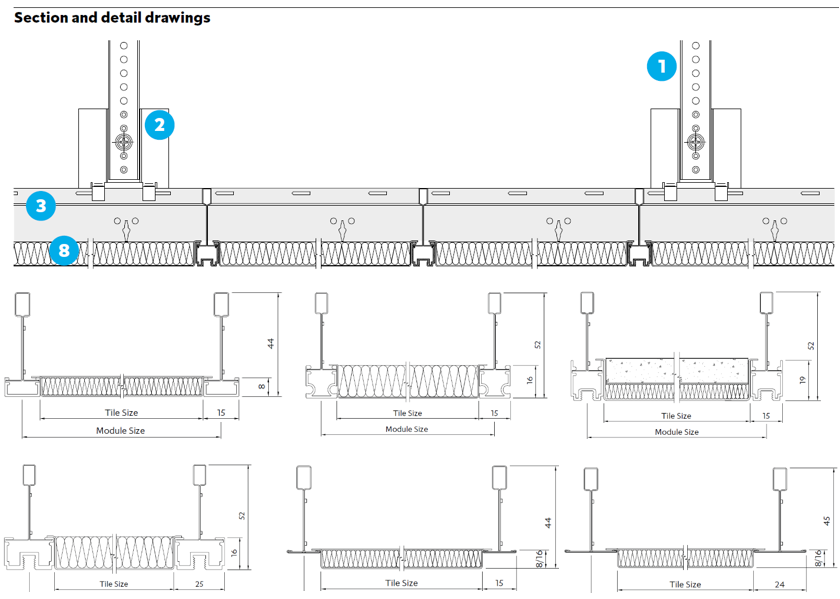

Cyanlite LED panel light for Lay-In ceiling drawing

lay-in ceiling details

Advantages

-          Specifically designed for Lay-In ceilings, flush with the other ceiling tiles

-          Needs no additional installation accessories, saving material cost

-          Easy and fast installation, no additional job for screws or adjustment, saving installation cost

-          LI130 has a wide product range for all major standard Lay-In ceiling tile sizes with 8/12/16/20 mm depth

-          Flexible and customization oriented, bespoke sizes are welcome

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   Standard sizes (mm): 500x500, 600x600, 625x625, 750x750; Tile height: 8, 12, 16, 20 mm

l   RAL9010 as standard to match SAS ceiling colors, other RAL colors available on request

l   System Efficiency upto 120 lm/W

l   EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

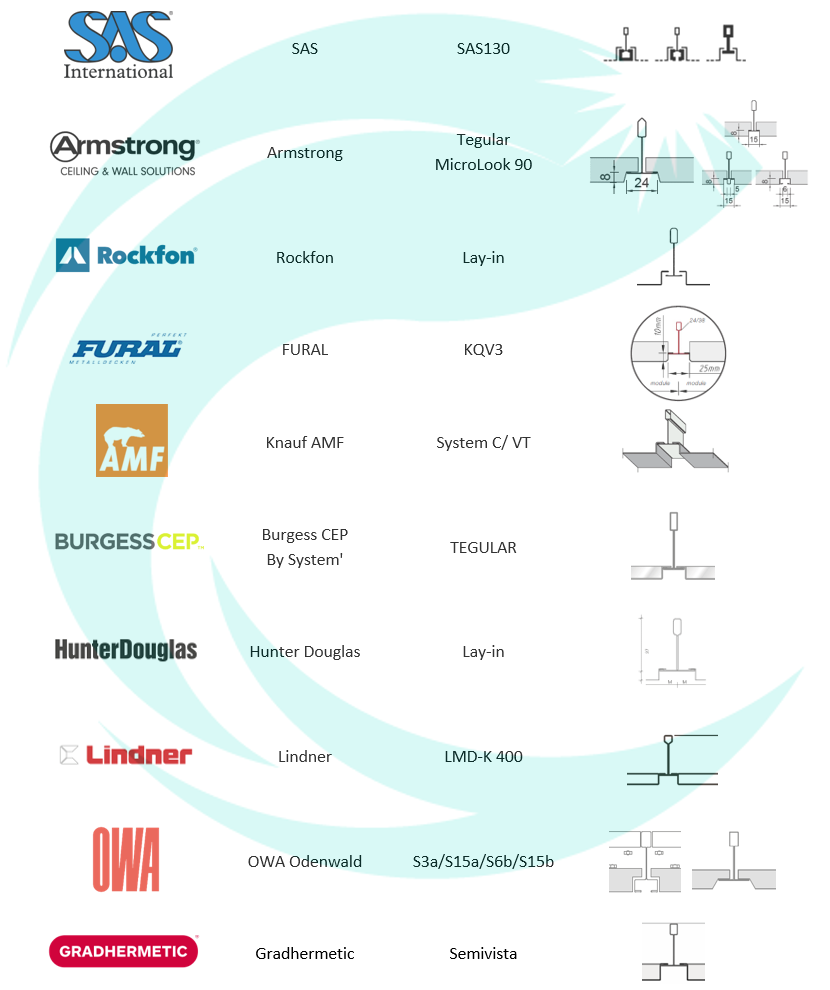

Suitable ceiling brands and models (included but not limited to)

cyanlite led panel light for lay-in ceiling brands

Specifications

T bar
Width

Model

Part No.

Power

Luminous
Flux

Dimension
(mm)

T15

500x500

PS30W050L-T15

30 W

3600 lm

484x484

600x600

PS30W060L-T15

30 W

3600 lm

584x584

625x625

PS30W062L-T15

30 W

3600 lm

609x609

750x750

PS50W075L-T15

50 W

6000 lm

734x734

T24

500x500

PS30W050L-T24

30 W

3600 lm

474x474

600x600

PS30W060L-T24

30 W

3600 lm

574x574

625x625

PS30W062L-T24

30 W

3600 lm

599x599

750x750

PS50W075L-T24

50 W

6000 lm

724x724

- More Options

>NF model: 4mm Narrow Frame design

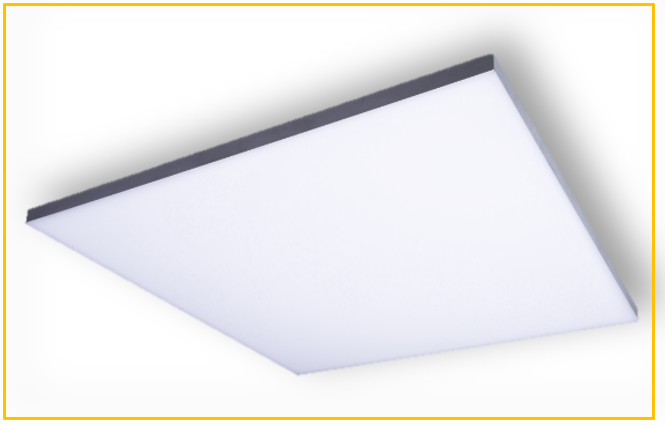

>FL model: Frameless design


- Light Distribution


- UGR22 with Opalic diffuser                                          - UGR19 with Micro Prismatic diffuser

Installation

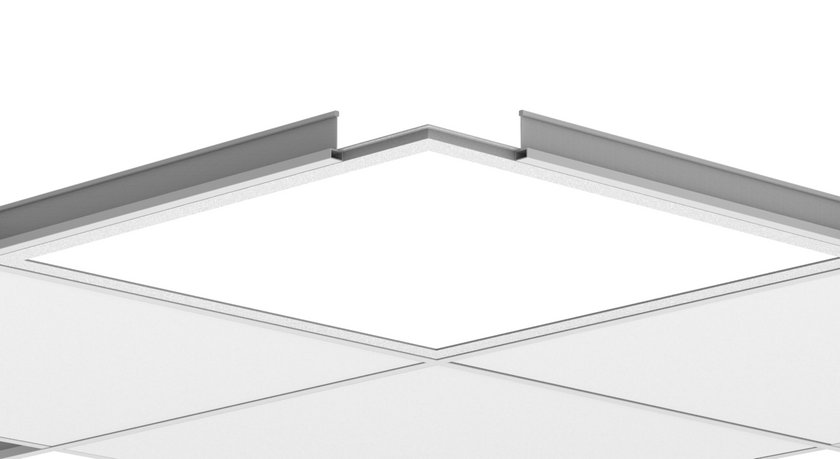

Cyanlite LED panel light for Lay-In Ceiling installation

Cyanlite LED panel light for Lay-In Ceiling installation flush

Certifications


• Downloads


Cyanlite LI130 LED panel light for LAY-IN ceiling datasheet/installation manual/photometric data download
