  • Rocky UD
Rocky UD

Rocky UD

  • - Direct and indirect light with opalic diffuser and non-yellowing PMMA light guide
  • - 120lm/W, LED square and rectangular panel with rounded corners
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • Product description:Cyanlite LED panel light Rocky UD family for direct and indirect light by suspended and surface mounted installation, 120lm/W, square and rectangular panel with rounded corners, non-yellowing PMMA LGP
  • Inquiry

Cyanlite direct and indirect LED panel light with rounded corners Rocky UD

The Cyanlite™ LED panel lights Rocky UD series is an appealing luminaire that is in shape of square or rectangle with rounded corners that is easier on the human eyes and the brain than those with sharp edges. Because of the rounded corners, LED panel lights Rocky UD can be utilized to create an illuminated environment of comfort, warmth, and trust. The product portfolio includes down light only, as well as direct/indirect lighting options, via surface mounted and suspended installations.

Cyanlite LED Panel Light with Rounded Corners Rocky

Cyanlite LED Panel Light with Rounded Corners Rocky

Cyanlite LED Panel Light with Rounded Corners Rocky

Cyanlite LED Panel Light with Rounded Corners Rocky

Advantages

-          Special designe based on the aesthetic beauty of rounded corner

-          Easy and fast installation, saving installation cost

-          Rocky has a wide product range with direct/indirect light and down light only options

-          Flexible and customization oriented, bespoke sizes are welcome

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   direct/indirect lighting for harmonious luminous environment

l   Standard sizes (mm): 400x400, 500x500, 600x600; 400x800, 300x1200

l   RAL9016 white as standard, other RAL colors available on request

l   System Efficiency upto 120lm/W

l   EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

Specifications

Model

Part No.

Power

Luminous Flux

Dimension

Efficiency @ 4000K

400x400

PR28WS40-UD

28W

882 lm2058 lm

400x400x20

105lm/W

500x500

PR32WS50-UD

32W

1008 lm2352 lm

500x500x20

105lm/W

600x600

PR40WS60-UD

40W

1440 lm3360 lm

600x600x20

120lm/W

400x800

PR40WS48-UD

40W

1440 lm3360 lm

400x800x20

120lm/W

300x1200

PR45WS31-UD

45W

1620 lm3780 lm

300x1200x20

120lm/W

400x400

PR28WS40-UD D

28W

588 lm2352 lm

400x400x20

105lm/W

500x500

PR32WS50-UD D

32W

672 lm2688 lm

500x500x20

105lm/W

600x600

PR40WS60-UD D

40W

960 lm3840 lm

600x600x20

120lm/W

400x800

PR40WS48-UD D

40W

960 lm3840 lm

400x800x20

120lm/W

300x1200

PR45WS31-UD D

45W

1080 lm4320 lm

300x1200x20

120lm/W

- Light Distribution

Cyanlite LED round panel rounded corners Rocky  Cyanlite LED round panel rounded corners Rocky

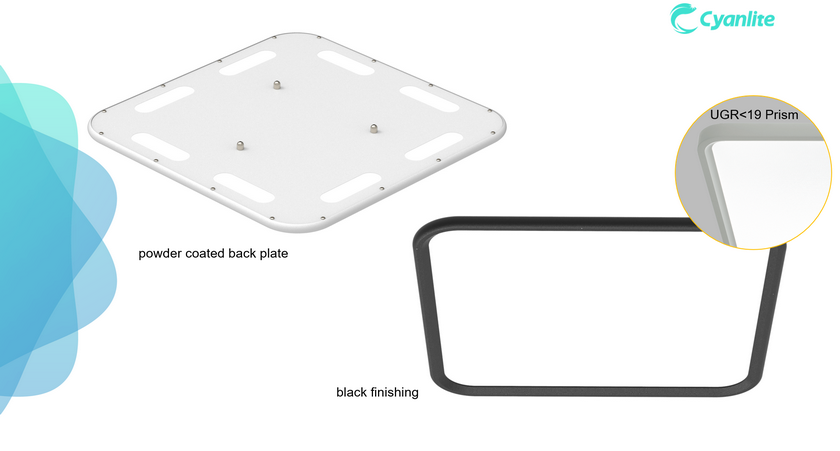

- Rocky UD opalic diffuser                  - Rocky UD Disc surface mounted

Certifications


• Downloads


Cyanlite LED Panel Light with Rounded Corners Rocky UD datasheet/installation manual/photometric data download
