Cyanlite FITO LED Retrofit Tubes – Universal Replacement for T5/T8/T10 Fluorescent Lamps

The Cyanlite FITO LED retrofit tube provides a professional, easy-to-install alternative to traditional T5, T8, and T10 fluorescent lamps. Its magnetic mounting system enables fast on-site installation without complex wiring. Equipped with an isolated SELV driver, this tube supports industry-standard dimming systems including DALI, 1-10V, and TRIAC. It also features adjustable CCT (3000K-6500K) and power settings, making it extremely flexible for retrofitting projects and inventory reduction.

What makes FITO stand out is its full ENEC certification as a complete lighting unit, eliminating safety risks and compliance concerns during installation. What’s more, many European countries offer subsidies and rebates for LED retrofitting solutions like FITO. Available in 1-to-4 tube configurations, this system is specially designed to replace traditional fluorescent fittings without rewiring, delivering exceptional energy savings and reduced installation costs.

As the EU gradually phases out fluorescent lamps due to high energy consumption and environmental impact, demand for reliable LED retrofit solutions has grown rapidly. Millions of existing fluorescent fixtures are ready for upgrade, creating a huge market opportunity for cost-effective, easy-to-install products like FITO.

Built with an aluminum housing, FITO ensures excellent heat dissipation and long operational lifetime—even when installed inside IP65 tri-proof fixtures at temperatures above 45°C. Below are third-party temperature test reports for real-world verification.

The EU ban on fluorescent lamps is based on important environmental and health considerations:

1. Low Energy Efficiency: Fluorescent lamps waste significantly more power compared to LED alternatives, leading to higher electricity costs and carbon emissions.
2. Environmental Hazard: Fluorescent tubes contain mercury, a toxic heavy metal that poses pollution risks if not disposed of properly.
3. Health Concerns: Broken lamps release mercury vapor, which is harmful to human health, especially in enclosed spaces.
4. Superior LED Performance: LEDs offer instant startup, better dimming performance, longer lifespan, and better durability in cold environments.
5. Lower Long-Term Cost: Although LEDs have a higher upfront cost, their energy savings and long life deliver much lower total cost of ownership.

Traditional fluorescent tubes typically achieve only 70-90 lm/W and emit light in 360 degrees, resulting in significant light loss through reflection and fixture housing. In contrast, Cyanlite FITO delivers up to 160 lm/W with directional output, maximizing usable light and delivering exceptional energy savings.

A key advantage of FITO is its advanced dimming design. Compatible with external drivers and industry-leading control systems (DALI, 1-10V), it allows precise light level adjustment—unlike basic LED tubes that only support fixed brightness. This makes FITO ideal for professional lighting applications requiring smart control.

Standard LED tubes usually require full rewiring and ballast removal. FITO eliminates this hassle by supporting both inductive and electronic ballasts without modification. No need to bypass starters, remove ballasts, or reconfigure wiring—effectively reducing installation time and labor cost.

The dual-tube model allows one driver to power two LED tubes, greatly reducing material cost and installation effort. It is perfect for retrofitting double-tube fluorescent fixtures. Simply remove old lamps, keep existing wiring, mount FITO with magnets or screws, connect power to the terminal box, and the upgrade is complete.

FITO supports three common installation scenarios to fit nearly any existing fixture:

1. Flat, unobstructed fixture base: Direct mounting with magnets or screws.

2. Flat base with obstacles: Use adjustable height brackets for safe and stable installation.

3. Fixture with internal reflectors: Use G13 lamp holder adaptors for perfect fitting.

Key Advantages

- Sturdy aluminum structure improves heat dissipation and extends service life.
- Isolated SELV driver ensures full compliance with international safety standards.
- One driver can support two tubes, lowering overall system cost.
- DALI, 1-10V, and TRIAC dimming supported for intelligent control.
- Adjustable CCT and output power for versatile application.
- Dual mounting options: magnetic and screw-on.

Technical Specifications

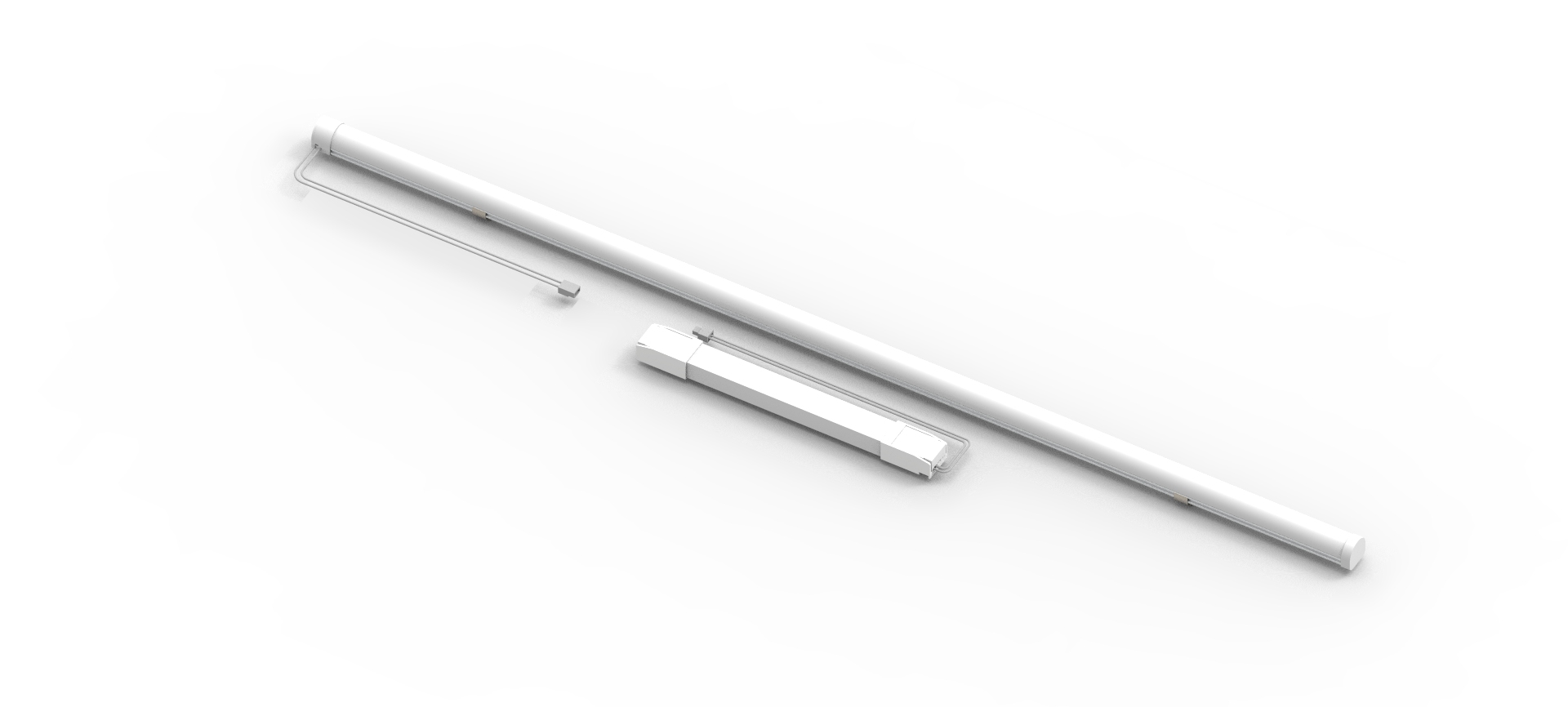

Single Tube Model (1 Driver + 1 Tube)

Model	Part No.	Power	Lumen	Size	Adjustable Options
600	TB12W060R	12W @400mA 12-20W	1900lm @400mA 1900-3200lm	φ26x560 mm	400-700mA 12-20W 1900-3200lm
900	TB18W090R	18W @600mA 12-20W	2900lm @600mA 1900-3200lm	φ26x860 mm	400-700mA 12-20W 1900-3200lm
1200	TB23W120R	23W @850mA 20-30W	3700lm @850mA 3200-4800lm	φ26x1160 mm	700-1050mA 20-30W 3200-4800lm
1500	TB36W150R	36W @1200mA 33-42W	6000lm @1200mA 5200-7000lm	φ26x1460 mm	1100-1400mA 33-42W 5200-7000lm

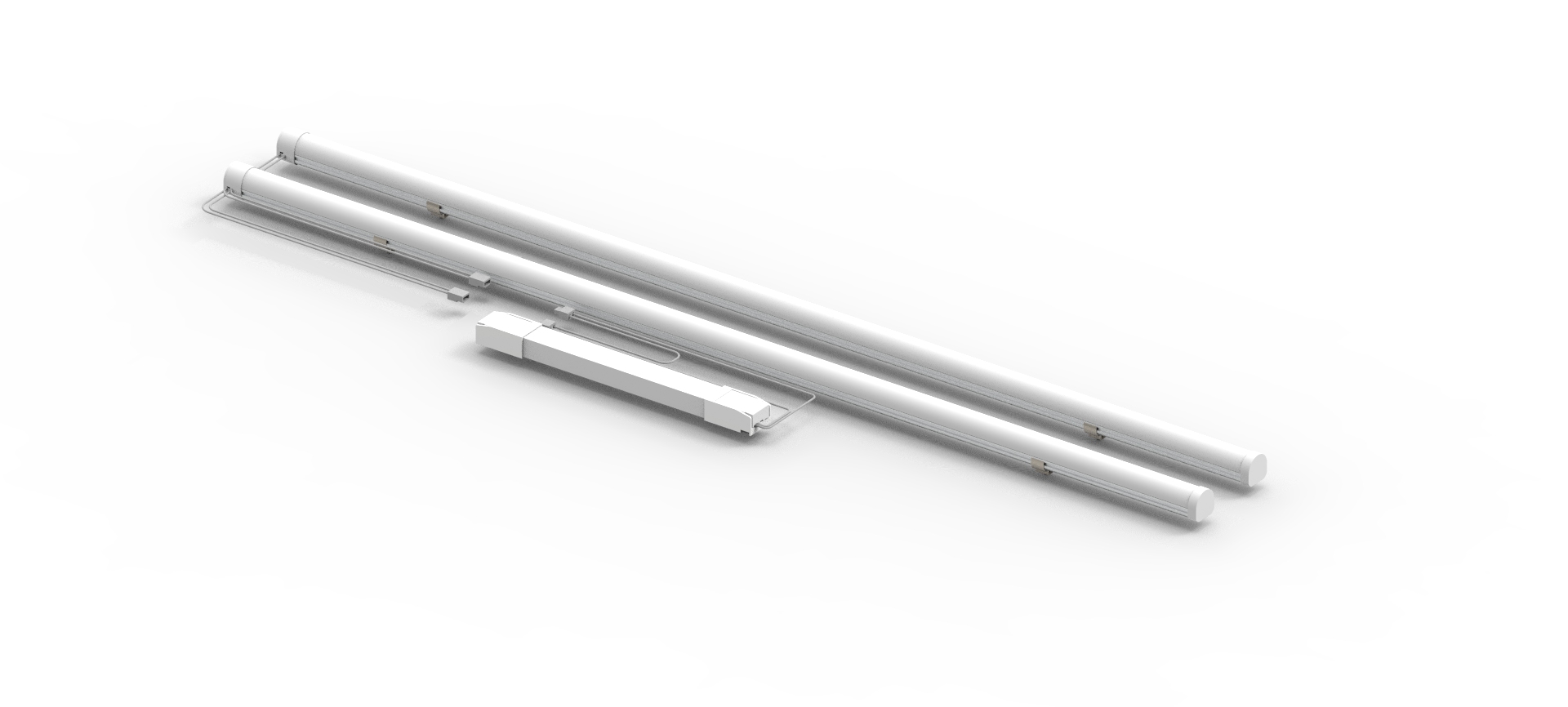

Twin Tube Model (1 Driver + 2 Tubes)

Model	Part No.	Power	Lumen	Size	Adjustable Options
600	TB12W060R-X2	12W x2 @400mA 12-20W x2	1900lm x2 @400mA 1900-3200lm x2	φ26x560 mm	400-700mA 12-20W x2 1900-3200lm x2
900	TB18W090R-X2	18W x2 @600mA 12-20W x2	2900lm x2 @600mA 1900-3200lm x2	φ26x860 mm	400-700mA 12-20W x2 1900-3200lm x2
1200	TB23W120R-X2	23W x2 @850mA 20-30W x2	3700lm x2 @850mA 3200-4800lm x2	φ26x1160 mm	700-1050mA 20-30W x2 3200-4800lm x2
1500	TB36W150R-X2	36W x2 @1200mA 33-42W x2	6000lm x2 @1200mA 5200-7000lm x2	φ26x1460 mm	1100-1400mA 33-42W x2 5200-7000lm x2

Triple (3-tube) and Quadra (4-tube) configurations are also available. Please contact Cyanlite for custom solutions and bulk pricing.

Mechanical Dimensions

- Compatible with standard driver mounting plates

- Patented end cap with integrated magnets and screw holes, fits Zhaga 30x21mm drivers from Tridonic, Philips, Osram, TCI, BOKE, and more.

Certifications

Installation Guide

Downloads

FITO Product Datasheet V1.5 [950Kb]

FITO Product Brochure V1.3 [1.2Mb]

FITO IP65 Tri-Proof Temperature Test Report [1.2Mb]
