Cyanlite HO330 Series Custom LED Panels Optimized for SAS330 Hook-Over Metal Ceiling Systems

Product Introduction & Powerful Customization Capability

Cyanlite HO330 LED panel range is professionally engineered to perfectly integrate with premium Hook-Over metal ceiling frameworks, also widely known as SAS330, C-Channel, C-Profile, C-Bandraster and Post-Cap ceiling systems. The lamp body fits seamlessly with metal ceiling tiles without extra mounting brackets, cutting on-site construction materials and labor workload to shorten overall project progress drastically.

Full-Spectrum Customization Service Tailored to Your Project Demands
Our core competitive strength lies in flexible one-stop bespoke solutions that adapt to diverse commercial space requirements: 1. Custom Dimensions: Beyond all standard HO330 sizes, we produce non-standard bespoke length & width panels to match special ceiling layout designs; 2. Custom Frame Colors: RAL9010 white as standard housing finish, all RAL color coatings (RAL7035 light grey, RAL9005 black, metallic tones etc.) available on request to unify ceiling visual tone; 3. Multi-Function Integrated Design: Combine lighting with aircon slot, integrated air vents, emergency power supply, DALI intelligent dimming, human body induction sensor and other composite functions in one single panel; 4. Custom Optical & Electrical Parameters: Adjust luminous flux, color temperature, anti-glare grade and power output according to local lighting compliance standards.

Core Product Advantages

- Exclusive mould development for Hook-Over metal ceiling structures, zero gap flush fit with all mainstream SAS330 ceiling tile specifications

- Self-contained hook clamping structure, no additional screws, hangers or auxiliary accessories required to reduce procurement costs

- Tool-free quick hanging installation, no complicated adjustment steps, greatly lowering construction labor expenses and project cycle

- Comprehensive standard size lineup covers mainstream hook-over ceiling tile dimensions used across European commercial construction projects

- Ultra-flexible customization support, accept all non-standard bespoke sizes, frame colors and multi-functional composite modules

- Reliable professional LED lighting manufacturer, long-term ODM partner for top European lighting brands, stable supply chain and low cooperation risk

Standard Technical Specifications

• Regular available dimensions (mm): 300x1200, 300x1350, 300x1400, 312.5x1250, 400x1800, 450x1350, 600x1200, custom non-standard sizes supported
• Default frame finish RAL9010 to match standard SAS ceiling panels; full RAL color customization service provided
• Maximum system luminous efficiency reaches 120 lm/W for energy-saving commercial lighting layout
• Meets EN 12464-1 and LG7 office lighting standards; optional micro prismatic diffuser achieves UGR＜19 ultra-low glare
• Multiple color temperature selections: 3000K warm white, 3500K neutral warm, 4000K natural white, 5000K cool white, 6000K daylight white
• 5-year full warranty covering light source, driver and customized integrated functional modules
• Diversified dimming control solutions: 0-10V analog dimming, DALI digital intelligent dimming, step switch dimming
• Optional built-in emergency backup module, can be combined with air vents / air conditioning outlets for integrated ceiling panels

Compatible Global Hook-Over Ceiling Brands & Models

The compatible brand list covers mainstream metal ceiling manufacturers worldwide, more customized matching schemes available upon consultation

Standard Performance Parameter Table (All Custom Dimensions & Functions Are Acceptable)

All luminous output, power, outer size and integrated functions can be adjusted to match your project design requirements

Real Customized Product Case: 450x450 SAS330 Panel with RAL7035 Light Grey Frame

This bespoke lamp is tailored for special 450x450 hook-over ceiling layout, finished with RAL7035 light grey housing to match the whole metal ceiling decorative tone; integrated air vent and anti-glare diffuser options are available for this custom model.

Light Distribution & Glare Control Performance

Standard opal diffuser delivers UGR22 glare level; upgraded micro prismatic diffuser achieves UGR＜19 low-glare lighting effect, suitable for office, medical and high-end commercial spaces.

Simple & Fast Installation Method

Built-in hook clamping structure enables direct hanging on SAS330 keel without auxiliary fasteners; we can also customize side hanging brackets for special ceiling keel structures upon request.

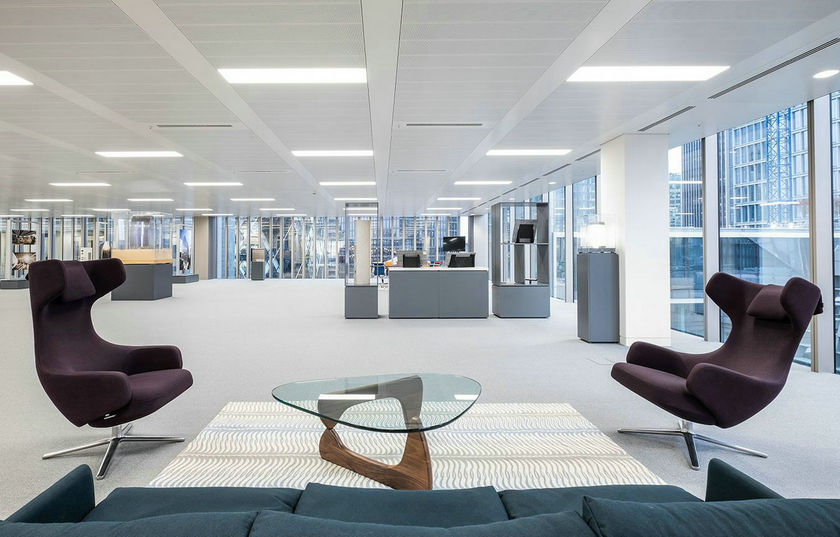

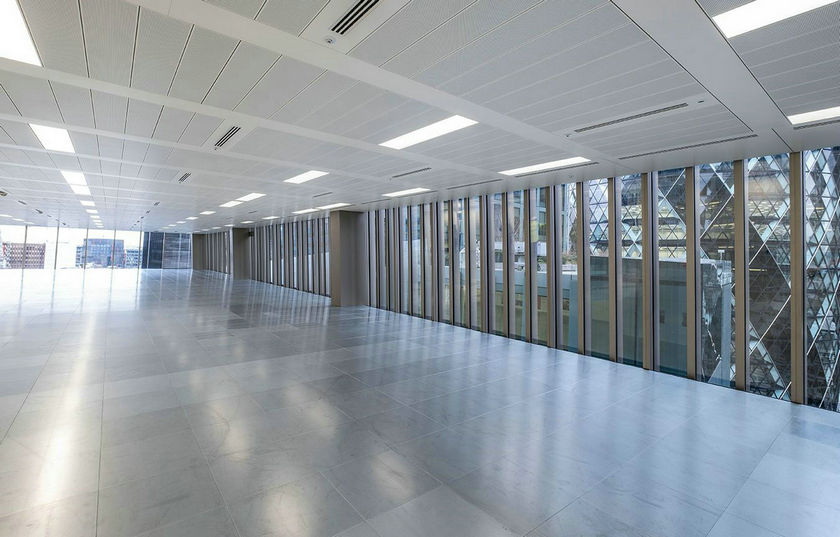

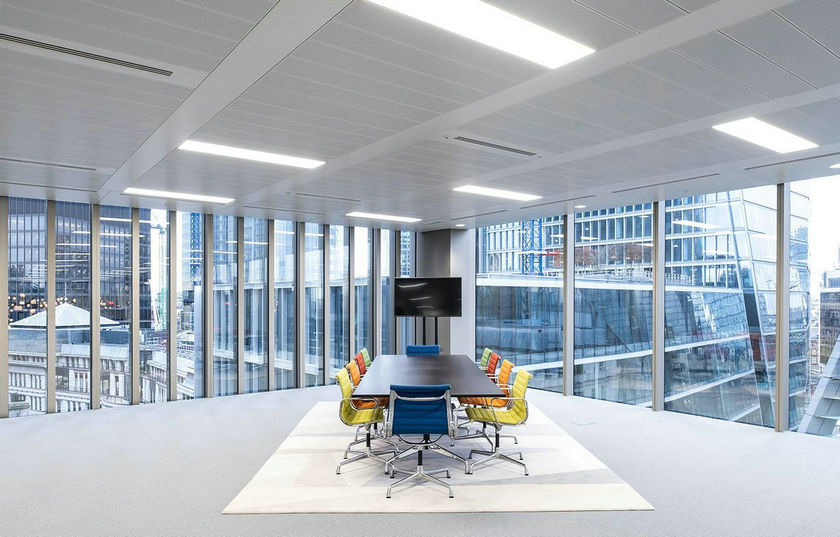

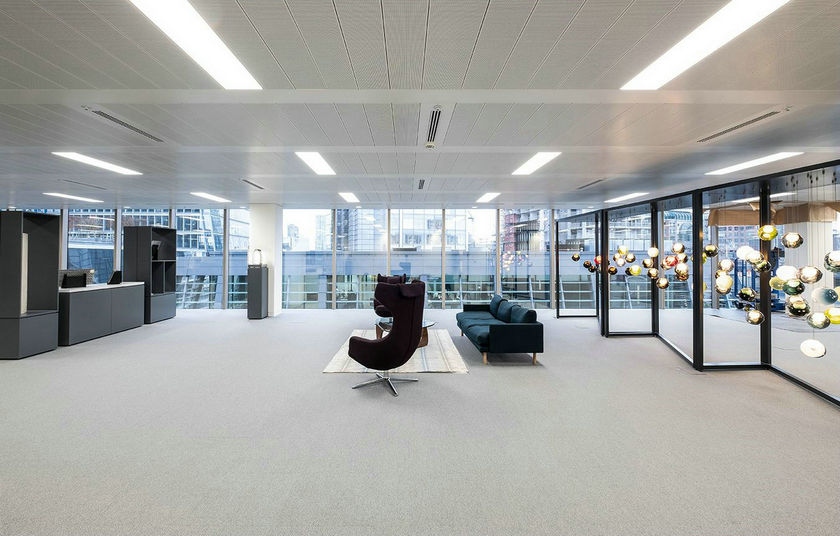

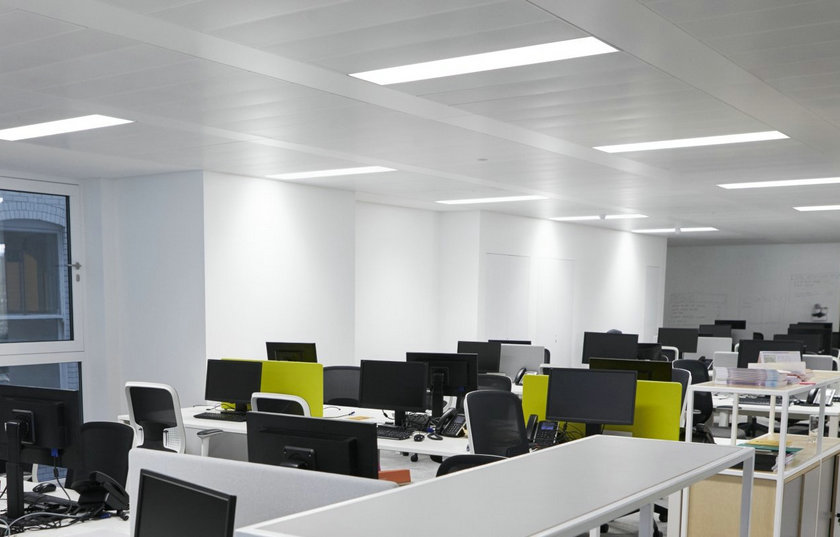

Completed Project Reference Case

View Full SAS330 Bandraster Metal Ceiling Lighting Retrofit Case Study

Global Product Certifications

Document Download Library

Download HO330 Hook-Over Ceiling LED Panel Datasheet, Installation Guide & Photometric Test Files
