Health Care COI<3.3

  • - COI<3.3 for health care and medical applications
  • - EN 12464-1& LG7 Compliant, UGR<19 Optional
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • Product description:COI Compliant LED Panel Light offers high color rendering. Typical values of Ra and R9 are tested as 96 and 98. Cyanosis Observation Index (COI) is less than 3.3, which is fully compliant to AS1680.2.
  • Inquiry

Cyanlite LED panel light COI compliant series for health care and medical applications

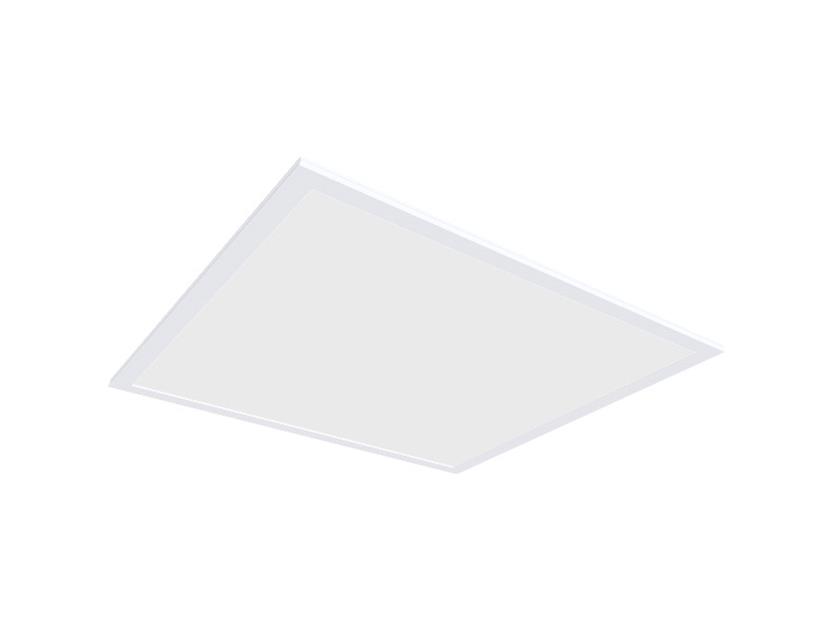

Cyanlite COI Compliant LED Panel Light, COI<3.3

Cyanlite COI Compliant LED Panel Light, COI<3.3

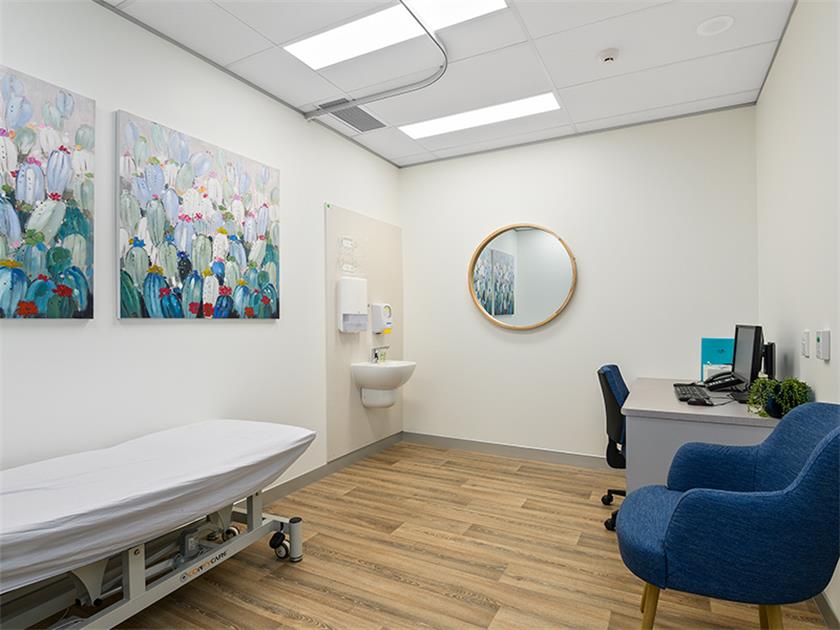

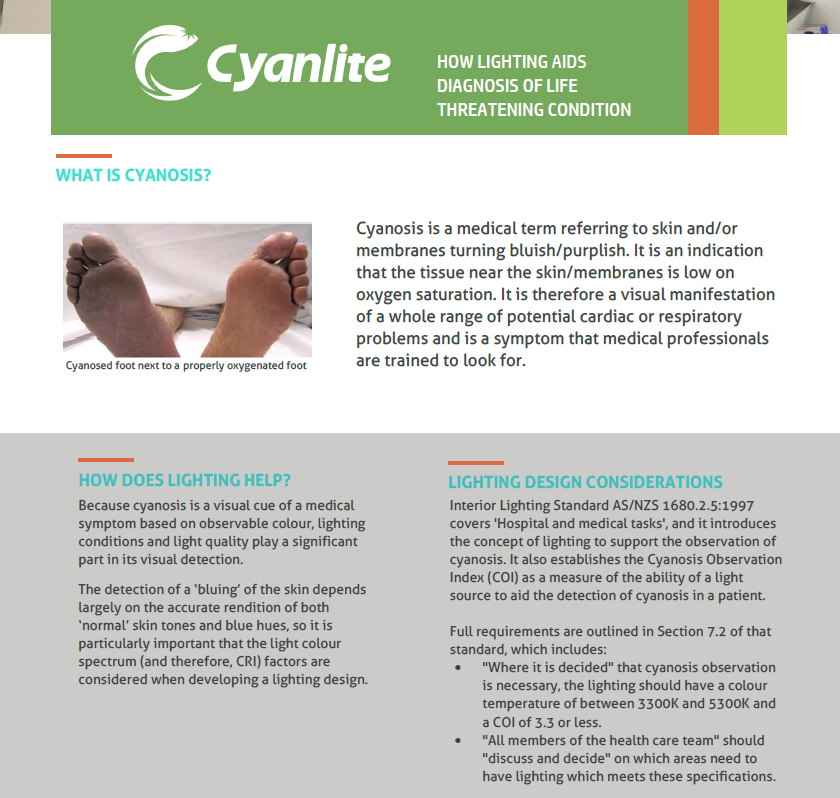

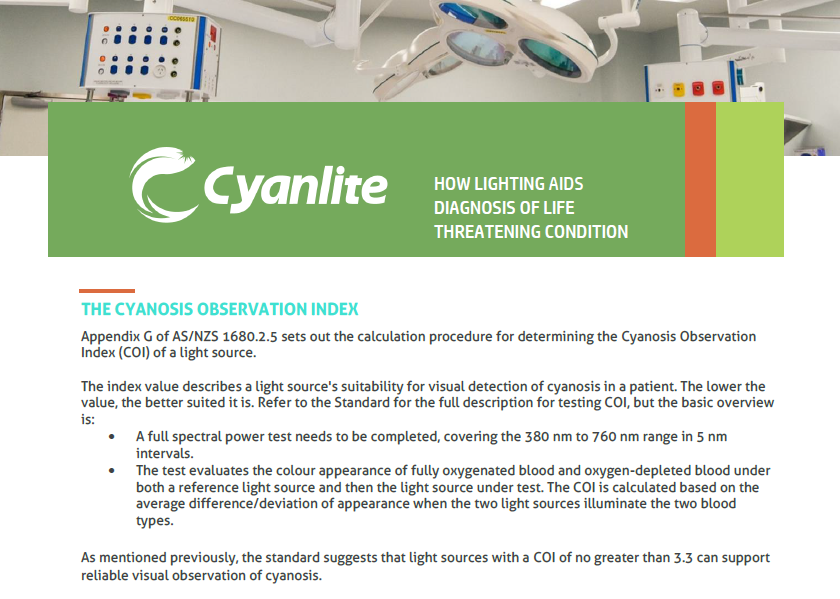

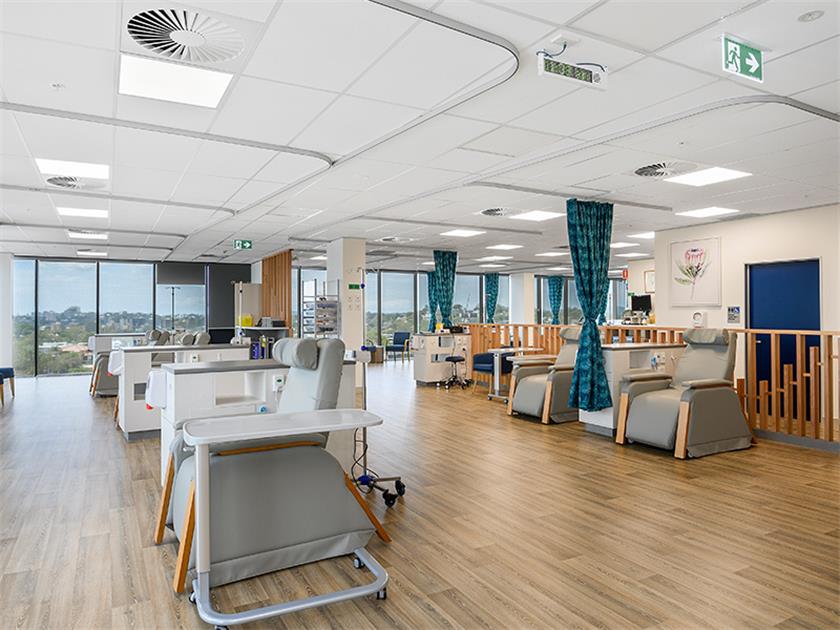

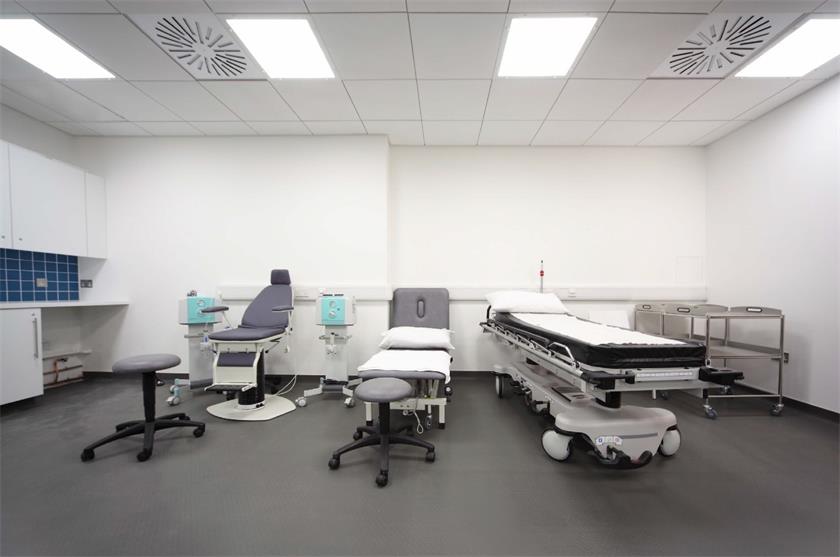

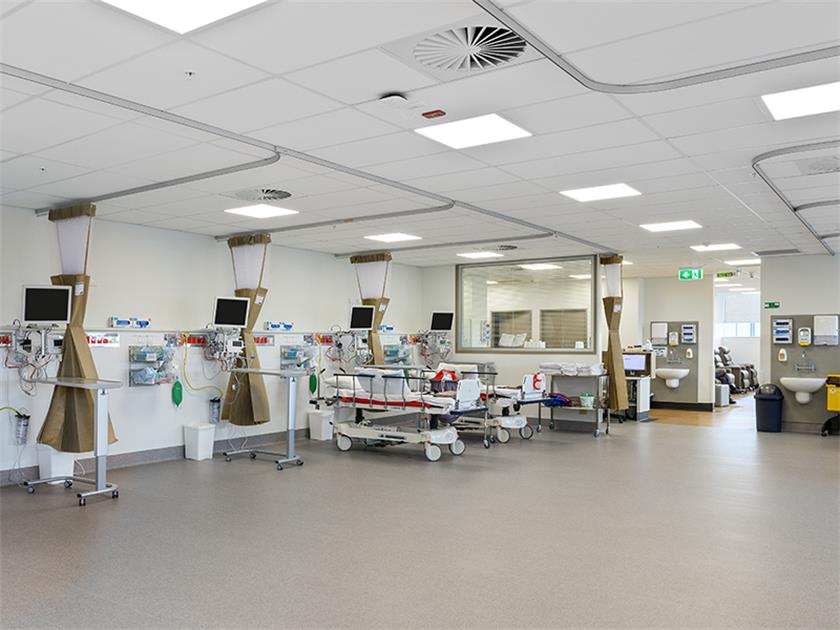

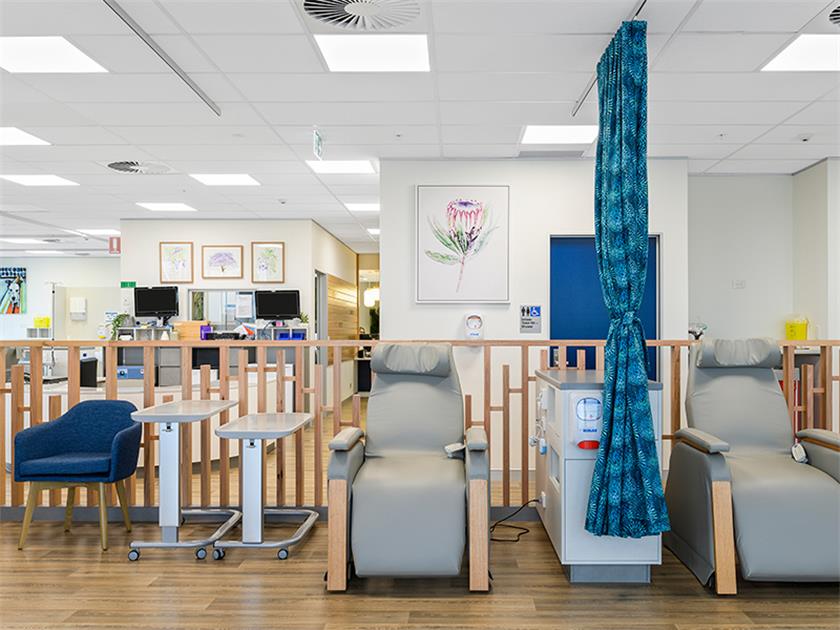

The Cyanlite™ COI compliant LED panel light offers uniform color temperature 4000K ±300K and high color rendering. Typical values of Ra and R9 are tested as 96 and 98. Cyanosis Observation Index (COI) is less than 3.3, which is fully compliant to AS1680.2.5:1997 and significant for medical staff to reliably detect cyanosis through clinical observation. The panel light is equipped with SAA approved driver and with Australian plug attached for safe and easy installation. The product family is especially designed for medical applications within hospital where requires close color rendition of skin for diagnosing cyanosis.

Advantages

-          High color rendering Ra>90, R9>90, uniform and healthy light, specifically designed for medical and clinical applications.

-          SAA approved driver with Australian plug included

-          Easy and fast installation, tool-less installation, saving installation cost

-          Flexible and customization oriented, bespoke sizes are welcome

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   Standard sizes (mm): 600x600, 300x1200, 600x1200

l   RAL9016 as standard, other RAL colors available on request

l   System Efficiency upto 90 lm/W at Ra>90

l   EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

Specifications

Model

Part Number

Dimension(mm)

Lumen Output

System Power

600 x 600

PS40W060-940

595x595

3600 lm

40W

300 x 1200

PS40W312-940

295x1195

3600 lm

40W

600 x 1200

PS60W612-940

595x1195

5400 lm

60 W


- Light Distribution


- UGR22 with Opalic diffuser                                        - UGR19 with Micro Prismatic diffuser

Certifications


• Downloads


Cyanlite LED panel light COI<3.3 Series for medical applications datasheet/installation manual/photometric data download
